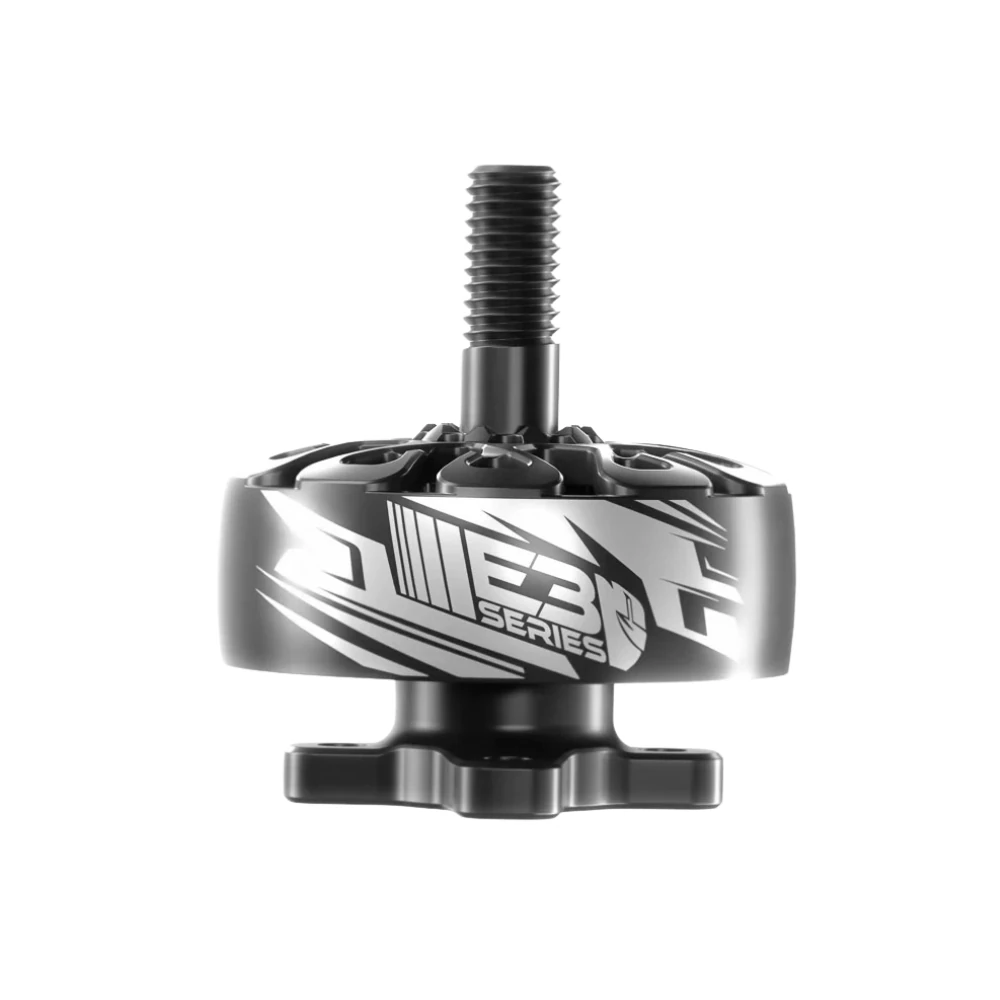

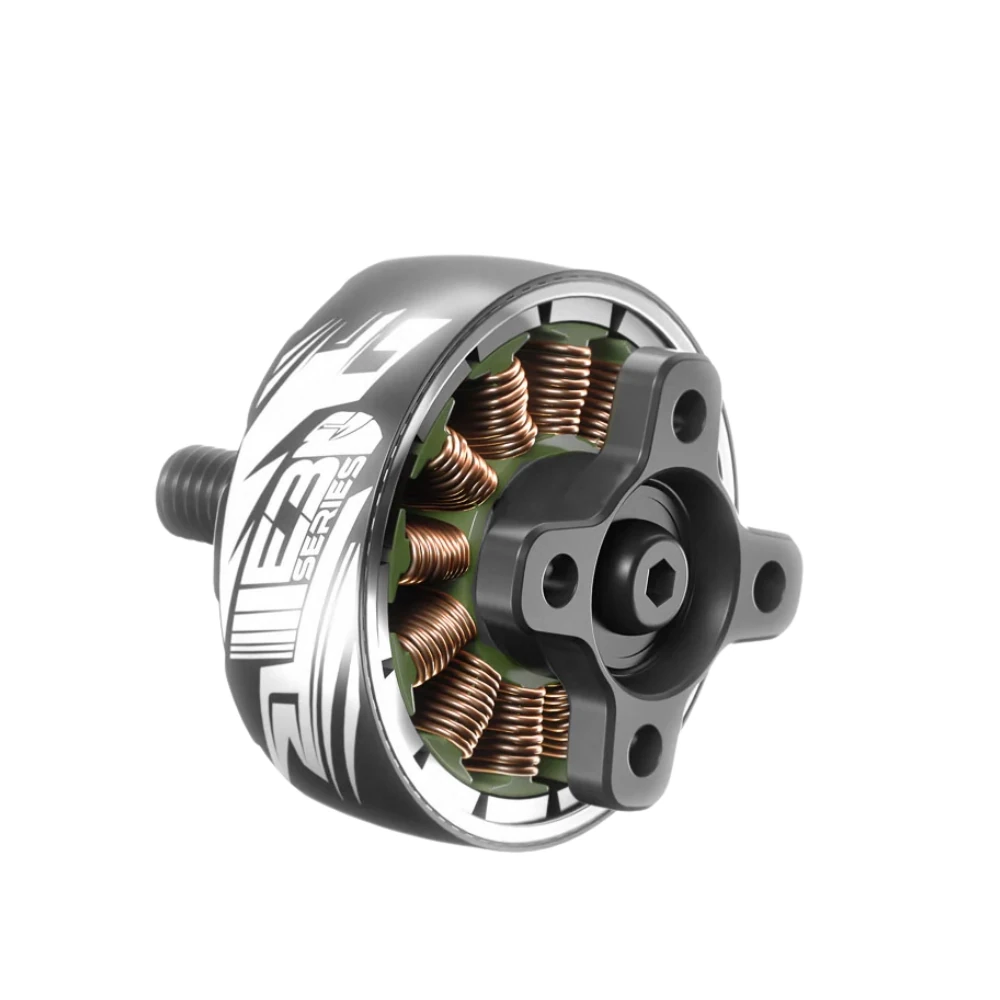

1PC / 4PCS EMAX ECOIII 2306 1700KV 1900KV 3-6S / 2400KV 3-4S Brushless Motor 4mm Shaft for FPV Racing Drones
1 in stock
- SKU : 2030274
- Condition : New
- Brand : EMAX
- Processing Time : Ships Within 24-48 Hours
- Return Policy : 30-day refund or replacement
Price range: $25.99 through $98.99
Specification:
Brand: EMAX
Model: ECOIII 2306
KV: 1700KV / 1900KV / 2400KV (Optional)
|
Model |
Specification |
|
ECOIII 2306 1700KV |
KV: 1700KV Idle Current(10V):1.1A Motor Dimensions: φ28.9*31.8mm Internal Resistance: 79mΩ Framework: 12N14P No.of cells: 3-6S Bearing S Propeller: 5′-5.5′ Lead: 20#AWG 120mm Peak Current(6S): 36A Max.Power(6S): 970W Weight: 29.4g(W/O Silicone Wire) |
|
ECOIII 2306 1900KV |
KV: 1900KV Idle Current(10V): 1.3A Motor Dimensions: φ28.9*31.8mm Internal Resistance: 66mΩ Framework: 12N14P No.of cells: 3-6S Bearing S Propeller: 5′ Lead: 20#AWG 120mm Peak Current(6S):46A Max.Power(6S): 1160W Weight: 29.4g(W/O Silicone Wire) |
|
ECOIII 2306 2400KV |
KV: 2400KV Idle Current(10V): 1.7A Motor Dimensions: φ28.9*31.8mm Internal Resistance: 47mΩ Framework: 12N14P No.of cells: 3-4S Bearing S Propeller: 5′-5.5′ Lead: 20#AWG 120mm Peak Current(4S): 43A Max.Power(4S): 720W Weight: 29.5g(W/O Silicone Wire) |
Feature:
– G1 level rolling element Precision bearing
– Steel shaft
– Al 7075 Anodizing
– M3(16*16mm) hole pattern
– Single strand winding
– 120mm 20 AWG silicone wire

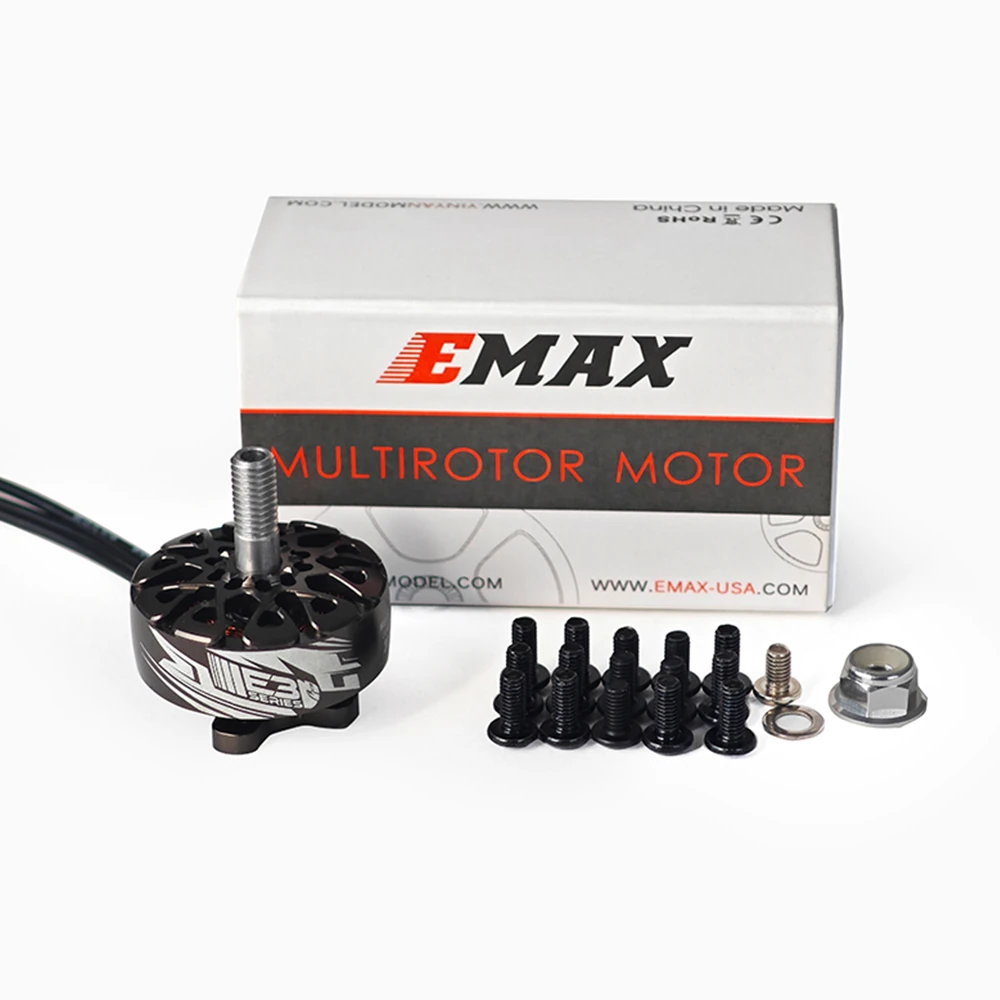

Package Included:
1x EMAX ECOIII 2306 FPV Brushless Motor
5x M3*8 Screw
5x M3*7 Screw
5x M3*6 Screw
1x Aluminum M5 Nylock Nut
1x Washer and Screw for Shaft
OR

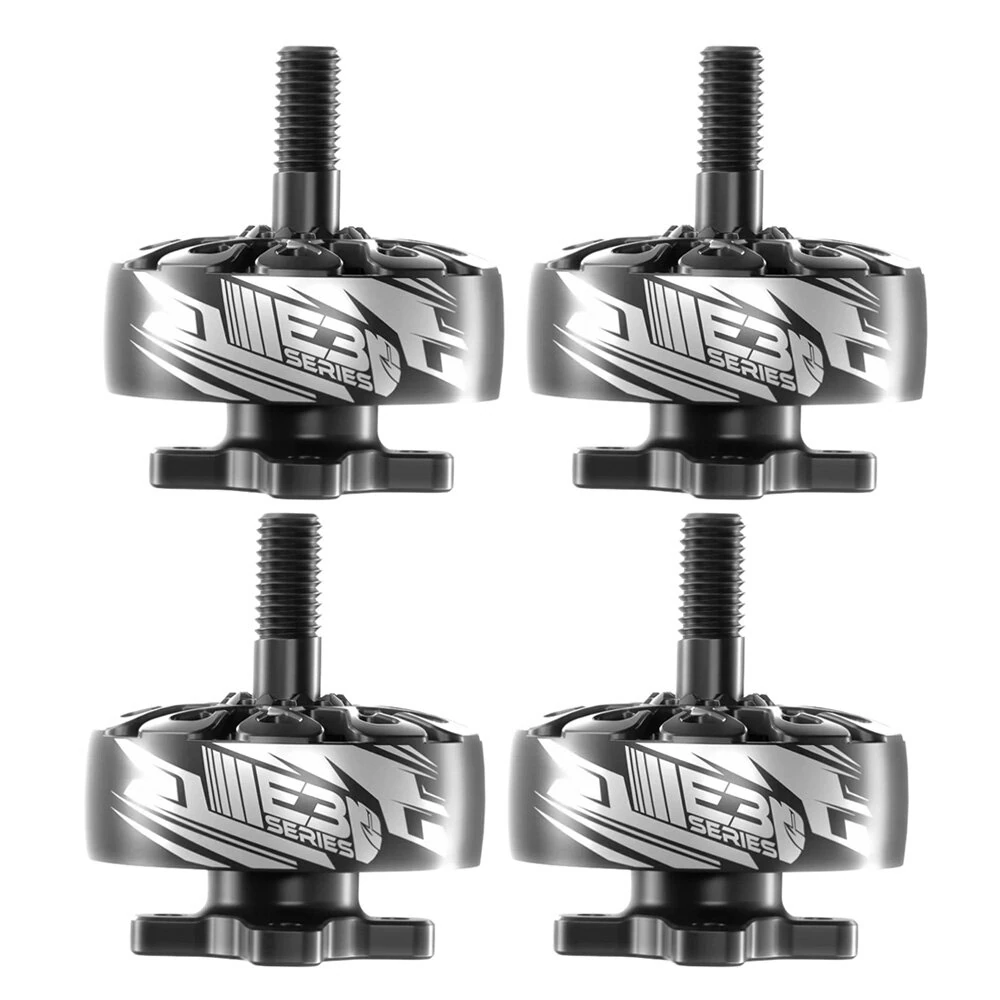

4x EMAX ECOIII 2306 FPV Brushless Motor
20x M3*8 Screw
20x M3*7 Screw
20x M3*6 Screw
4x Aluminum M5 Nylock Nut
4x Washer and Screw for Shaft
