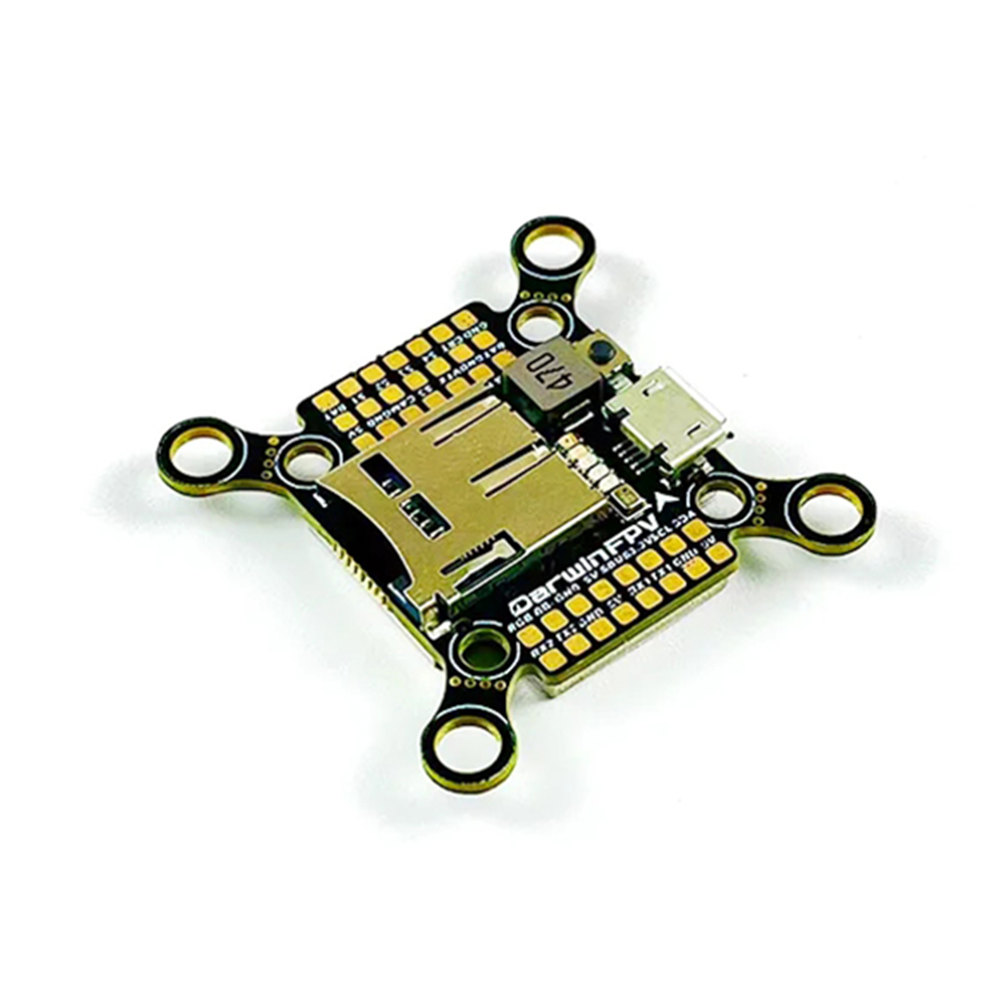

20x20mm 30.5×30.5mm DarwinFPV F411 F4 Flight Controller Built-in OSD 5V BEC Output for CineApe25 RC Drone FPV Racing

Specification:

Brand: DarwinFPV

Model: F411

Item Name: F4 Flight Controller

MCU: STM32F411
Gyro: MPU6500
OSD: AT7456E
Black box: built-in SD Card slot
Firmware: DARWINF411
BEC output: 5V
Input Voltage: 3-6S LIPO

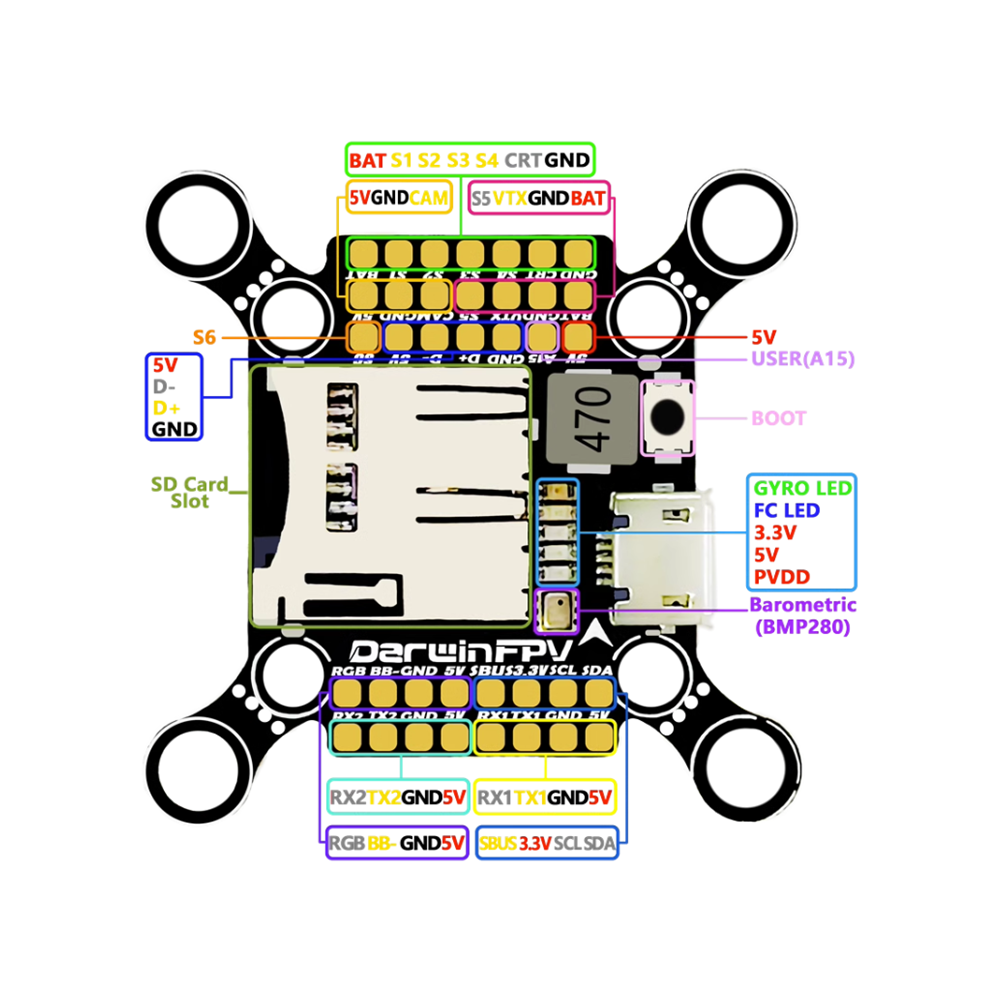

Reserved Connector: 1x SBUS(RX1 inverter), 2x Uarts(1,2）, 2x Softserial, 1x I2C, 1x RGB, 1x Buzzer, 1x USER(A15), 1x USB
Pcb S x 37mm
Mounting H x 20mm, 30.5mm x 30.5mm

Attention!!!

Because the black box function of the target firmware ‘DARWINF411’ is currently not compatible with Btaflight 4.3.0 and 4.3.1 (the black box function is expected to be added to the official version 4.3.2)

If you need to use the black box urgently, please upgrade to the 4.4.0 development version or downgrade to 4.3.0_RC3 and below firmware version.

Package Included:

1x Flight Controller
