20x20mm HGLRC 60A 4IN1 MINI 8S 32-bit V1 ESC BL32 / AM32 Built-in QF32MTF4AK8U7 MCU for RC FPV Racing Drones
1 in stock
- SKU : 2048618
- Condition : New
- Brand : HGLRC
- Processing Time : Ships Within 24-48 Hours
- Return Policy : 30-day refund or replacement
$72.99 $91.99
Specification:
Brand: HGLRC
Product Name: 60A 4IN1 MINI 8S 32-bit V1 ESC
Input Voltage: 3-8S
Continuous Current: 60A
Peak Current: 65A (for 10 seconds)
Firmware: BL32/AM32(Optional)
MCU: QF32MTF4AK8U7
Telemetry: Supported

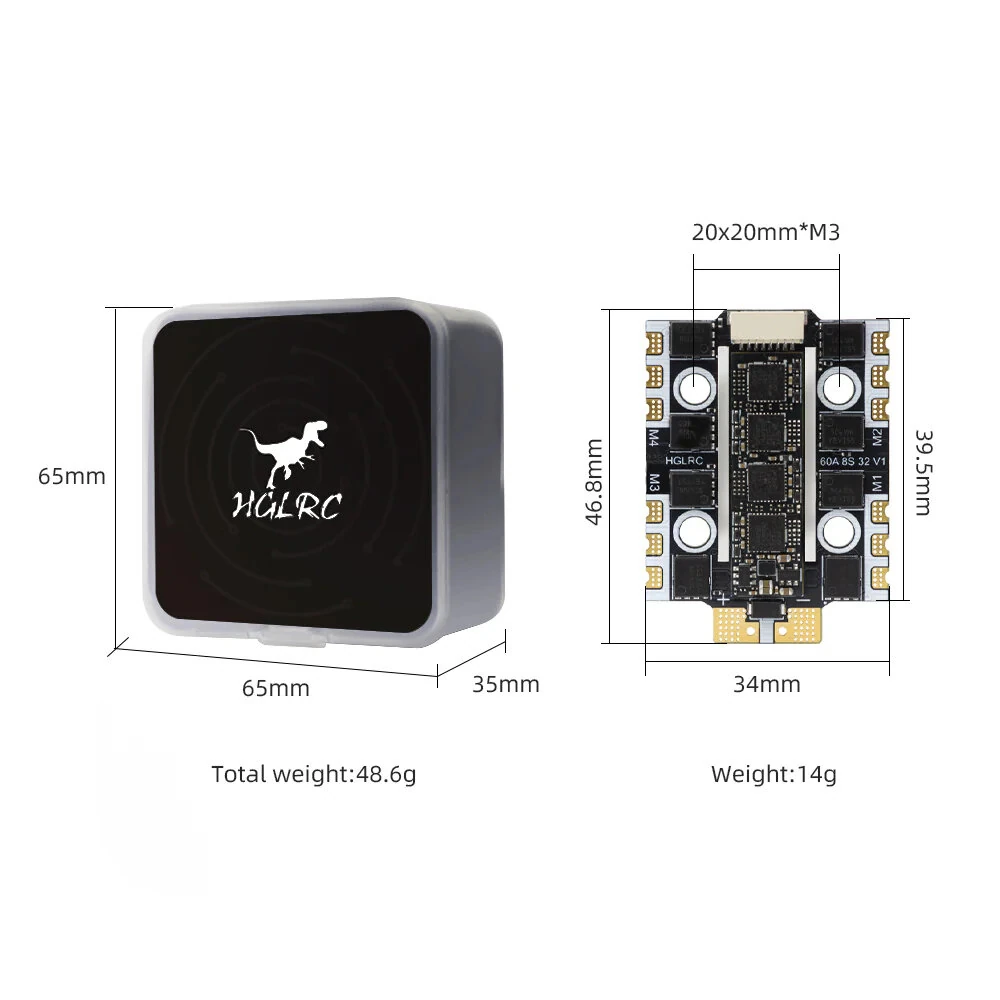

D (L) x 34mm (W) x 6.5mm (H)
Mounting Hole Pattern: 20x20mm, M3
Supported Protocols: DShot300 / DShot600 / Oneshot / PWM
Weight: 14g
Feature:
– 8S high-voltage wide input range supports 3-8s input, compatible with most drone types.
– 3 pcs high-current copper bars can keep stable with efficient heat dissipation.
– 20 x 20mm Mini size is compact and lightweight for drone builds.
– Compatible with BL32 and AM32 firmware (shipped with BL32).
– 6+4 Layer PCB provides efficient anti-interference performance.

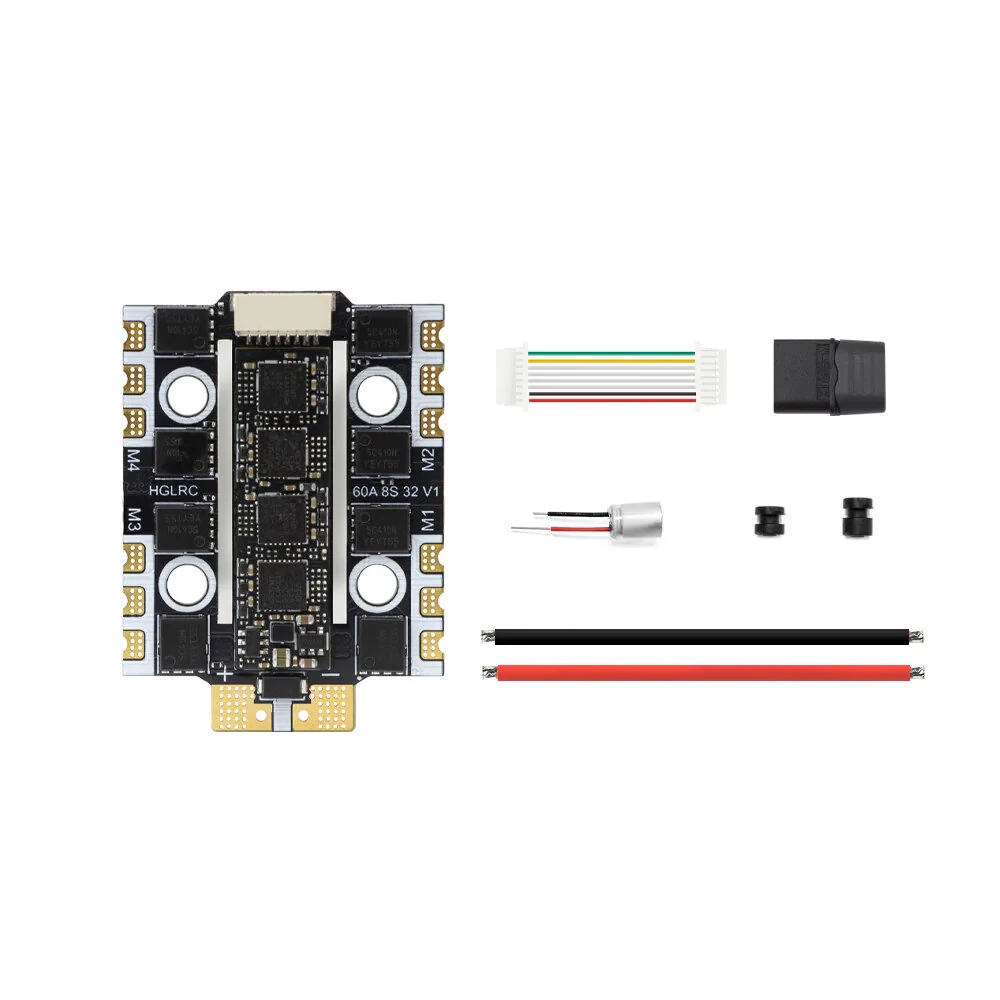

Package Included:
1 x 60A 4IN1 MINI 8S 32-bit V1 ESC
