Supported. Used to connect with the SpeedyBee App for flight controller and ESC parameter configuration. Please make sure the MSP switch on UART 4 is turned on and set to a baud rate of 115200, otherwise Bluetooth functionality will not be available.
WiFi
NOT Supported
Wireless FC Firmware Flashing
NOT Supported
Wireless Blackbox Dwonload & Analysis
NOT Supported
Power Input
3-6S LiPo
Mounting
20 x 20mm 3.5mm hole size，Compatible with M2 and M3 screws/Silicone grommets
Dimension
32mm(L) x 35mm(W) x 14.2mm(H)
Weight
13.5g
ProductName

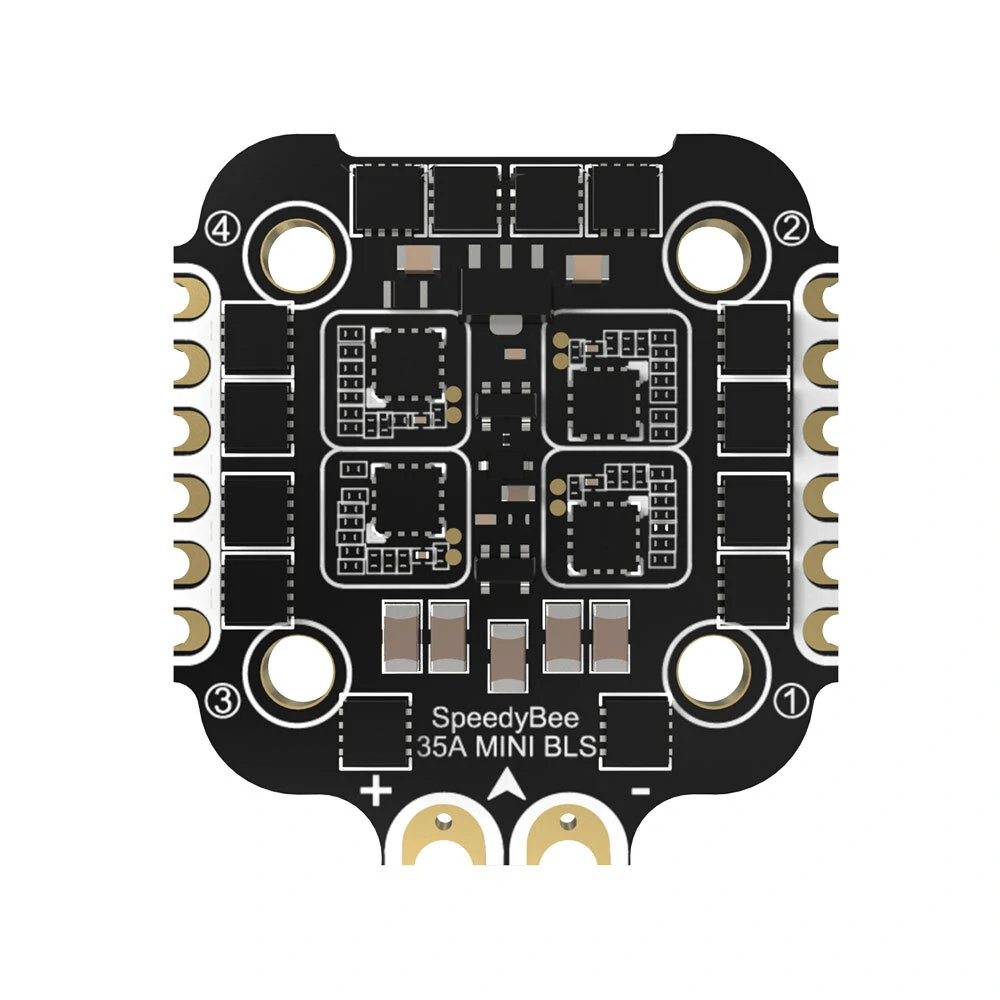

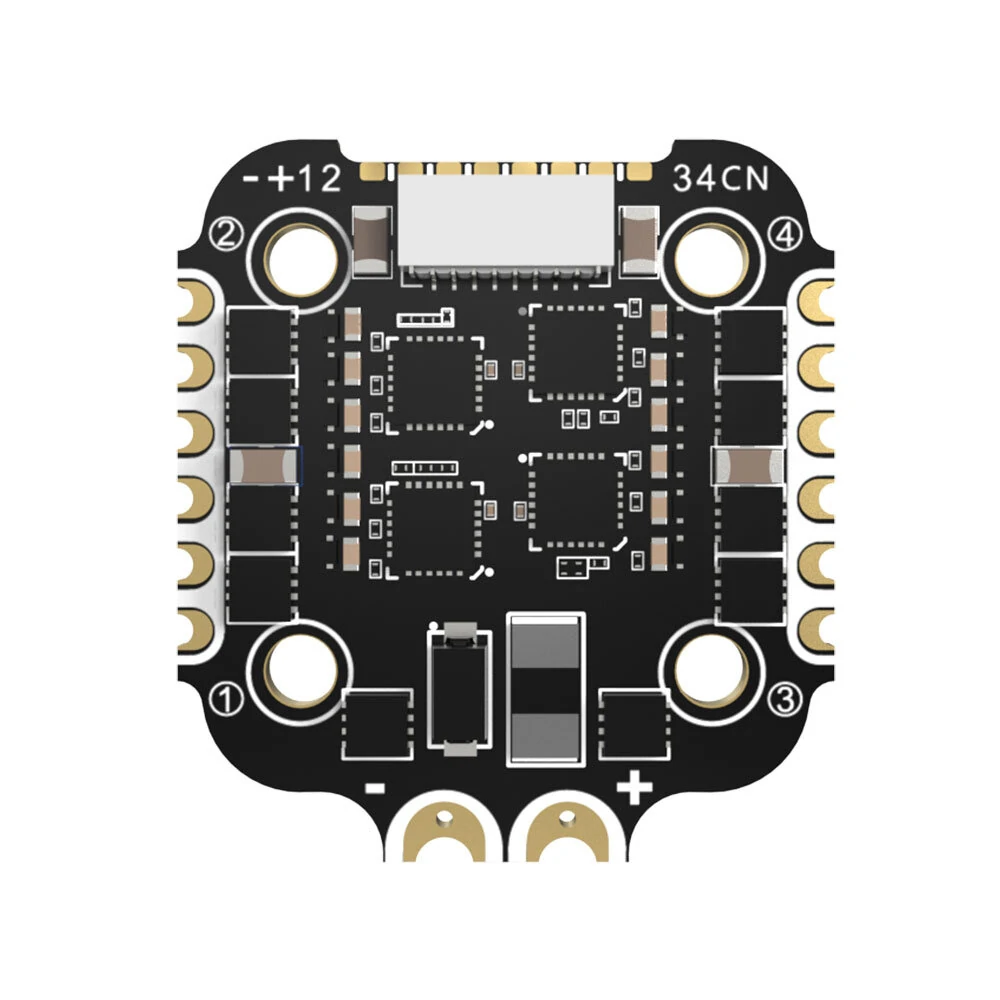

SpeedyBee 35A BLHeli_S Mini V2 4-in-1 ESC
Firmware
BLHeli_S J-H-40
Continuous Current
35A * 4
Burst Current
45A(5seconds)
ESC Protocol
DSHOT300/600
Power Input
3-6S LiPo
Power Output
VBAT(Battery voltage, used to power the flight controller)
Current Sensor
Support (Scale=250 Offset=-500)
Mounting
20x20mm ∅3.5mm hole size，compatible with M2 and M3 screws/Silicone grommets.
