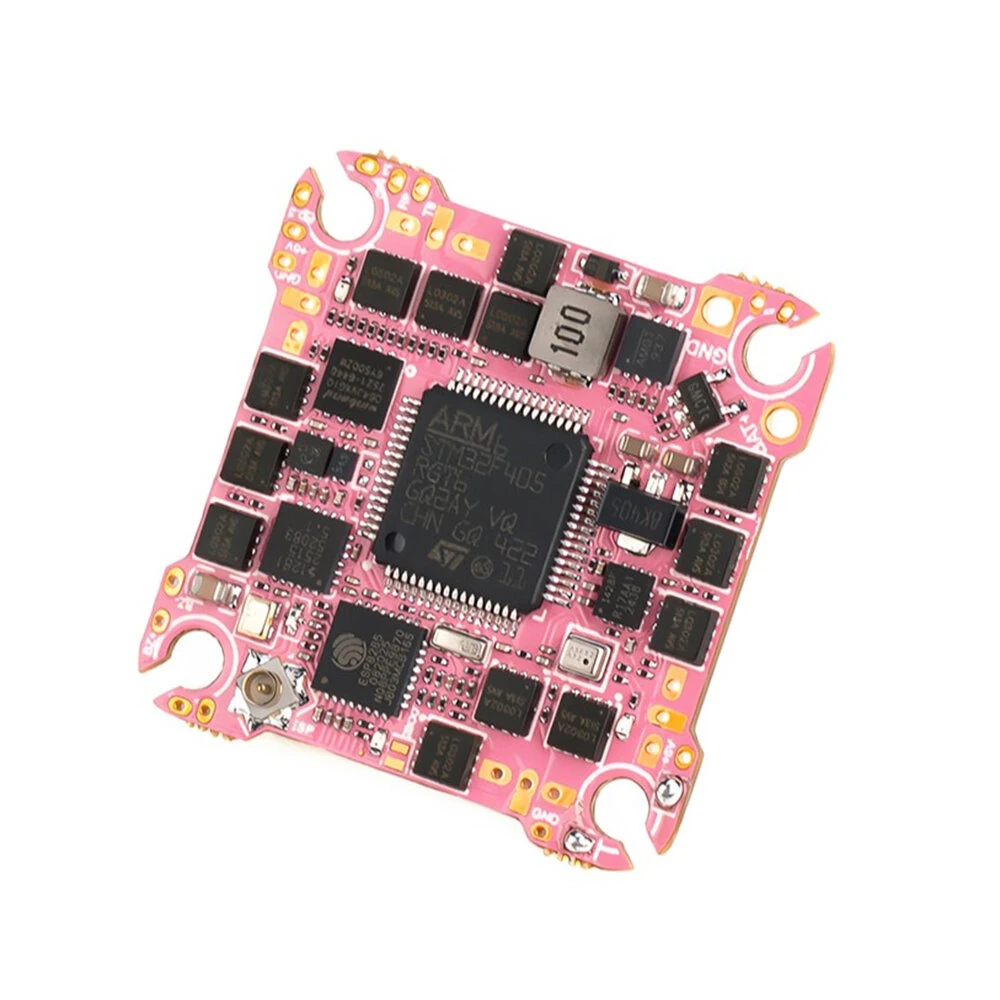

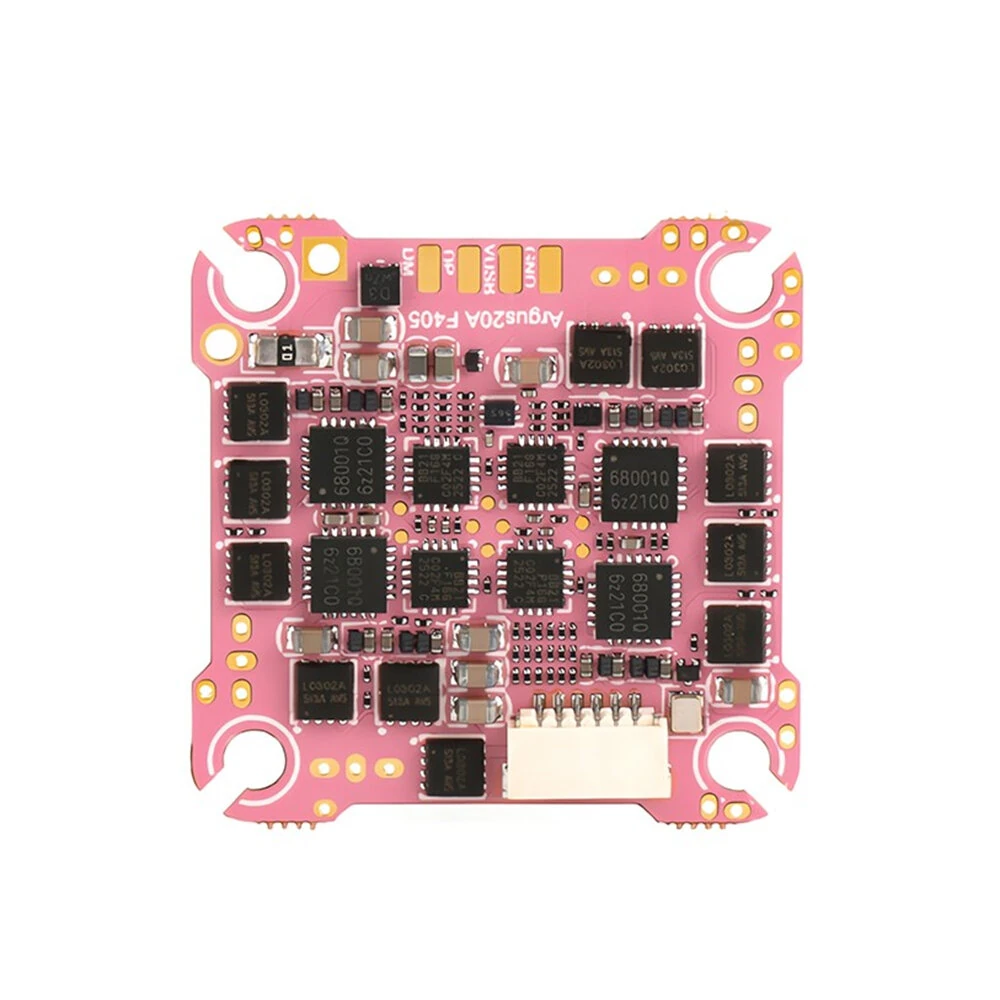

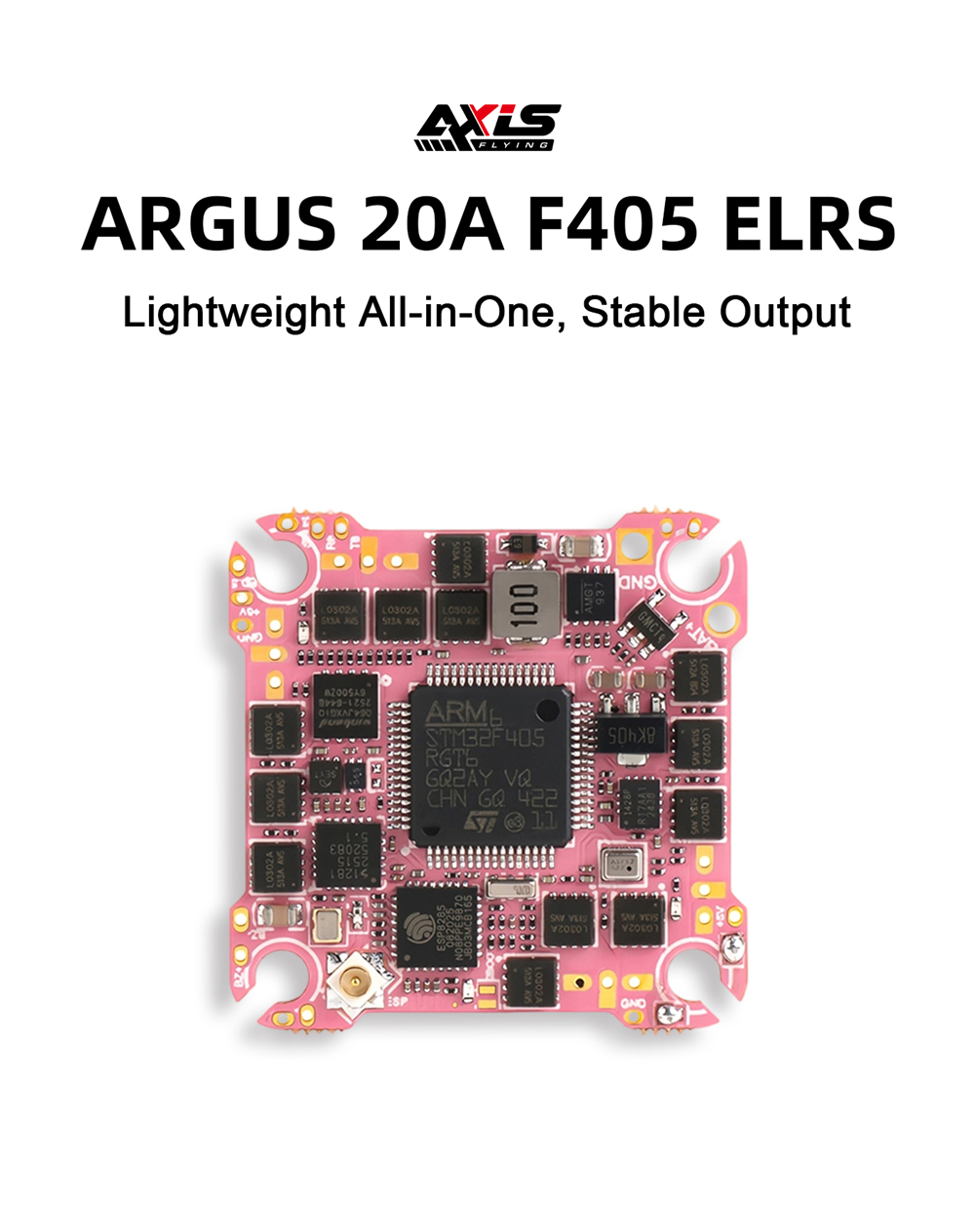

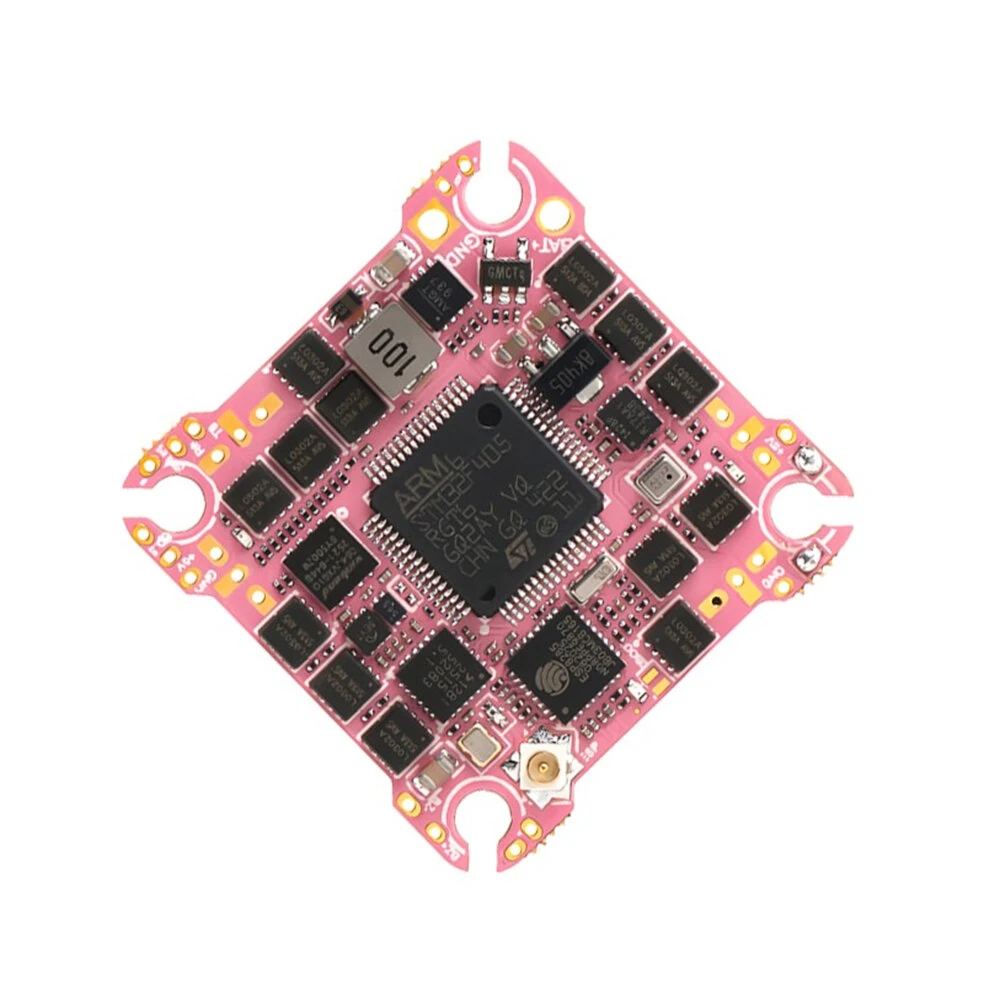

25.5*25.5mm Axisflying ARGUS F405 ELRS AIO STM32F405 Filght Controller 20A 3-4S ESC Build-in ELRS 2.4G for DIY RC FPV Racing Drone

Product Feature:
– 20A continuous current ESCs, meets powerful thrust demands.
– 4 UART serial ports, supports connection of various peripherals.
– Integrated ELRS receiver for greater convenience.
– Extremely lightweight – only 6g.

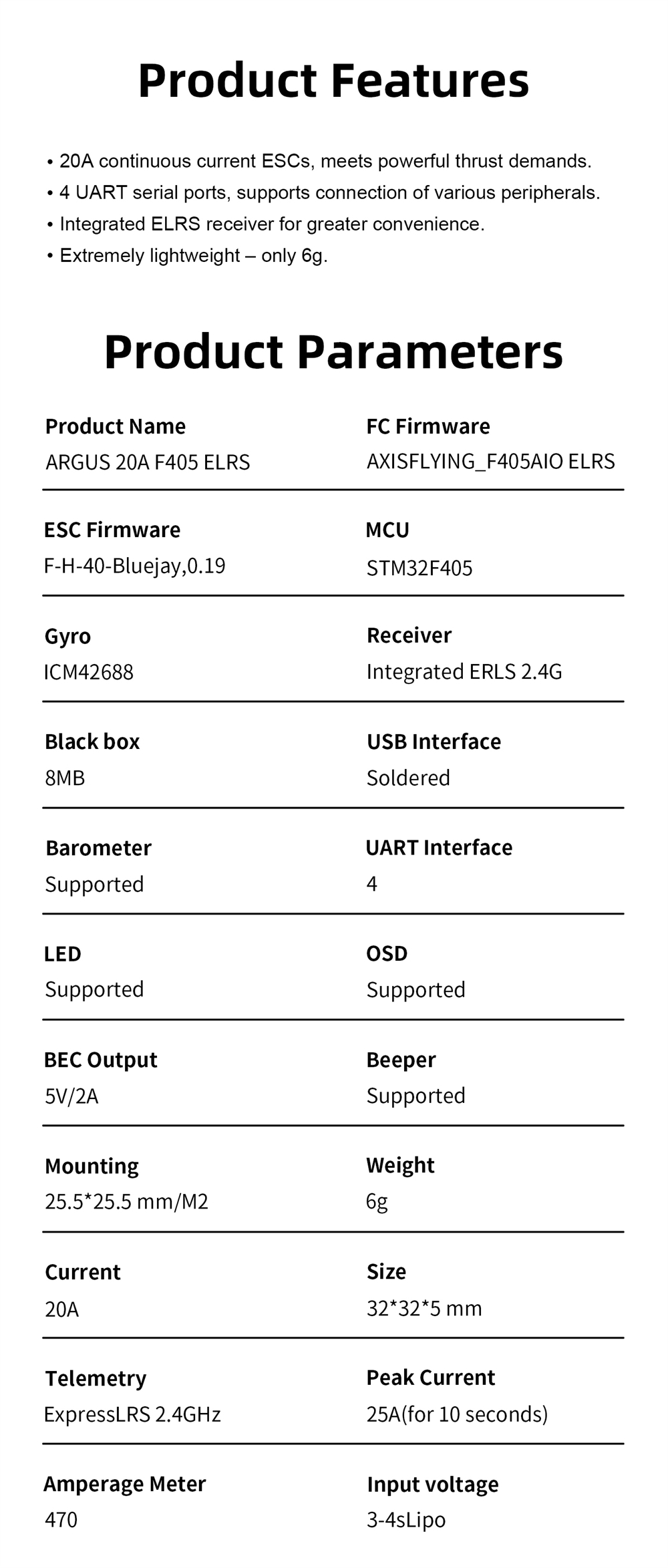

Specification:

Brand: Axisflying

Model: ARGUS

Product Name: F405 20A ELRS AIO

FC Firmware: AXISFLYING_F405AIO ELRS
ESC Firmware: F-H-40-Bluejay, 0.19
MCU: STM32F405
Gyro: ICM42688
Receiver: Integrated ERLS 2.4G
Black box: 8MB
USB Interface: Soldered
Barometer: Supported
UART Interface: 4
LED: Supported
OSD: Supported
BEC Output: 5V/2A
Beeper: Supported

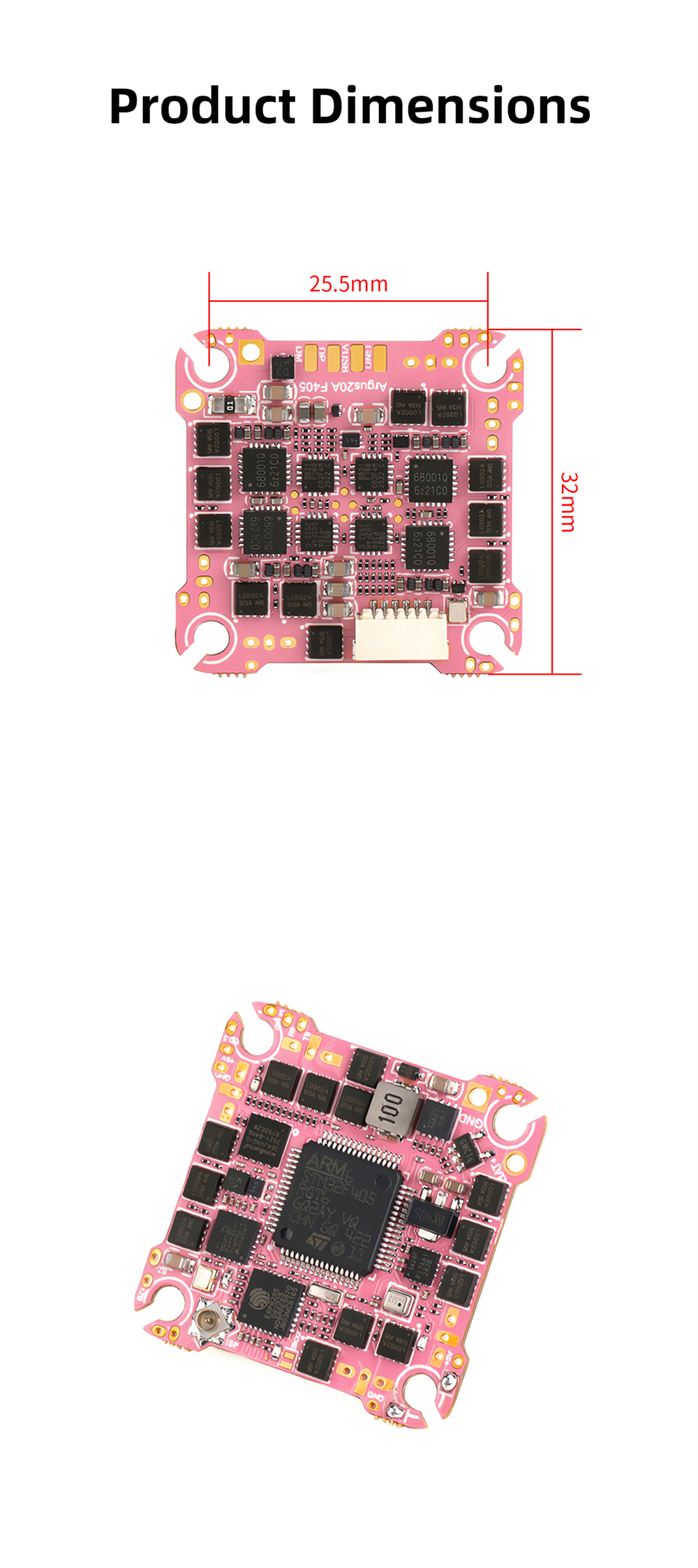

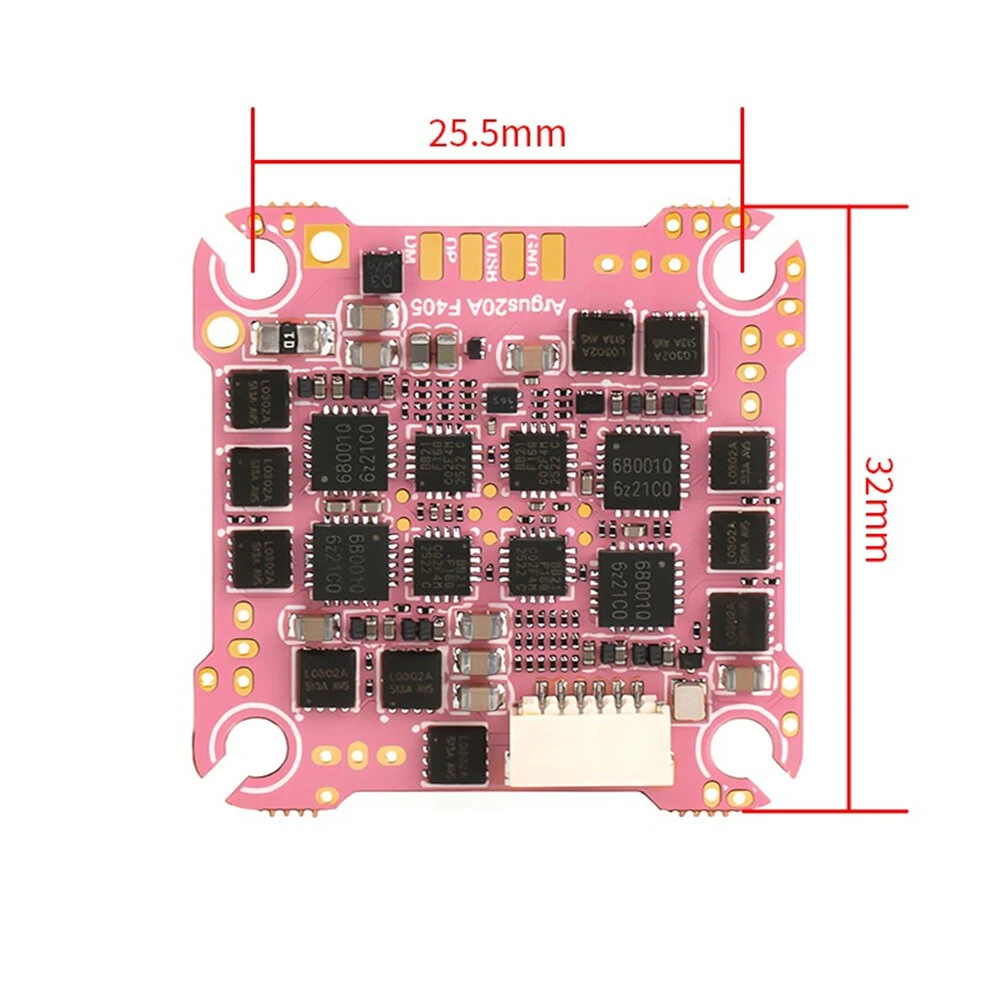

Mounting: 25.5*25.5 mm/M2

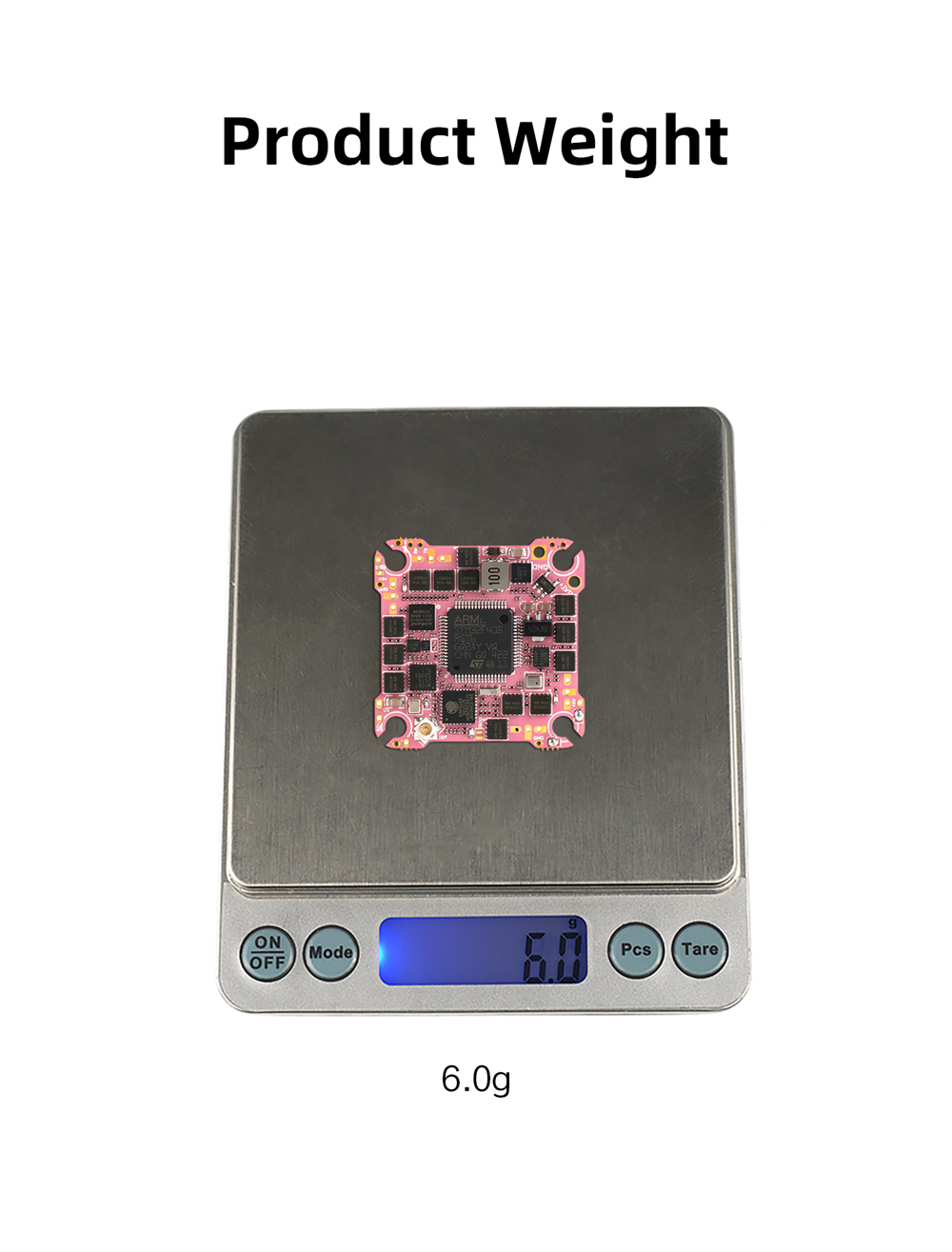

Weight: 6g
Current: 20A
Size: 32325 mm
Telemetry: ExpressLRS 2.4GHz
Peak Current: 25A (for 10 seconds)
Amperage Meter: 470
Input Voltage: 3-4S Lipo

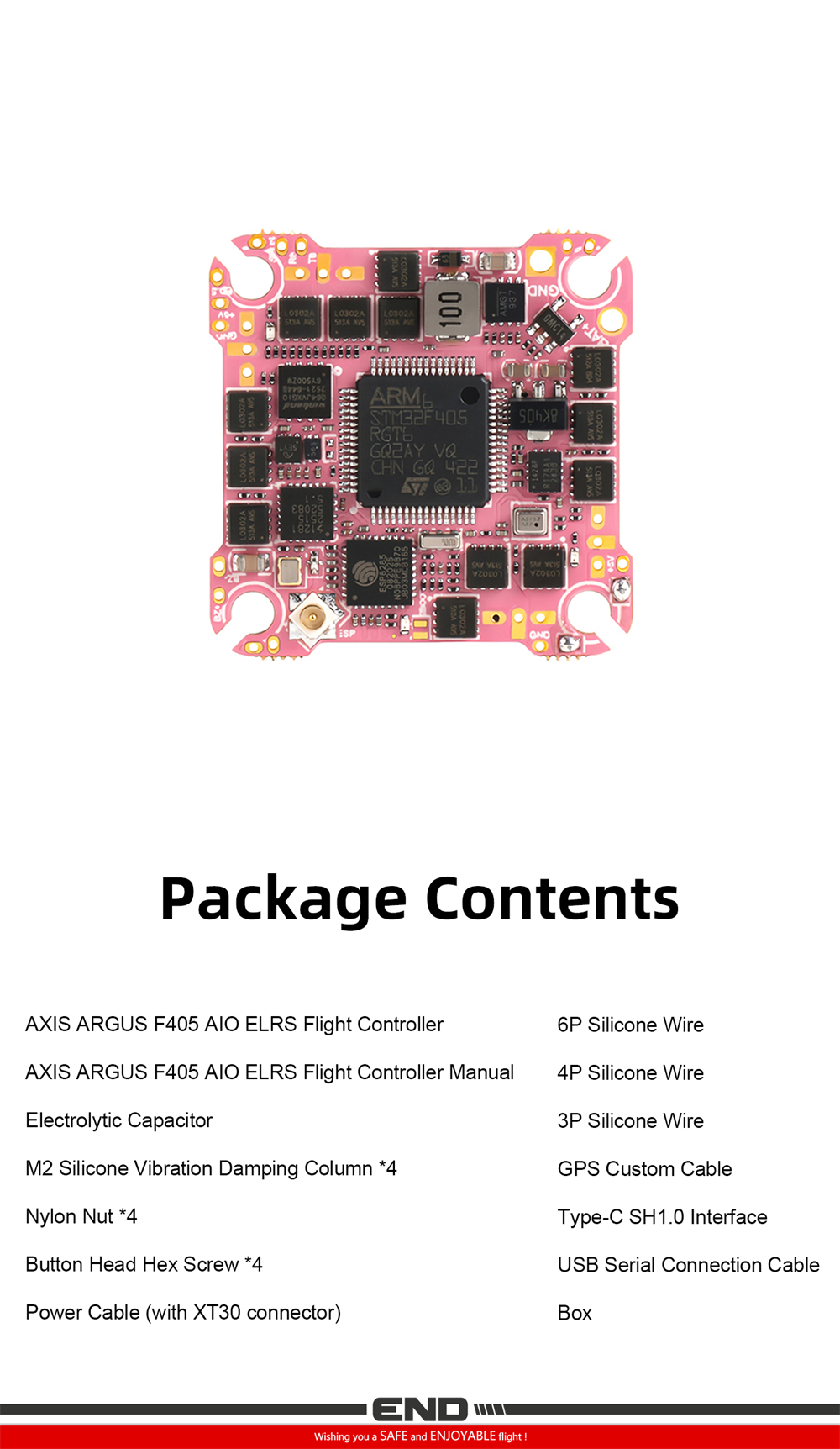

Package Included:
1 x AXIS ARGUS F405 AIO ELRS Flight Controller
1 x AXIS ARGUS F405 AIO ELRS Flight Controller Manual
1 x Electrolytic Capacitor
4 x M2 Silicone Vibration Damping Column
4 x Nylon Nut
4 x Button Head Hex Screw
1 x Power Cable with XT30 Connector
1 x 6P Silicone Wire
1 x 4P Silicone Wire
1 x 3P Silicone Wire
1 x GPS Custom Cable
1 x Type-C SH1.0 Interface
1 x USB Serial Connection Cable
1 x Box
