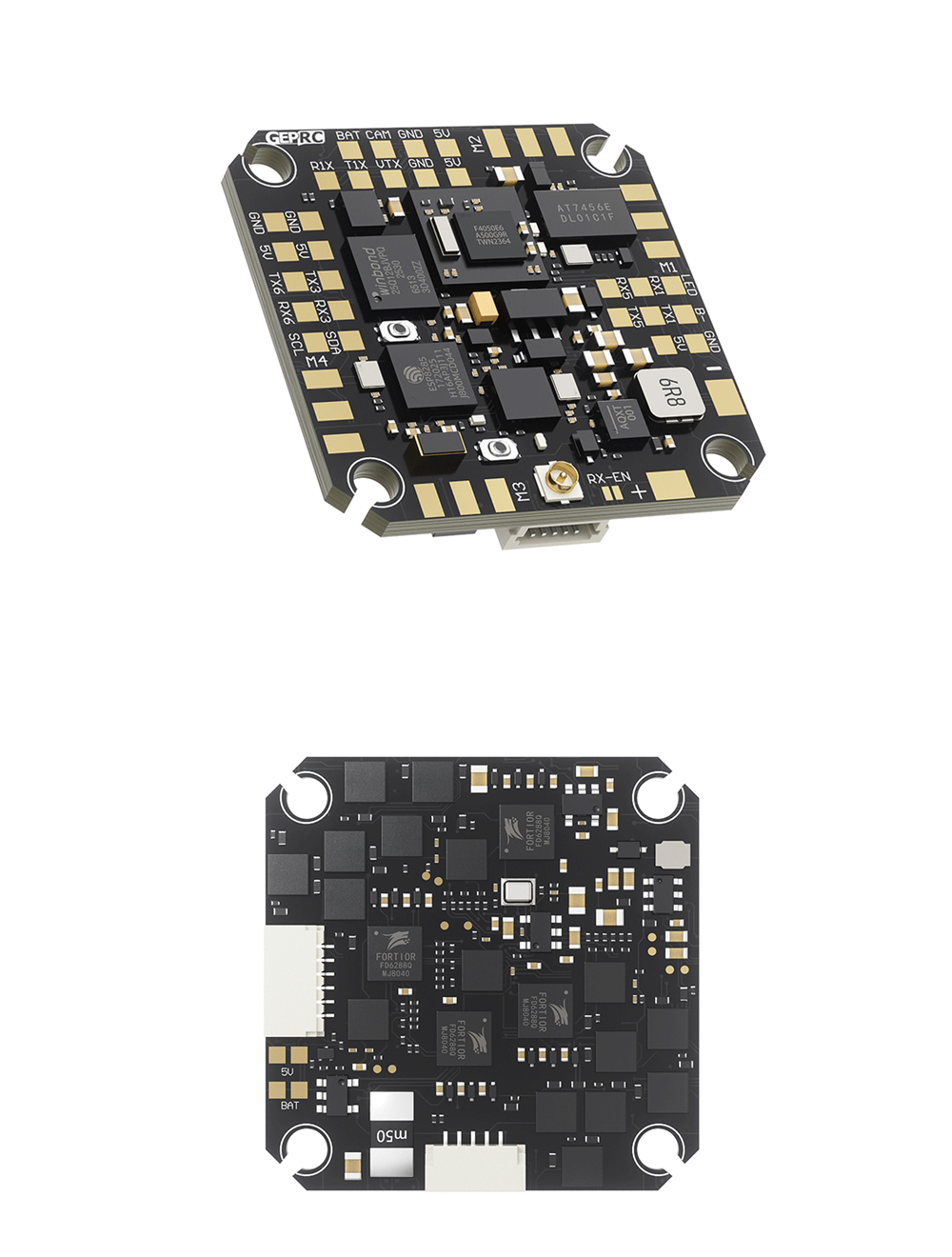

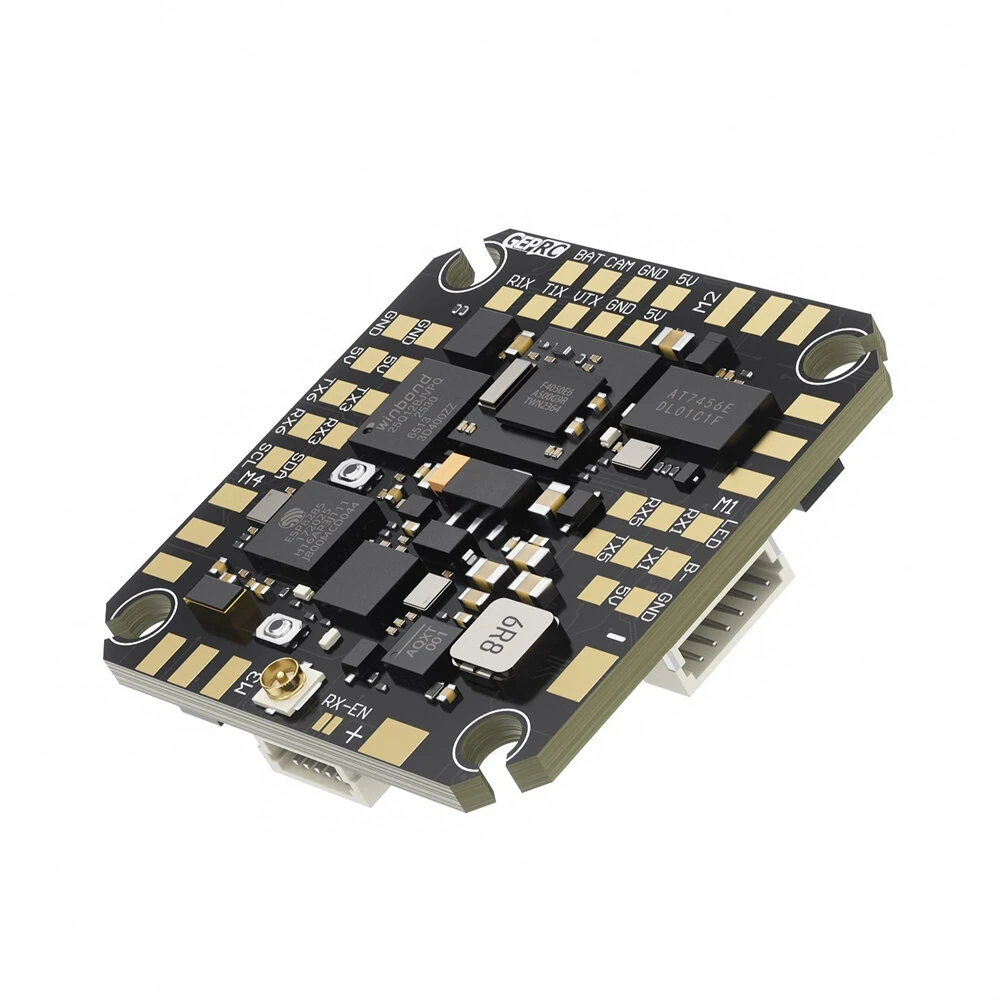

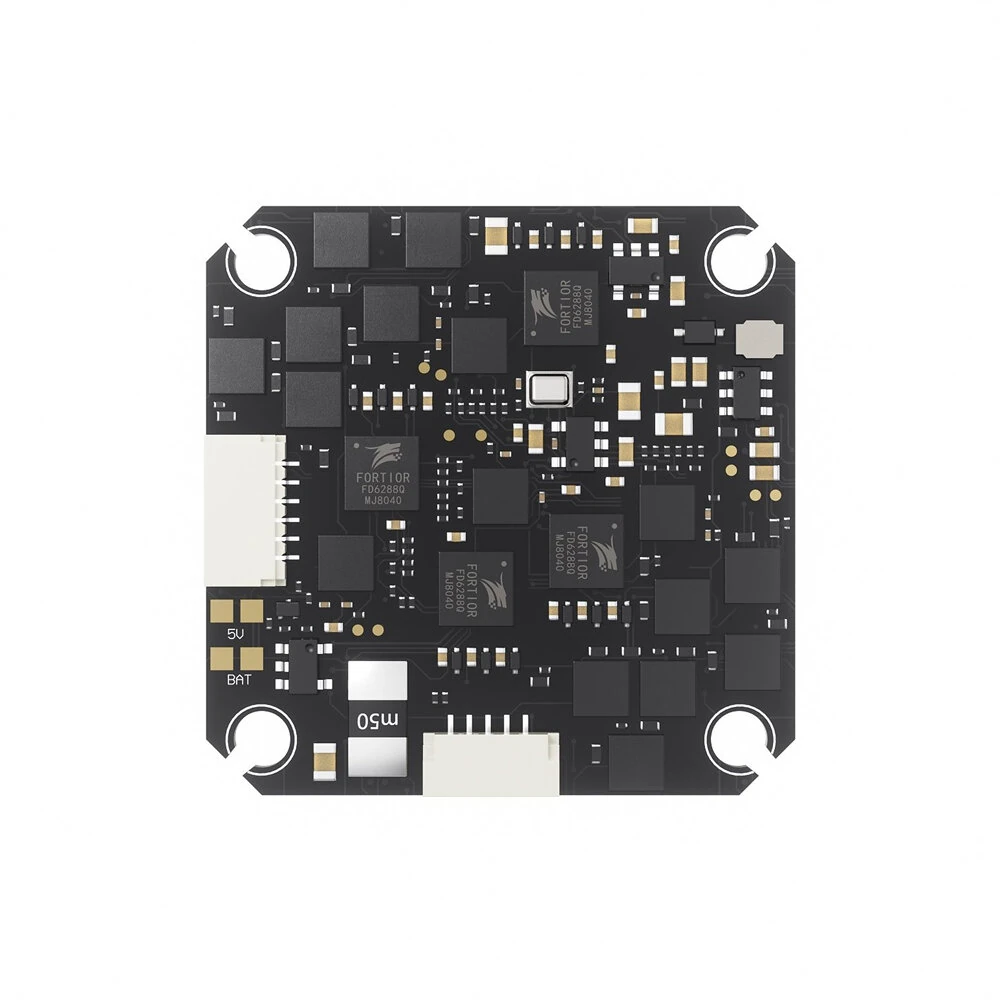

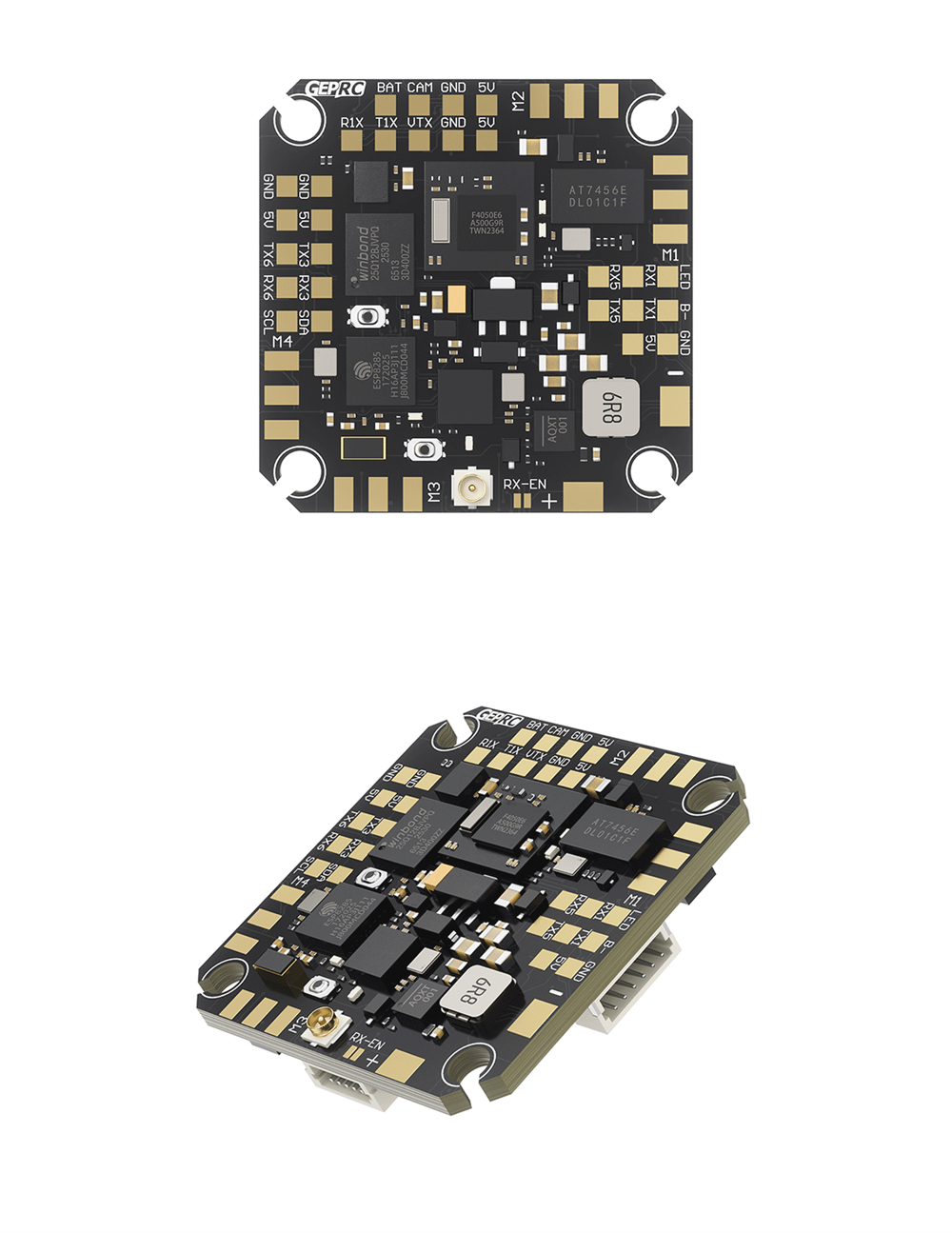

25.525.5mm GEPRC TAKER F405 20A ELRS 2-4S AIO F405 ICM42688P FC Bluejay 20A ESC for 1.6 Inch to 2.2 Inch Micro FPV Racing Drones
1 in stock
- SKU : 2047997
- Condition : New
- Brand : GEPRC
- Processing Time : Ships Within 24-48 Hours
- Return Policy : 30-day refund or replacement
Price range: $11.99 through $110.99
Description:

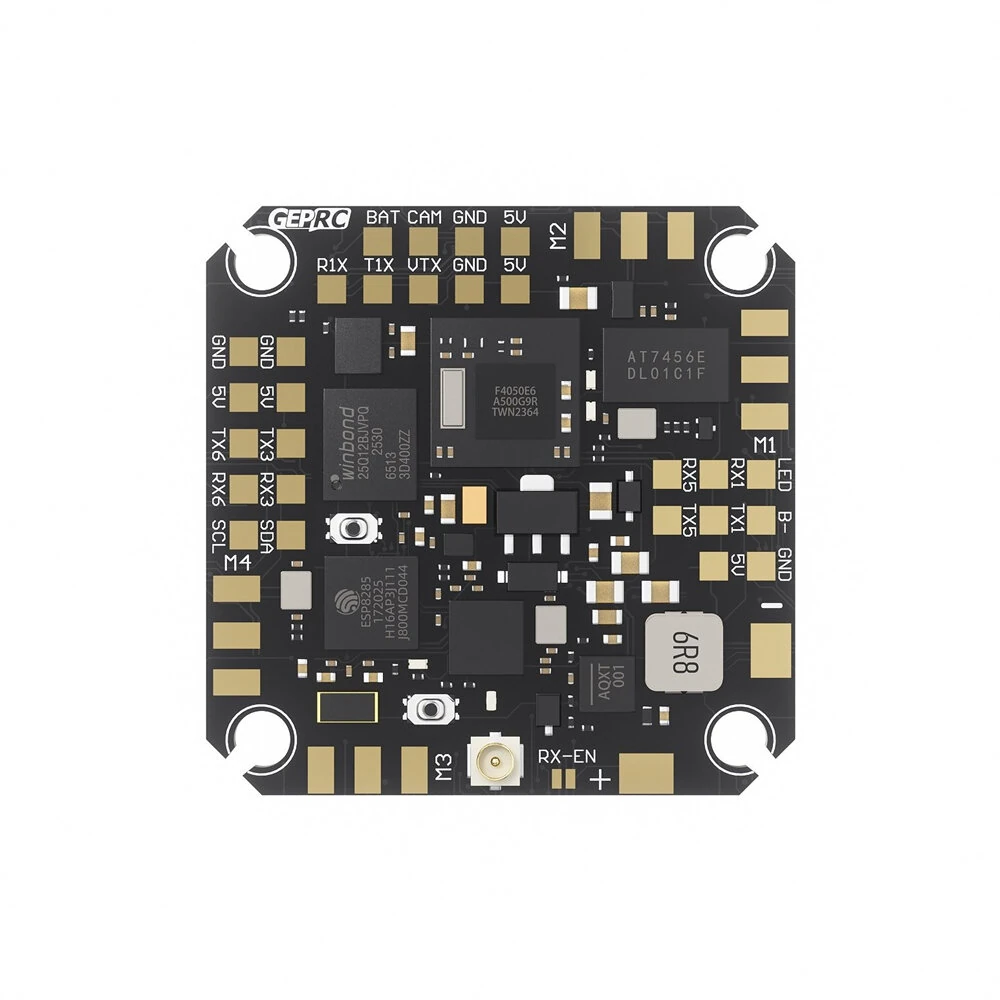

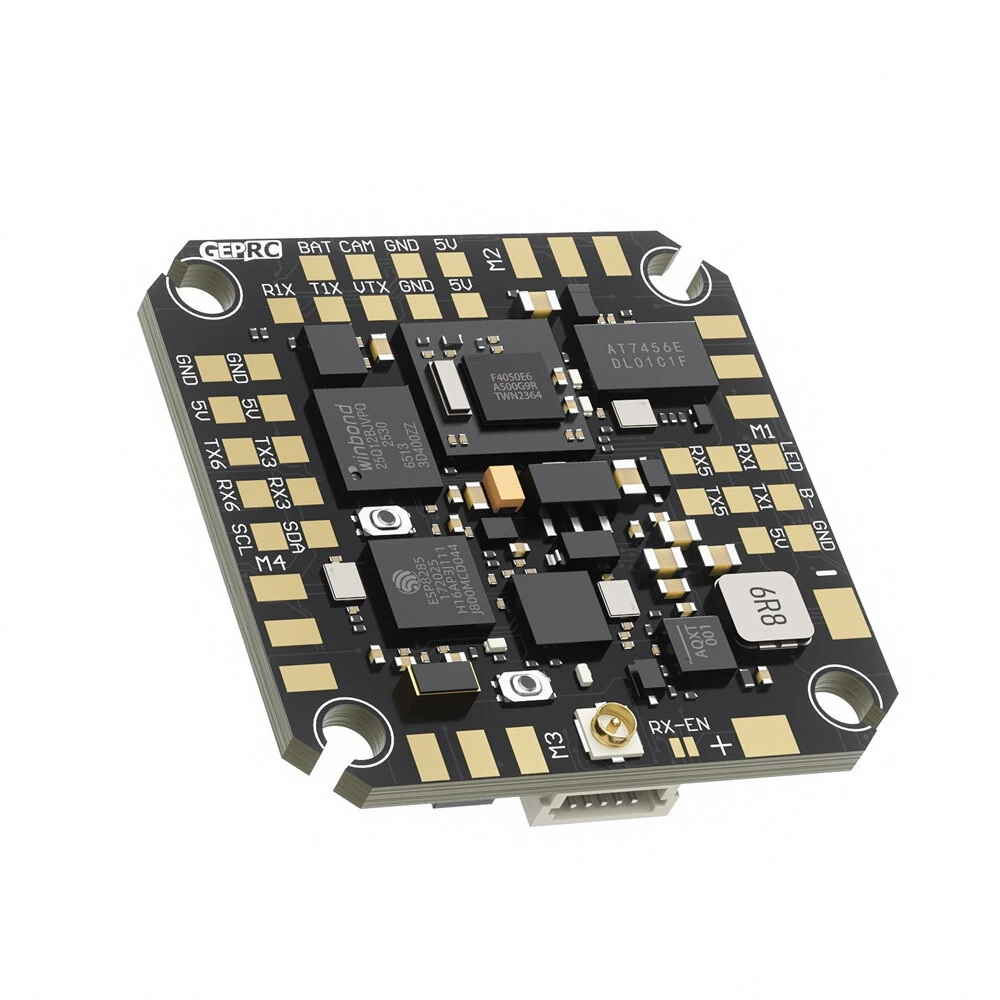

The TAKER F405 20A ELRS2.4G 2–4S AIO features a compact STM32F405 BGA MCU paired with an ICM42688-P (SPI) gyroscope, delivering a highly integrated design that occupies minimal space.
With a built-in ELRS 2.4GHz receiver, the overall build is cleaner and more streamlined.

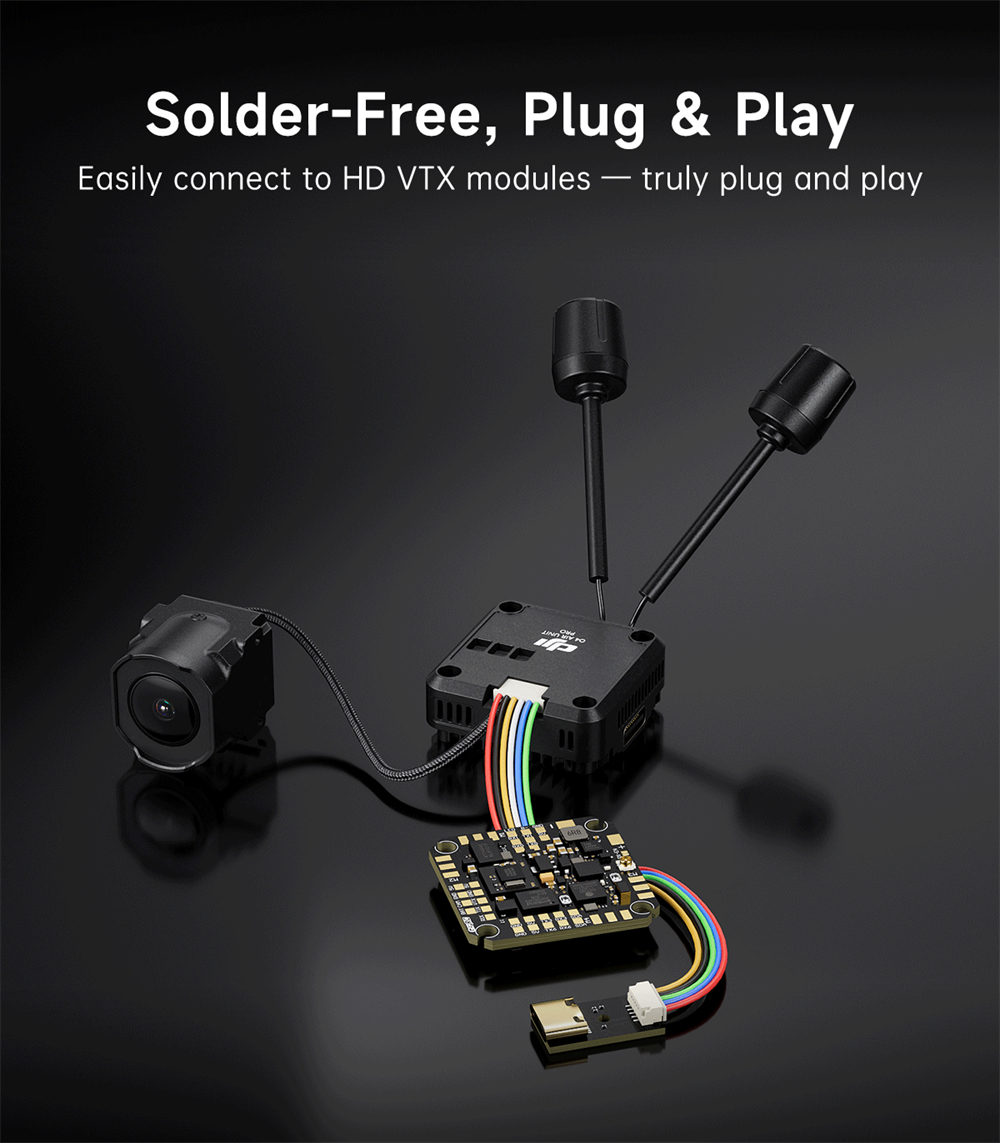

It offers 5 full UART ports, providing ample connectivity for common peripherals. An independently designed 6-pin connector on the bottom of the flight controller allows direct plug-in of various HD digital VTX systems, significantly reducing soldering effort.

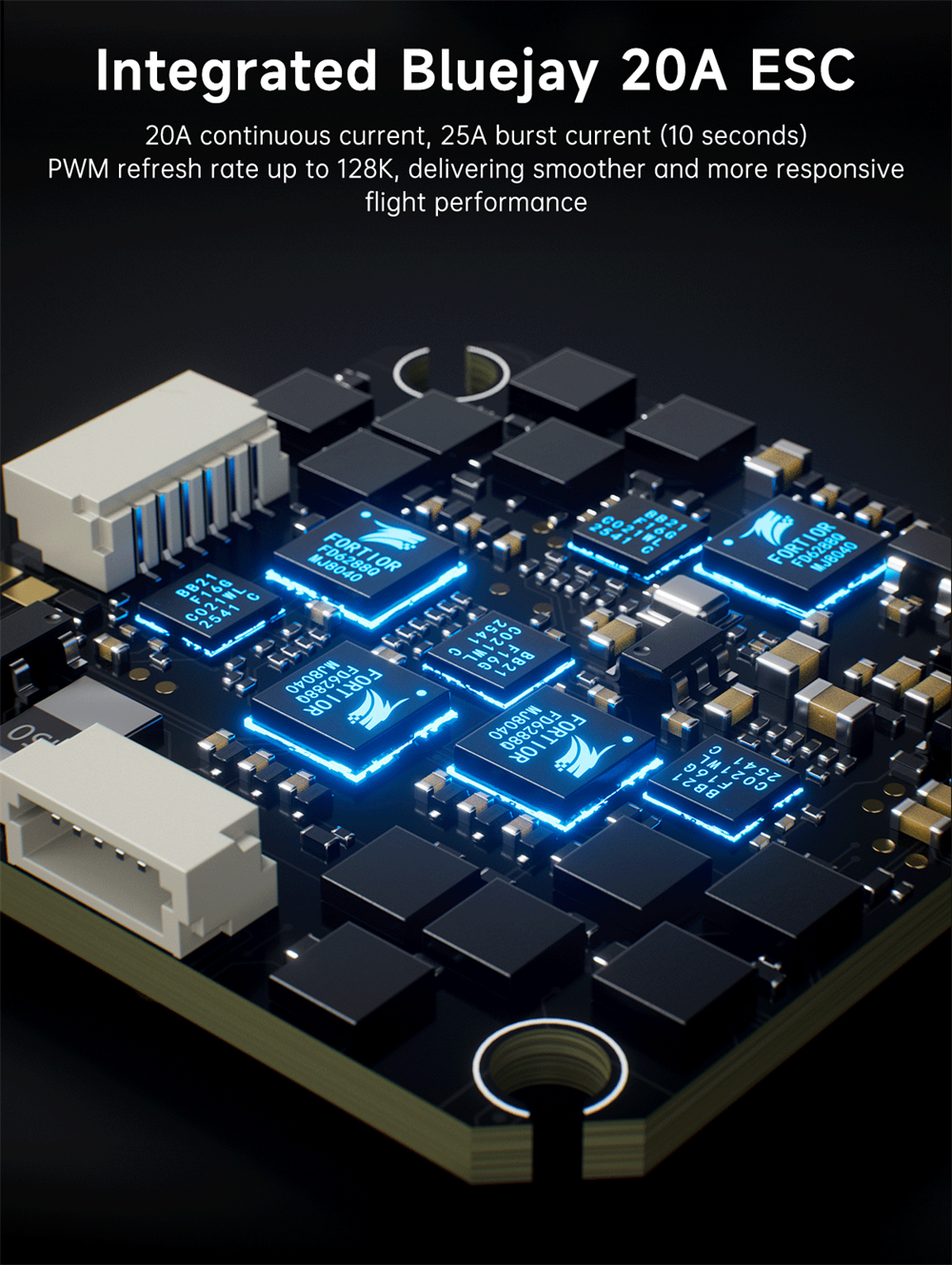

The AIO uses Bluejay ESC firmware for smooth and responsive throttle performance. It supports a continuous current of 20A and a burst current of 25A (10 seconds), with compatibility for 2–4S LiPo batteries.
Additional features include OSD tuning, buzzer, and LED support.
Weighing only 7g, it is ideal for 1.6-inch to 2.2-inch micro FPV builds.

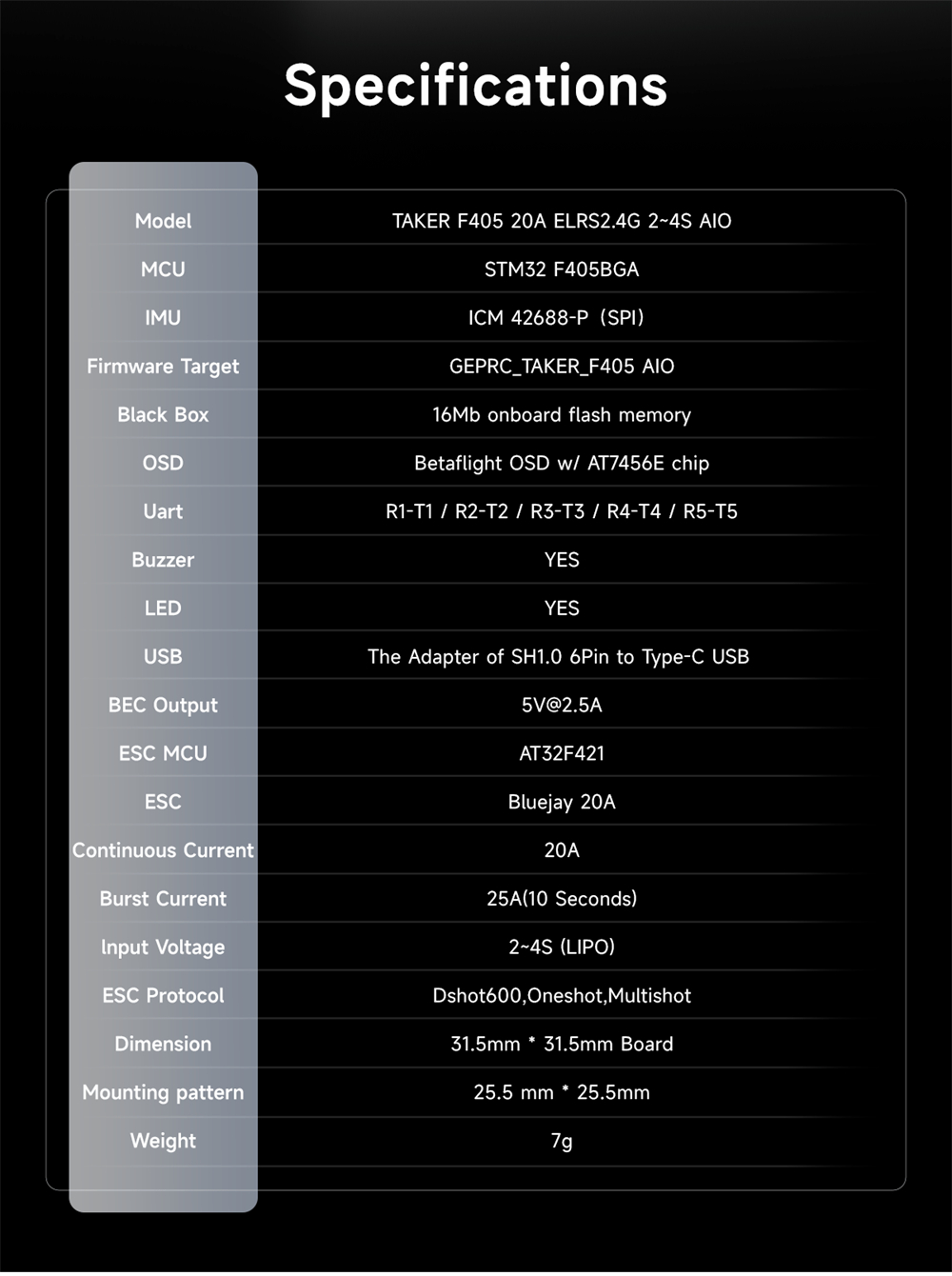

Specification:
Brand: GEPRC
Product Name: TAKER F405 20A ELRS2.4G 2–4S AIO
MCU: STM32 F405 BGA
MU: ICM42688-P (SPI)
FC Firmware: GEPRC_TAKER_F405 AIO
Blackbox: 16Mb onboard flash
OSD: Betaflight OSD with AT7456E chip
UART:R1-T1 / R2 / R3-T3 / R4-T4 / R5-T5 / R6-Tt6
Buzzer: Yes
LED: Yes
USB: SH1.0 6-Pin connector to Type-C USB
BEC Output: 5V @ 2.5A
ESC Firmware: Bluejay 20A
Continuous Current: 20A
Peak Current: 25A (10 seconds)
Input Voltage: 2–4S LiPo
ESC Protocols: DShot600, OneShot, MultiShot
Dimensions: 31.5mm × 31.5mm
Mounting Pattern: 25.5 × 25.5mm, φM3 rubber grommets to M2 screws
Weight: 7g
Feature:

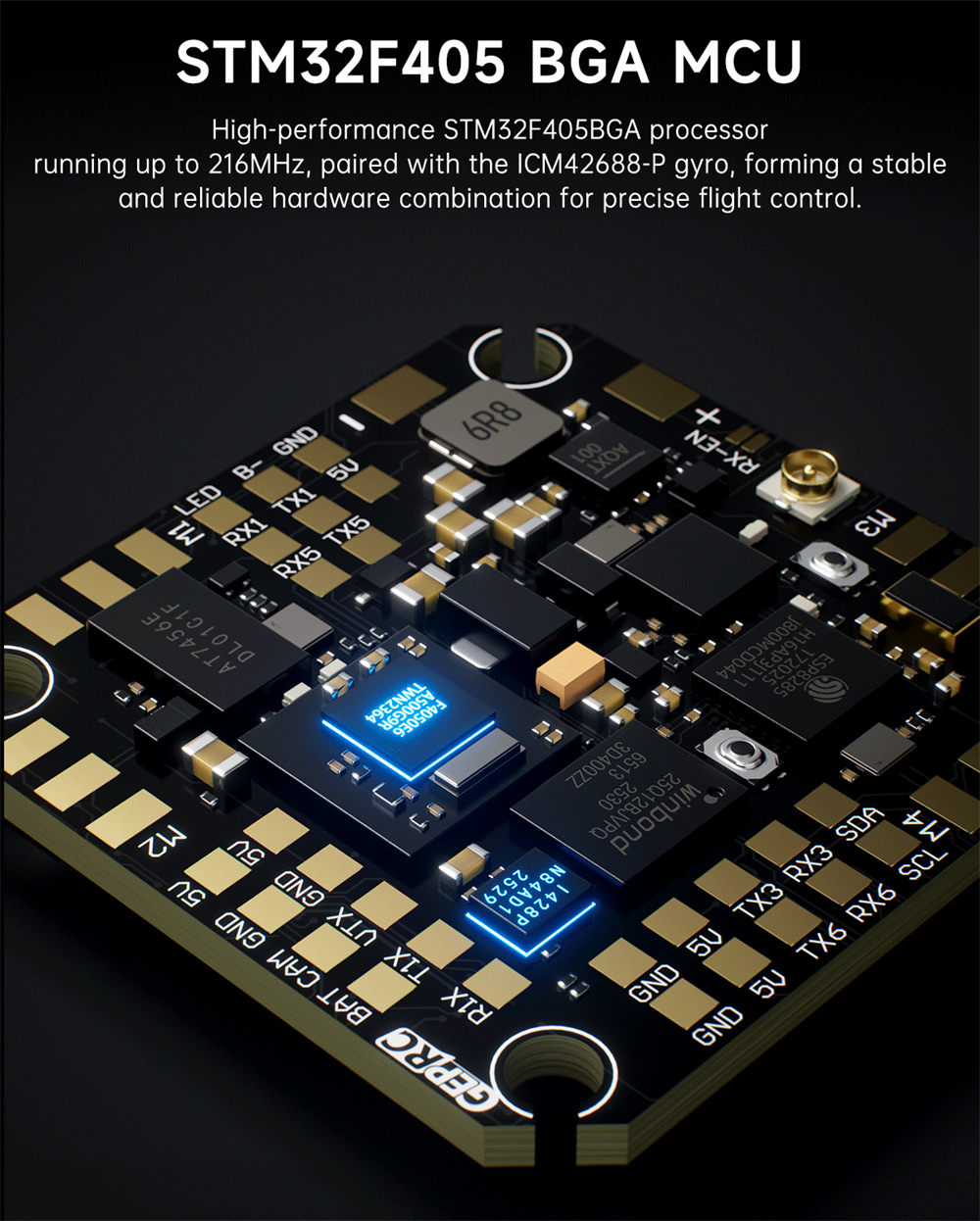

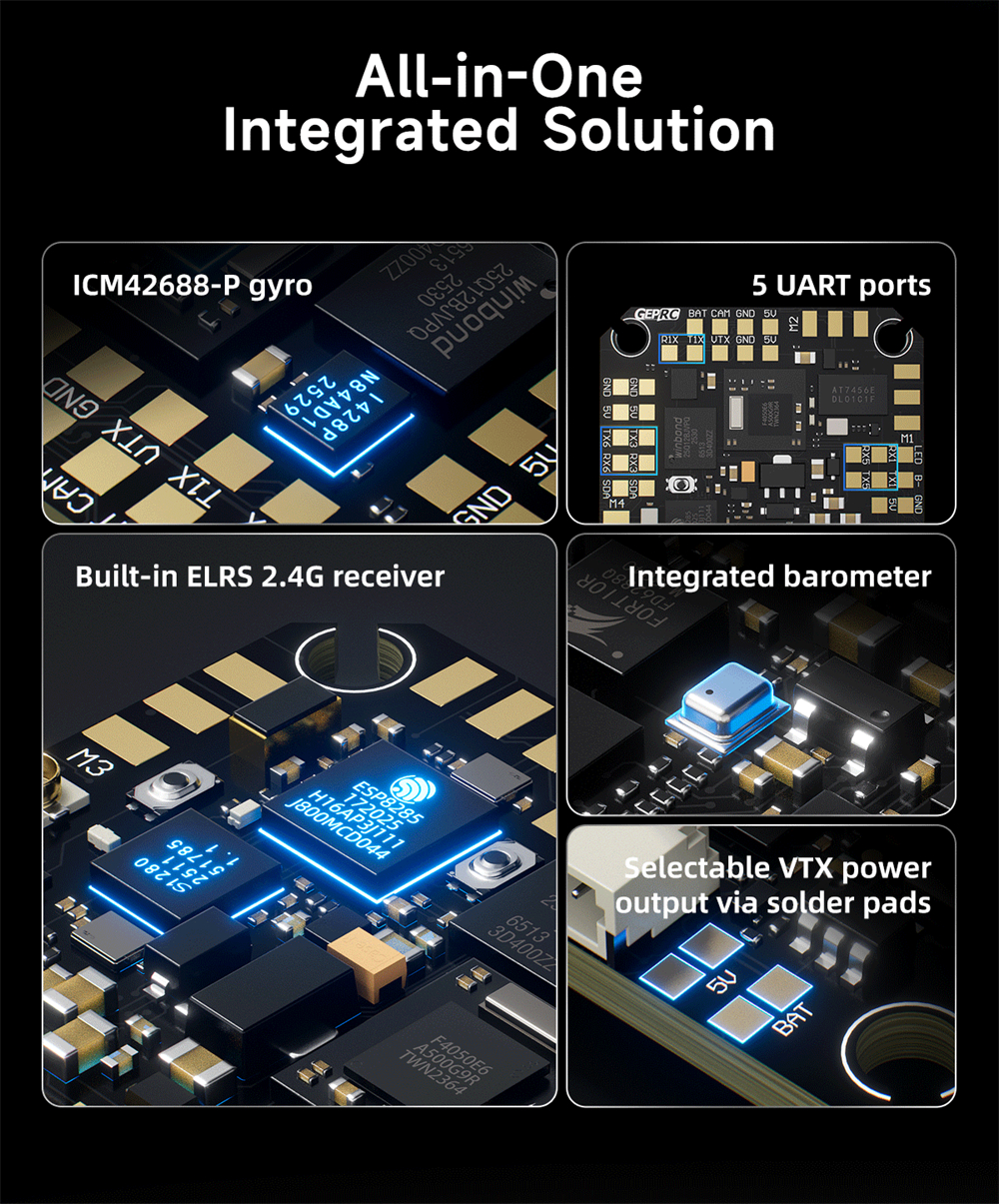

– STM32F405 BGA MCU with AT7456E compact OSD chip for a space-efficient layout
– Integrated ELRS 2.4GHz receiver for simplified installation
– 5 full UART ports with support for direct HD VTX connection
– Bluejay ESC firmware for smooth and refined flight feel
– Ultra-lightweight 7g design, suitable for 1.6 Inch to 2.2 Inch FPV drones

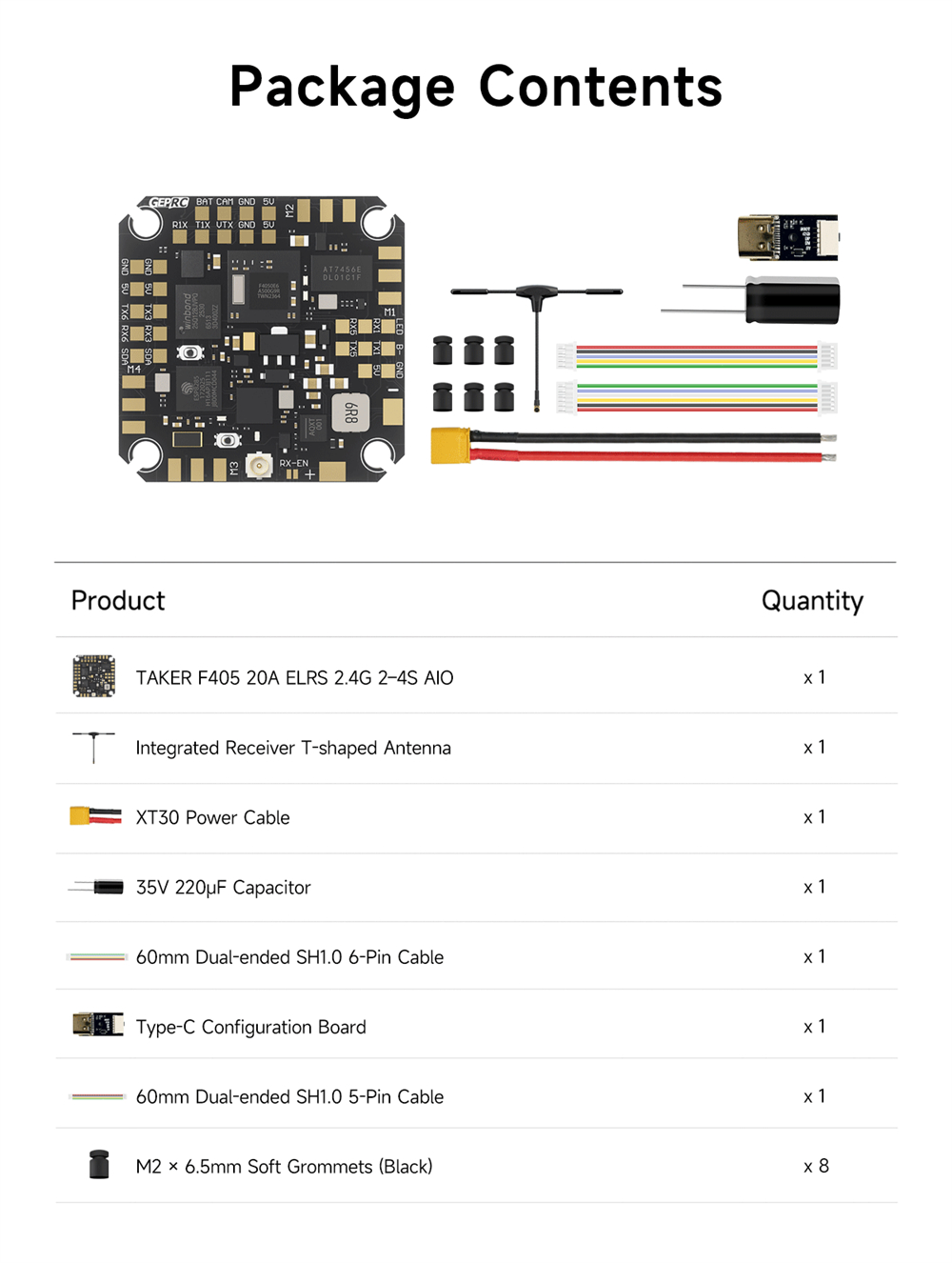

Package included:
1 × TAKER F405 20A ELRS2.4G 2–4S AIO
1 × XT30 18AWG 7cm Power Cable
1 × 35V 220µF Capacitor
1 × 60mm SH1.0 6-Pin Dual-Ended Cable
1 × SH1.0 6-Pin Cable
1 × Type-C Configuration Board
1 × 60mm SH1.0 5-Pin Dual-Ended Cable
8 × M2×6.5mm FC Rubber Grommets (Black)
or
1 x Type-C Configuration Board
