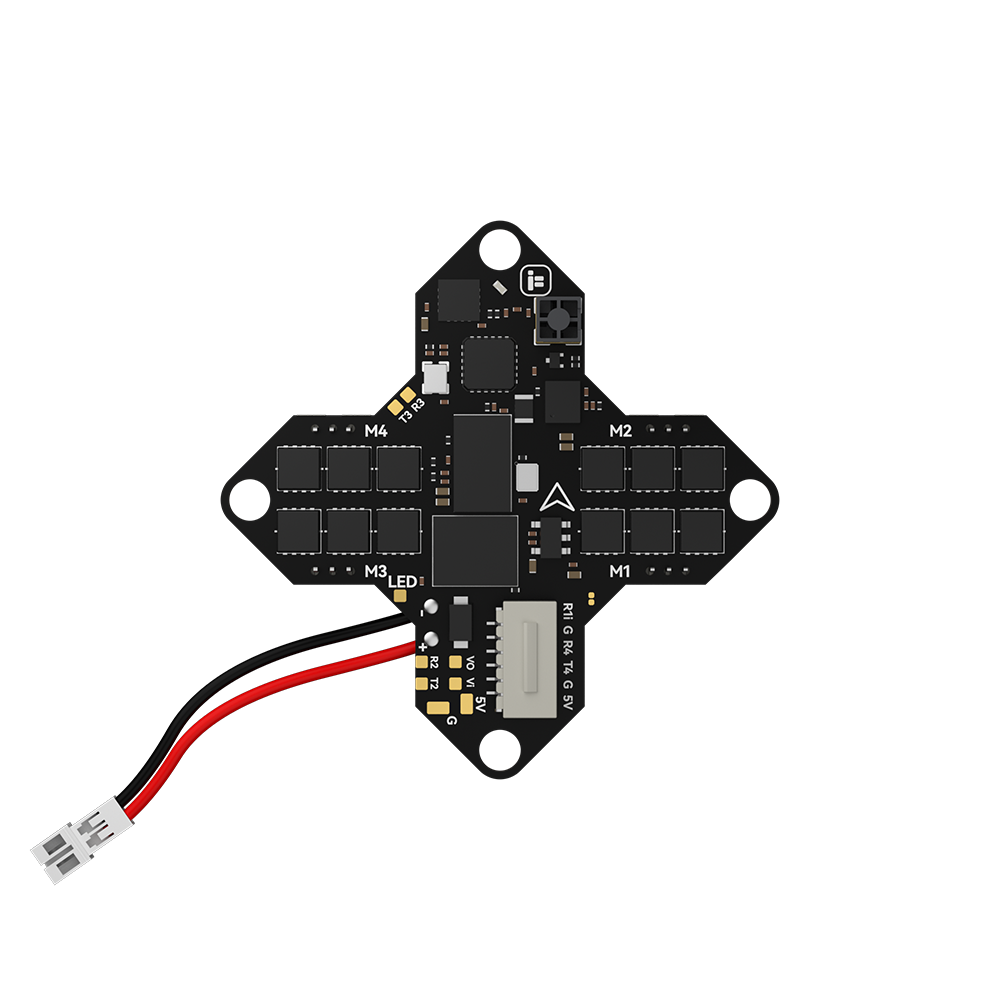

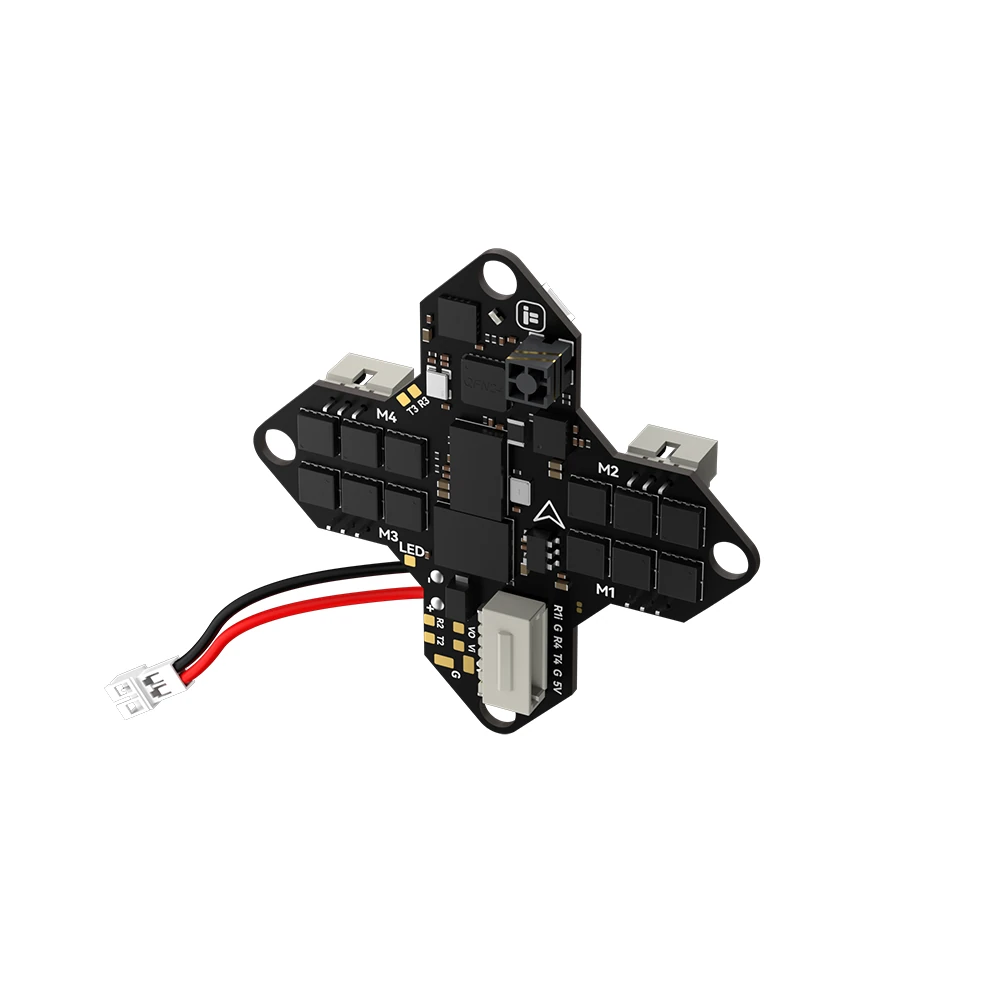

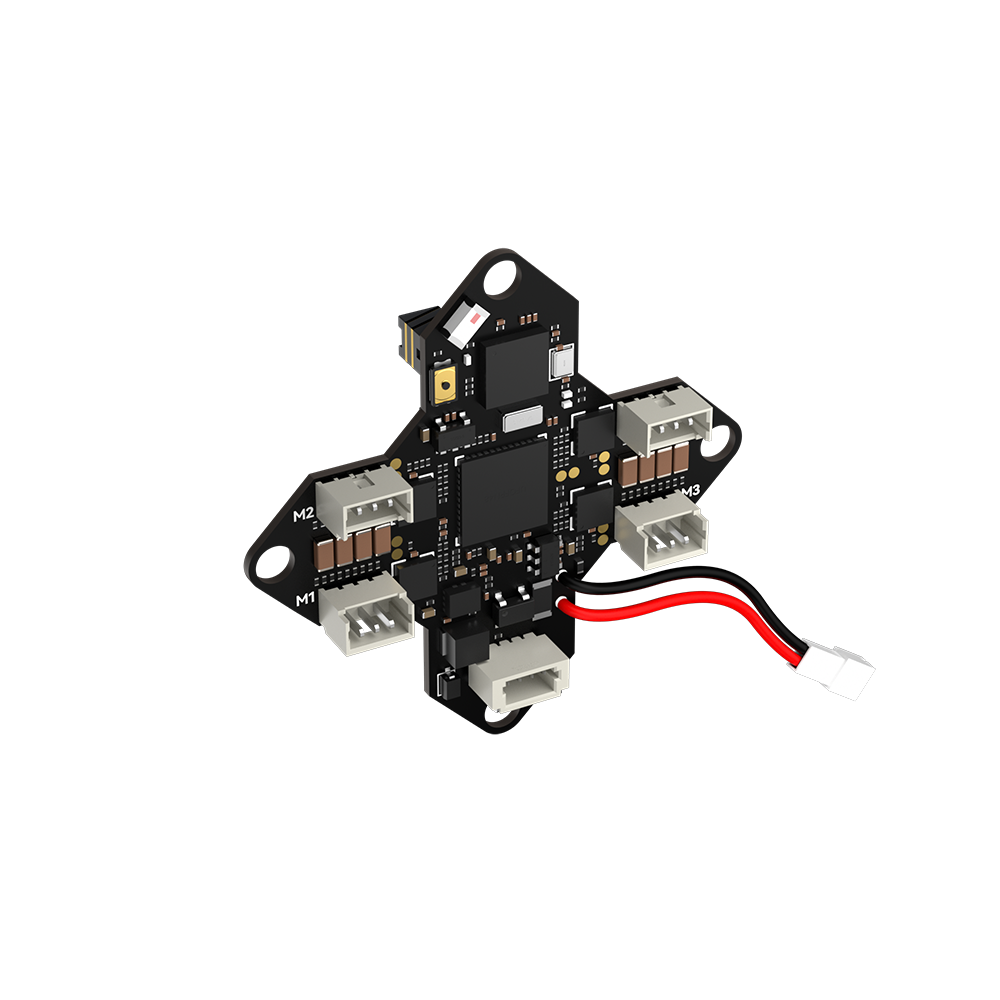

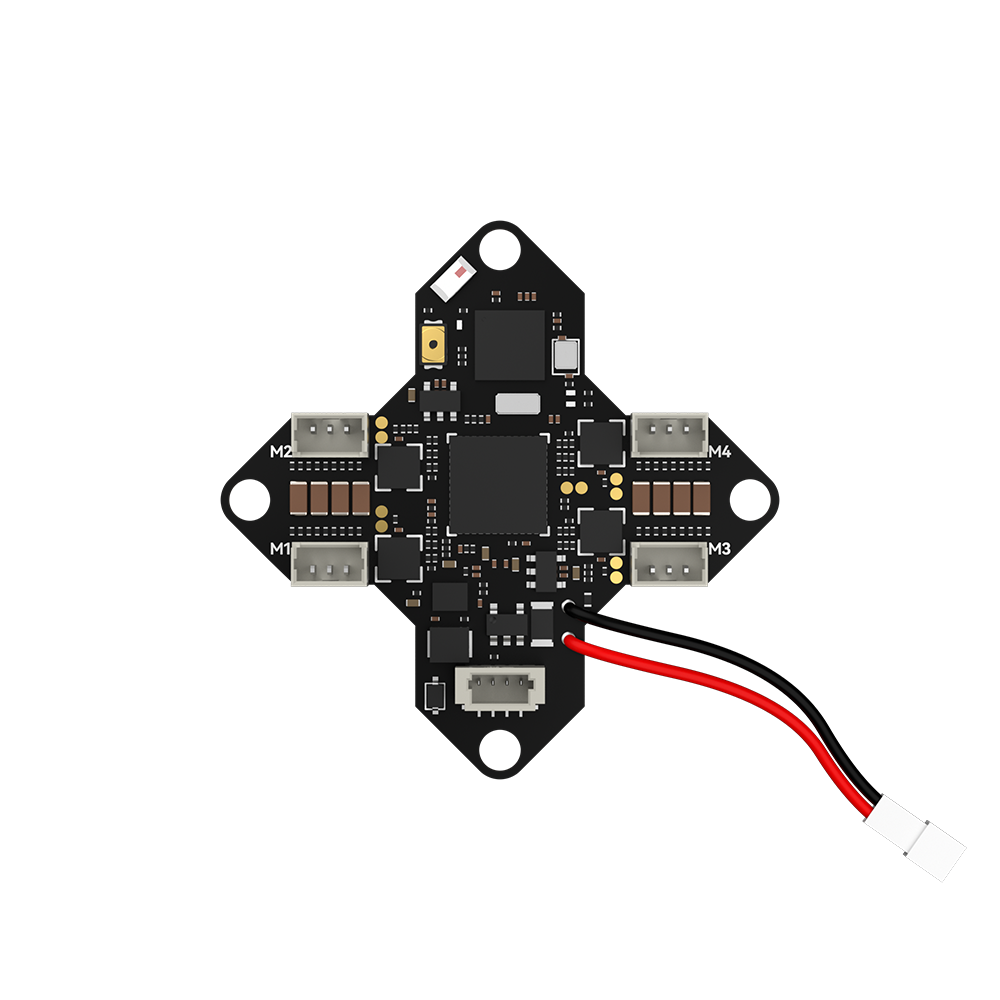

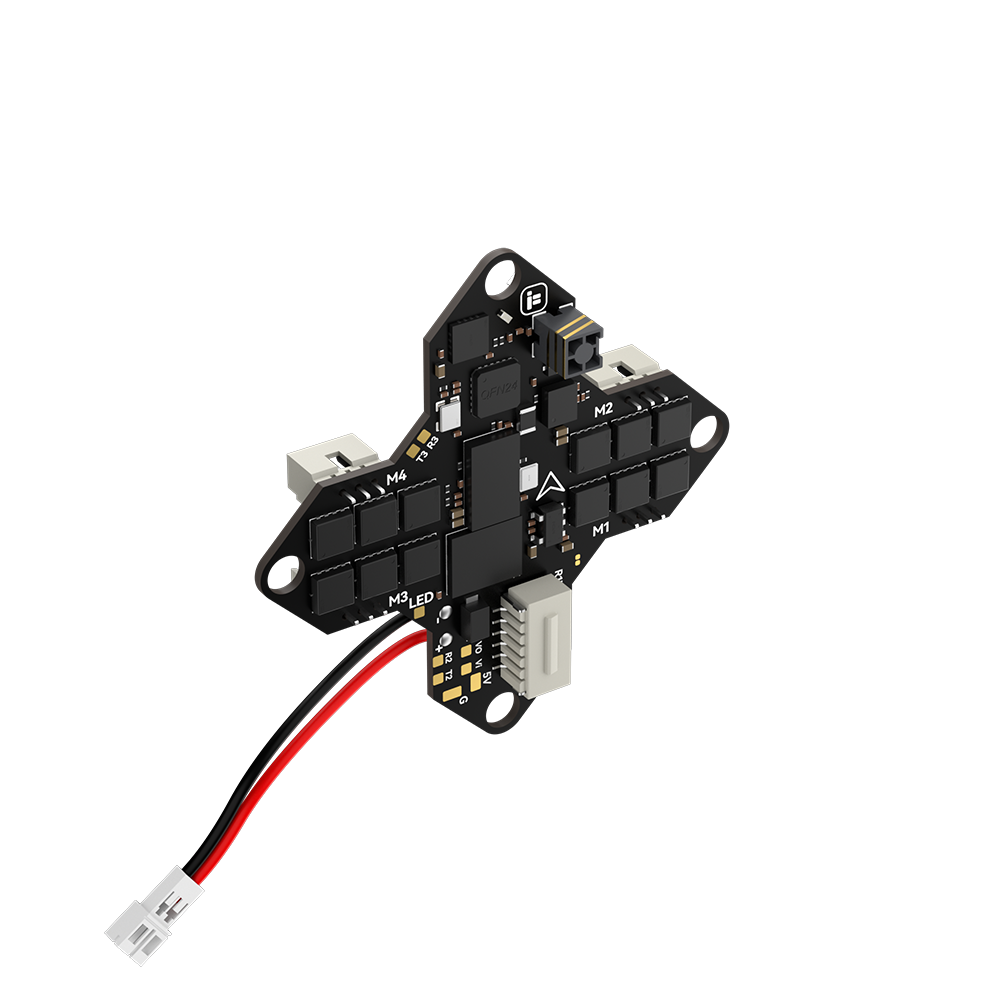

25.5*25.5mm iFlight Borg G4 1S 12A AIO Built-in ELRS Receiver for Lightweight Indoor 65-75mm Whoop RC FPV Racing Drones

Availability:

1 in stock


  • SKU : 2044689
  • Condition : New
  • Brand : Borg
  • Processing Time : Ships Within 24-48 Hours
  • Return Policy : 30-day refund or replacement

$76.99 $96.99

Description:

The Borg G4 1S AIO is a cutting-edge solution designed for 65-75mm Whoop FPV Drones, featuring an onboard ELRS 2.4GHz receiver to boost functionality right out of the box. It’s designed to redefine performance and convenience in small-scale FPV flying.​

Feature:

– Superior Integrated Design:​

A compact all-in-one unit combining flight controller, ESC, and ELRS 2.4G receiver, precisely optimized for 65-75mm drones. Reduces bulk, streamlines builds, and minimizes setup hassle.​

– Remarkable Performance Boost:​

Powered by the STM32G473 chip, delivering 55% more computing power than the STM32F411. Ensures smoother flights, faster response, and pinpoint control in every maneuver.​

– Smart Versatility:​

Switchable between onboard and external receivers. Supports both analog and HD video transmission, adapting to diverse pilot preferences and setups.

Specification:

Brand: iFlight

Model: Borg G4 1S AIO

Item

Parameter

FC

Input voltage: 1S; Support LIHV battery

MCU: STM32G473

Gyro: ICM42688

Barometer: N/A

OSD Chip: AT7456E

Flash: 16MB (Blackbox flash)

UARTS: 4

Motor outputs: 4

I2C serial: Not supported

VTX protocol: Support DJI MSP/Smartaudio/IRCTramp/HDZero

LED controller: Yes

Beeper pad: N/A

FC Firmware target: IFLIGHT_BORG_G4_AIO (Betaflight)

Receiver Firmware: iFlight 2.4GHz RX (3.3.0)

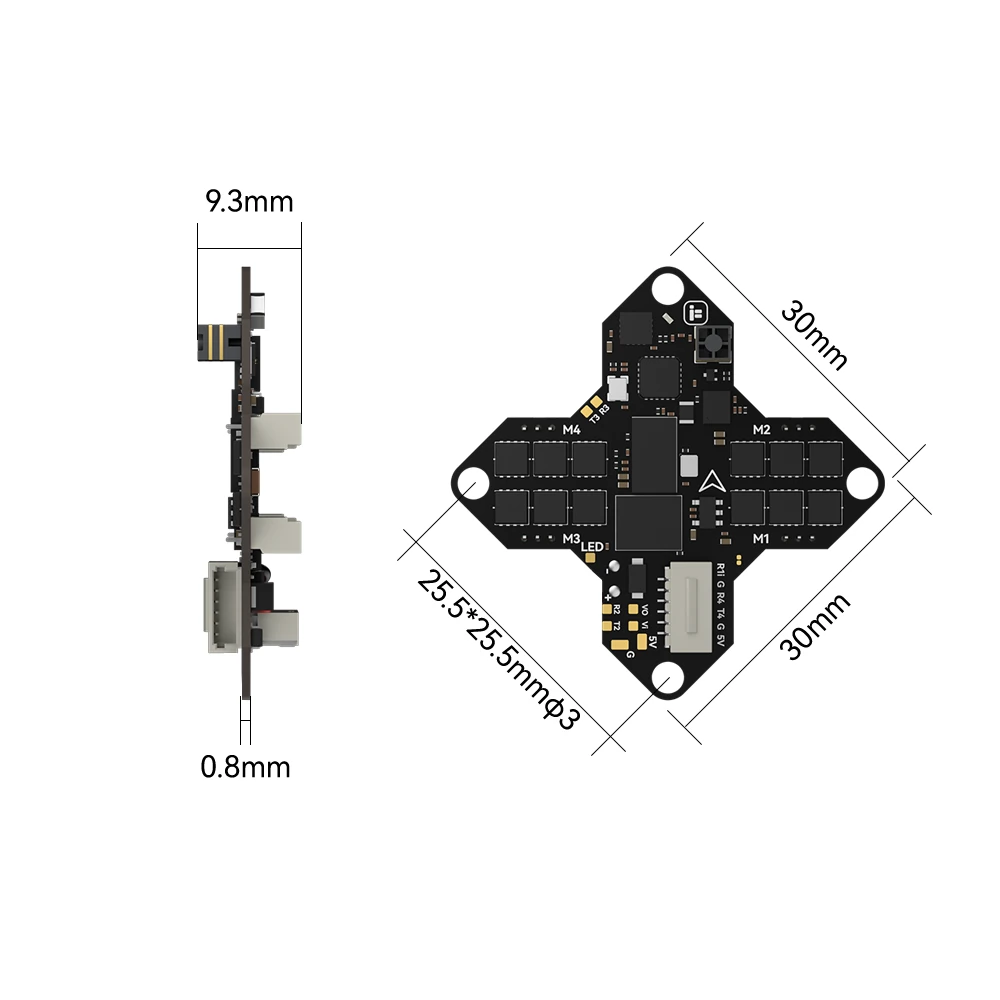

Mount pattern: 25.5*25.5mm φ3

Dimensions: 30*30mm±1

Weight: 4g±0.5g

BEC: 5V 3A

ESC

Input Voltage: 1S; Support LIHV battery

Continuous Current: 12A

MCU: EFM8BB51F16

Driver: N/A

Target: C-X-5 – Bluejay, 0.19, 96kHz

Current rate: 480 (1/10mV/A)

BEC: N/A

Telemetry: Not supported

Bidirectional DSHOT: Supported

Protocol: Supports DShot150/300/600、MultiShot、OneShot etc.

Package Included:

1 x Borg G4 AIO with Rx

4 x Silicon Grommets

1 x Cable Set
