25.5×25.5mm Happymodel X14 ELRS 5in1 AIO Flight Controller Built-in 2.4G UART ELRS V3.0 Receiver 5.8G 400mW OPENVTX
1 in stock
- SKU : 2041929
- Condition : New
- Brand : Happymodel
- Processing Time : Ships Within 24-48 Hours
- Return Policy : 30-day refund or replacement
$119.99 $149.99
Description:
X14 ELRS flight controller is the updated version for X12ELRS PRO, this flight controller is based on STM32G473 MCU, provide more UARTs, built-in 12A 4-IN-1 ESC and Serial ELRS receiver, also comes with OPENVTX max power up to 400mw. It’s a good option for 75mm/85mm 2S whoops building.
Specification:
Brand: Happymodel
Model: X14 ELRS 5-IN-1 AIO
|
Item |
Parameter |
|
FC |

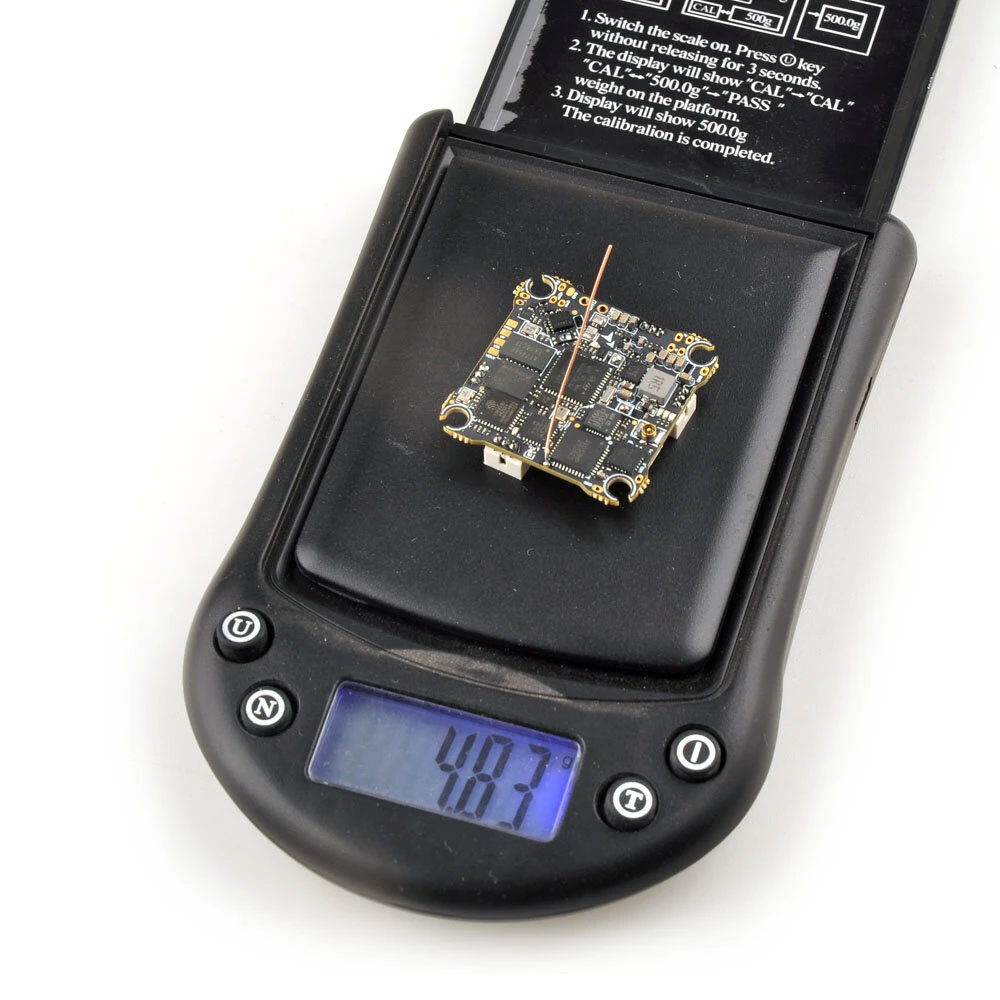

MCU: STM32G473CEU6 Gyro: ICM42688P Blackbox Memory: 16MB Sensor: Voltage & Current BEC: 5V, Max. 2A UART: UART 1, UART 2, UART 3 (For RX), UART 4(For VTX) BetaFlight OSD: AT7456ELAH Camera Plug: 0.8mm 3pin ESC: 12A continuous OPENVTX: 5.8GHz 48 channels, Max. 400mW FC Firmware Target: CRAZYBEEG473 USB Port: SH1.0-4Pin Battery Connector: XT30 or A30 Mounting Hole Size: 5mm x 25.5mm Weight: 83g without power pigtail and VTX antenna |
|
ESC |
Power Input: 1-2S Lipo input Current: 12A continuous, 15A peak ESC Firmware: V0.19 48KHz Bluejay Firmware Target: Z_H_30_48KHz Digital Signal Protocol: DShot300, DShot600 |
|
VTX |
OPENVTX Firmware Support Firmware Upgrade by Openvtx Configurator Output Power: PIT/10/25/100/400 Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz Channel SEL: SmartAudio2.1 Modulation type: FM Operating Temperature: -10℃~+80℃ Antenna Port: IPEX1/U.FL |
|
Receiver |
Serial ExpressLRS 2.4GHz Antenna: Enameled copper wire 31mm length Firmware Target: HappyModel EP1/EP2 2.4GHz RX Telemetry Output Power: <12dBm Compatible with ExpressLRS V3.x.x TX Module ExpressLRS Firmware Version 3.0.1 Support Flash Firmware by WIFI Bind Method is the Same Like All ExpressLRS 2.4GHz Receivers |

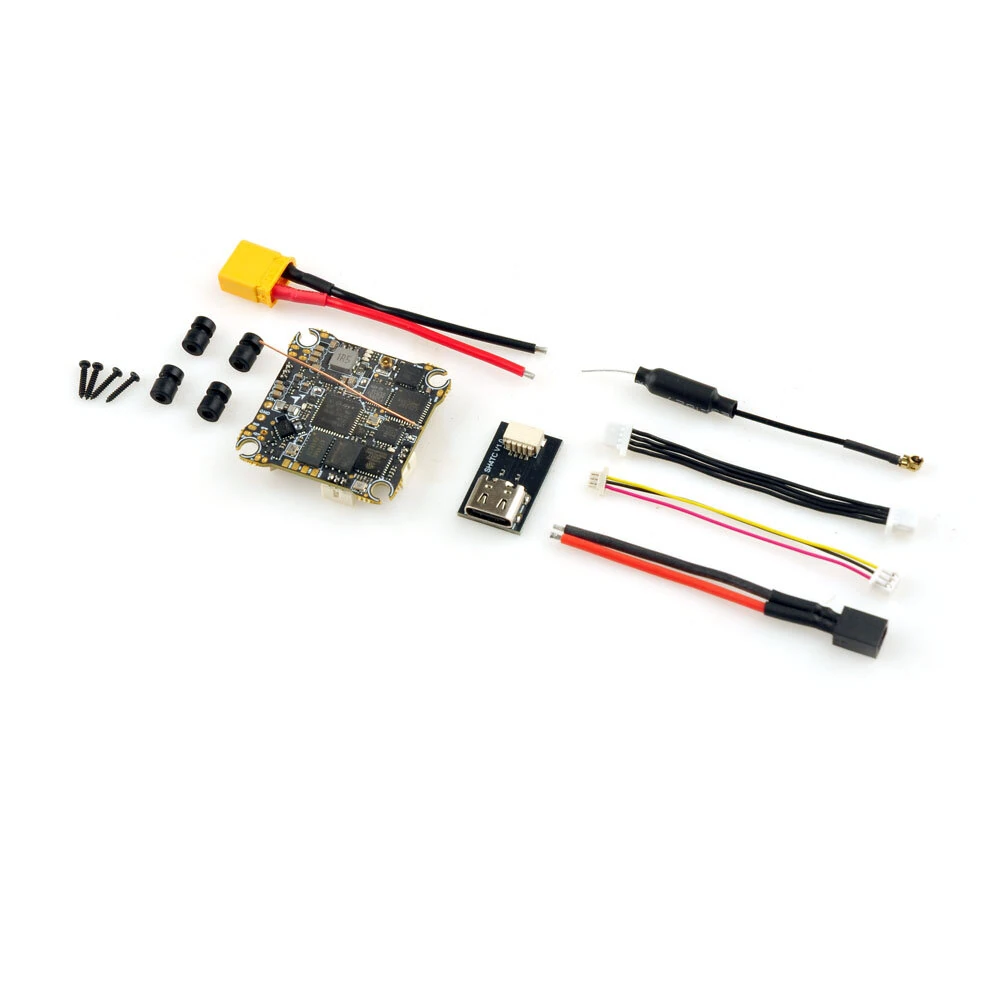

Package Included:
1 x X14 ELRS 5-IN-1 AIO
