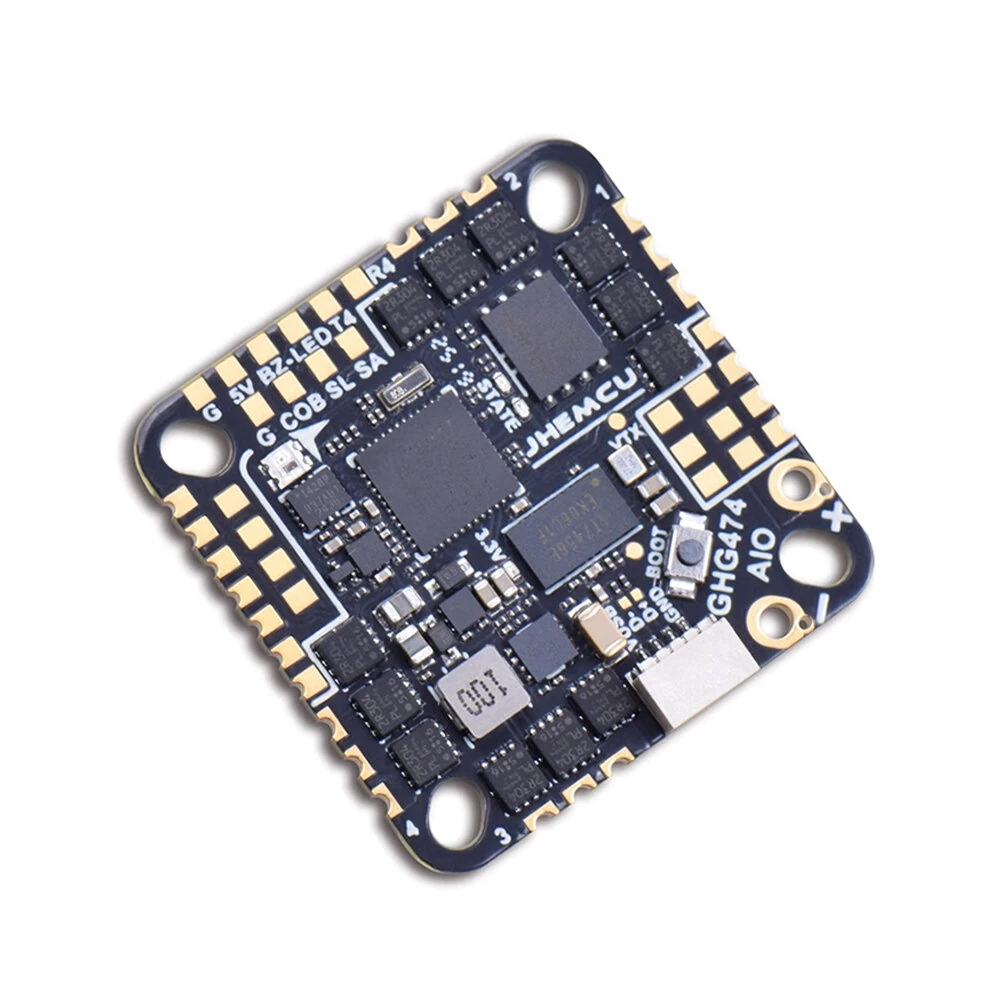

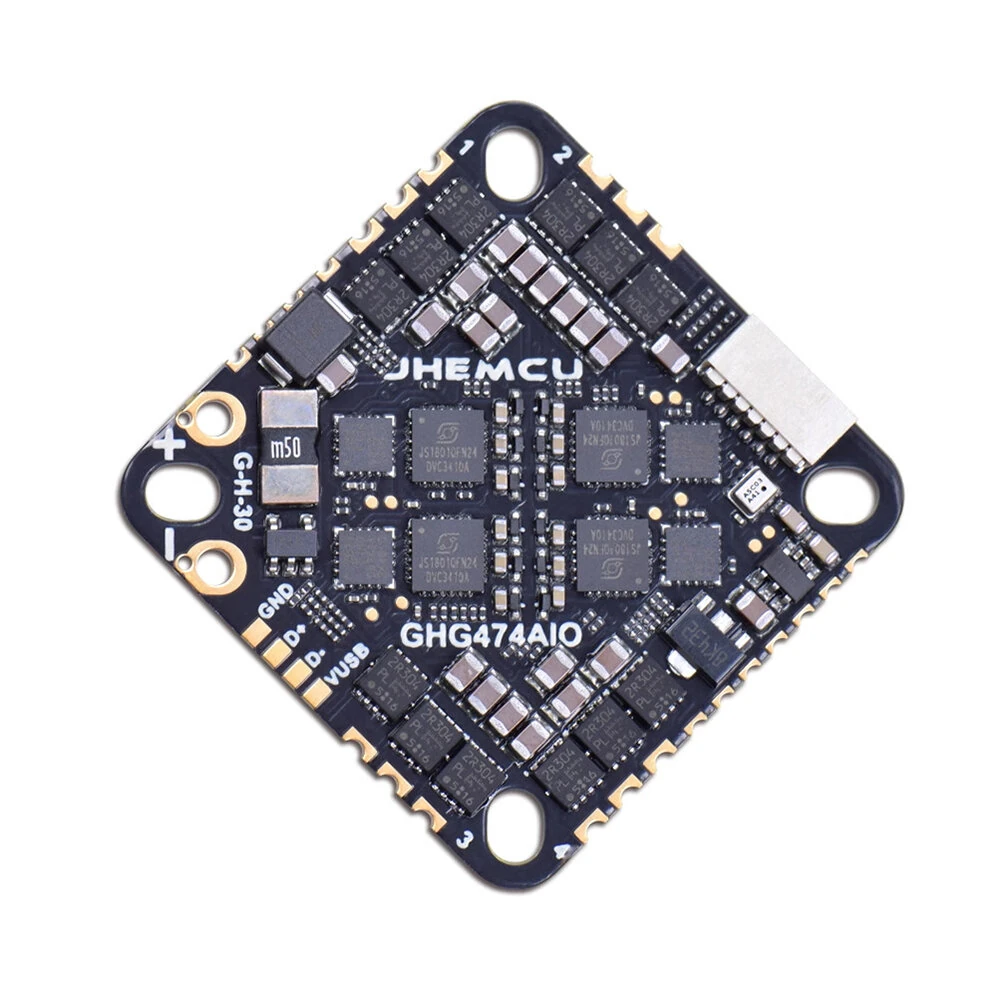

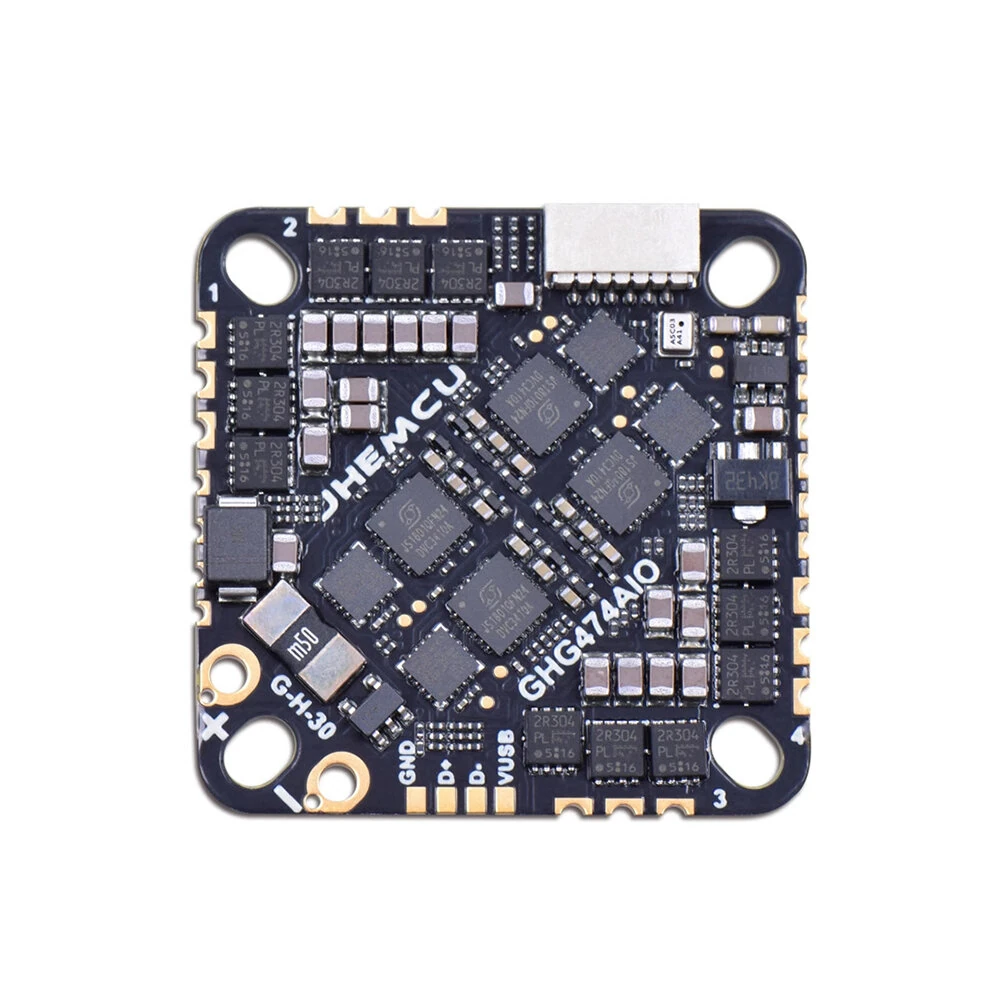

25.5×25.5mm JHEMCU GHG474AIO G474 AIO OSD Flight Controller Built-in 40A BLheliS 2-6S 4in1 Brushless ESC for Toothpick RC FPV Racing Drone
1 in stock
- SKU : 2045650
- Condition : New
- Brand : JHEMCU
- Processing Time : Ships Within 24-48 Hours
- Return Policy : 30-day refund or replacement
$94.99 $118.99
Specification:
Brand: JHEMCU
Model: GHG474AIO
MCU: STM32G474/170MHZ
IMU: ICM-42688-P/Gyro/Accel
OSD: AT7456E
Baro: YES
Blackbox: 16MB
Input voltage: 3S-6S (11.5V-26V)
5V-BEC: 5V/2.5A ±0.1V
10V-BEC: None
Receiver: ELRS(CRSF), TBS(CRSF), SBUS, IBUS, DSM2, DSMX
GPS: YES
Compass: YES
HDVTX: YES
USART: UART1, UART2, UART3, UART4
IIC: IIC1
COB: YES
Led_Strip: YES
Buzzer: 5V
ESC signal: Dshot150, Dshot300, Dshot600
USB: Onboard SH interface, connectable via external USB, hot-swappable
Current port: YES
Voltage sensor: YES
DFU button: YES
FC Firmware: betaflight_4.5.2 JHEG474.HEX
Size: 33x33MM
Mounting Hole: 25.5×25.5x3MM, 26.5×26.5x3MM
Weight: 7.8g
ESC Current: 40A
ESC MCU: EFM8BB21
ESC TYPE: BLUEJAY
ESC Firmware: G_H_30_48_v0.19.2.HEX (bluejay)

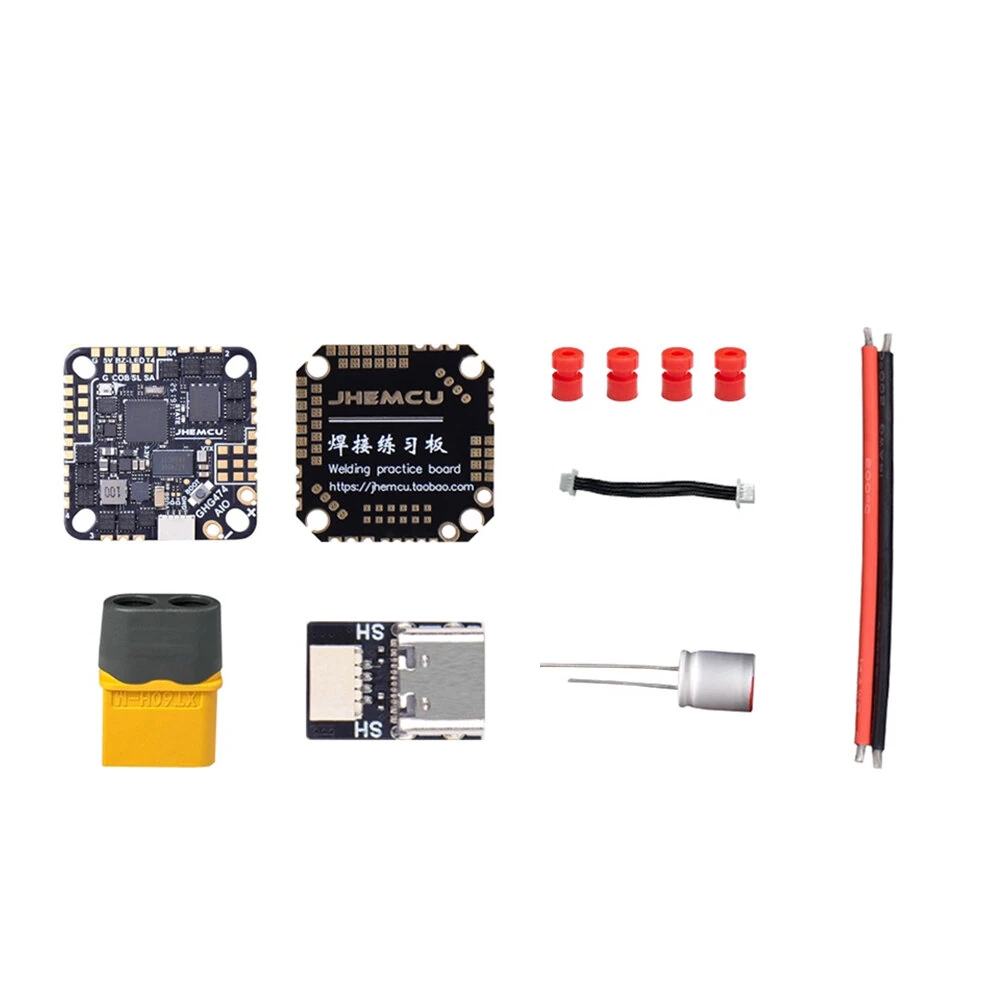

Package included:
1 x GHG474AIO
1 x Welding Practice Board
4 x M2 * 6.5MM Shock Absorber
1 x SH4P*1.0MM
1 x XT60
1 x TYPE-C adapter Board
1 x 470UF/35V Capacitor
2 x 16AWG Wire
