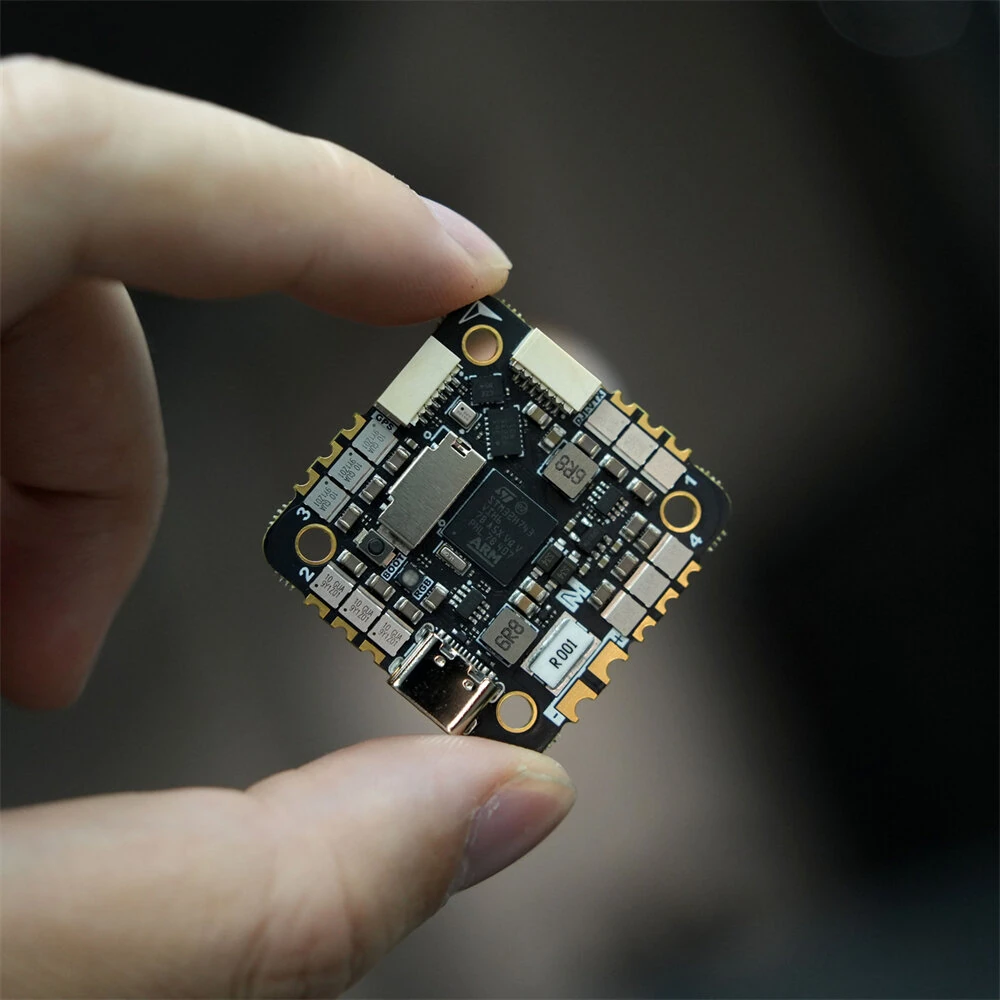

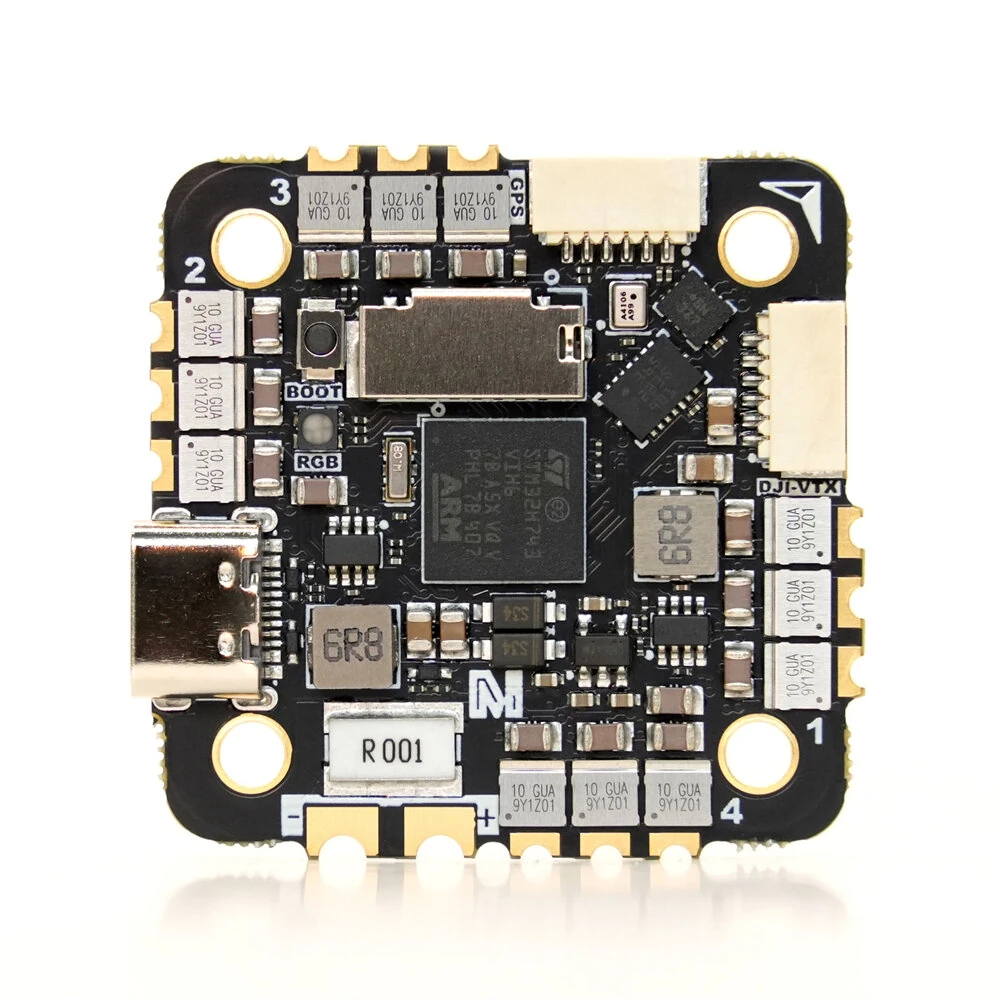

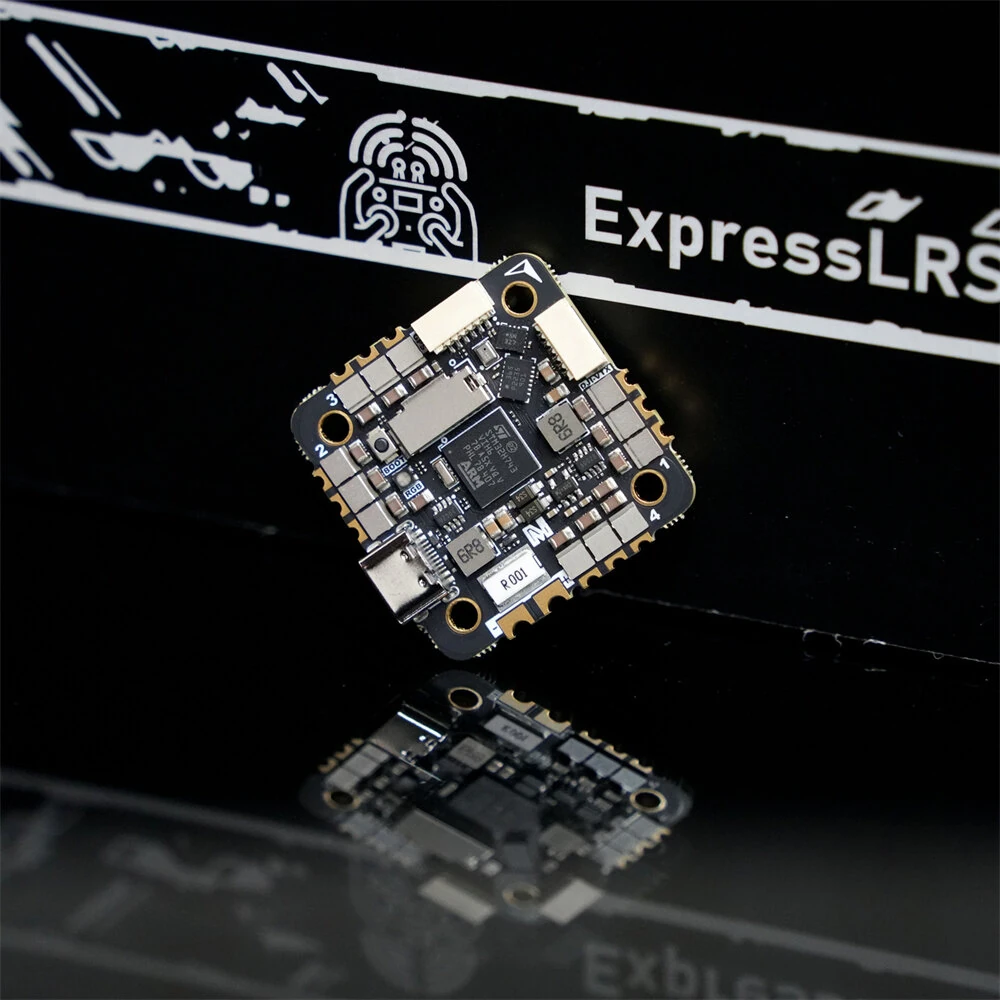

25.5×25.5mm MicoAir H743 V2 AIO AM32 Flight Controller 45A 2-6S ESC for RC FPV Racing Drones Supports APM PX4 INAV

Specification:
Brand: MicoAir
Product Name: H743 V2 45A 2-6S AIO
MCU Chip: STM32H743VIH6
IMU Sensor: BMI088 + BMI270 (Dual IMU)
Baro Sensor: SPL06
Compass: No onboard compass, external connection is supported
Log Storage: TF card slot
DJI Air Unit Support: Supports 6-pin direct insertion (DJI O3/O4/O4 Pro)
Current Sensor: Supported
Input Voltage: 2S-6SLi-Po Battery
5V Output: Total current 2A
12V Output: Total current 2A (For DJI air unit)
Motor: M1-M8
UART: 7 full-function serial ports (UART1, UART2, UART3, UART4, UART5, UART6, UART8)
I2C: Supported
USB: USB-Type-C; D+ and D- pads
LED Pads: Supported
Buzzer Pads: Supported, B- pads
BOOT Button: Supported; Also has boot pads
Supported FC Firmware: Ardupilot; PX4; INAV; Betaflight
FC Firmware Target: MicoAir743v2(AP); micoair_h743-v2(PX4); MICOAIR743V2(INAV)
Mounting: 25.5×25.5mm, 3mm hole
Size: 36 * 36 * 8mm
Weight: 10g
ESC Firmware: AM32_F4A_4IN1_F421_2.17
Continuous Current: 45A*4 (Good heat dissipation is required)
ESC Protocol: PWM; DShot300; DShot600
Bi-DShot: Supported

Package Included:
1 x H743V2 AIO
1 x 4G TF Memory Card
1 x 220uF Electrolytic Capacitor
1 x XT30 Power Cable
4 x M2 * 6.6mm Silicone Dampening Sleeves
2 x SH1.0-6P Cable 20cm (For GPS)
1 x SH1.0-4P Cable 15cm (For FC)
