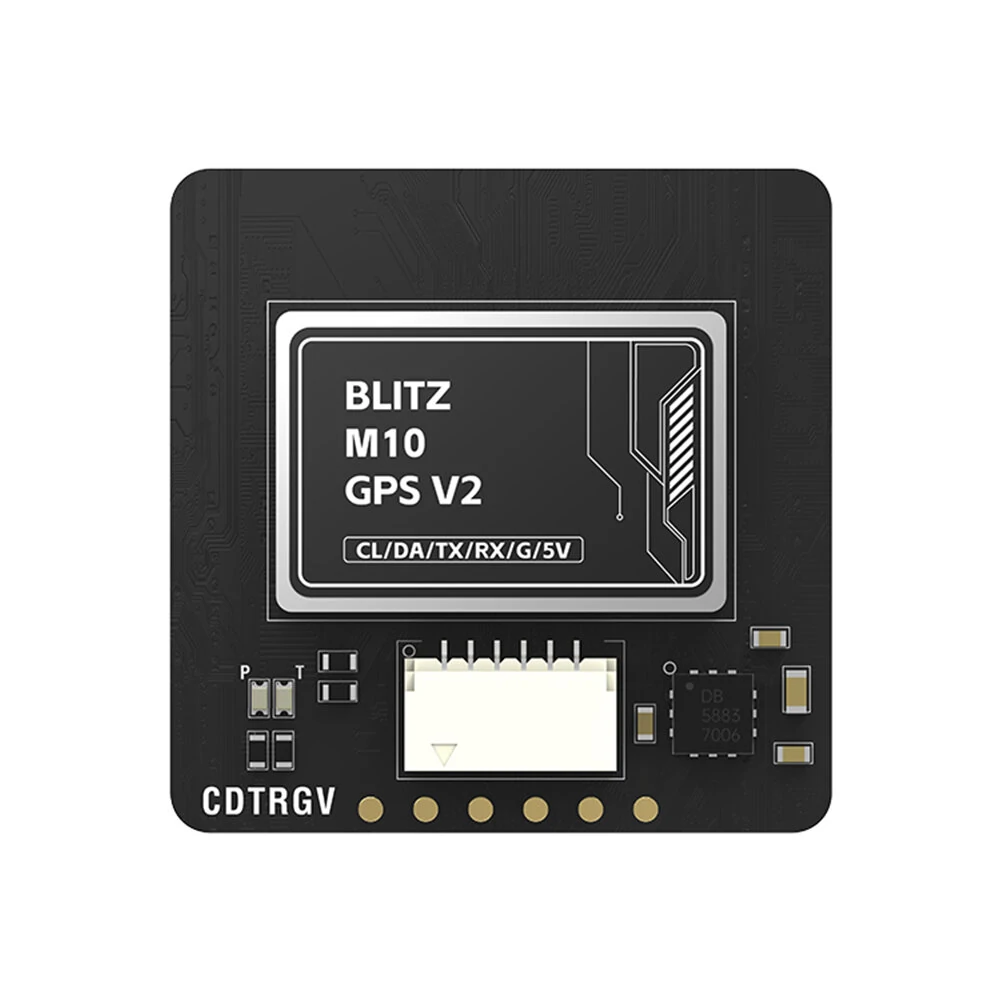

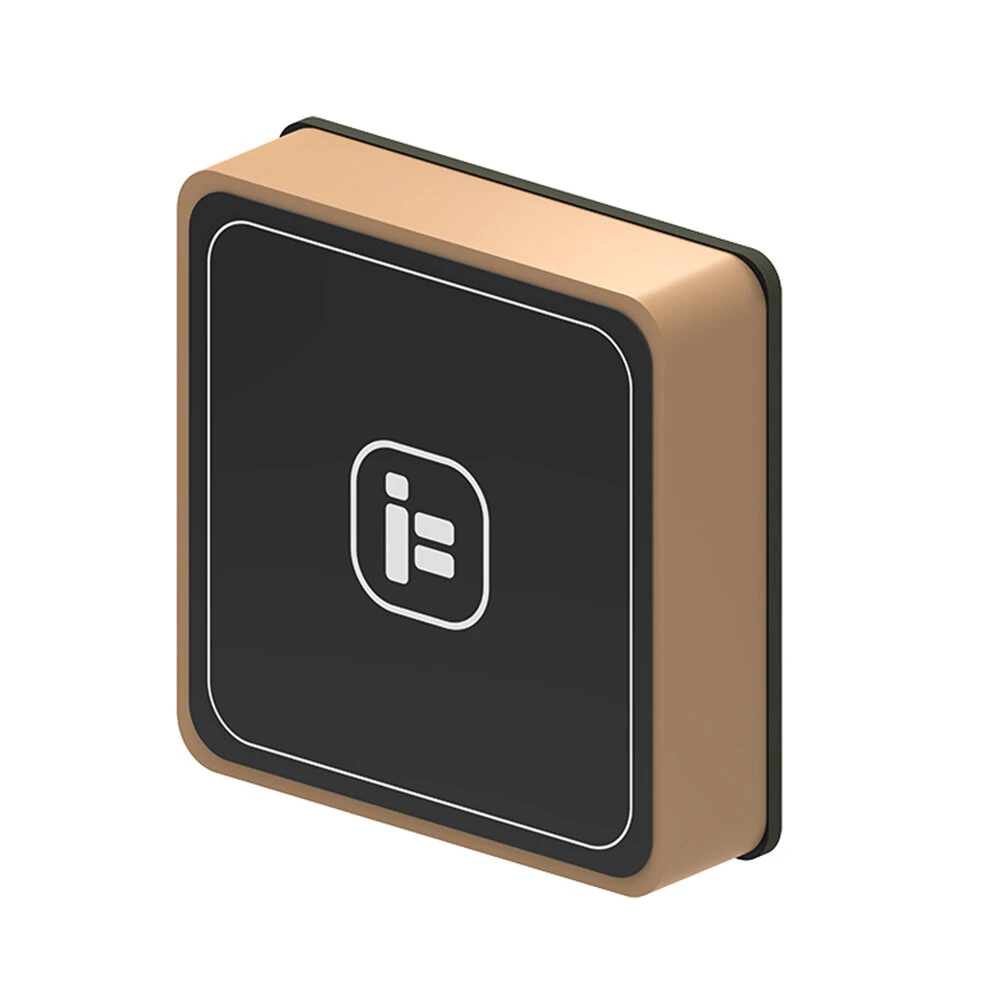

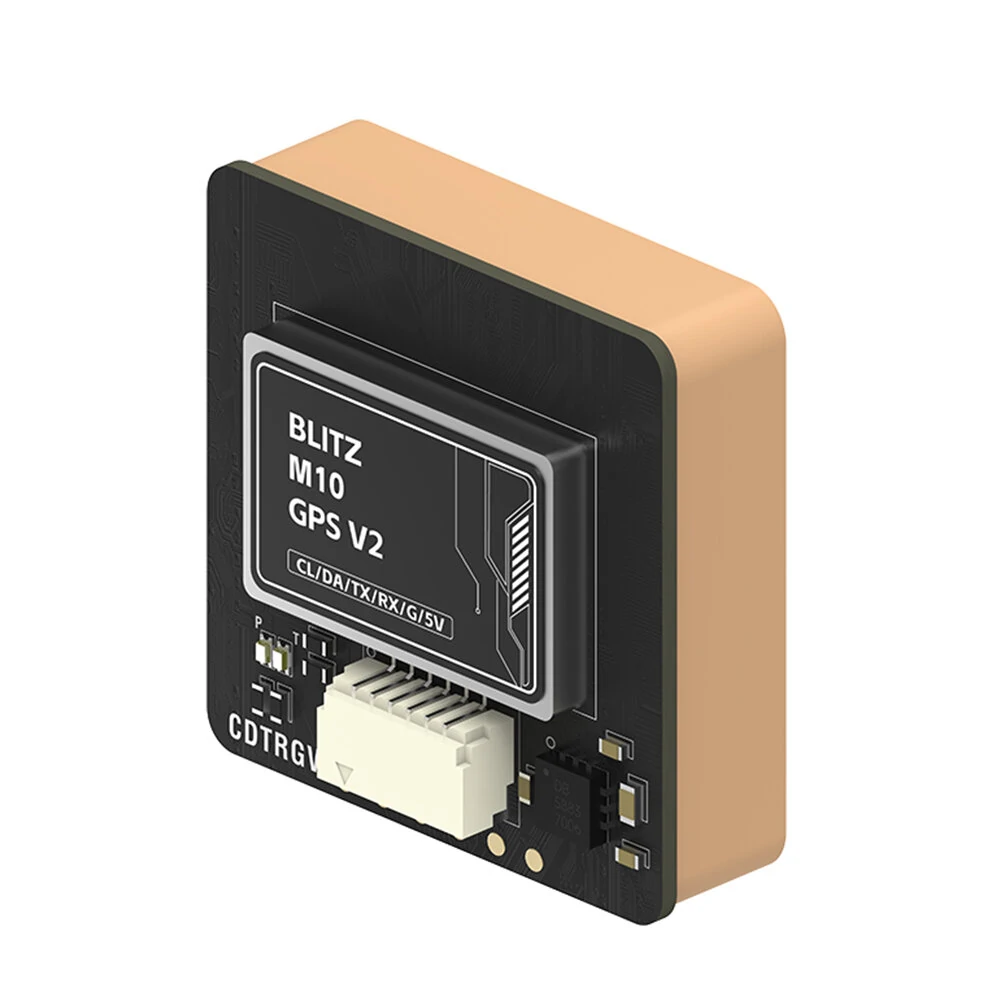

25*25*11mm iFlight BLITZ M10 GPS V2 Module 25x25mm Ceramic Antenna QMC5883L Compass for RC Airplane FPV Racing Drone Quadcopter

Description:
The newly upgraded BLITZ M10 GPS V2 has arrived, offering faster and more stable satelite search. This advancement in technology provides users with a more reliable and efficient GPS experience.

Features:

-UBLOX M10 chip, , low power consumption, strong signal

-Compass module QMC5883L integrated

-Built-in farad capacitor for faster hot start

-High-gain 25x25mm GPS ceramic antenna, high-precision positioning

-Onboard LNA (Low Noise Amplifier), RF filter, and TCXO (temperature-compensated crystal oscillator)

-10 Hz Refresh rate

-Built-in Flash

Specifications:
Brand: iFlight

Model: BLITZ M10 GPS V2
Compass module: QMC5883L
Baud Rate: 4800bps-921600bps (Default – 115200bps)
Sensitivity: Tracking: -167dBm
Cold start: 27s
Hot start: 1s
Maximum height: 80000m
Maximum speed: 500 m/s
Speed accuracy: 0.05 m/s
Maximum acceleration: ≦ 4G
Refresh Rate: 10 Hz
GPS patch antenna size: 25 x 25 x 6 mm
Total dimensions: 25 x 25 x 11 mm
Weight: 16 g
Input Voltage: 3.3-5.5 V
GPS pin definition: RX/TX UART
Compass pin definition: SDA/SLA
GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Packing List:

1 x BLITZ M10 GPS V2
1 x Cable set
