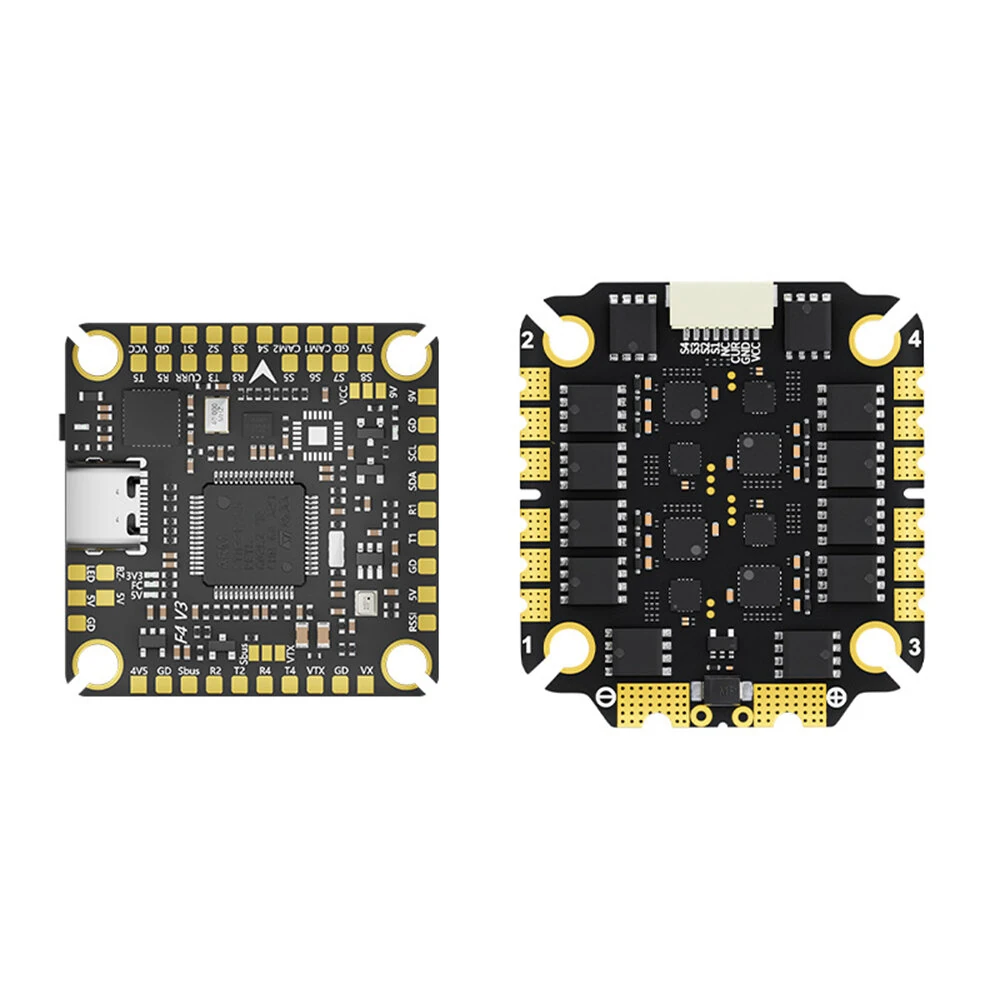

30.5*30.5mm Aocoda-RC F465S V4 Stack Build-in F405 V4 Flight Controller with OSD 5V 9V BEC Output & 3065S 65A 3-8S ESC for RC FPV Racing Drone

Features:

1. Advanced Flight Controller: Equipped with STM32F405 chip for smoother and more responsive control.

2. High Storage Capacity: Features 16MB black box for efficient data logging and analysis.

3. Robust Sensor: Incorporates ICM42688P gyroscope and SPL06-001 barometer for precise altitude and motion detection.

4. Enhanced Connectivity: Supports multiple receiver protocols including ELRS, CRSF, SBUS, Frsky, Futab, and DSMX.

5. Efficient Power Management: Dual BEC output with 5V/3A and 9V/2.5A for reliable component power supply.



Specification:

Brand: Aocoda-RC

Model: F465S V4 Stack

<td width='210' valign='top' style='width:157.6500pt;padding:0.0000pt 5.4000pt 0.0000pt 5.4000pt ;border-left:1.0000pt solid windowtext;
mso-border-left-alt:0.5000pt solid windowtext;border-right:1.0000pt solid windowtext;mso-border-right-alt:0.5000pt solid windowtext;
border-top:1.0000pt solid windowtext;mso-border-top-alt:0.5000pt solid windowtext;border-bottom:1.0000pt solid windowtext;
mso-border-bottom-alt:0.5000pt solid windowtext;’>

Item

<td width='357' valign='top' style='width:268.4500pt;padding:0.0000pt 5.4000pt 0.0000pt 5.4000pt ;border-left:1.0000pt solid windowtext;
mso-border-left-alt:0.5000pt solid windowtext;border-right:1.0000pt solid windowtext;mso-border-right-alt:0.5000pt solid windowtext;
border-top:1.0000pt solid windowtext;mso-border-top-alt:0.5000pt solid windowtext;border-bottom:1.0000pt solid windowtext;
mso-border-bottom-alt:0.5000pt solid windowtext;’>

Specification

<td width='210' valign='top' style='width:157.6500pt;padding:0.0000pt 5.4000pt 0.0000pt 5.4000pt ;border-left:1.0000pt solid windowtext;
mso-border-left-alt:0.5000pt solid windowtext;border-right:1.0000pt solid windowtext;mso-border-right-alt:0.5000pt solid windowtext;
border-top:none;mso-border-top-alt:0.5000pt solid windowtext;border-bottom:1.0000pt solid windowtext;
mso-border-bottom-alt:0.5000pt solid windowtext;’>

F405 V4 FC

<td width='357' valign='top' style='width:268.4500pt;padding:0.0000pt 5.4000pt 0.0000pt 5.4000pt ;border-left:1.0000pt solid windowtext;
mso-border-left-alt:0.5000pt solid windowtext;border-right:1.0000pt solid windowtext;mso-border-right-alt:0.5000pt solid windowtext;
border-top:none;mso-border-top-alt:0.5000pt solid windowtext;border-bottom:1.0000pt solid windowtext;
mso-border-bottom-alt:0.5000pt solid windowtext;’>

Main Chip: STM32F405RGT6

Gyroscope: ICM42688P

Barometer: SPL06-001

OSD: Supported

Black Box: 16MB

Motor Output: 8CH

LED Strip: Supported

Buzzer: Supported

Receiver Protocols: ELRS,CRSF,SBUS,Frsky,Futab,Flysky,TBS CRSF,DSMX

Input Voltage: DC 12V~33V(3-8S Lipo)

Output Power: 5V/3A, 9V/2.5A

USB Type: Type-C

Dual Camera Support: DJI/Vista digital FPV

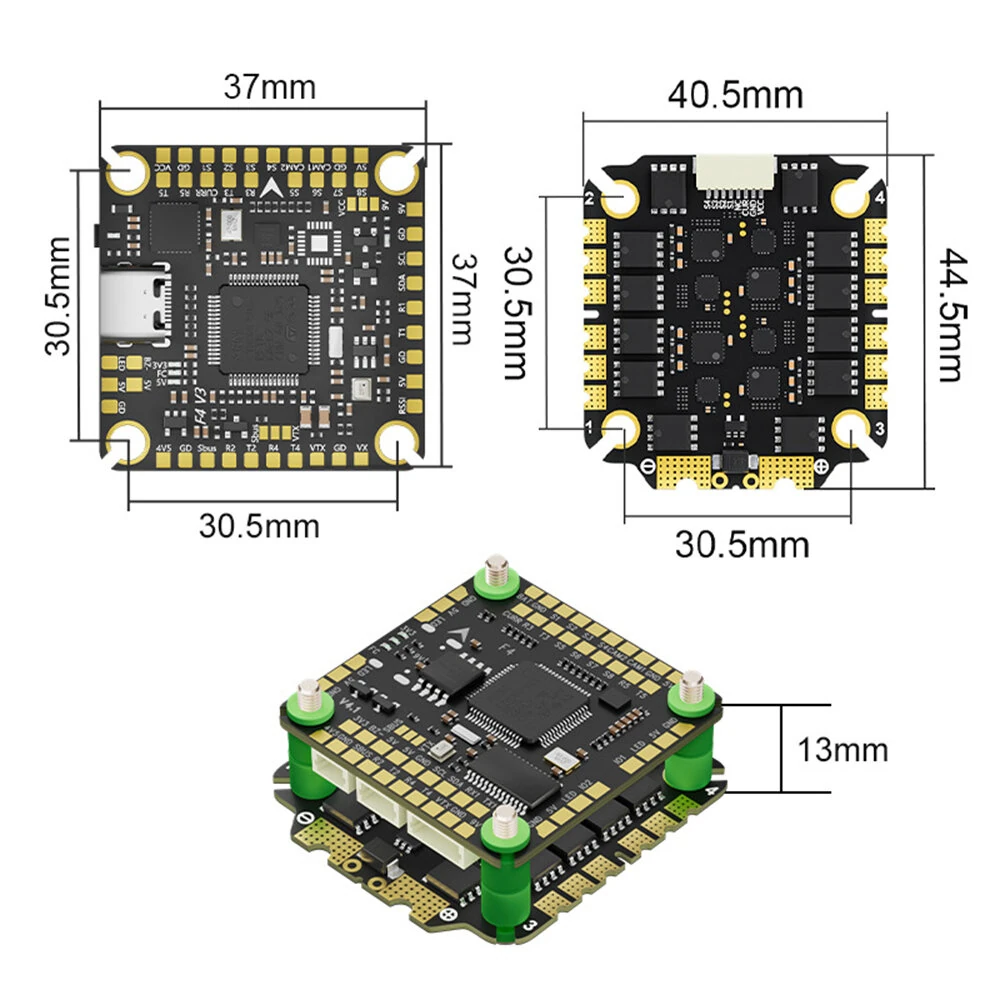

Dimensions: 37mm x 37mm

Mounting Hole: M3 30.5mm x 30.5mm

Weight: 9.4g

<td width='210' valign='top' style='width:157.6500pt;padding:0.0000pt 5.4000pt 0.0000pt 5.4000pt ;border-left:1.0000pt solid windowtext;
mso-border-left-alt:0.5000pt solid windowtext;border-right:1.0000pt solid windowtext;mso-border-right-alt:0.5000pt solid windowtext;
border-top:none;mso-border-top-alt:0.5000pt solid windowtext;border-bottom:1.0000pt solid windowtext;
mso-border-bottom-alt:0.5000pt solid windowtext;’>

3065S ESC

<td width='357' valign='top' style='width:268.4500pt;padding:0.0000pt 5.4000pt 0.0000pt 5.4000pt ;border-left:1.0000pt solid windowtext;
mso-border-left-alt:0.5000pt solid windowtext;border-right:1.0000pt solid windowtext;mso-border-right-alt:0.5000pt solid windowtext;
border-top:none;mso-border-top-alt:0.5000pt solid windowtext;border-bottom:1.0000pt solid windowtext;
mso-border-bottom-alt:0.5000pt solid windowtext;’>

Continuous Current: 65A x 4

Max Burst Current: 75A x 4

Supported ESC Protocols: DShot150,300,600,Mulitshot,OneShot,Proshot/PWM etc.

Firmware Version: Bluejay D_X_30_v0.21.1-RC1-hex

Input Voltage: DC 9V~40V(3-8S Lipo)

Current Sensor: Supported

BEC: None

Dimensions: 44.5mm x 40.5mm

Mounting Hole: M3 30.5mm x 30.5mm

Weight: 15.8g

Current Sensor Ratio: 77

Package Included:

1 x F405 V4 Flight Controller

1 x 3065S ESC

1 x 8PIN SH1.0MM Reverse Connector

8 x M38 MM Shock Absorbing Ball

1 x 35V 1000UF Capacitor

1 x XT60 Power Cable

8 x M3 Nuts

4 x M3*30MM Screws
