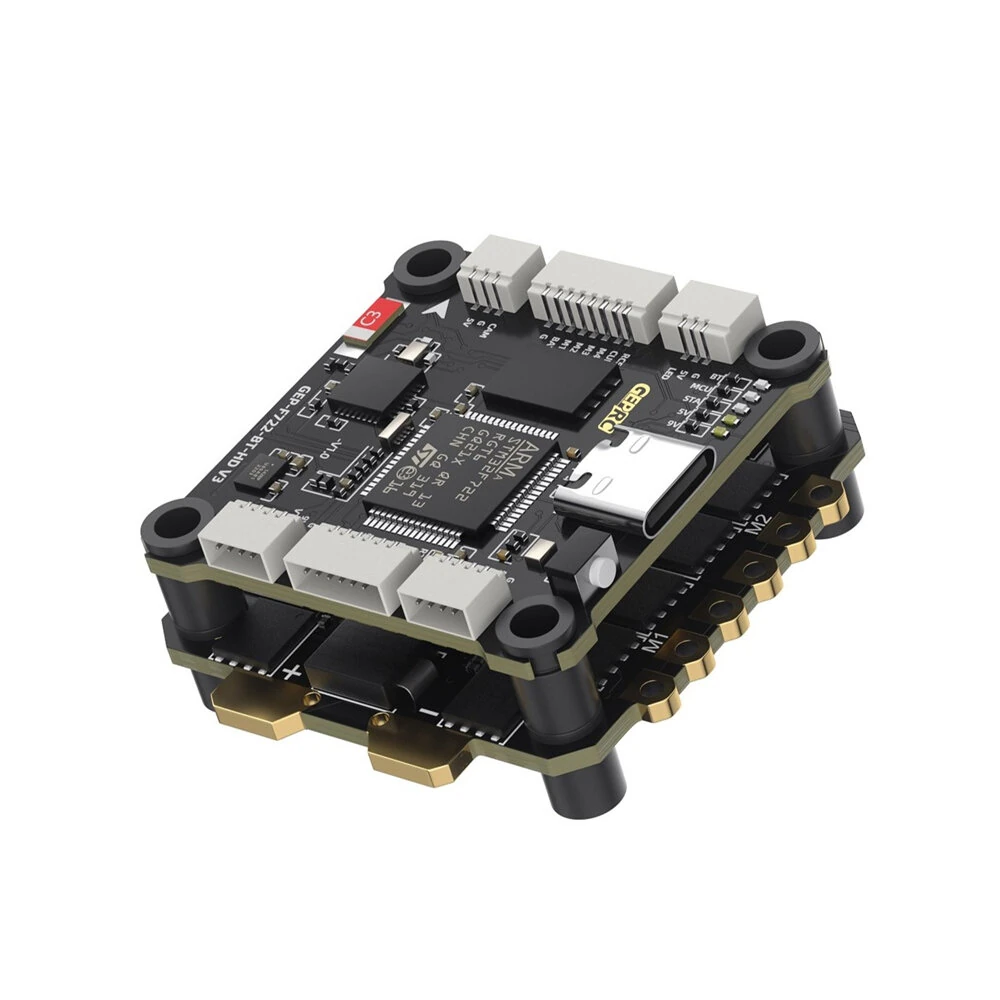

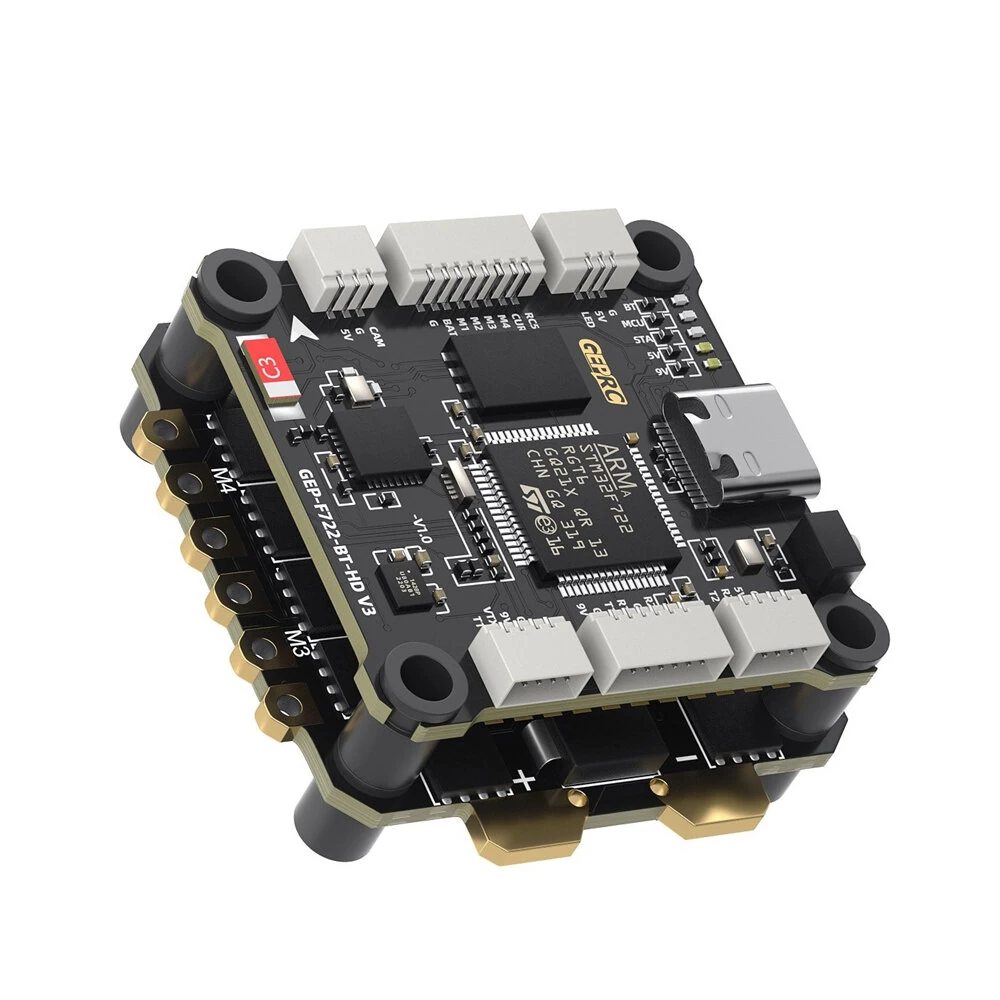

30.530.5mm GEPRC TAKER F722 BT HD V3 Flight Controller 3-6S 50A 32Bit 4In1 Brushless ESC Stack for RC FPV Racing Drone

Note: Pre-installed with BL32 test firmware, extensively tested for safety and reliability(AM32 also supported; customer flashing required.)

Feature:

1. Use mainstream STM32F722 chip

2. Equipped with the latest 42688-P gyroscope

3. 512M black box storage

4. Support Bluetooth parameter tuning

5. Integrated LC filter

6. Upgrade type-C USB interface

7. With GEP-BL32 50A 96K 4IN1 32Bit ESC, silky flight

8. Directly plugs into the DJI Air Unit

9. Simple and effective installation with shock-absorbing mounts for stable gyroscope performance

10. Integrated Barometer

11. 9V@2.5A + 5V@3A dual independent BEC



Specification:

Brand: GEPRC

Model: TAKER F722 BT 32Bit 50A STACK

<td width='230' valign='top' style='width:172.8500pt;padding:0.0000pt 5.4000pt 0.0000pt 5.4000pt ;border-left:1.0000pt solid windowtext;
mso-border-left-alt:0.5000pt solid windowtext;border-right:1.0000pt solid windowtext;mso-border-right-alt:0.5000pt solid windowtext;
border-top:1.0000pt solid windowtext;mso-border-top-alt:0.5000pt solid windowtext;border-bottom:1.0000pt solid windowtext;
mso-border-bottom-alt:0.5000pt solid windowtext;’>

Model

<td width='337' valign='top' style='width:253.2500pt;padding:0.0000pt 5.4000pt 0.0000pt 5.4000pt ;border-left:1.0000pt solid windowtext;
mso-border-left-alt:0.5000pt solid windowtext;border-right:1.0000pt solid windowtext;mso-border-right-alt:0.5000pt solid windowtext;
border-top:1.0000pt solid windowtext;mso-border-top-alt:0.5000pt solid windowtext;border-bottom:1.0000pt solid windowtext;
mso-border-bottom-alt:0.5000pt solid windowtext;’>

Specification

<td width='230' valign='top' style='width:172.8500pt;padding:0.0000pt 5.4000pt 0.0000pt 5.4000pt ;border-left:1.0000pt solid windowtext;
mso-border-left-alt:0.5000pt solid windowtext;border-right:1.0000pt solid windowtext;mso-border-right-alt:0.5000pt solid windowtext;
border-top:none;mso-border-top-alt:0.5000pt solid windowtext;border-bottom:1.0000pt solid windowtext;
mso-border-bottom-alt:0.5000pt solid windowtext;’>

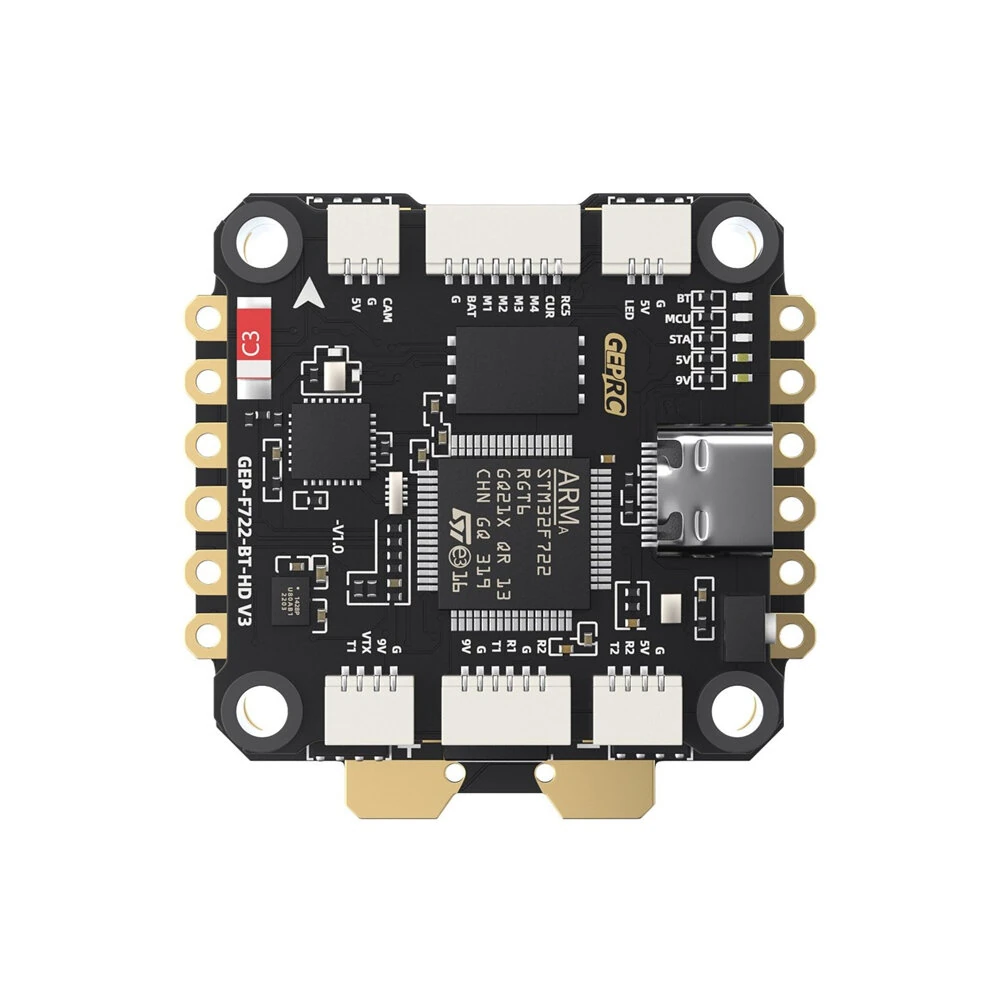

F722 BT HD V3 Flight Controller

<td width='337' valign='top' style='width:253.2500pt;padding:0.0000pt 5.4000pt 0.0000pt 5.4000pt ;border-left:1.0000pt solid windowtext;
mso-border-left-alt:0.5000pt solid windowtext;border-right:1.0000pt solid windowtext;mso-border-right-alt:0.5000pt solid windowtext;
border-top:none;mso-border-top-alt:0.5000pt solid windowtext;border-bottom:1.0000pt solid windowtext;
mso-border-bottom-alt:0.5000pt solid windowtext;’>

MCU: STM32F722

IMU：ICM42688-P(SPI)

Air Unit Connection: Directly plugs into the DJI Air Unit

Black Box: 512M onboard

Bluetooth: Supported

Barometer: Supported

USB Interface: Type-C

OSD: BetaFlight OSD w/ AT7456E chip

BEC: 5V@3A, 9V@2.5A dual BEC

Firmware Target: GEPRCF722_BT_HD_V3

Size: 36.9×36.9mm, hole: 30.5×30.5mm, φ4mm hole becomes φ3mm after using a silicone shock-absorbing ring

Input Voltage: 3-6S LiPo

UART: 5 groups (UART4 fixed for Bluetooth)

Power Filter: Integrated LC filter

Weight: 8.2g

<td width='230' valign='top' style='width:172.8500pt;padding:0.0000pt 5.4000pt 0.0000pt 5.4000pt ;border-left:1.0000pt solid windowtext;
mso-border-left-alt:0.5000pt solid windowtext;border-right:1.0000pt solid windowtext;mso-border-right-alt:0.5000pt solid windowtext;
border-top:none;mso-border-top-alt:0.5000pt solid windowtext;border-bottom:1.0000pt solid windowtext;
mso-border-bottom-alt:0.5000pt solid windowtext;’>

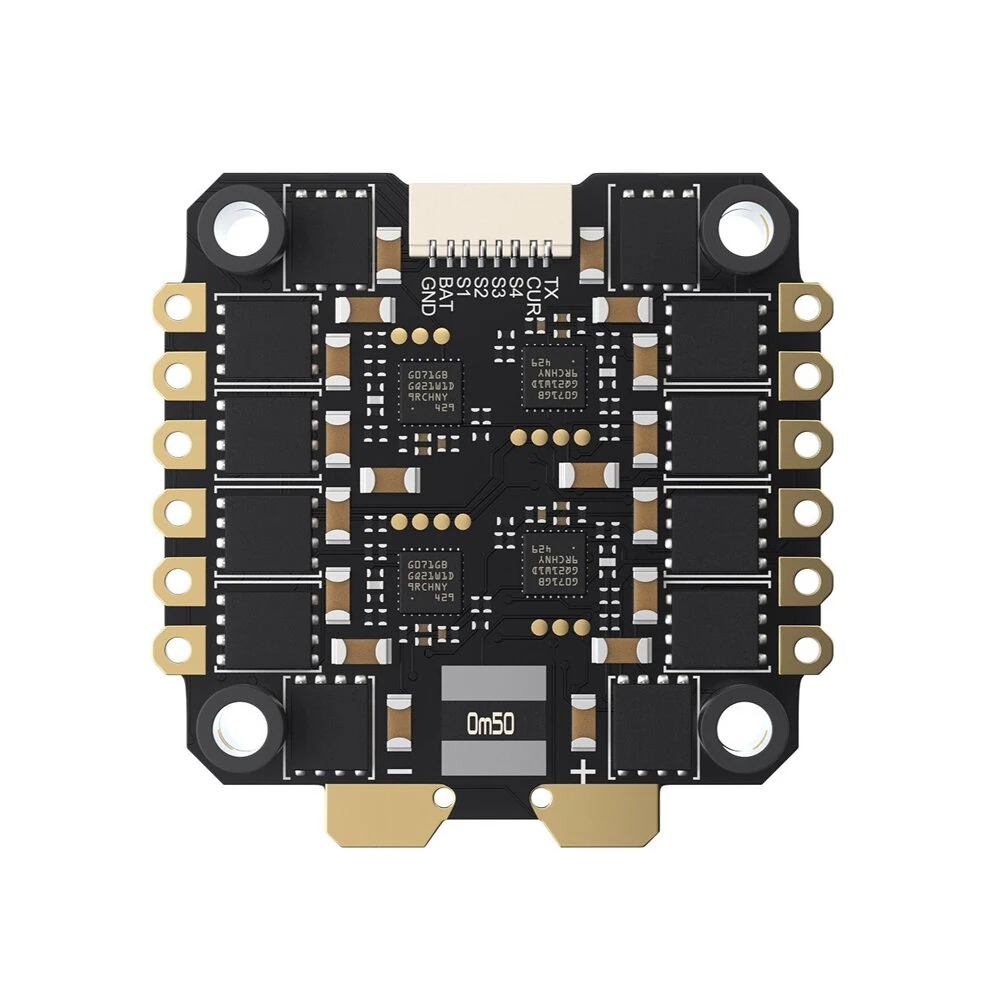

50A 4IN1 ESC

<td width='337' valign='top' style='width:253.2500pt;padding:0.0000pt 5.4000pt 0.0000pt 5.4000pt ;border-left:1.0000pt solid windowtext;
mso-border-left-alt:0.5000pt solid windowtext;border-right:1.0000pt solid windowtext;mso-border-right-alt:0.5000pt solid windowtext;
border-top:none;mso-border-top-alt:0.5000pt solid windowtext;border-bottom:1.0000pt solid windowtext;
mso-border-bottom-alt:0.5000pt solid windowtext;’>

Input Voltage: 3-6S Lipo

Continue Current：50A

Burst Current: 55A (5 second)

Galvanometer：Support

Telemetry: Support

Support Protocol: Dshot 150/300/600

Size：42.5×42.1mm，hole30.5×30.5mm

Weight：14g

Target: ST_G0_05 – 31.92



Package Included:

1 x FC board

1 x ESC board

1 x Capacitor

1 x DJI O3 3-in-1 connection cable

1 x FC adapter cable

1 x sh1.0 4pin silicone cable

1 x Camera connection cable

1 x VTX connection cable

1 x XT90 power cable

4 x M3*30 screws

4 x M3*25 screws

8 x Nylon nuts

12 x Silicone anti-shake pads
