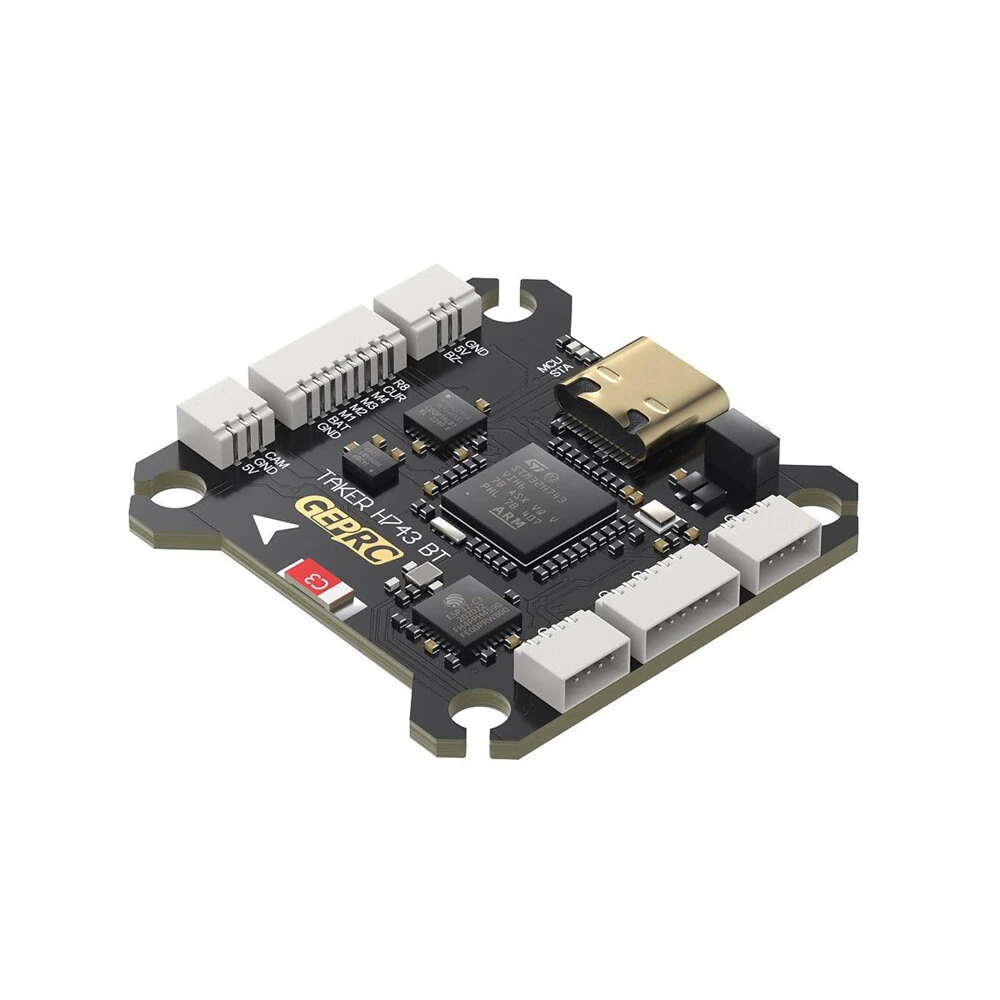

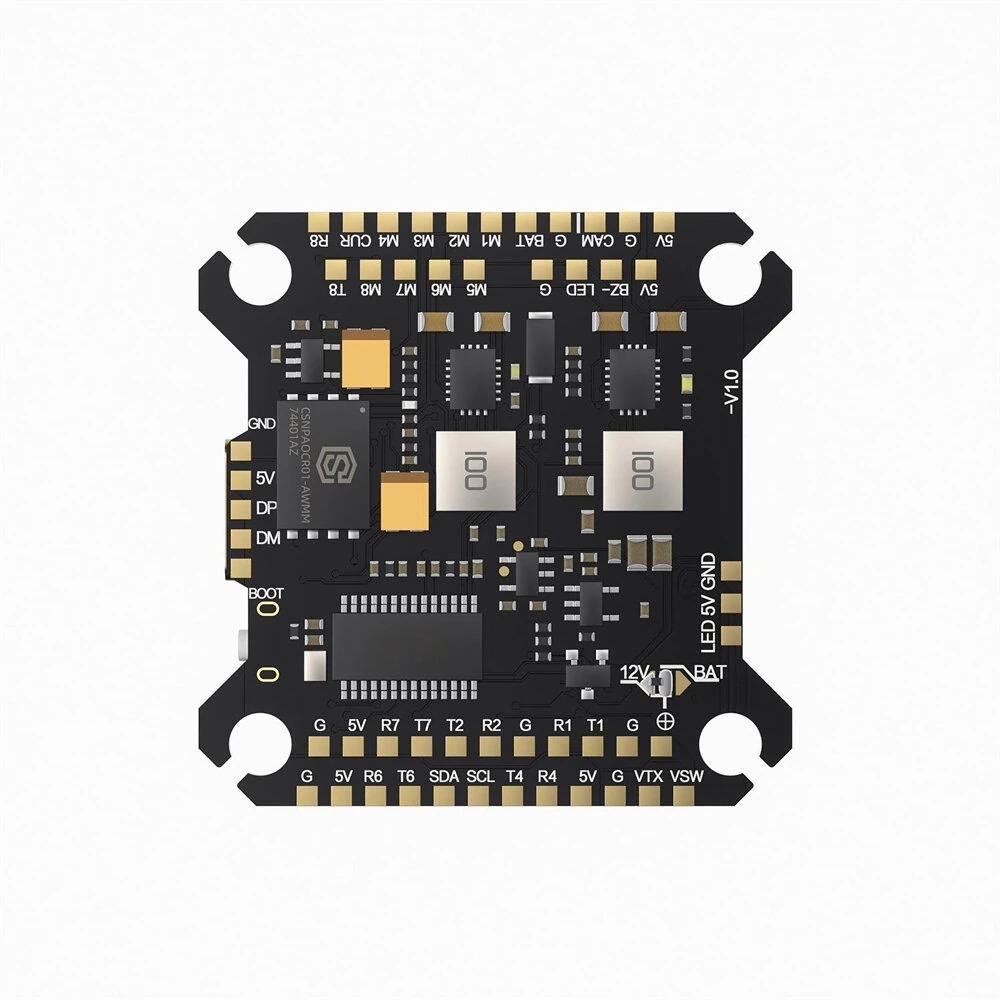

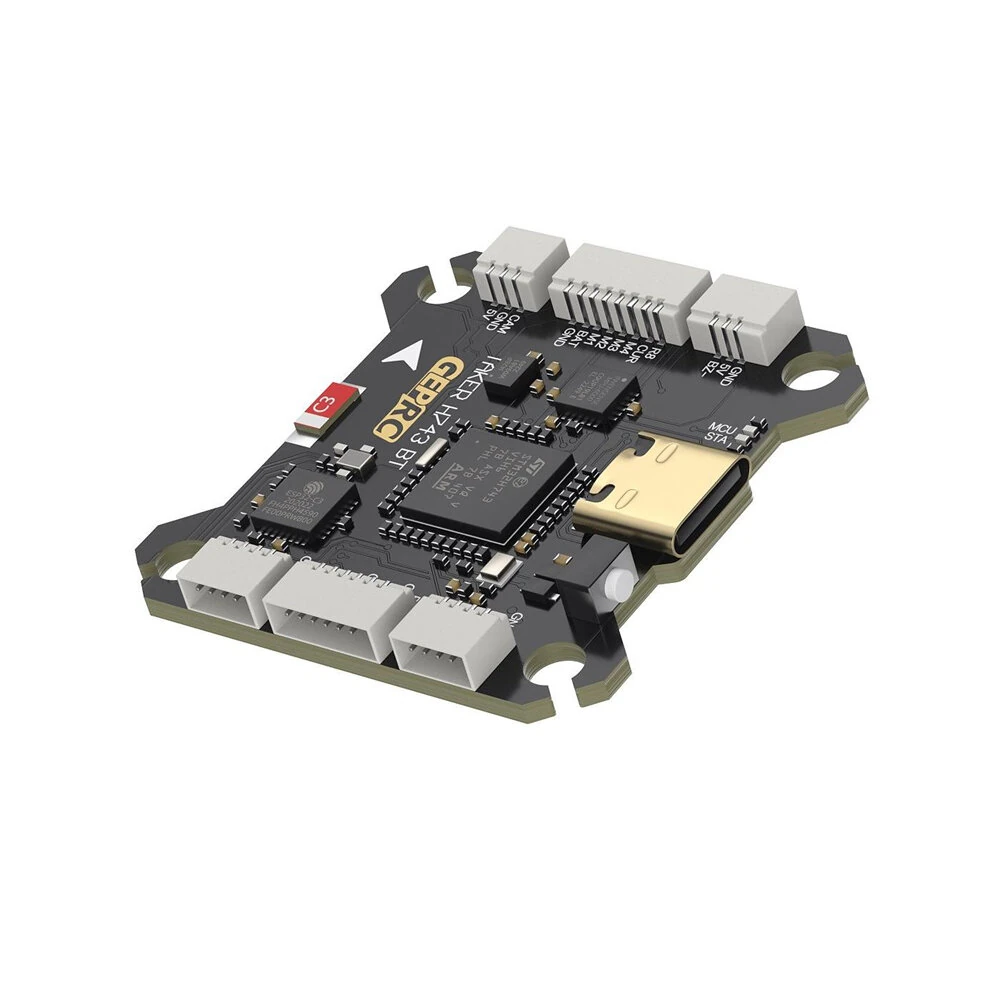

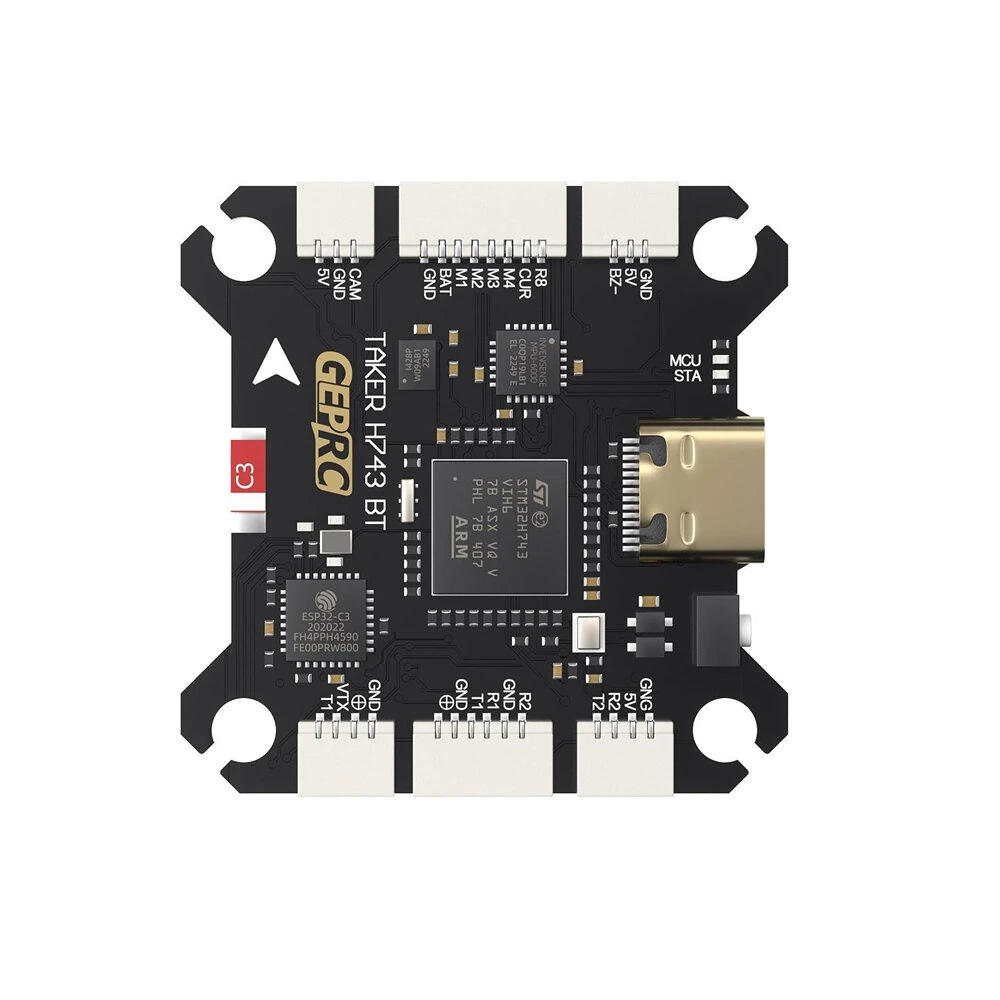

30.530.5mm GEPRC TAKER H743 BT Dual Gyro 3-6S Flight Controller with 5V 12V BEC Output for RC FPV Racing Drone

Features:
– Addopts the high-performance STM32H743 as the main controller
– Equipped with MPU6000 and 42688-P dual gyroscopes
– 512M of black box storage
– Bluetooth parameter tuning
– Integrated LC filter
– Upgraded type-C USB interface
– Direct plug-in compatibility with DJI Air Unit
– Integrated Barometer
– Features 7 groups of UART
– 12V@2.5A + 5V@3A dual independent BEC
– Offers multiple firmware options

Specification:
Brand: GEPRC
Model: TAKER H743 BT Flight Controller
MCU: STM32H743
IMU: MPU6000 + ICM42688-P(dual gyro)
Air Unit Connection: Directly plugs into DJI Air Unit
Black Box：512M onboard
Bluetooth: Supported
Barometer: Supported
USB Interface: Type-C
OSD: BetaFlight OSD w/ AT7456E chip
BEC Output: 5V@3A,12V@2.5A dual BEC
Firmware Target: GEPRC_TAKER_H743
Size: 38.5×38.5mm, mounting hole size 30.5×30.5mm
Input Voltage: 3-6S LiPo
UART Ports: 7 groups (UART3 fixed for Bluetooth)
Power Filtering: Integrated LC filter
Weight：8.4g

Package Included:
1 x FC board
1 x DJI O3 3-in-1 connection cable
1 x FC adapter cable
1 x sh1.0 4pin silicone cable
1 x Camera connection cable
1 x VTX connection cable
1 x Buzzer connection cable
4 x Silicone grommets
