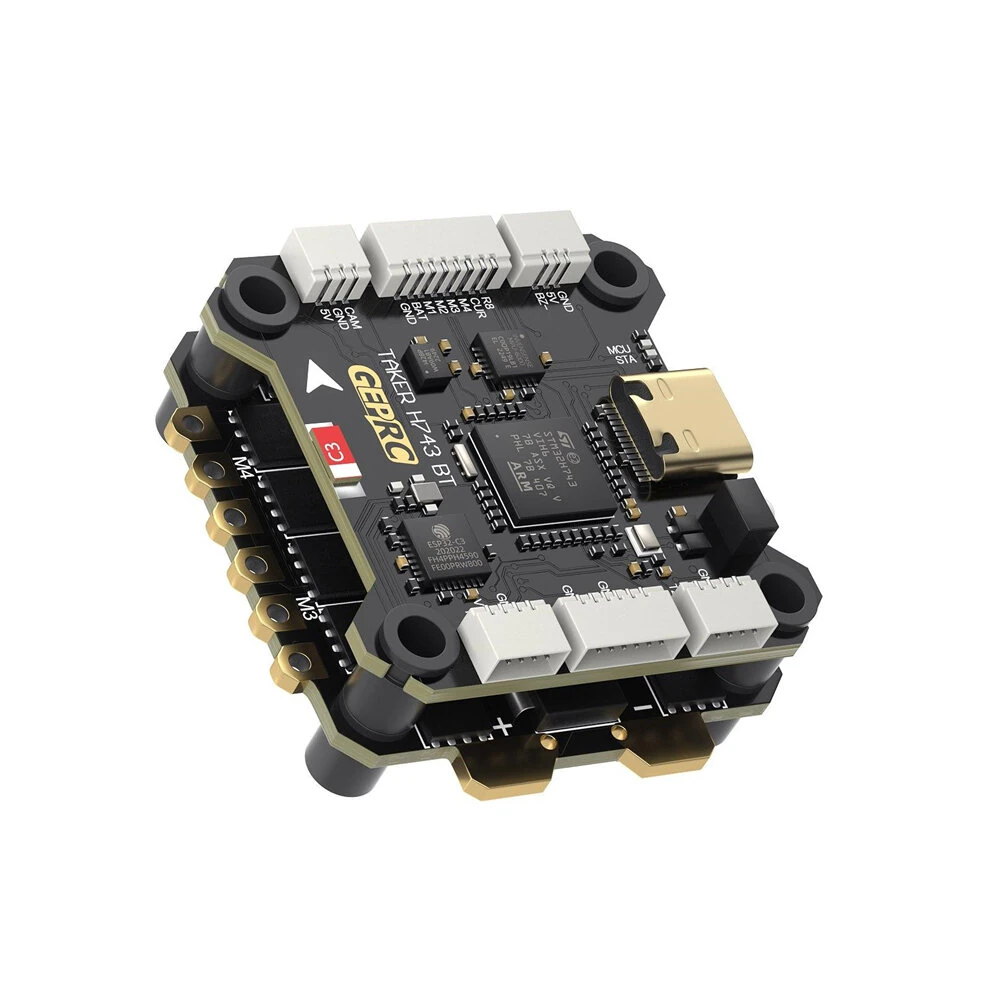

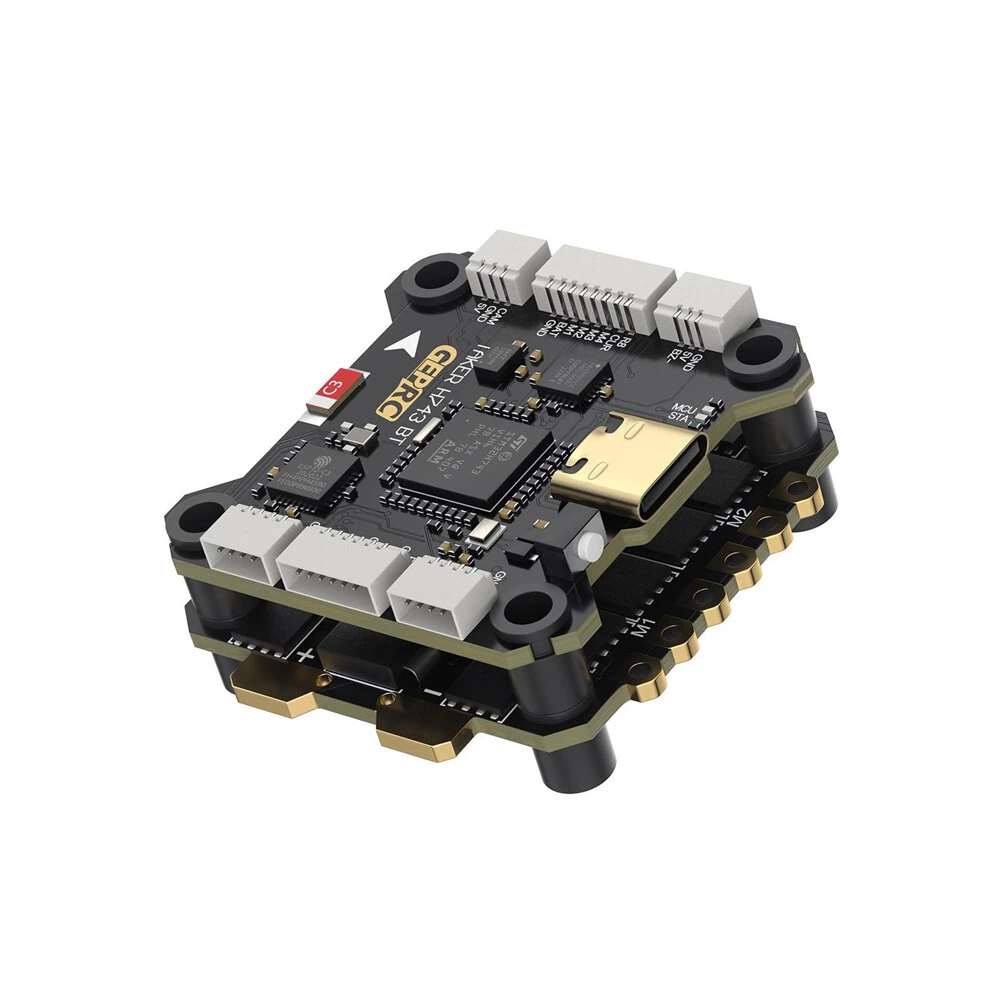

30.530.5mm GEPRC TAKER H743 BT Dual Gyro Flight Controller & 3-6S 50A 4in1 ESC 32Bit Stack for RC FPV Racing Drone

Description:

The TAKER H743 BT 32Bit 50A stack is the latest stack system developed by the GEPRC team. It features a high-performance STM32H743VIH6 chip with a Cortex-M7 core running at up to 480MHz, handling both racing and freestyle flights with ease. Its dual gyroscope setup, using MPU6000 and ICM42688-P, ensures precise control. With integrated Bluetooth for wireless parameter adjustments and a built-in 512MB black box, it’s well-equipped. It also offers eight motor output ports and is compatible with X8 models.



Compatible with Betaflight, INAV, and Ardupilot, it ensures flexibility. The dual independent 5V@3A + 12V@2.5A BEC ensures stable charging and motor voltage options. Features include seven UART ports, an integrated barometer, and plug-and-play functionality. With the GEP-BL32 50A 96K 4IN1 32Bit ESC, it delivers an exceptionally smooth flight experience.



Feature:

1. Adopts the high-performance STM32H743 as the main controller

2. Equipped with MPU6000 and 42688-P dual gyroscopes

3. 512MB high-capacity black box storage

4. Bluetooth parameter tuning

5. Upgraded Type-C USB interface

6. Plug-and-play, no soldering required

7. Integrated barometer

8. Features 7 UART ports

9. Independent BEC with 12V@2.5A and 5V@3A outputs

10. Equipped with the GEP-BL32 50A 96K 4IN1 32Bit ESC for a smooth flight experience

Note: pre-installed with BL32 test firmware, extensively tested for safety and reliability

(AM32 also supported; customer flashing required)



Specification:

Brand: GEPRC

Model: TAKER H743 BT 32Bit 50A Stack

Item	Parameter

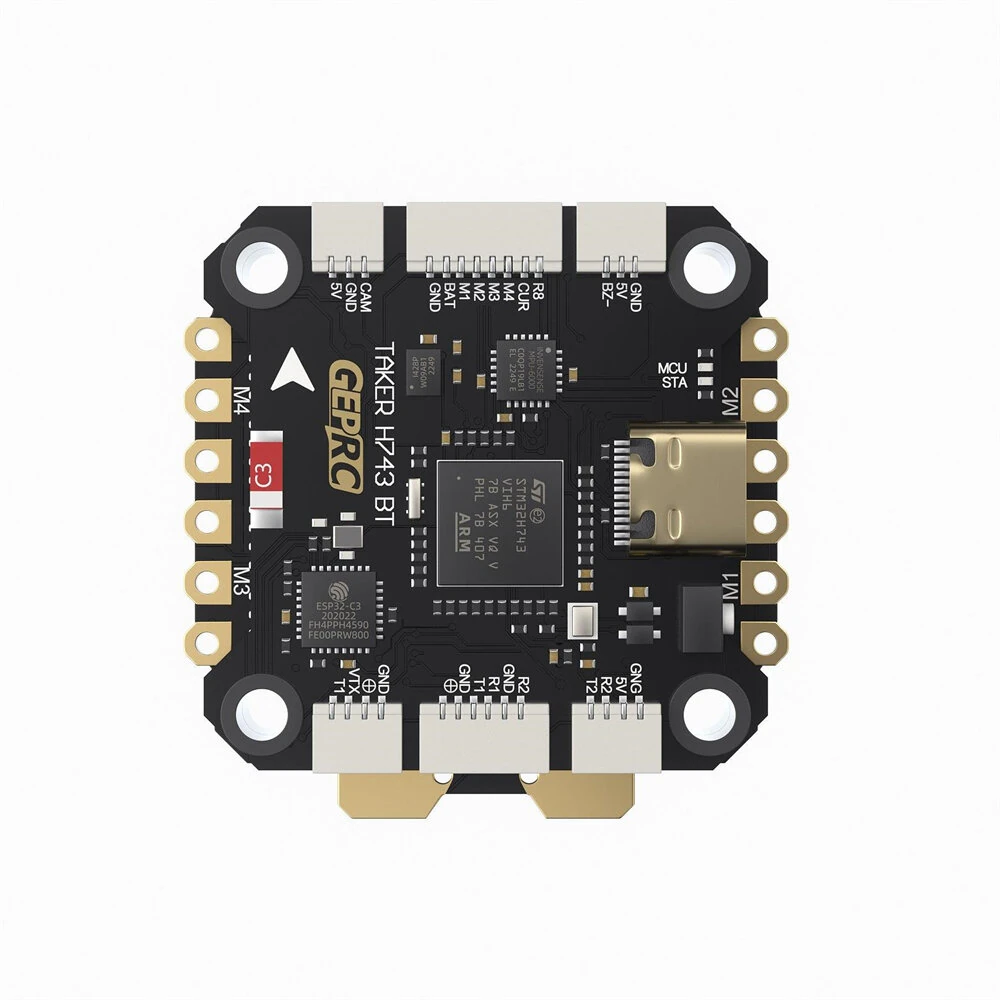

TAKER H743 BT Flight Controller	FC model: TAKER H743 BT Flight Controller MCU: STM32H743 IMU: MPU6000 + ICM42688-P(dual gyro) Air Unit Connection: direct plug for DJI Air Unit Black Box: 512M onboard Bluetooth: Supported Barometer: Supported USB Interface: Type-C OSD: BetaFlight OSD w/ AT7456E chip BEC Output: 5V@3A,12V@2.5A dual BEC Target: GEPRC_TAKER_H743 Dimension: 38.5×38.5mm, mounting hole size 30.5×30.5mm Input Voltage: 3-6S LiPo UART Ports: 7 groups (UART3 fixed for Bluetooth) Power Filtering: Integrated LC filter Weight: 8.4g

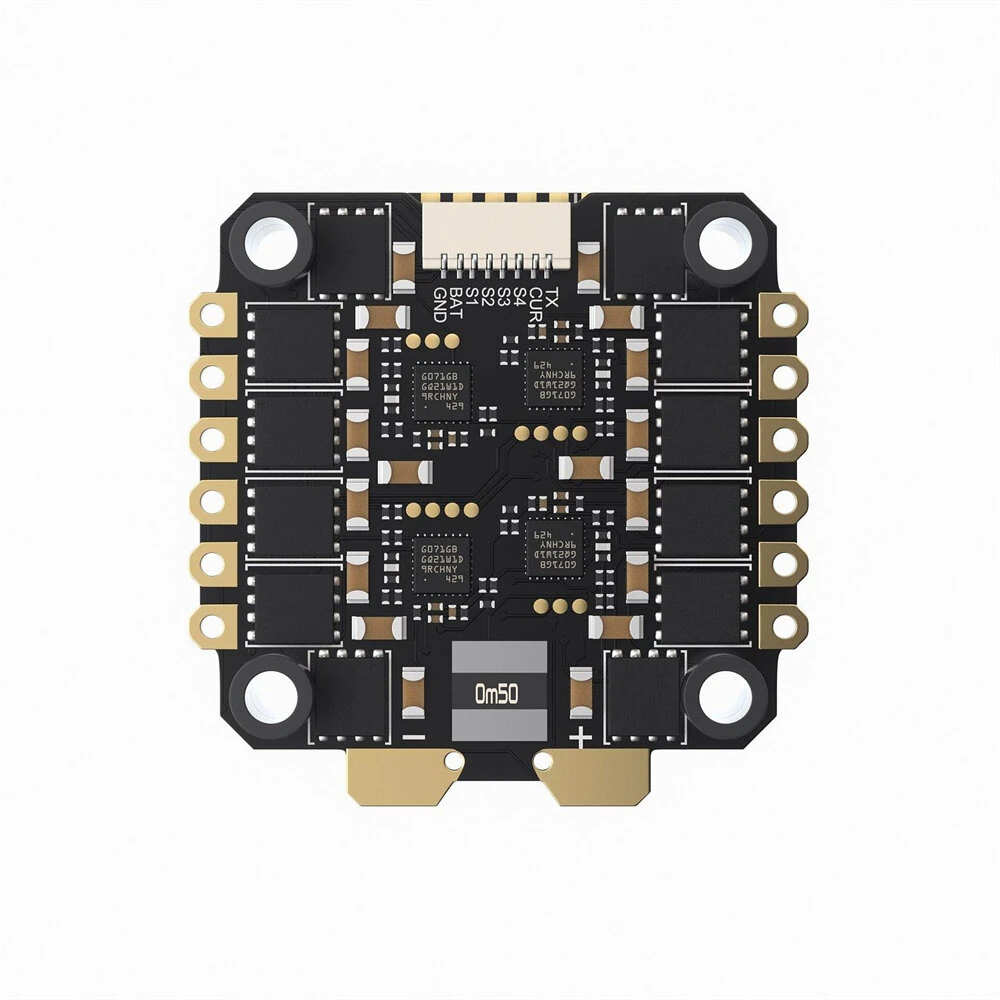

GEP-BL32 50A 96K 4IN1 ESC	Input Voltage: 3-6S Lipo Continuous Current: 50A Peak Current: 55A（5 seconds） Supported Protocol: Dshot 150/300/600 Size: 42.5×42.1mm, hole 30.5×30.5mm Weight: 14g Target: ST_G0_05 – 31.92



Package Included:

1 x FC board

1 x ESC board

1 x Capacitor

1 x DJI O3 3-in-1 connection cable

1 x FC adapter cable

1 x sh1.0 4pin silicone cable

1 x Camera connection cable

1 x VTX connection cable

1 x Buzzer connection cable

1 x XT60 power cable

4 x M3*30 screws

4 x M3*25 screws

8 x Nylon nuts

12 x Silicone anti-shake pads
