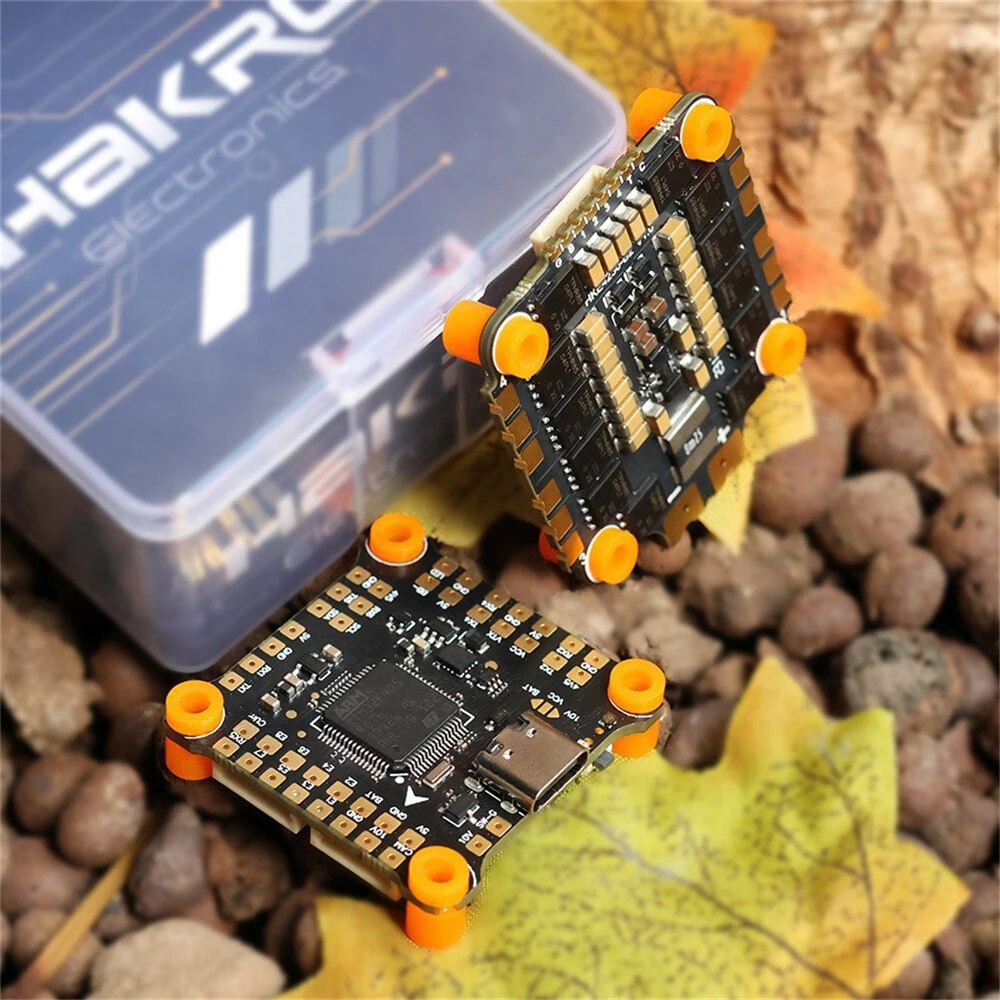

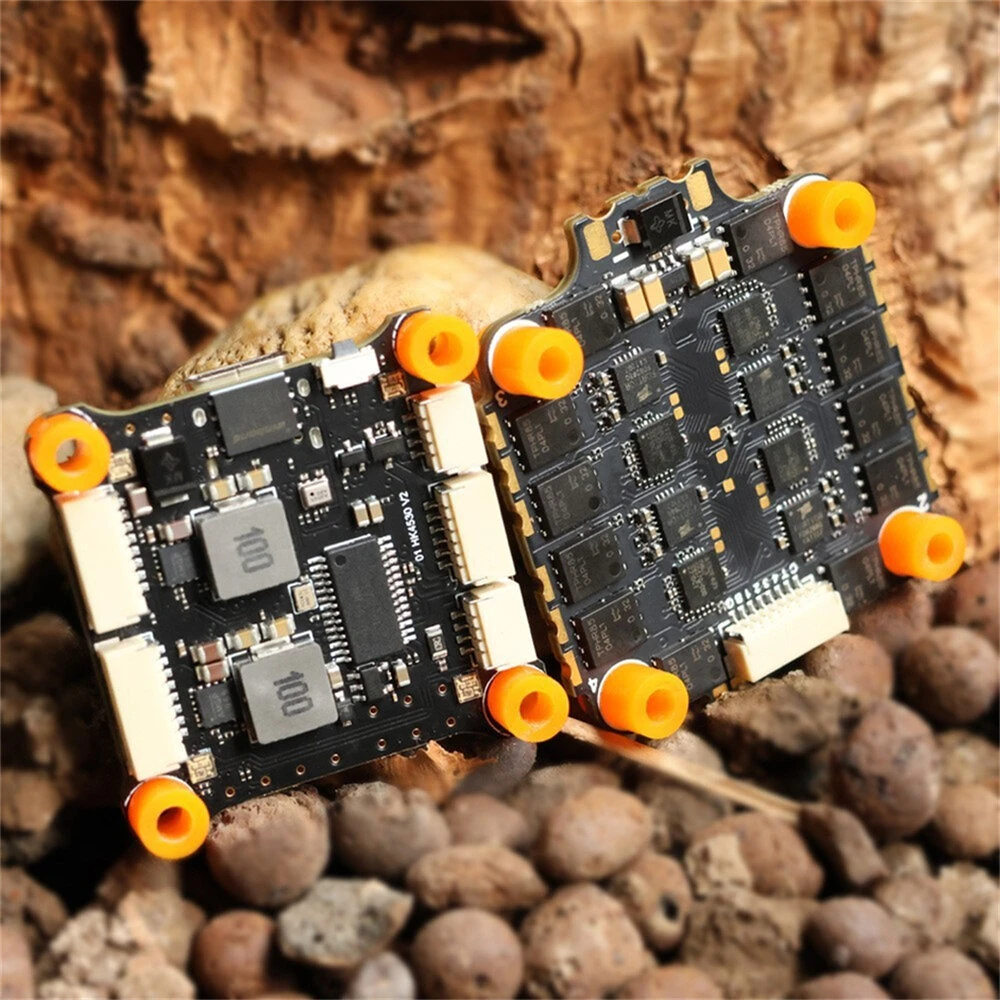

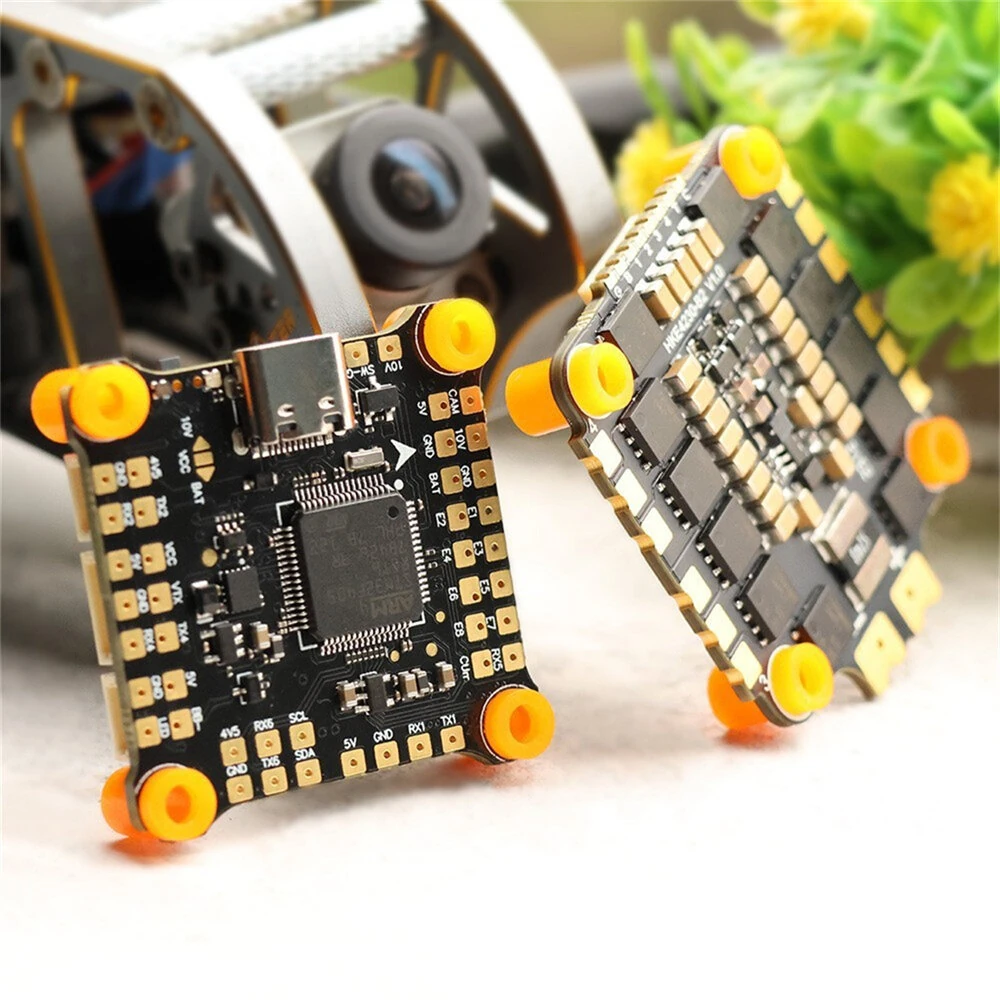

30.530.5mm HAKRC F4530 V2 2-6S Flight Controller 4320 BLHeli 32 65A 4in1 ESC Stack for DIY RC FPV Racing Drones
1 in stock
- SKU : 2046343
- Condition : New
- Brand : HAKRC
- Processing Time : Ships Within 24-48 Hours
- Return Policy : 30-day refund or replacement
$144.99 $181.99
Specification:
Brand: HAKRC
Model: F4530 V2 Flight Controller 4230 65A 4in1 ESC Stack
|
Model |
Parameter |
|
F4530 V2 Flight Controller |
Size: 36×36mm (mounting holes: 30.5×30.5mm) Input Voltage: 2S–6S Lipo Net Weight: 8.5g CPU: STM32F405RET6 IMU: ICM42688 OSD: AT7456E Black Box: 16M BEC: 5V/3A, 10V/2.5A LED: Supports onboard LED configuration Transmitter Support: Built-in current and voltage detection Firmware: HAKRCF405V2 Receiver Support: FrSky / Futab / Flysky / TBS CRSF / DSMX DSM2 receiver compatibility |
|
4230 65A 4-in-1 ESC |
Size: 32×55mm Net Weight: 23.2g Firmware: HAKRC_AT4G Multi 32.9 Hex Input Voltage: 2S–8S Lipo Current Ratio: 160 Continuous Current: 65A Peak Current: 75A Protocol Support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600 |

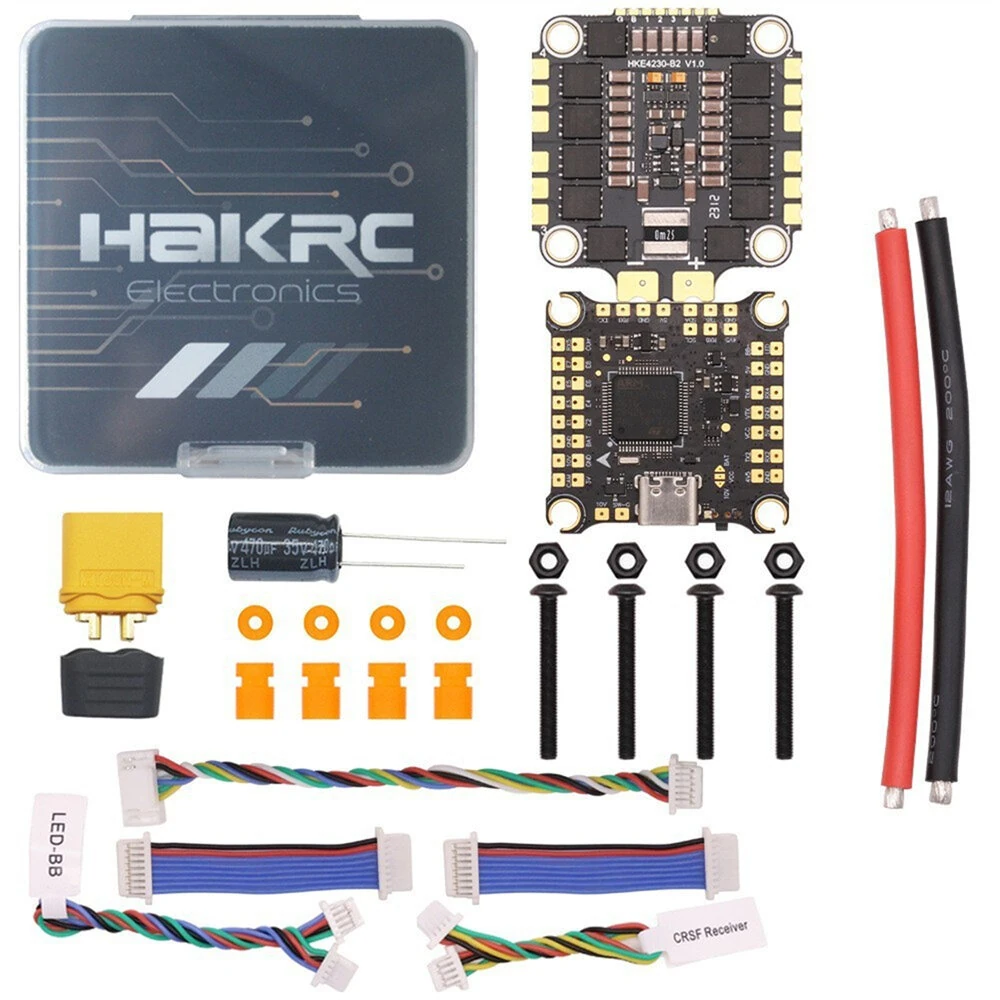

Package Included:
1x HAKRC F4530 V2 Flight Controller
1x HAKRC 4230 65A 4-in-1 ESC
8x M2 Orange Shock Absorber Ball
1x 8-pin Cable
1x DJI FPV Connection Cable
4x Black Nuts
1x Capacitor (35V 470uf)
1x 4-pin Receiver Cable
2x 4-pin Connection Cable
1x XT60 Power Connector
1x Red and Blue Power Cable
4x (M3 × 25mm) Screws
