30.5*30.5mm HGLRC F405 2-8S V1 Flight Controller ICM42688P SPL06-001 for RC FPV Racing Freestyle Drones

Feature:
1. The flight controller gyroscope uses the high-performance ICM42688P for enhanced stability, with MPU6000 gyroscope pads reserved.
2. Fully modular, direct-connect design for plug-and-play operation without solder pads, enabling modularity.
3. A large 16MB black box ensures sufficient flight data recording.
4. Supports 8s of high-voltage, rapid output for extremely fast respons, ensuring stable control throughout the flight, allowing for aggressive flight.

Specification:
Brand: HGLRC
Model: F405 8S V1 Flight Controller
Voltage: 7.4V-33.6V(2-8s)
MCU: STM32F405
GYRO: ICM42688P
OSD: AT7456E
Barometer: SPL06-001
Black Box: 16MB
UART: 5
Flight Controller Firmware: HGLRCF405V2

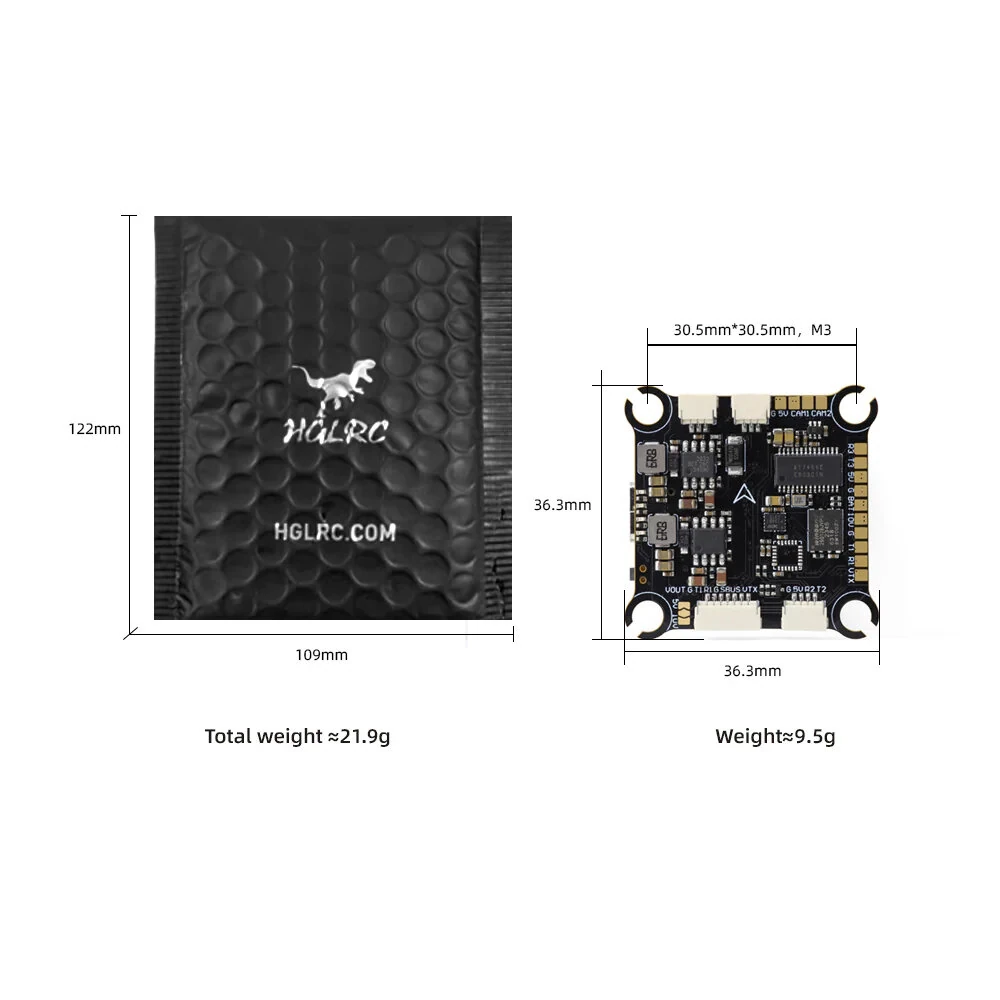

Dimensions: 36.3*36.3mm
Mounting Holes: 30.5*30.5mm, M3
Weight: 9.5g

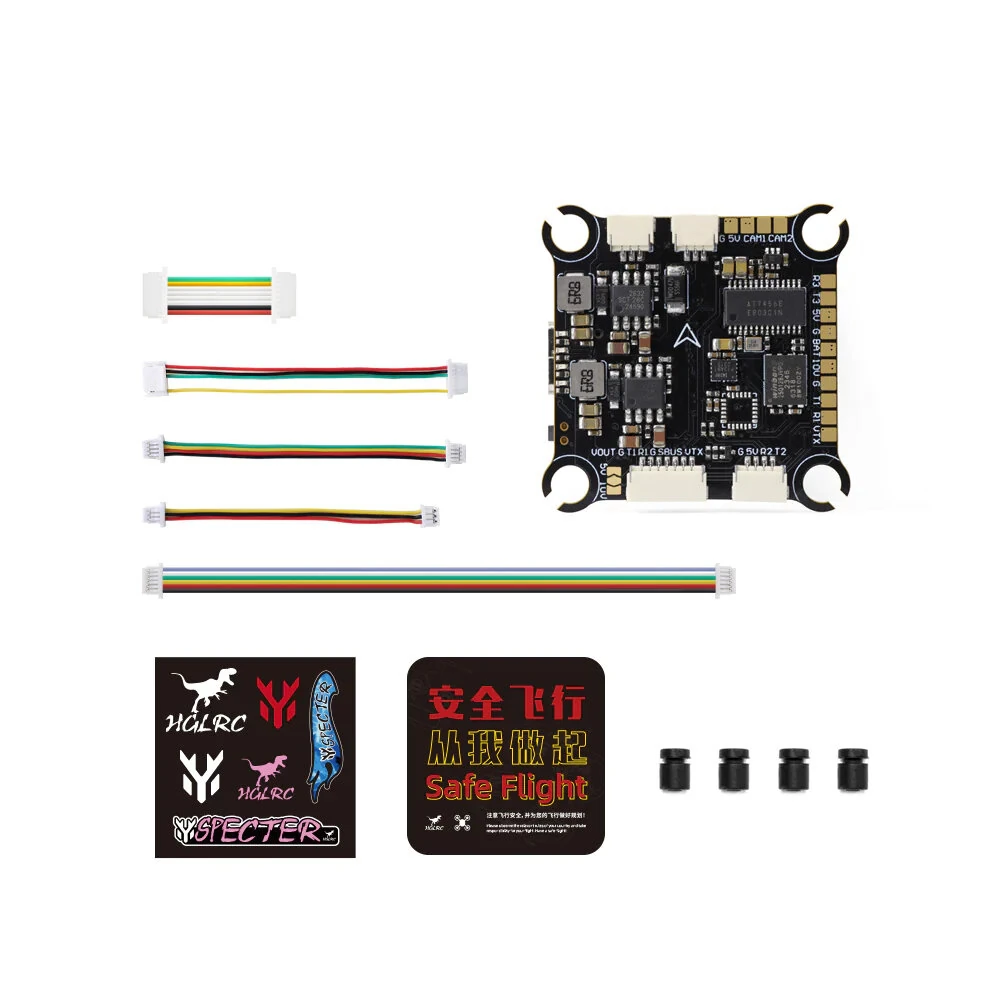

Package included:
1x HGLRC F405 8S V1
1x 30AWG 25mm Dual-End SH1.0-8P Flex Cable
1x 30AWG, 70mm Dual-End SH1.0-4P Flex Cable
1x 30AWG, 60mm Single-End SH1.0-3P/Single-End SH1.25-3P
1x 30AWG 70mm, Single-Ended GH1.25-6P/Single-Ended SH1.0-7P
1x 30AWG, Total Length 140mm, Double-Ended SH1.0-6P
4x 3*8 shock-Absorbing Columns
1x HGLRC Sticker
1x QR Code Card
