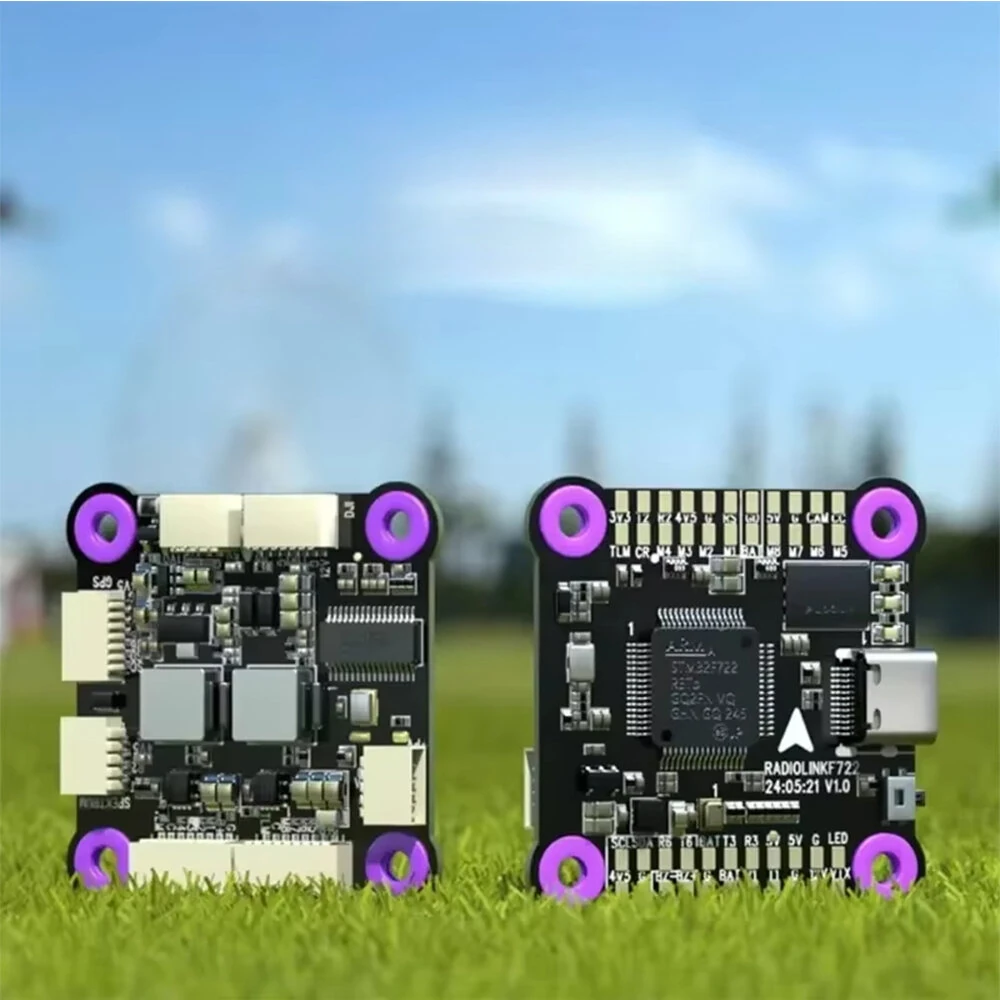

30.5*30.5mm Radiolink F722 Filght Controller with 5V 12V BEC & 3-6S BLS 4in1 55A ESC Stack for RC FPV Racing Drones Support Betaflight and INAV
1 in stock
- SKU : 2032597
- Condition : New
- Brand : Radiolink
- Processing Time : Ships Within 24-48 Hours
- Return Policy : 30-day refund or replacement
$89.99 $112.99
Specification:
Brand: Radiolink
Model: F722 55A Stack
|
Item Name |
Specification |
|

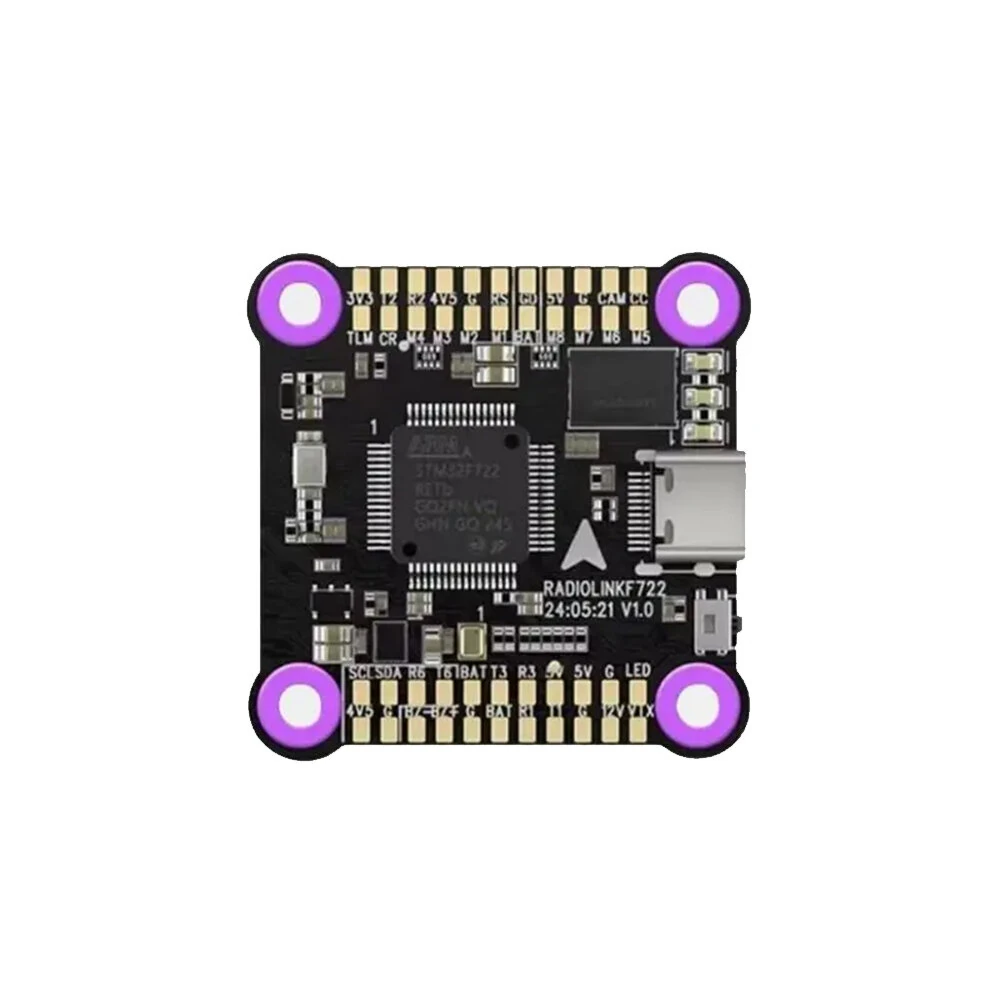

F722 Flight Controller |
Mounting Hole Distance: 30.5*30.5mm Weight: 9.5g Main Processor: STM32F722RET6 Gyroscope: ICM42688 Barometer: SPL06-001 Flight Log Storage: 128MB, capable of storing flight log information OSD Chip: AT7456E Motor Communication: M1 – M8 DJI Air Unit Connector: Supported Module Schematic Direct Connection: Supported Flight Controller Firmware: Betaflight Camera Menu Parameter Adjustment: Supported Voltage Monitoring Compression: 110 UART Quantity: 5 UART Ports ESC Telemetry Input: Supported I2C: Supported LED Pad: Supported Buzzer Pad: Supported RSSI Signal Detection: Supported Firmware Type: Betaflight and INAV Firmware Firmware Name: RADIOLINKF722 USB Port: 1 (Type-C) Receiver Signals (RC IN): SBUS/CRSF Supported ESC Protocols: Supported, with built-in image transmission OSD module Buzzer Pad: PWM/Bi-directional DShot/OneShot Power Input: 3-6S BEC: 3.3V/300mA; 4.5V/500mA; 5V/3A; 12V/3A 12V BEC Switch: Supported (USER1 setting) Operating Temperature: -30~85°C |
|
BLS 4in1 55A ESC |
Continuous Current: 55A BEC: No LiPo Cells: 3-6S Weight: 15.8g Dimensions (reference): 45x41x5.8mm Mounting Hole: 30.5×30.5mm, M3 Configuration Software: Bluejay configurator or BLHeliSuite Firmware: A-H-30 |
Feature:
– High-Performance Flight Controller
Equipped with STM32F722RET6 processor and ICM42688 gyro for ultra-responsive flight control, ensuring smooth and precise handling in FPV racing.
– 4-in-1 55A ESC with High Current Support
BLS-04 4-in-1 ESC delivers 55A continuous current per motor, optimized for high-power setups while maintaining compact size (45x41x5.8mm).
– Dual Firmware Compatibility (Betaflight & INAV)
Supports both Betaflight for racing and INAV for long-range/autonomous flights, offering flexibility for different flying styles.
– Built-in OSD & DJI Air Unit Support
Features AT7456E OSD chip for real-time data display and direct DJI Air Unit plug-in, eliminating extra wiring for cleaner builds.
– Robust Power Management & Cooling
3-6S LiPo input with 5V/3A & 12V/3A BEC, plus -30°C to 85°C operating range, ensuring reliability in extreme conditions.
Package Included:
1x Flight Controller
1x ESC
2x ESC Connect Cable
1x Camera Connect Cable
1x ELRS Receiver Connect Cable
1x Analog Video Transmission Connect Cable
1x GPS Connect Cable
1x R8SM Receiver Connect Cable
1x Receiver Connect Cable
1x Package Box
