30.5×30.5mm Axisflying Argus ECO F405 Flight Controller 4-8S with 5V 12V BEC BIheli-S 60A ESC Stack for FPV Racing Drone
1 in stock
- SKU : 2026634
- Condition : New
- Brand : Axisflying
- Processing Time : Ships Within 24-48 Hours
- Return Policy : 30-day refund or replacement
$104.99 $131.99
Description:
– Argus is axisflying electronic series that include ESC, FC and stack. The lightweight Argus ECO will reduce the weight of the whole FPV to a greater extent, while providing stable and excellent control.
Feature:
– The Argus ECO is significantly lighter than the Argus Pro with its aluminum housing.
– The FC supports up to 4 motor outputs, easily build your drone.
– Quickly check the working status of the FC by turning on and off the corresponding status indicator light.
– Open circuit board, free soldering equipment.
Function:
60A 6S BlHeli-S ESC / Axisflying F405 FC
ICM 42688P Gyro
Blackbox 16MB
HD/Analog Supported
GPS Supported
Specification:
Brand: Axisflying
Model: Argus ECO
Product Name: 60A ESC +F405 FC STACK
|
Name |
Specification |
|

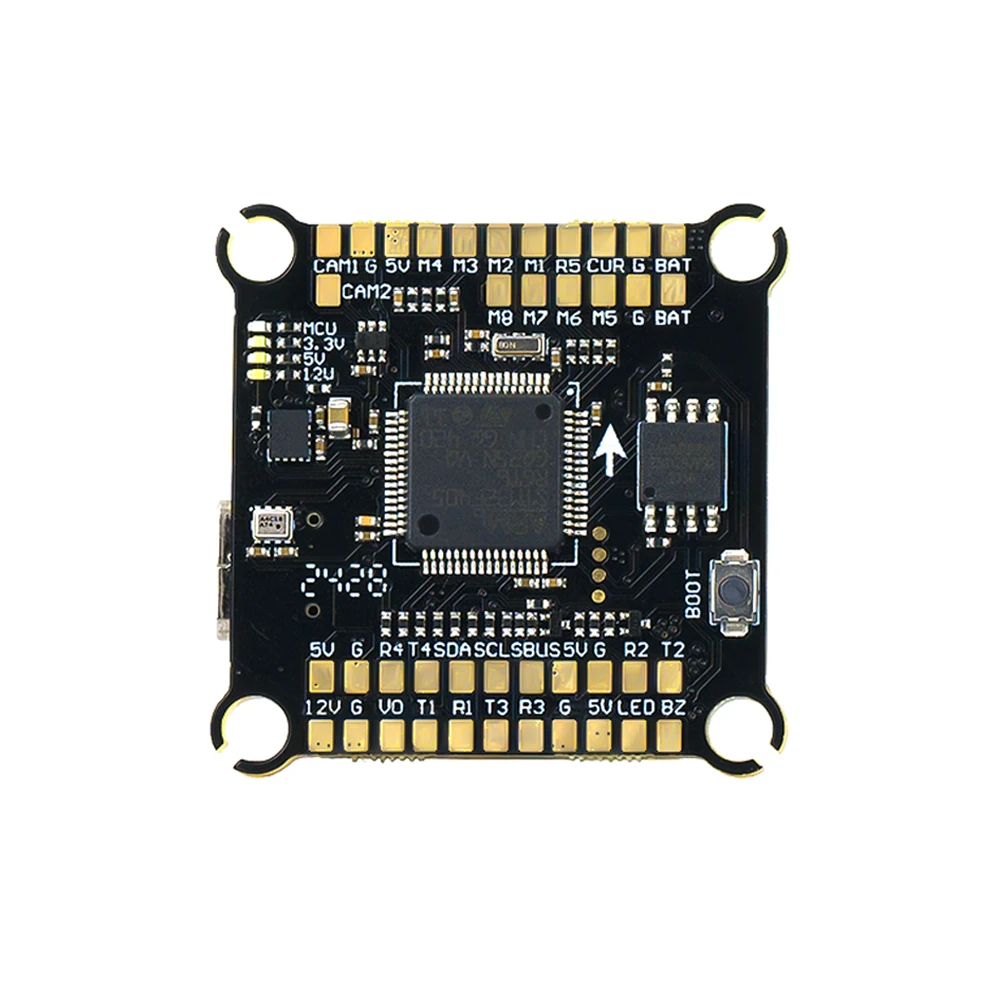

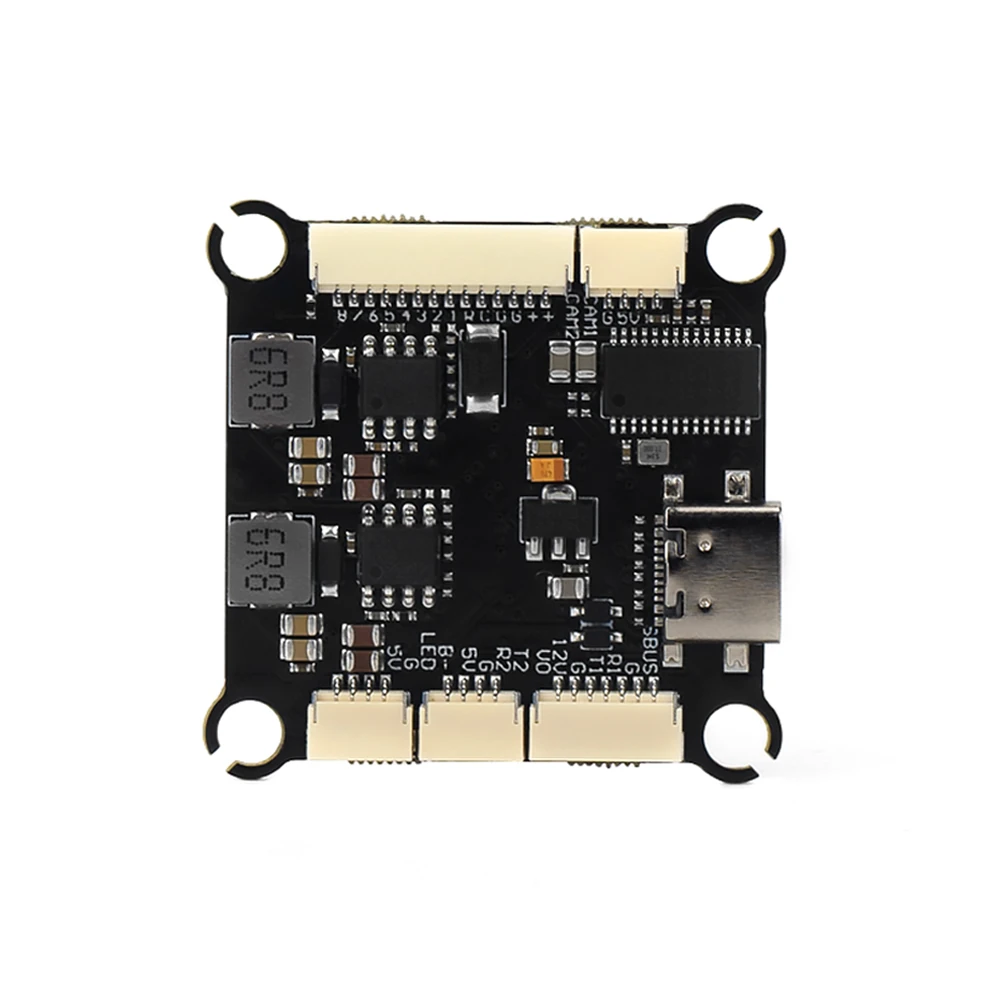

Argus ECO Flight Control F405 |
Firmware Name: SPDX-SPEDIX F405(Betaflight) |
|
MCU: STM32F405RGT6 |
|
|
Gyro: ICM42688P |
|
|
BEC: 5V3A / 12V2A |
|
|
Uarts: 5 Set |
|
|
OSD: Supported |
|
|
Black Box: 16M |
|
|
Barometer: Supported |
|
|
Input Voltage: 4~8S |
|
|
Size: 36*36*6mm |
|
|
Install Hole Distance: 30.5*30.5mm |
|
|
Weight: 7g |
|
|

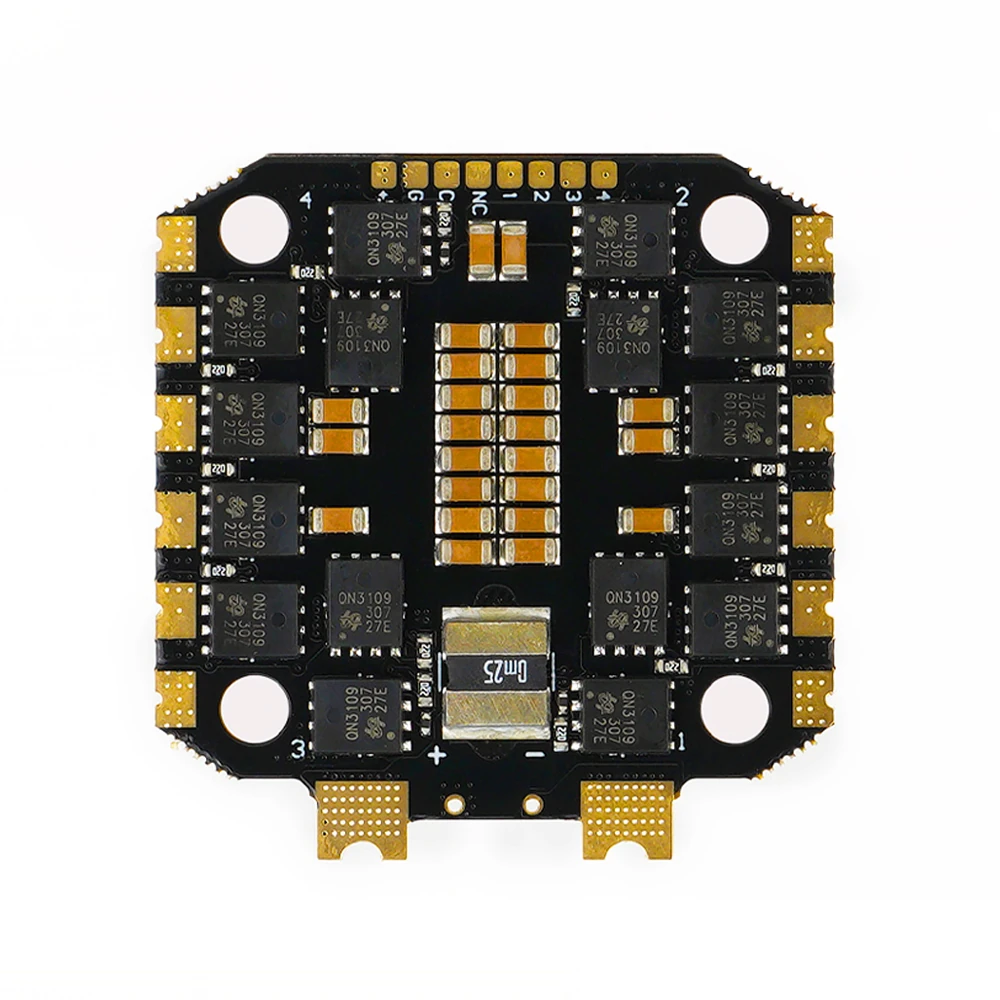

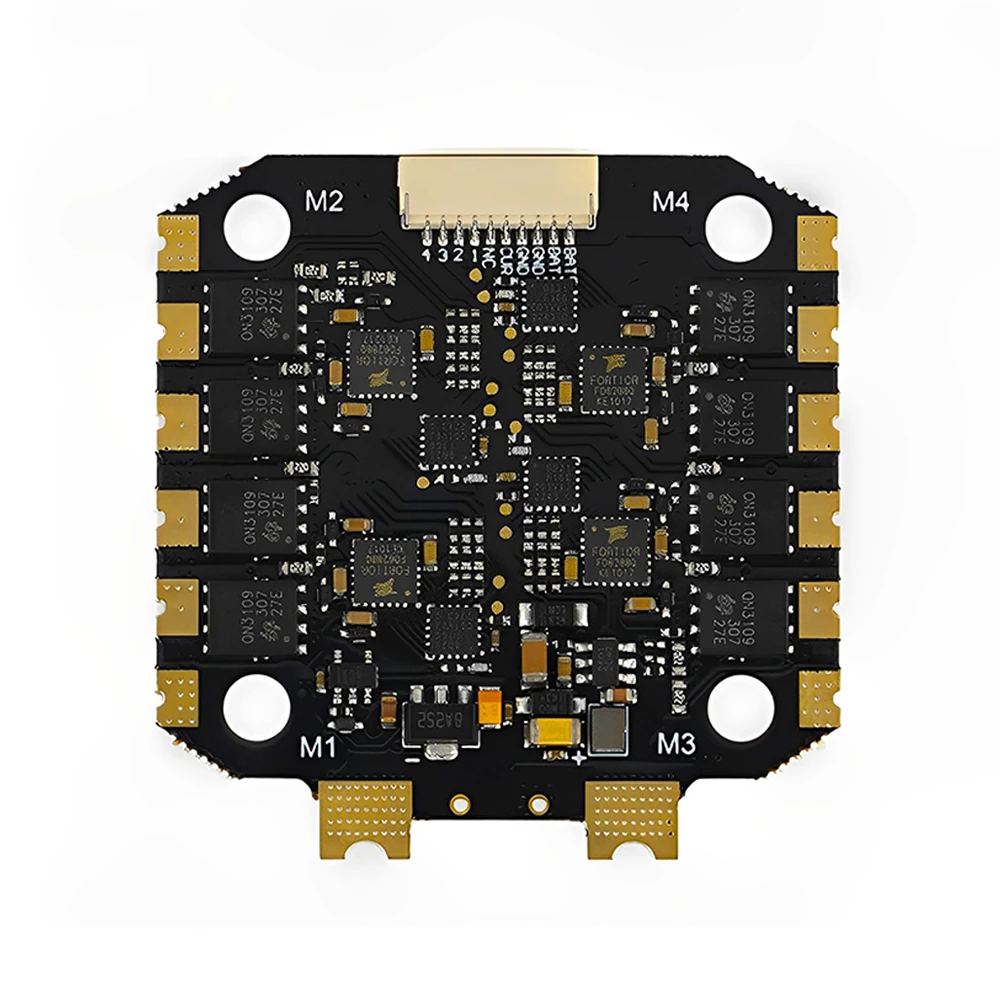

Argus ECO ESC 60A –6S BIheli-S |
Firmware name: Bluejay_QH30 (default) |
|
Amperage Meter: 200 |
|
|
Input Voltage: 4~6S |
|
|
Continuous Current: 60A |
|
|
Burst Current: 70A |
|
|
Temperature Protection: Supported |
|
|
Telemetry: Not Supported |
|
|
BEC: Not Supported |
|
|
Size: 44.8*43*6mm |
|
|
Install Hole Distance: 30.5*30.5mm |
|
|
Weight: 13.5g |
Package included:
1x Connecting Cable
4x M3*30 Screw
4x M3 Locknuts
1x 35V 1000uF Capacitor
8x Ruber Damping Ring (ESC*4,FC*4)
1x XT60 Power Cable
1x Connecting Cable for Receiver
1x Connecting Cable for HD
1x Connecting Cable for Analog
1x Connecting Cable for LED & Beeper
