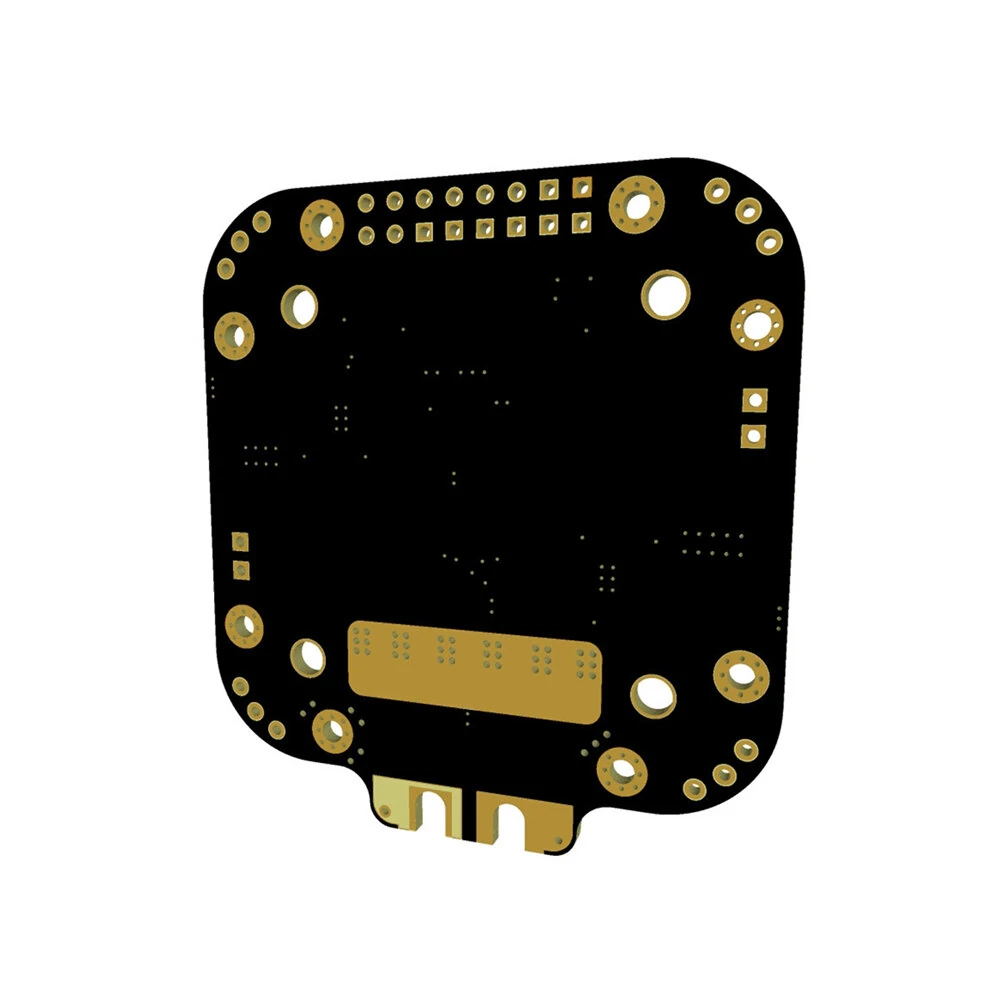

30.5×30.5mm FlyingRC 10A 12S 440A Power Distribution Board PDB with 5V/12V BEC Output for RC FPV Racing Drones

Specification:

Brand: FlyingRC

Item Name: 10A 12S 440A Power Distribution Board PDB
Product Size: 55 x 50 x 6mm

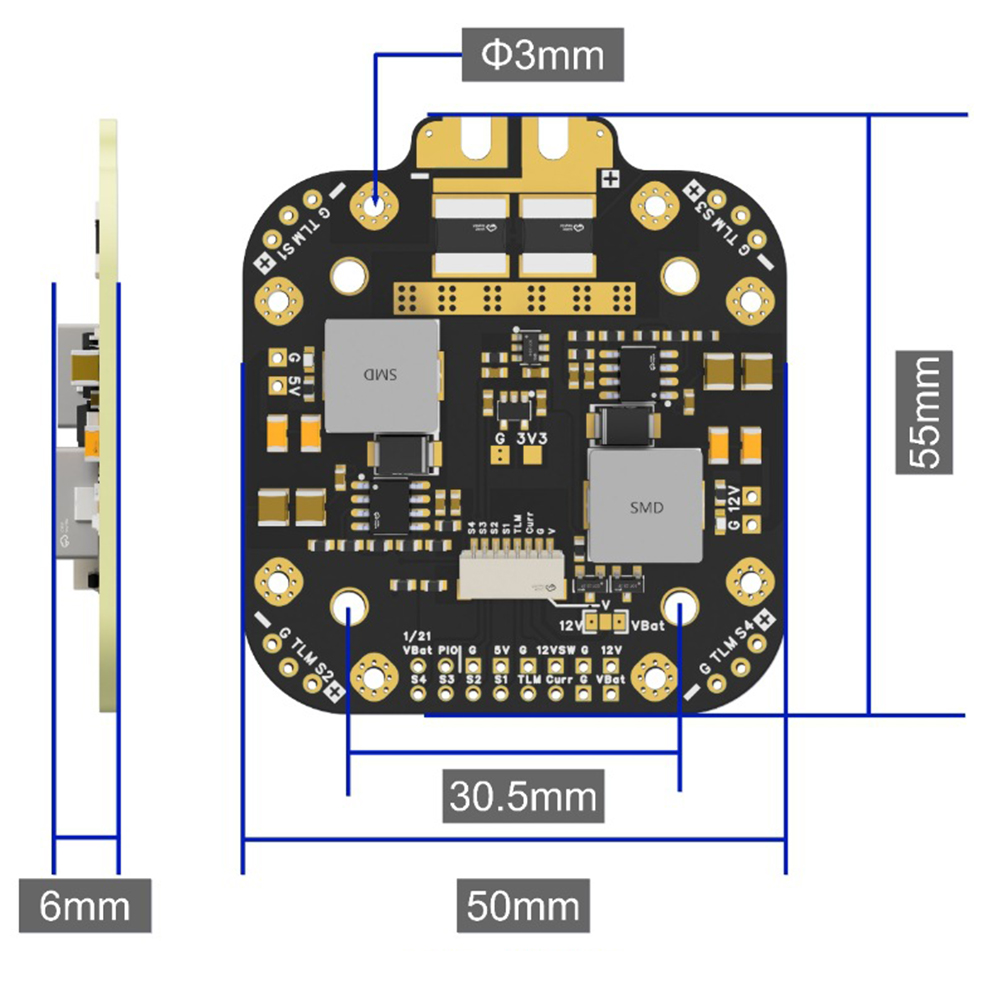

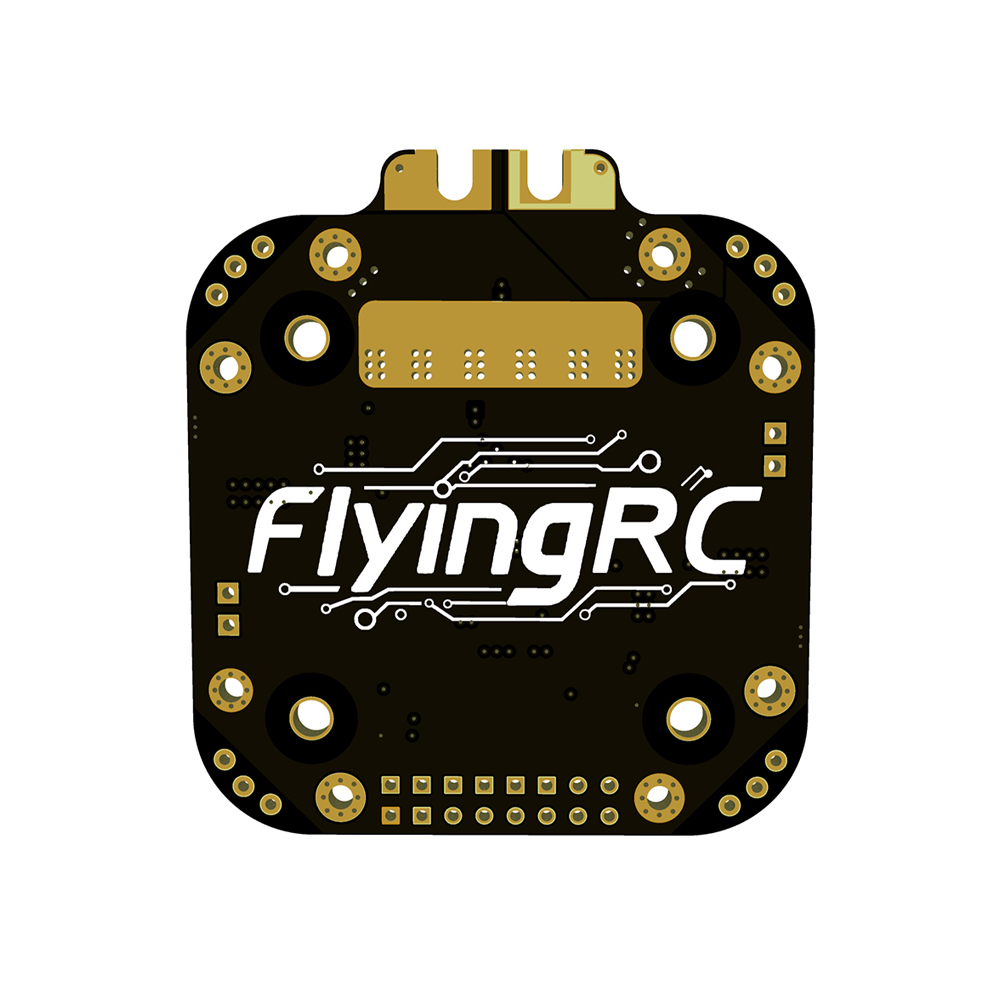

Mounting Hole: 30.5 x 30.5mm, 3mm diameter
Product Weight: 21.5g
PCB: 6 Layers; Outer Layer 20Z, Inner Layer 20Z; Thickness 2.0mm; Gold Plated
Input Voltage Range: 6-60V DC (2-12S LiPo battery)
Maximum Output Current: 4 x (70A continuous current, 110A peak current)
BEC Output: 5V 5A & 12V 4A
Operating Temperature Range: -20 to 100°C

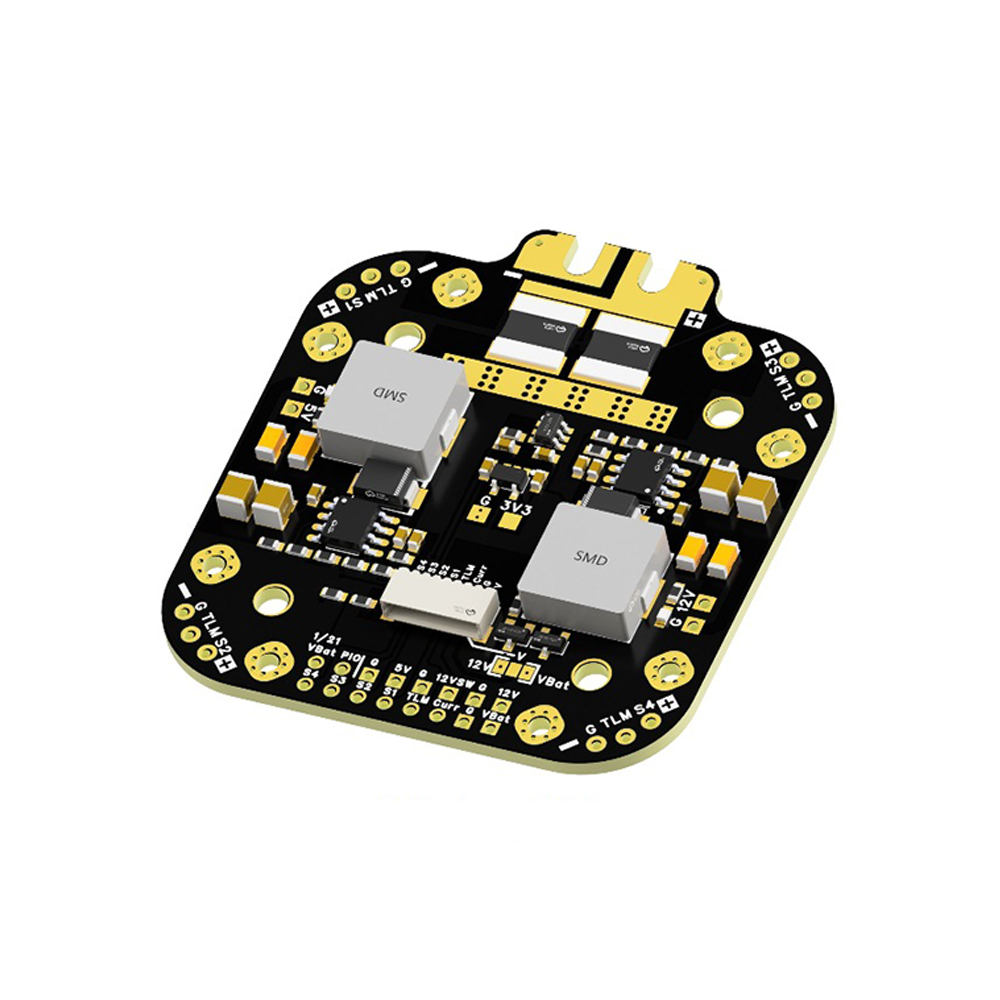

Feature:
– Supports a maximum input of 12S.
– Large area open window design to enhance heat dissipation.
– Features a high-precision current sensor, with a range of up to 440A.
– Supports four 70A direct connections, with a maximum peak current output of 110A.
– Internal voltage divider: 1k:20k.

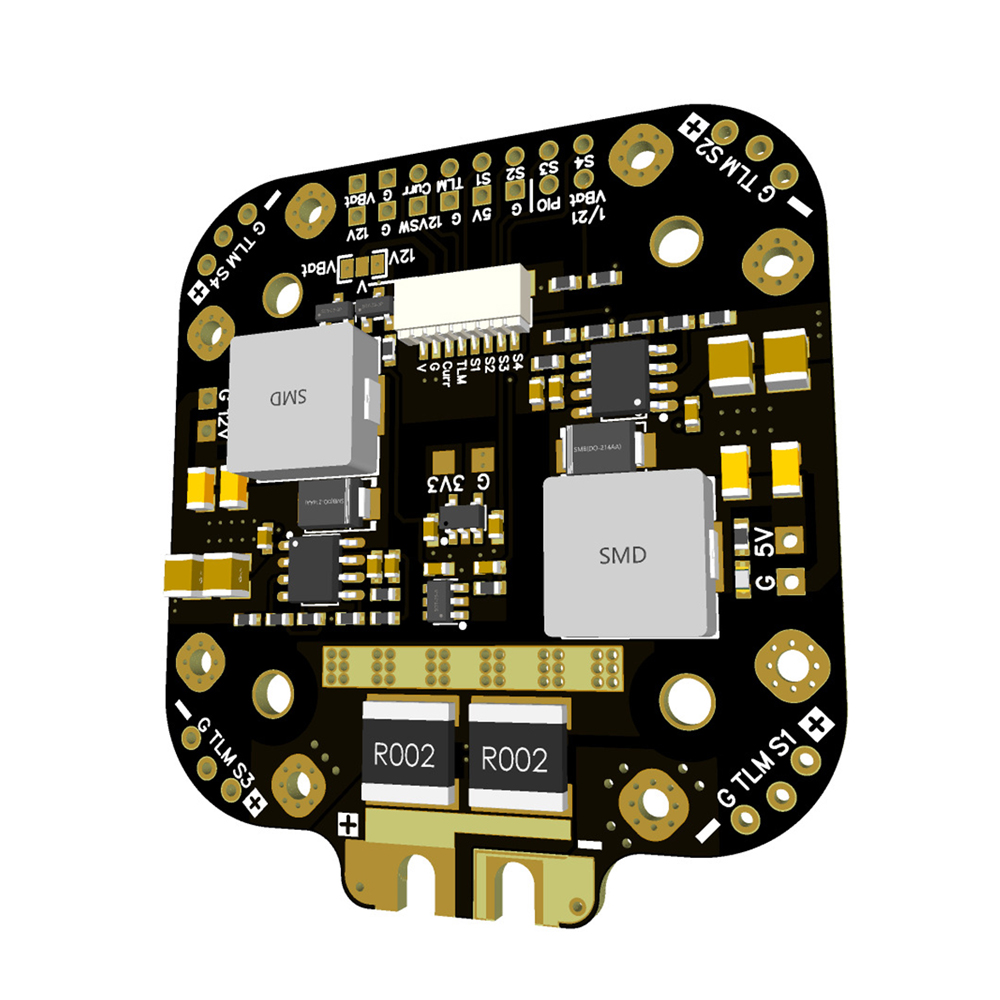

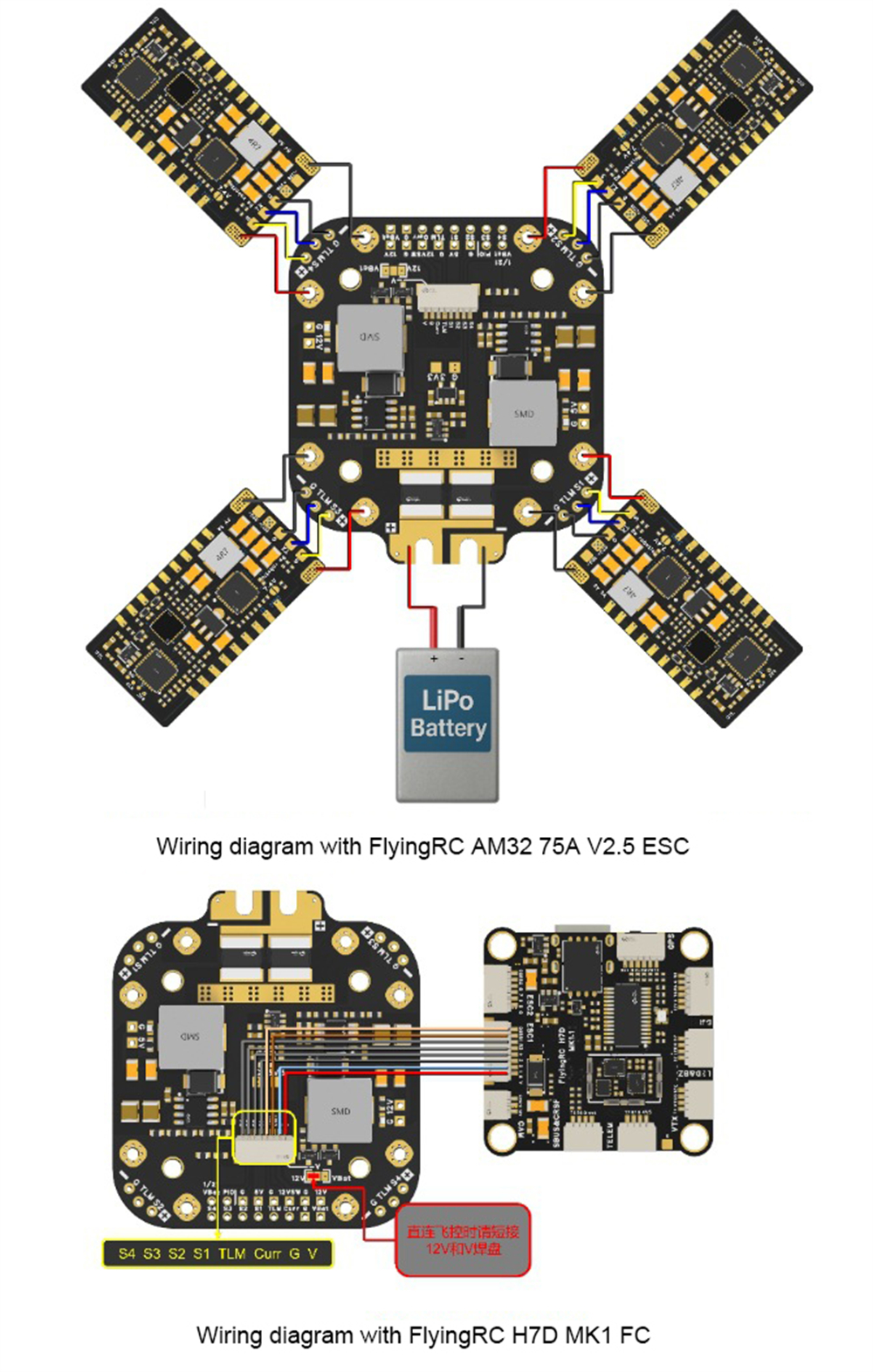

– Uses a SH1.0 8pin connector for direct connection control, or can be controlled via a board connector.
– Dual BEC with 5V, 5A fixed output and a stable output of 4A at 12V.
 Possible 12V output (12SW during high input voltage; disconnects 12V output).
– Uses a 3.3V LDO, with a maximum output current of 500mA.
– Equipment includes a “V” fuse, which routes through the fuse interface to select a 12V output or battery voltage.
– Soldering temperature: 350-400°C, Sn63Pb solder.

Package included:
1 x Power Distribution Board PDB
