30.5×30.5mm Skystars F405 V2 Flight Controller ICM42688-P with 3.3V 5V 10V BEC Output for RC RC FPV Racing Drones
1 in stock
- SKU : 2047848
- Condition : New
- Brand : Skystars
- Processing Time : Ships Within 24-48 Hours
- Return Policy : 30-day refund or replacement
$49.99 $62.99

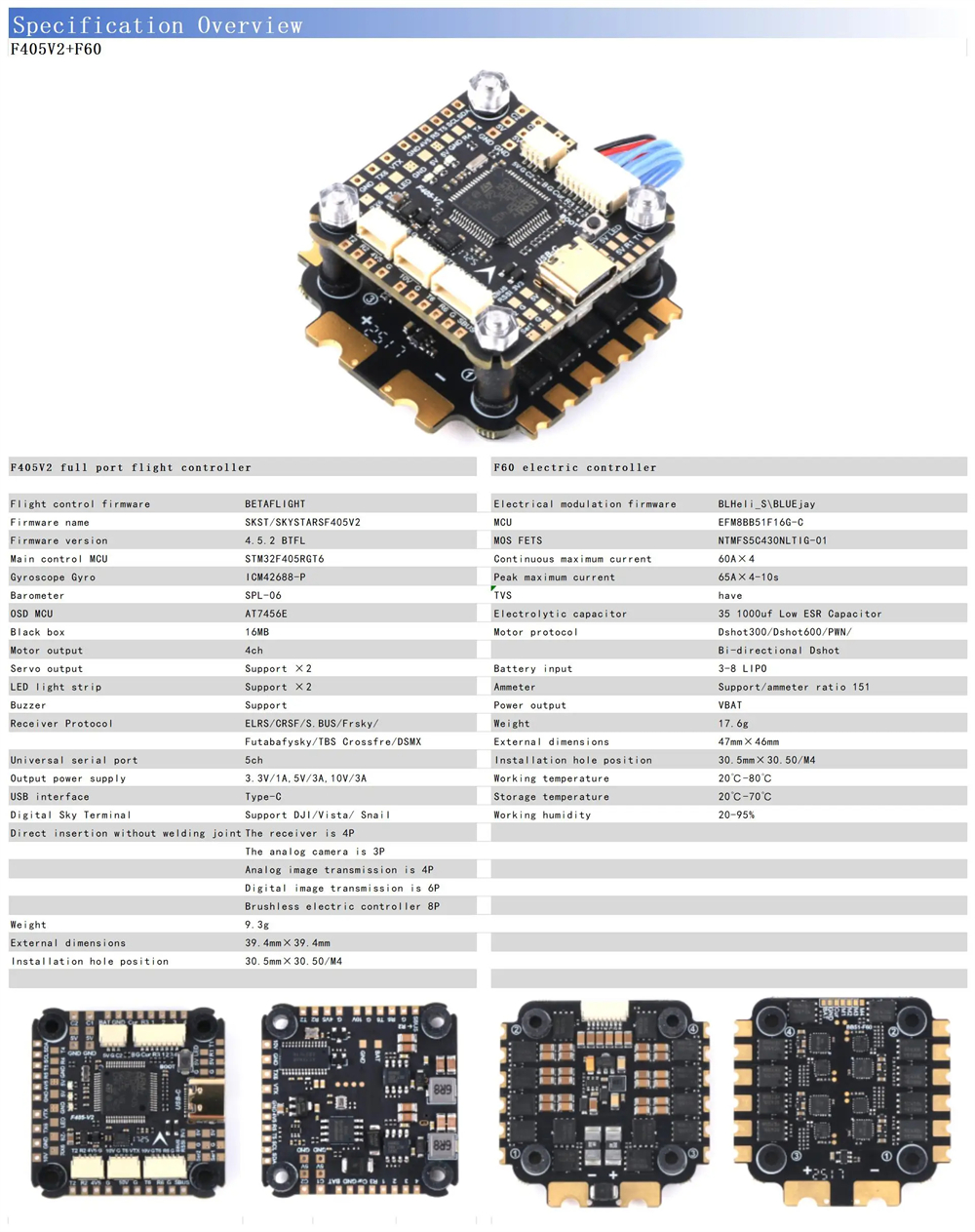

Specification:
Brand: Skystars
Model: F405 V2 Flight Controller
Flight Control Firmware: BETAFLIGHT
Firmware Name: SKST/SKYSTARS F405 V2
Firmware Version: 4.5.2BTFL
Main Control MCU: STM32F405RGT6
Gyroscope Gyro: ICM42688-P
Barometer: SPL-06
OSDMCU: AT7456E
Black Box: 16MB
Motor Output: 4ch
Servo Output: Support x2
LED Lightstrip: Support x2
Buzzer: Support
Receiver Protocol: ELRS/CRSF/S.BUS/Frsky/Futabafysky/TBsCrossfre/DSMx
Universal Serial Port: 5ch
Output Power Supply: 3.3V/1A.5V/3A.10V/3A
USB Interface: Type-C
Digital Sky Terminal: Support DJl/Vista/Snail

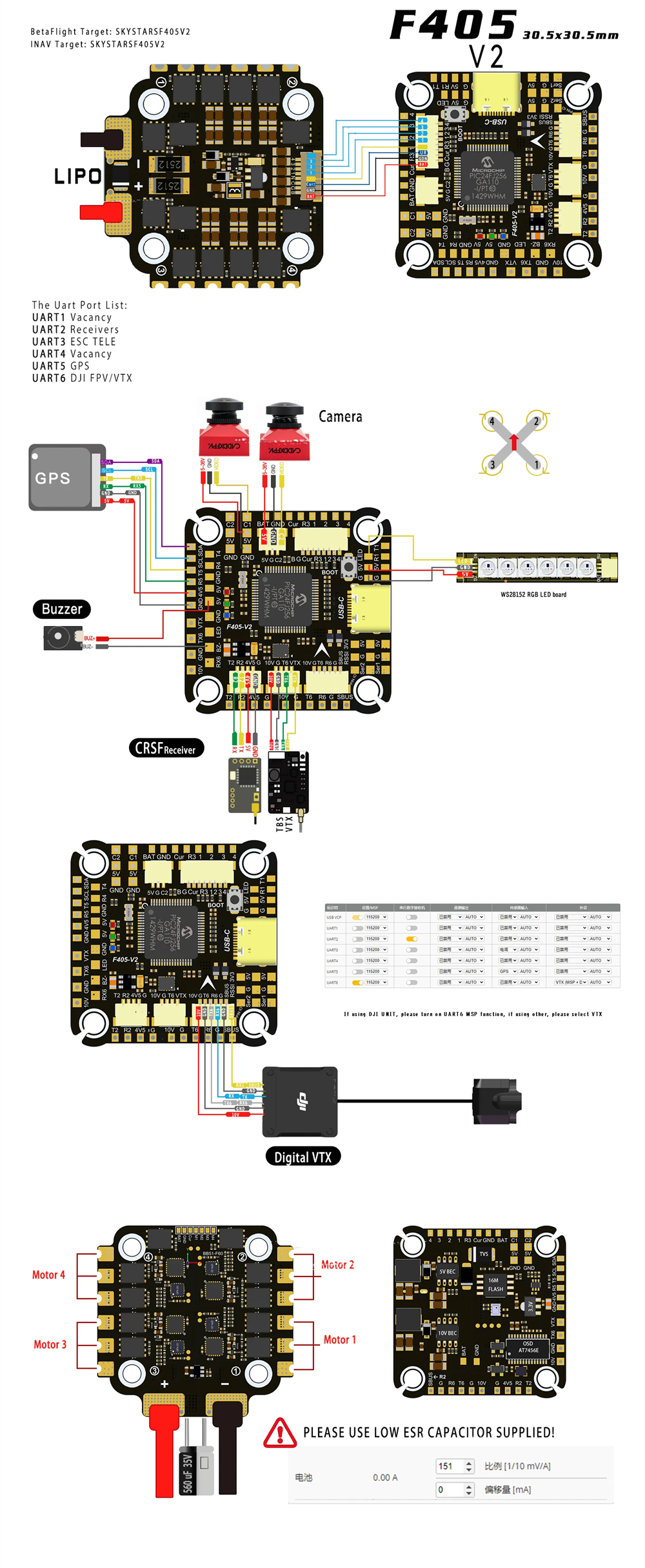

Direct insertion without welding joint The receiver is 4P,The analog camerais 3p,Analog image transmission is 4p,Digitalimage transmission is 6P,Brushless electriccontroller 8p
Weight: 9.3g
External Dimensions: 39.4mmX39.4mm
Installation Hole Position: 30.5mm×30.5/M4
Package included:
1 x Skystars F405 V2 Flight Controller
