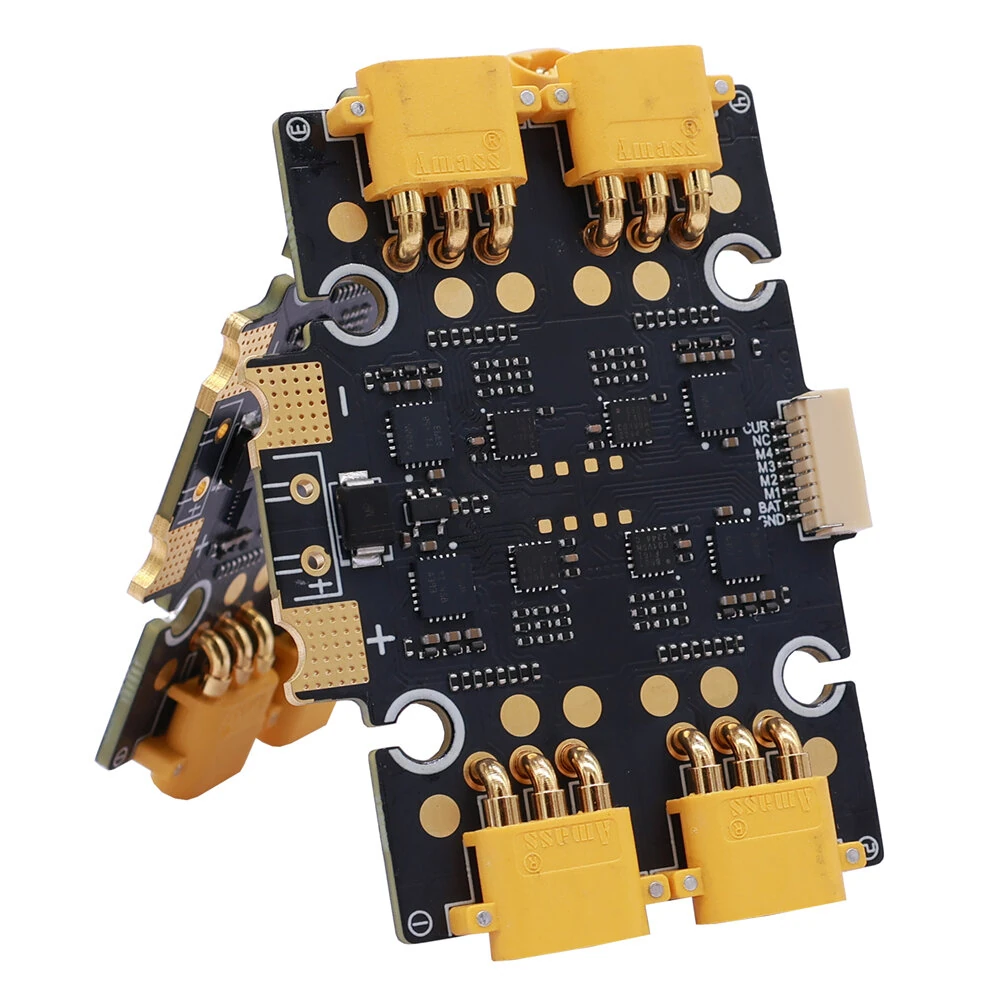

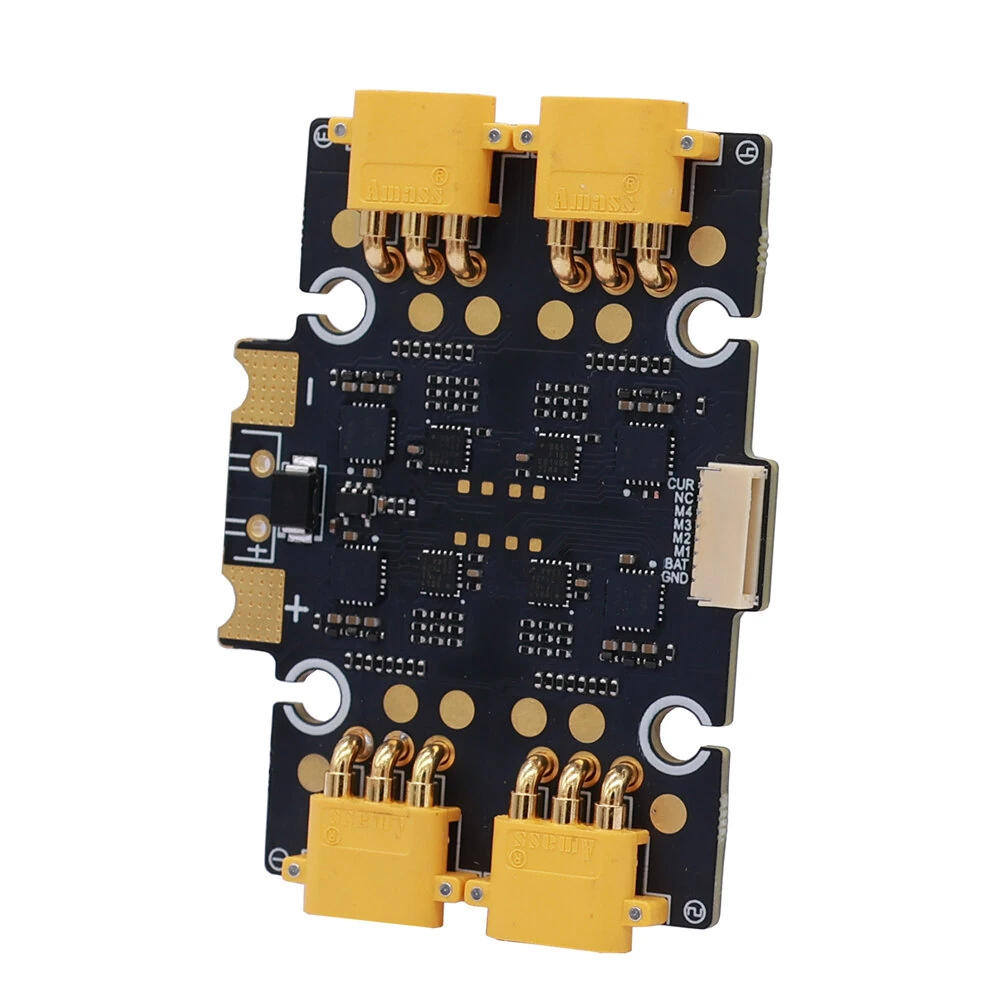

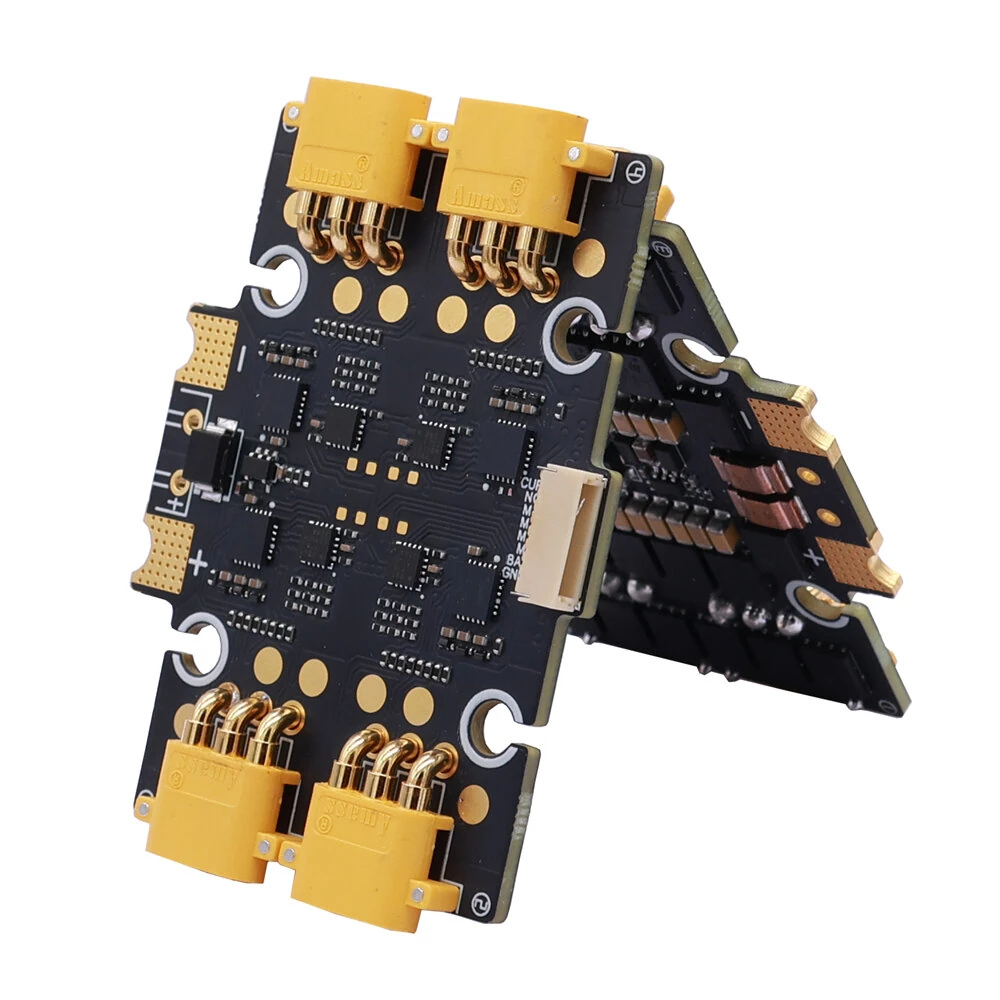

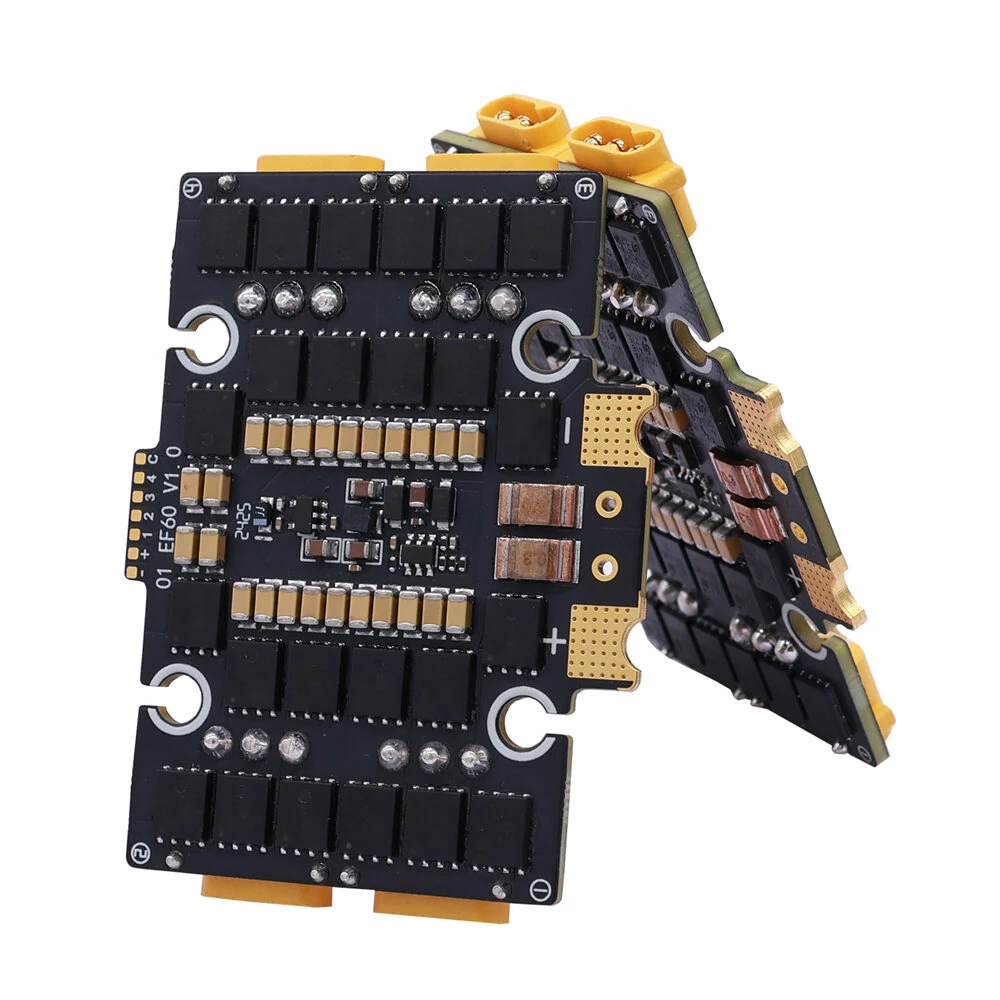

34.4mm*34.4mm HAKRC EF60 2-6S 50A Brushless ESC Supports PWM Oneshot125 Multishot Dshot600 for FPV Racing Drone

Features:
1.The PCB is made of high-end 6-layer 3oZ thickened copper skin, which has stronger overcurrent capacity and good heat dissipation.
2. The MOS adopts 40V /30Vhigh current resistant mos, which has a long life and strong load capacity.
3. Adopt industrial-grade LDO, high temperature resistance.
4. Using high-quality Japan Murata capacitors, strong filtering performance.
Specification:
Brand: HAKRC
Item Name: EF60 50A ESC
ESC Firmware: E_X_40 – Rev. 16.7
Protocols Support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
Input Voltage: 2S-6S Lipo
Current Ratio: 120
Continuous Current: 50A
Peak Current: 55A
Size: 64*45mm (34.4mm-34.4mm Mounting Hole)
Product Weight: 27.5g
Package included:
1 x HAKRC EF60 50A ESC
