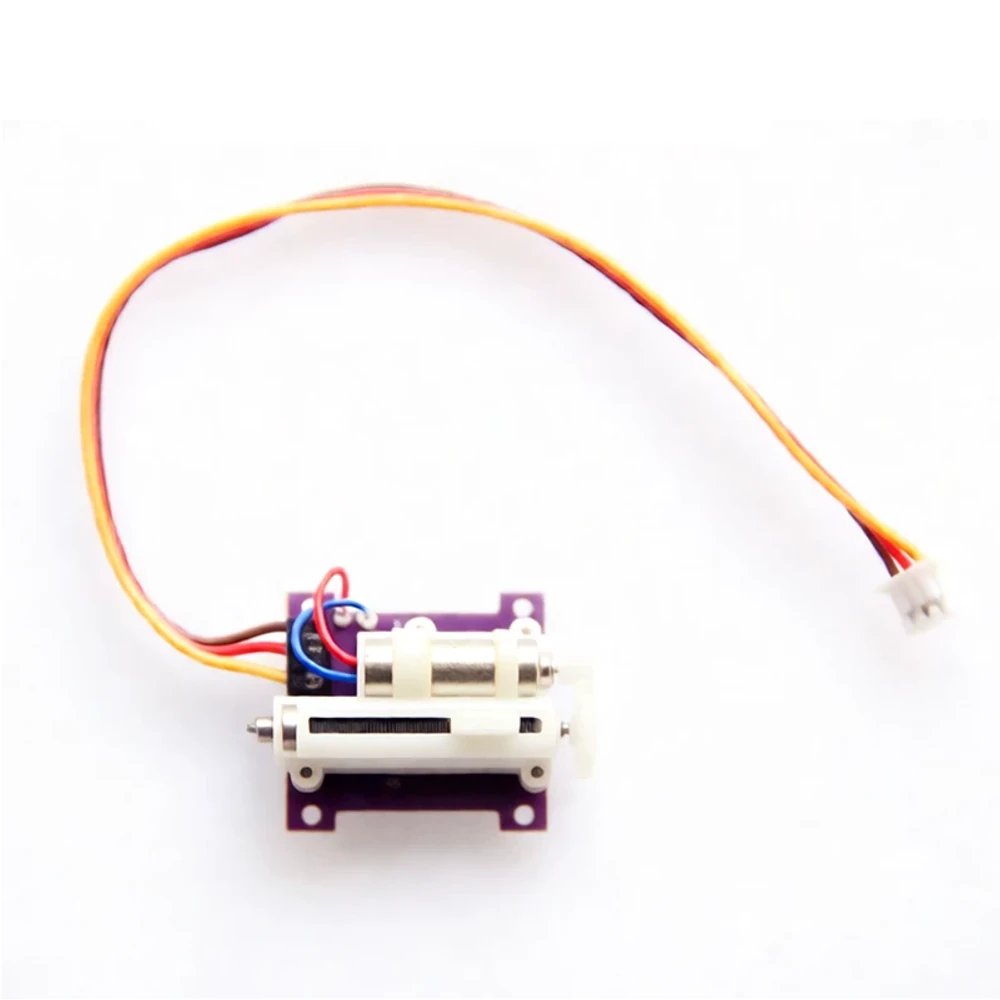

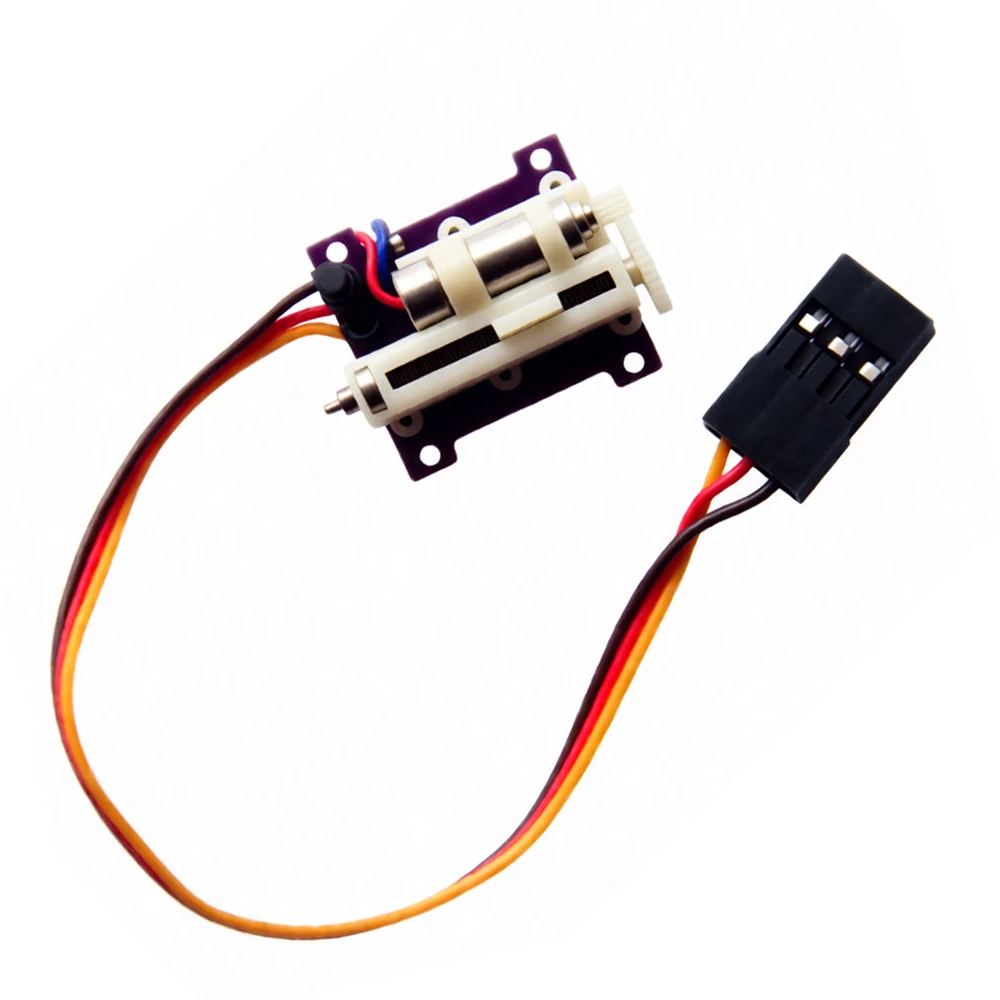

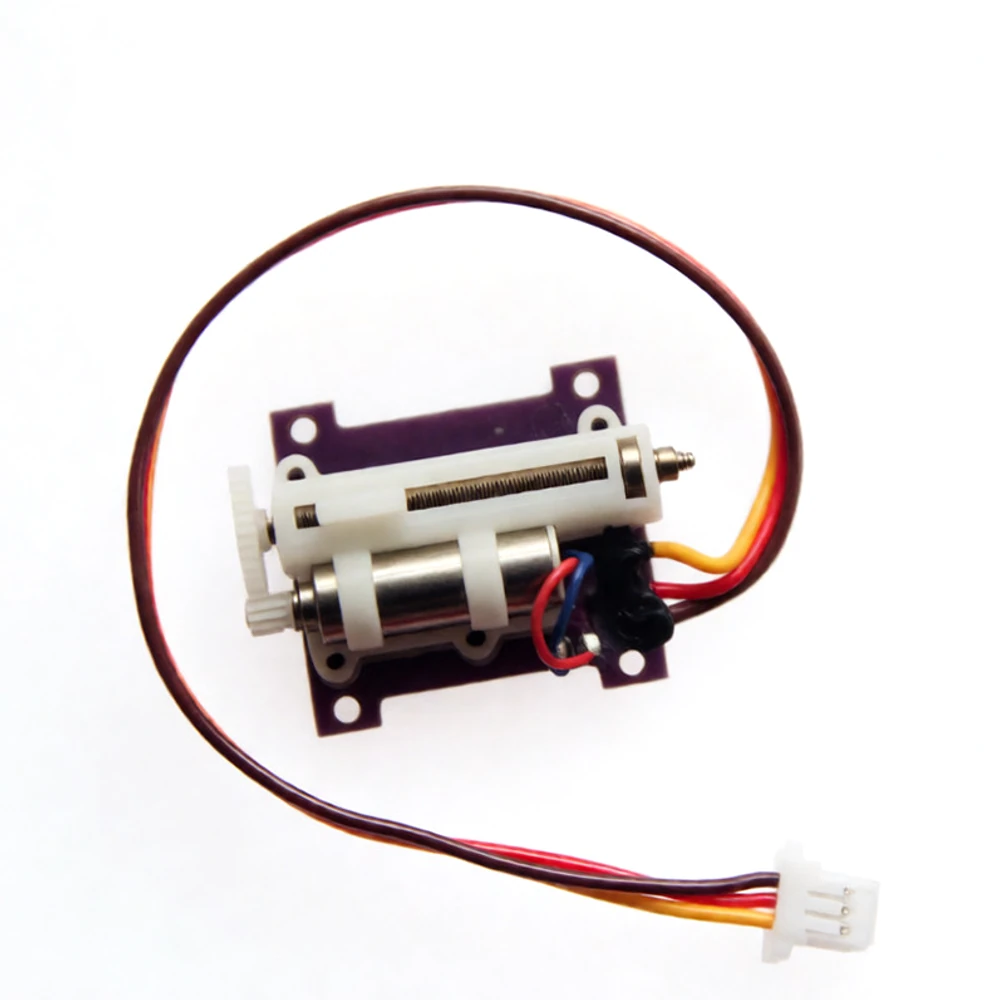

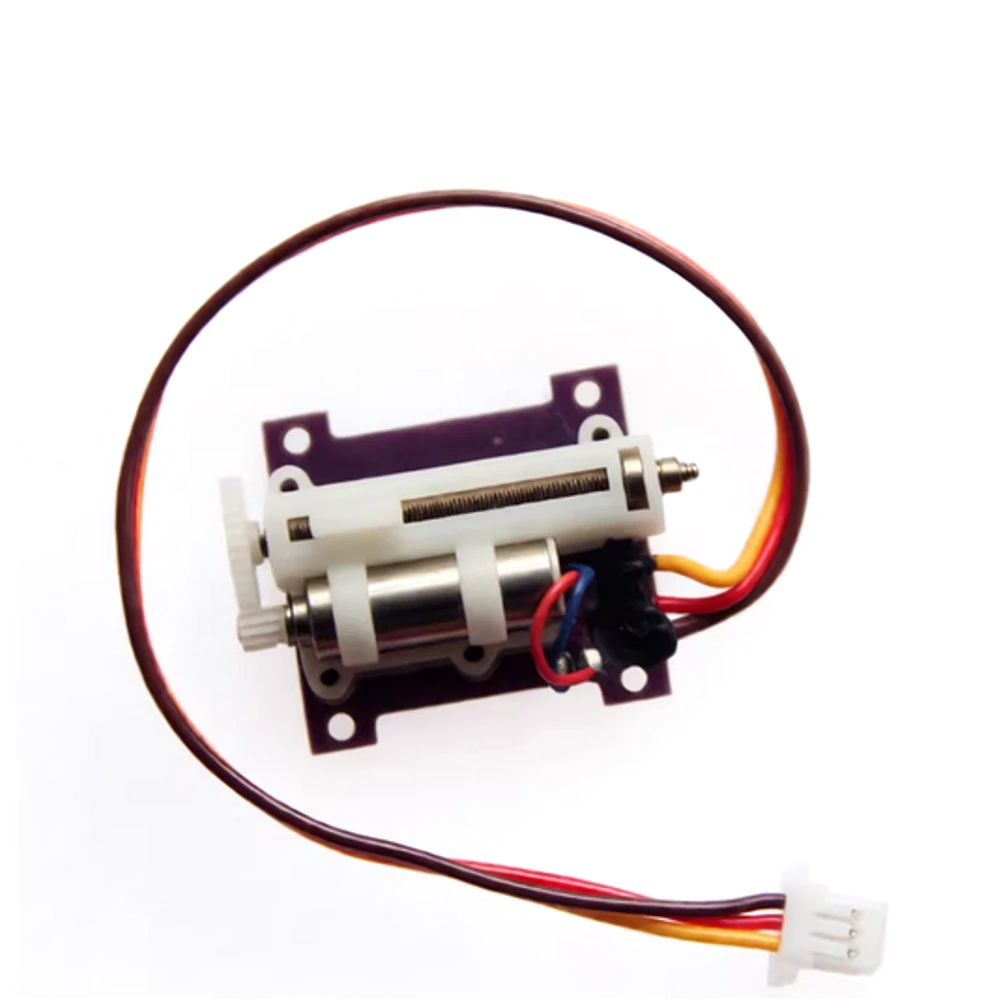

A2030L 2.3g Long-Throw Linear Servo with Optional 1.0mm / 1.25mm / 1.5mm 3P Plug / JR Plug for Micro RC Airplane

Description:

The 2.3-gram Linear Long Throw 0ffset Servo is a special use servo designed for modelers without computer transmitters who would like to add aileron differential to their ultra micro aircraft. It comes programmed with a 70/30 0ffset from center and can be used with any Spektrum AR6400-series receiver.

Feature:

– Long throw 0ffset servo is perfect for controlling ailerons on ultra micro models.

– 0ffset provides for built-in differential.

Specifications:

Name: A2030L 2.3g Long-Throw Linear Servo

Application: Airplane

Bearing: Single

Bushing Or Bearing: Bearing

Connector Type: JST-SHR 1.0 mm

Gear Type: Nylon

Input Voltage: 3.2V-4.2V

Maximum Servo Speed: 0.10@ 4.2V

Maximum Servo Torque: 100 G (3.5 oz)@ 4.2V

Motor Type: Brushed

Product Height: 0.33′ (8 mm)

Product Length: 0.87′ (22 mm)

Product Weight: 0.10oz (2.50g)

Product Width: 0.66′ (17 mm)

Programmable: No

Servo Operating Voltage: 3.2 – 4.2V

Servo Size Category: Ultra Micro

Servo Type: Analog

Water-Resistant: No

Package included:
1 x A2030L 2.3g Long-Throw Linear Servo
