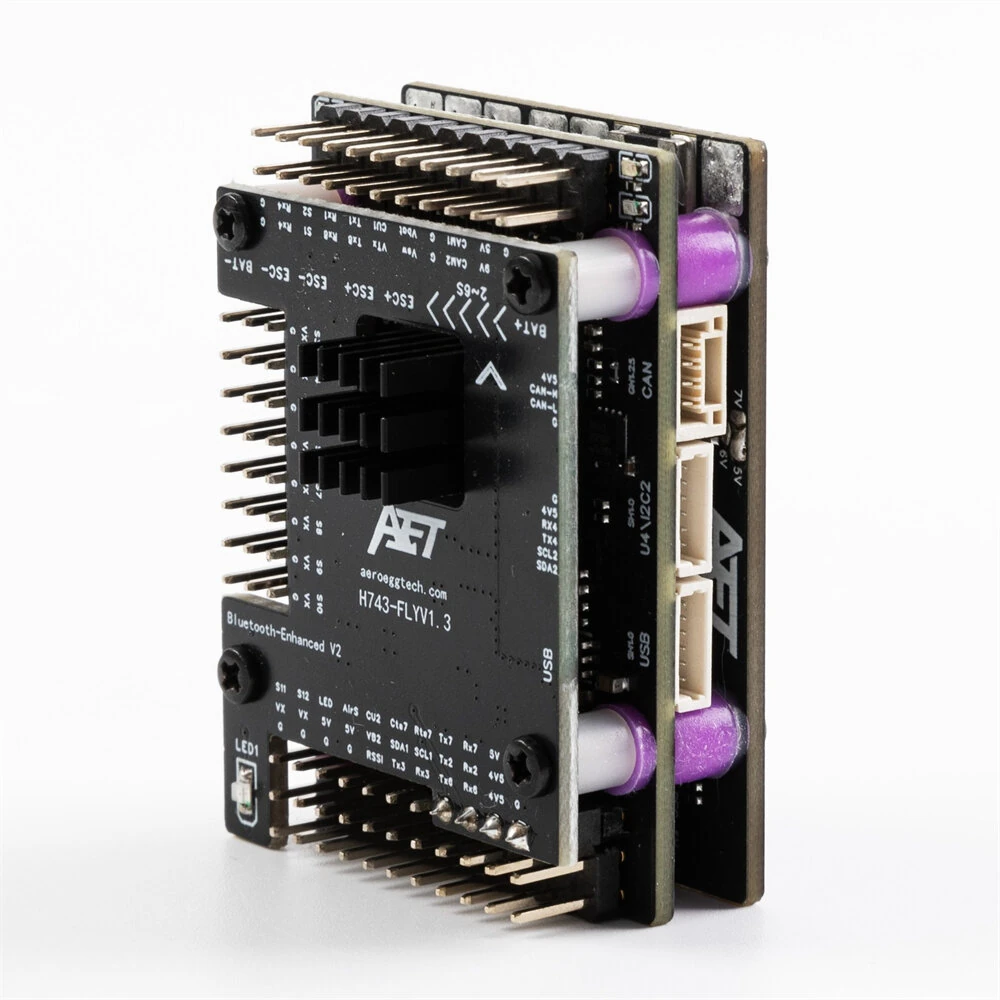

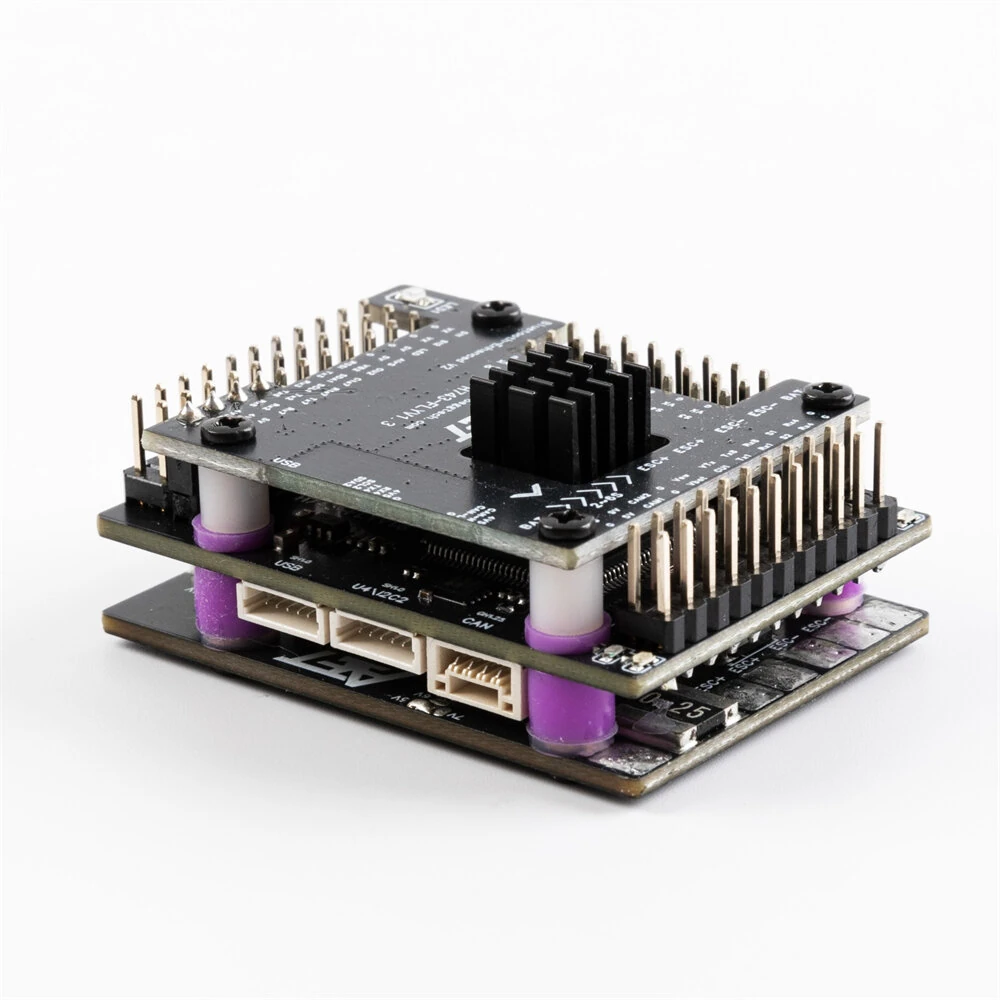

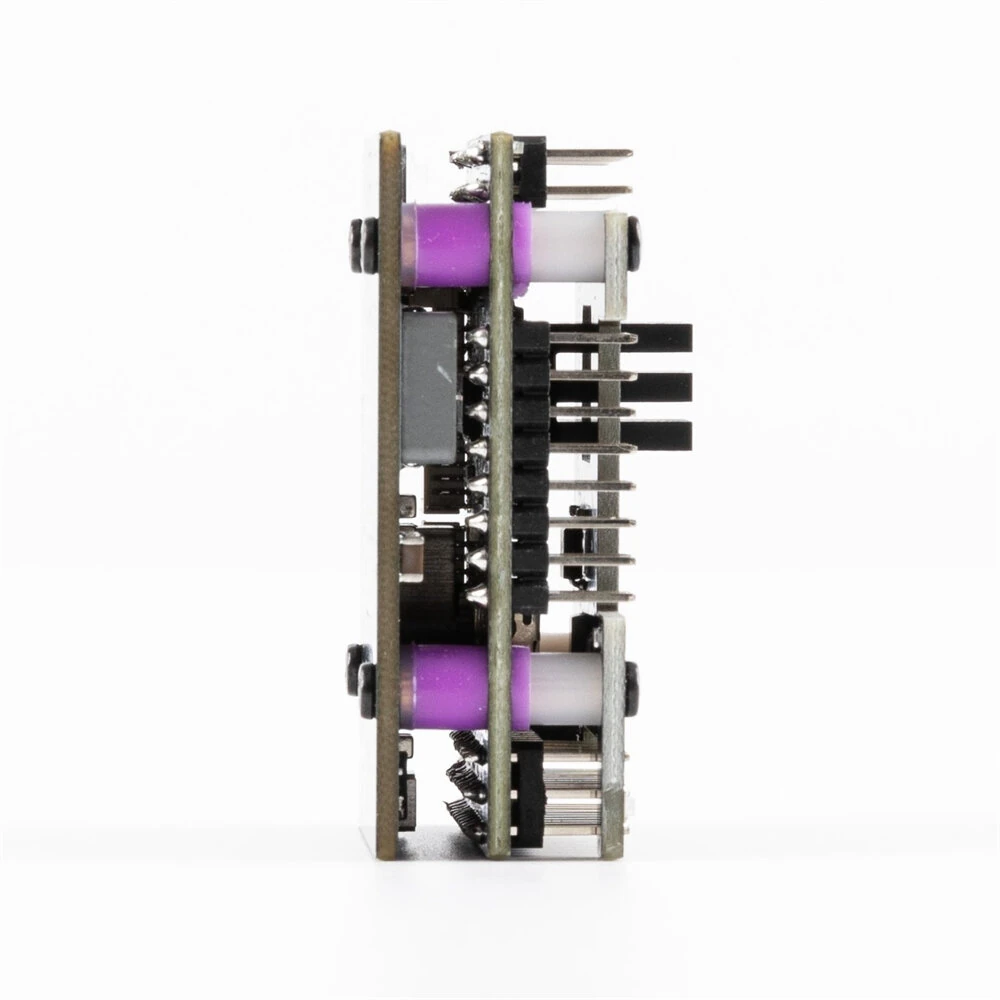

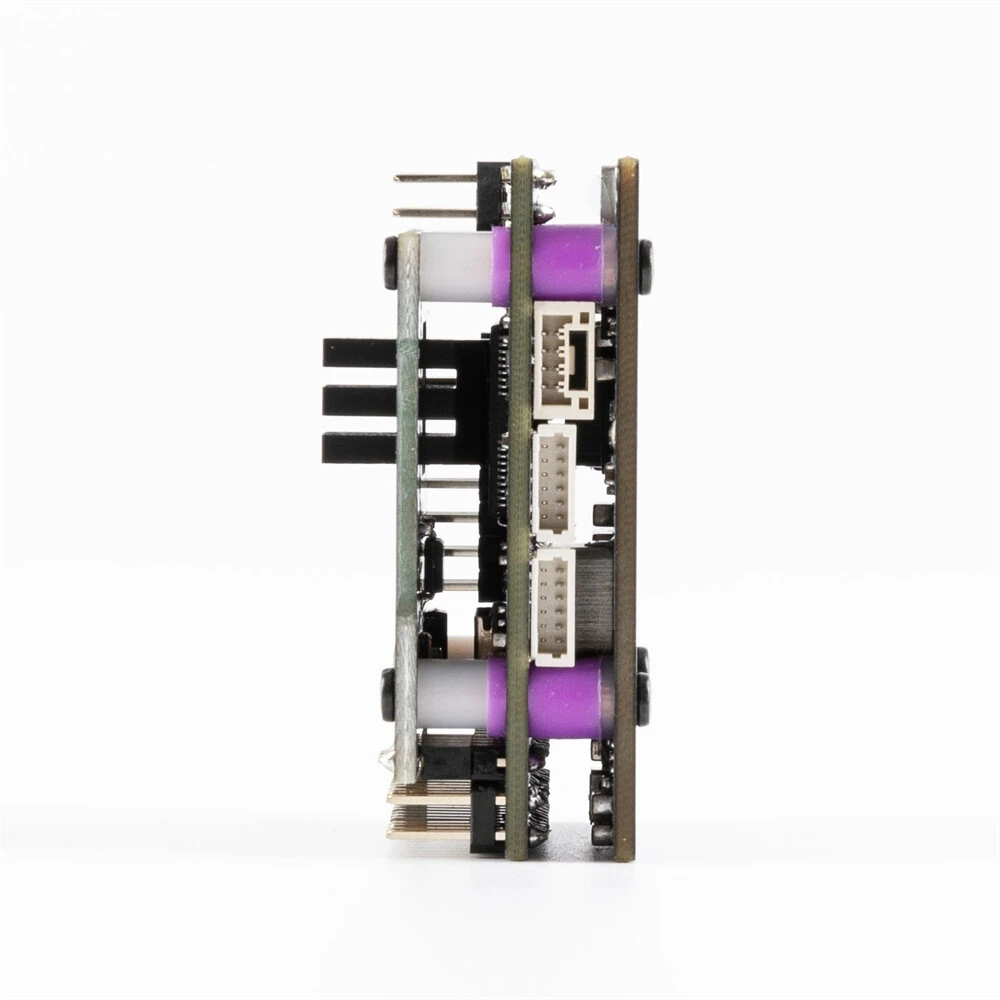

AET H743 Basic Automation Flight Controller Support ArduPilot Inav PX4 With 5V 4A BEC for FPV Racer Drone VTOL RC Airplane

Features:
– STM32H743 microcontroller
– Dual ICM42688P IMUs
– 13s PWM / Dshot outputs (13th is setup for serial LED)
– 8s UARTs, one with CTS/RTS flow control pins
– 1s CAN
– Dedicated USB board
– DPS310 or SPL06 barometer
– 5V/6V/7V 10A Servo rail BEC
– 9V 2A BEC for VTX, GPIO controlled
– 5V 4A BEC
– MicroSD Card Slot
– Selectable dual camera input
– AT7456E OSD
– 2x I2Cs
– Integrated power monitor

Specification:
Model: The AET-H743-Basic Flight Controller
Dimensions: 36 x 47 x 17 mm
Weight: 45g
Main Control Model: STM32H743VIT6
IMU0: ICM-42688-P
IMU1: ICM-42688-P
Barometer: SPL06
OSD Chip: AT7456E
UART Interface: 8 channels UART
I2C Interface:2 channels
ADC Interface: 1 channel voltage measurement/2 channels current measurement/1 channel airspeed measurement
PWM Interface: 12 channels universal/1 channel LED
Flight Status Indicator Light: 1 Green/1 Red/1 Blue
RSSI Input: 1 channel
Power Supply: 7-36V (2-6S Lithium battery)
Voltage Detection: Internal
Current Detection: Internal
VX Adjustable Power Supply: 5/6/7V adjustable, up to 10A
9V Fixed Power Supply: Up to 2A
5V Fixed Power Supply: Up to 4A
Package included:
AET-H743-Basic Combo:
1x AET H743 Basic Flight Controller
AET-H743-Basic+Airspeed Meter Combo:
1x AET H743 Basic Flight Controller
1x Airspeed Meter
AET-H743-Basic+GPS Combo:
1x AET H743 Basic Flight Controller
1x GPS
AET-H743-Basic+GPS+Airspeed Meter Combo:
1x AET H743 Basic Flight Controller
1x Airspeed Meter
1x GPS
