Multi Rotor Parts

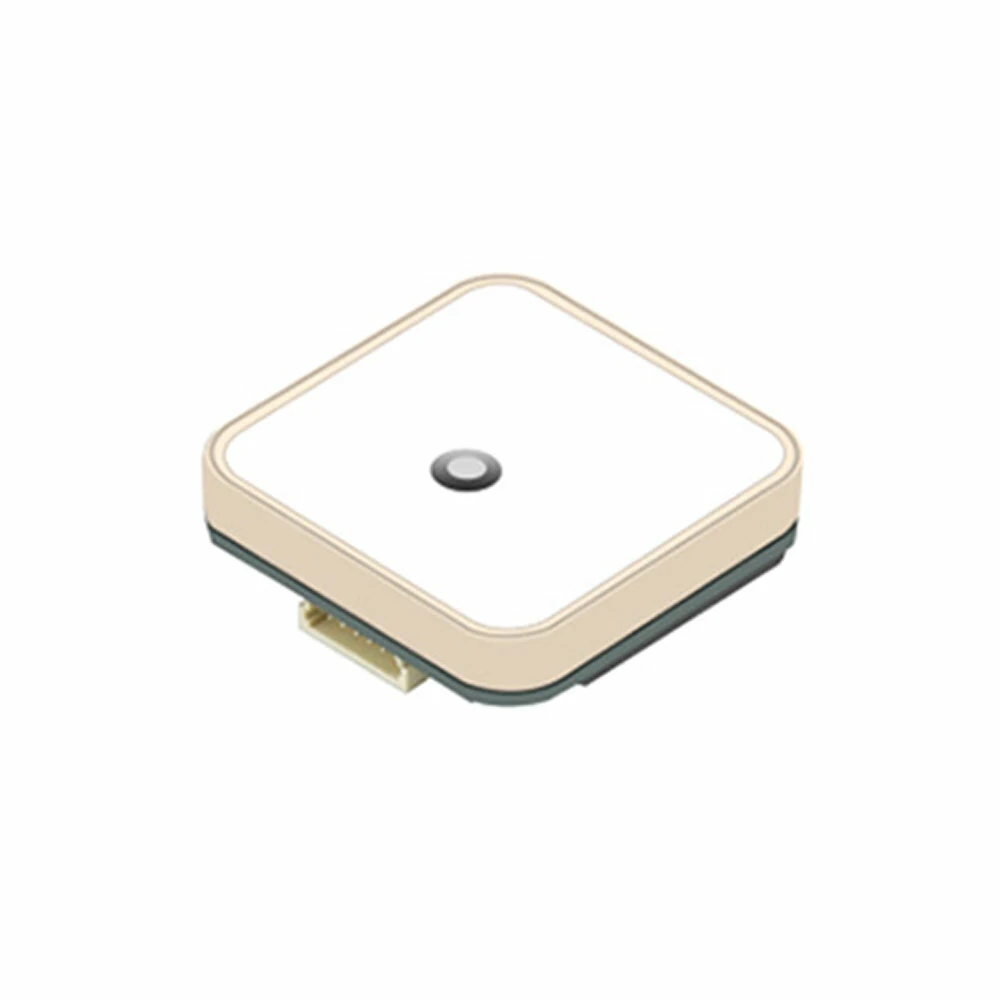

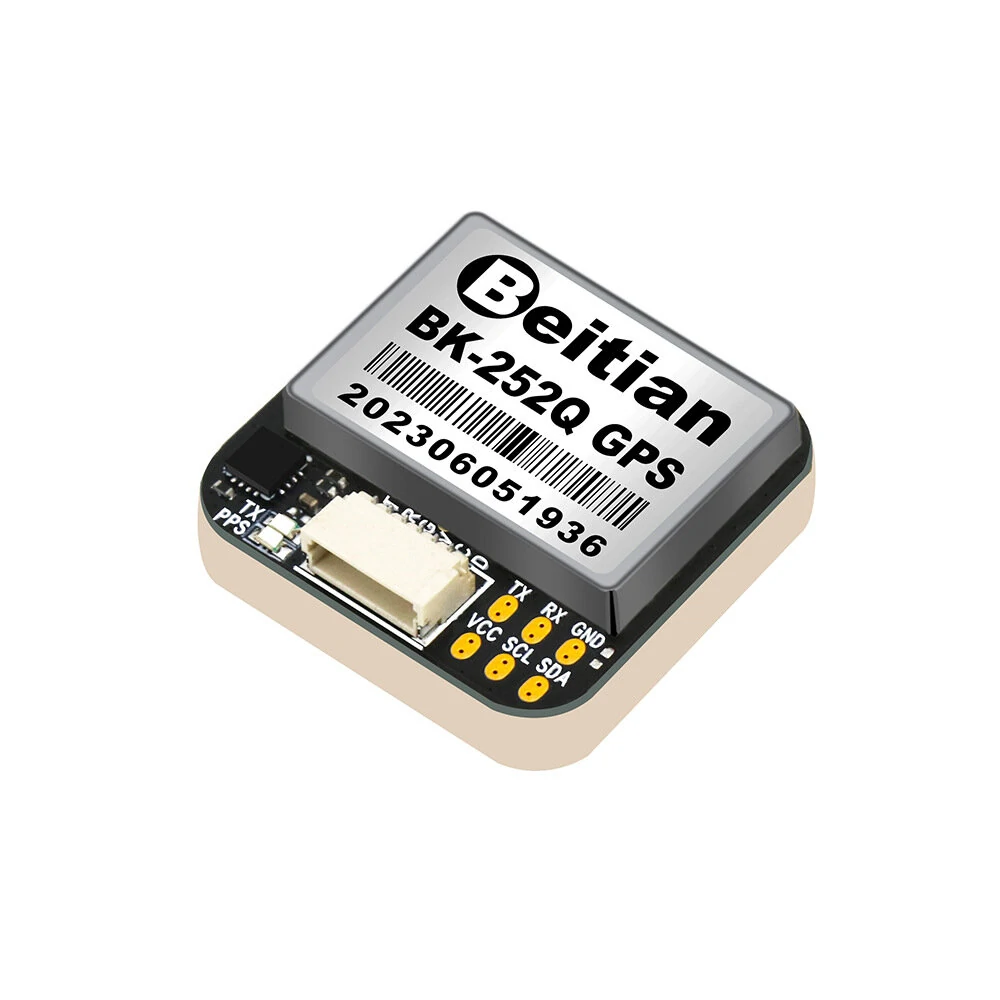

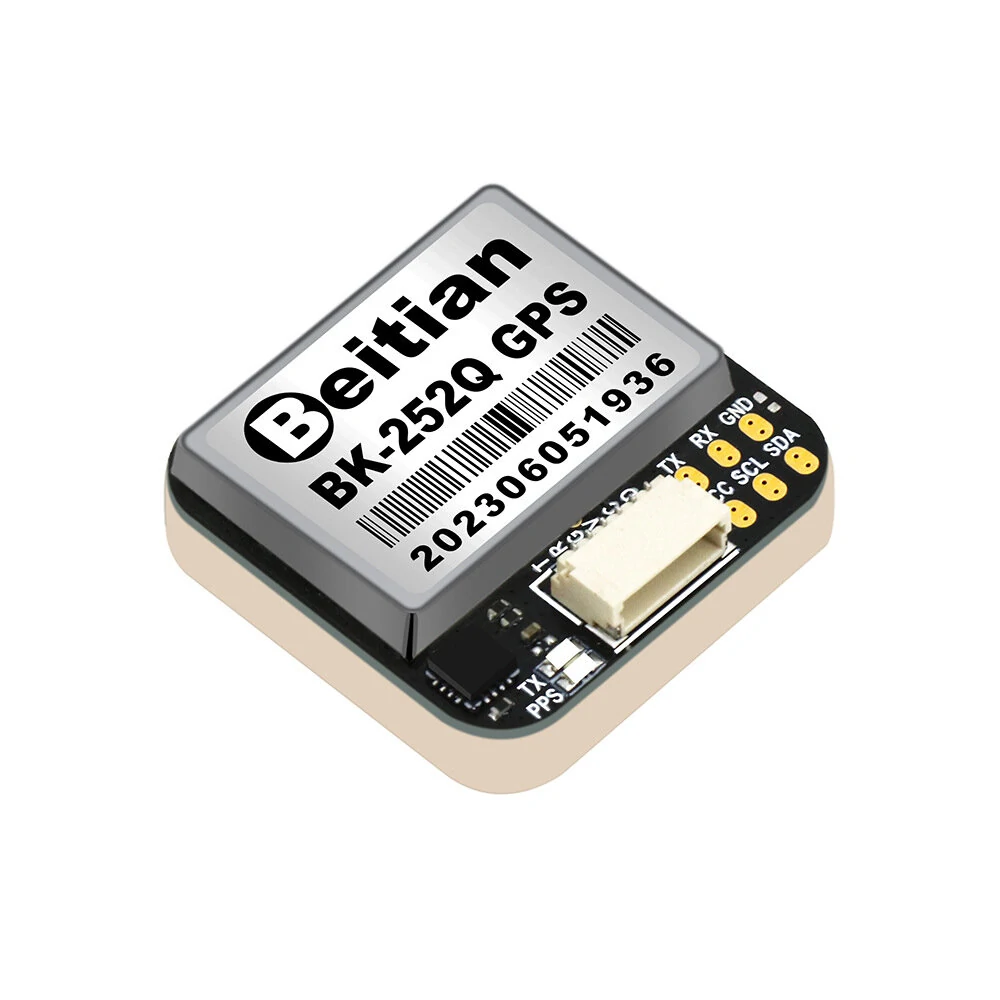

Beitian BK-252Q GPS Module With QMC5883 Compass NMEA UBX Dual Protocol Drone UAV GNSS Receiver Module for FPV Return Rescue Racing Drone RC Airplane Compatible F4 F7 Flight Controller
Availability:
1 in stock
- SKU : 2003130
- Condition : New
- Brand : Beitian
- Processing Time : Ships Within 24-48 Hours
- Return Policy : 30-day refund or replacement
$33.99 $42.99
1 in stock
Specifications:
|
Item |
Description |
|
|
Electrical Characteristic |
Chip |
M9140-KB |
|
Receiver type |
GPS L1 C/A, QZSS L1 C/A/S,GLONASS L10F, BDS B1I,Galileo E1B/C,SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN |
|
|
Default position system |
GPS, GLONASS,BDS, GALILEO |
|
|
Augmentation system |
SBAS, QZSS |
|
|
Channel |
92 searching channel |
|
|
Sensitivity |
Tracking & Navigation |
-167dBm |
|
Reacquisition |
-160dBm |
|
|
Cold start |
-148dBm |
|
|
Hot Start |
-159dBm |
|
|
Accuracy |
Horizontal position |
1.5m CEP |
| Speed Rate |
0.05m/s |
|
|
Dynamic heading |
0.3 deg |
|
|
Time pulse |
RMS 30ns |
|
|
99% 60ns |
||
|
Acquisition |
Cold start |
24s |
|
Hot start |
2s |
|
|
Aided start |
