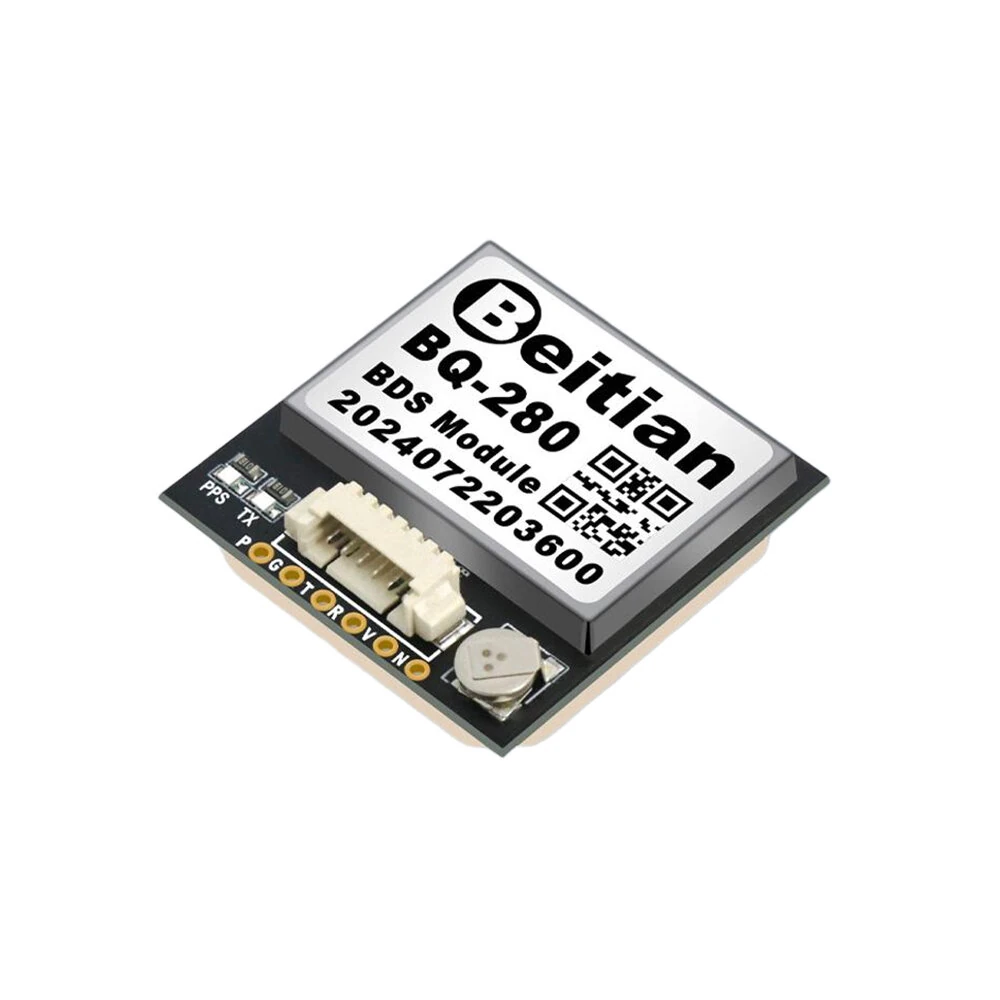

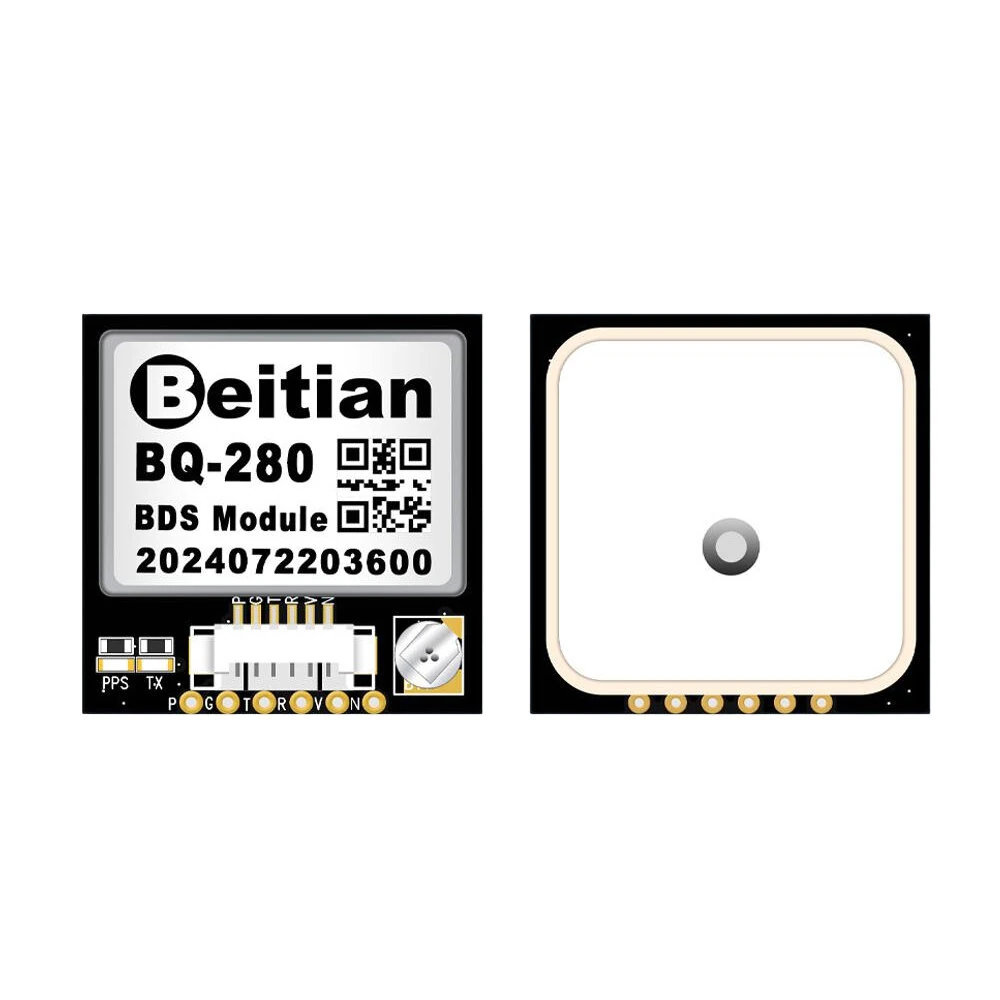

Beitian BQ-280 BDS GPS Module High Precision GNSS Positioning Built-in Antenna with Internal Compass BDS-B1I BDS-B1C Dual Frequency Bands for FPV Racing Drones

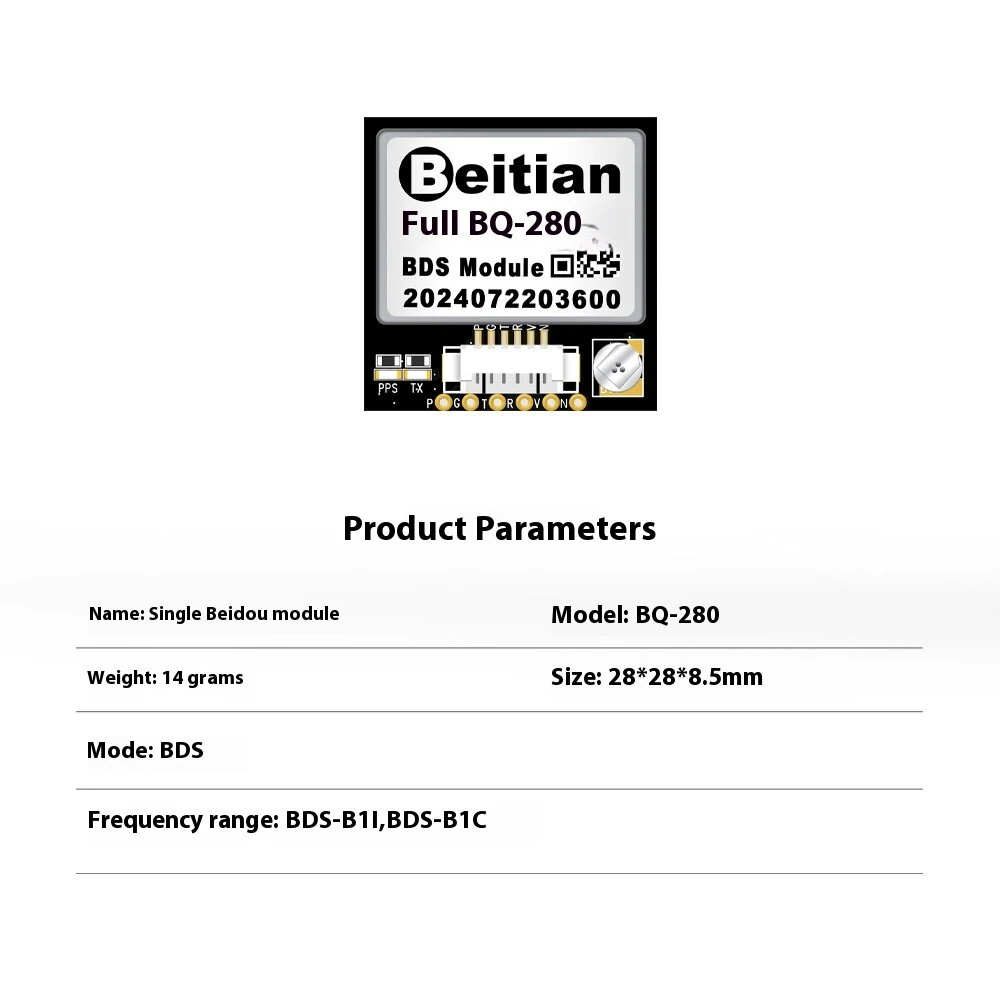

Specification:
Brand: Beitian
Model: BQ-280
Item Name: GPS Integrated Module
Chip: AT6668B
Frequency Bands: BDS-B1I, BDS-B1C

Work Mode: BDS
Signal Tracking Sensitivity: -161dBm
Reacquisition Sensitivity: -158dBm
Cold Start Sensitivity: -148dBm
Hot Start Sensitivity: -155dBm
Horizontal Positioning Accuracy: <2m (CEP50)
Speed Accuracy: <0.1m/s (1σ)
1PPS Time Accuracy: 20ns
Cold Start: ≤23s
Hot Start: ≤1s
Reacquisition Time: ≤1s
Serial Port Baud Rate: 115200bps
Output Level: TTL
Output Protocol: NMEA
Update Rate: 1Hz
Flash Memory: Supported
Clock Pulse Output Frequency: 0.25Hz to 10MHz
Maximum Altitude: 18,000m
Maximum Speed: 515m/s
Voltage Range: DC 3.6V to 5.5V (Typical: 5.0V)
Current (Normal): 35mA @ 5.0V

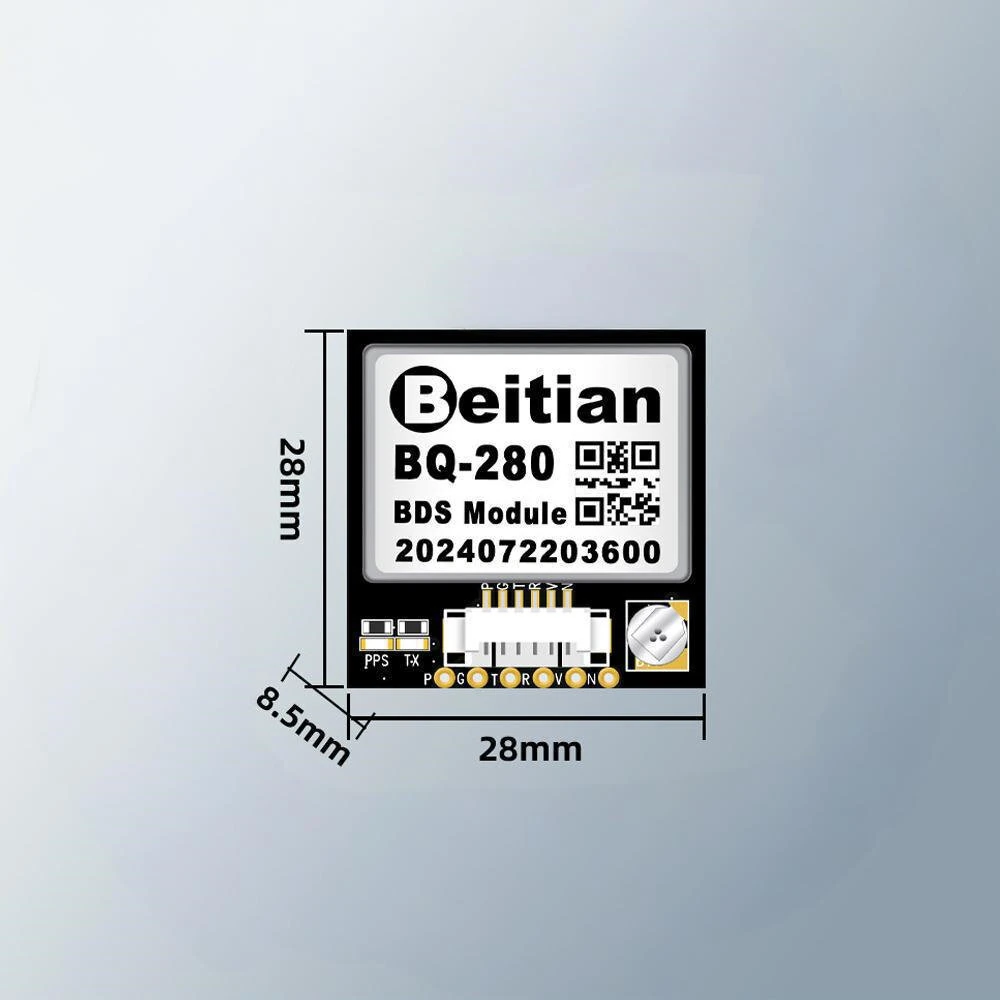

Dimensions: 28mm x 28mm x 8.5mm
Weight: 14g
Connector: 1.25 pitch 6PIN connector
Operating Temperature: -40°C to +85°C
Storage Temperature: -40°C to +90°C
TX Indicator: Blue light flashes, indicating data output.
PPS Indicator: Remains off when not fixed; starts flashing after 3D positioning is achieved

Package included:
1x BQ-280 BDS Module
