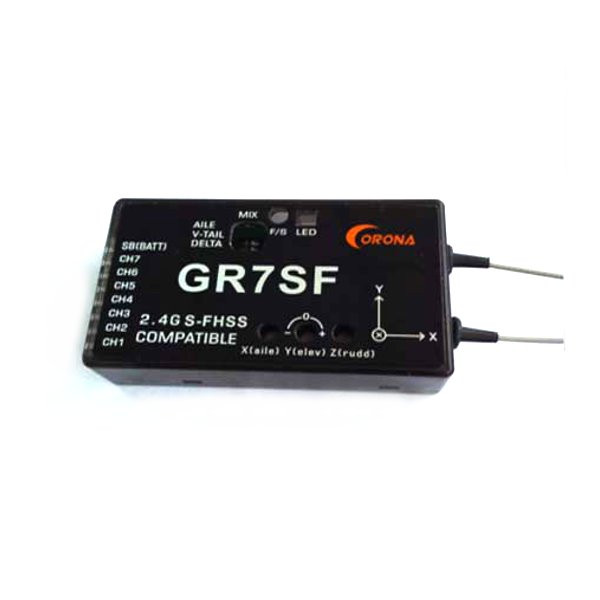

CORONA 2.4G 7CH GR7SF S-FHSS Compatible Receiver With Gyro for Futabas T6J T8J T10J T14SG Radio

CORONA 2.4 7CH GR7SF S-FHSS Compatible Receiver With Gyro for Futabas T6J T8J T10J T14SG

Description:Brand: CORONAItem Name: CORONA GR7SF receiverVoltage Range :3.6~8.5VOperating Current: 60mA maxOperation temperature: -10~70 degCLatency: 6.8mSSensitivity: about -96dBmWeight: 16gCompatibility:CORONA 2.4GHz S-FHSS Compatible Receiver is designed to use with FUTABAS S-FHSS 2.4GHz transmitters, such as T6J, T8J, T10J and T14SG under S-FHSS protocol mode.
Features:Mode supply: No mixer, Dual-aileron, V-tail mixer, Deltas mixerIndependent simple gyro gain adjustment for Aileron, Elevator and RudderS.BUS output support expanding servo channels(will take effect in new version).Support gyro function switch on and off in flying by Switching signal of CH5 will take effect in new version.
Bind procedure:

1. Turn on the S-FHSS transmitter.

2. Connect the battery to the receiver while pressing receiver’s F/S button.

3. Red LED light on and Green LED off when searching signals, and turn to Green LED light on and Red LED off indicate bind is succeeded.
User Manual, Click here
Package included:
1x CORONA 2.4 7CH GR7SF S-FHSS Compatible Receiver With Gyro
