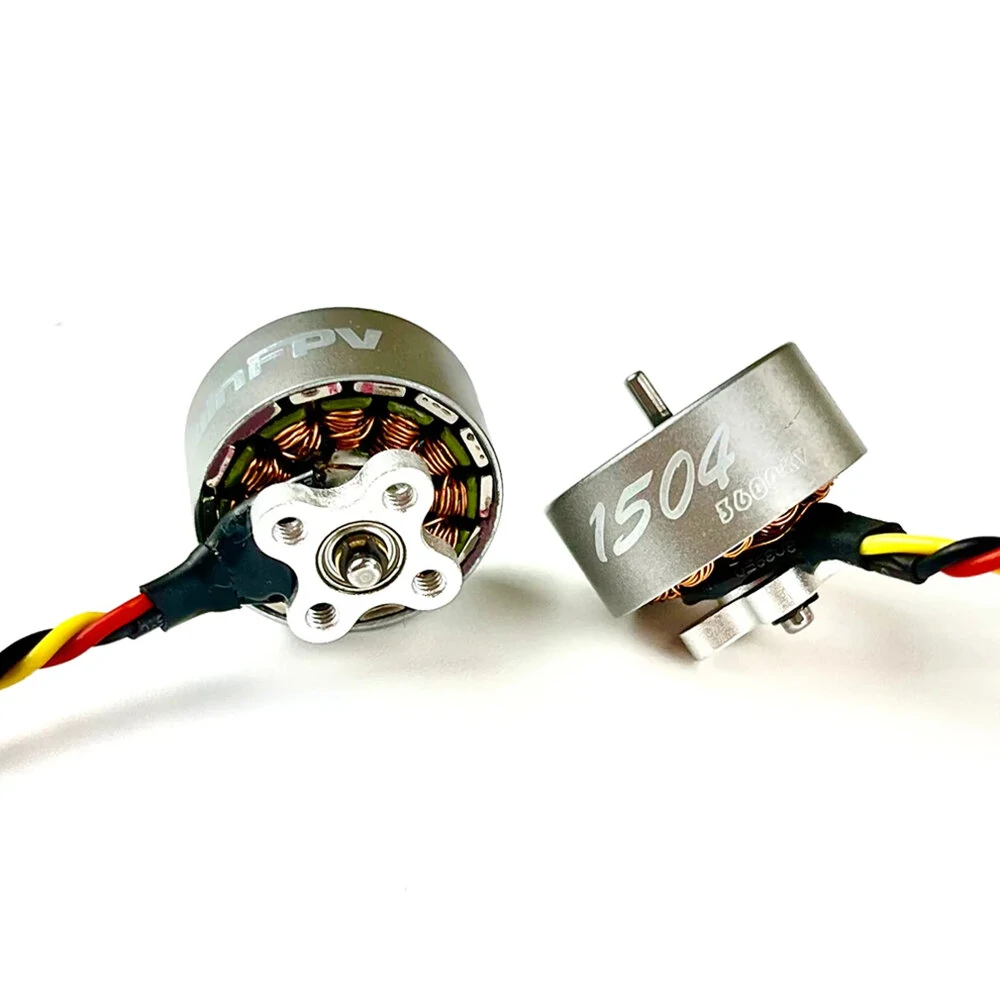

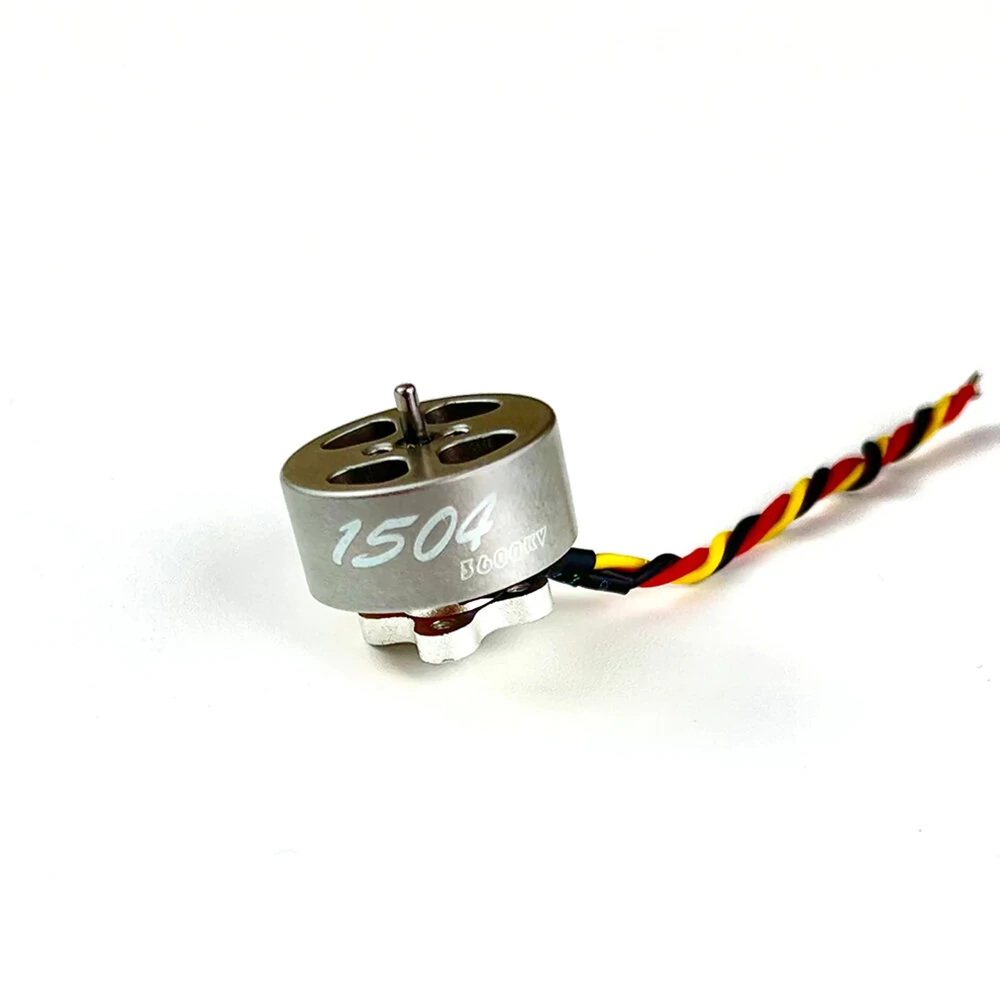

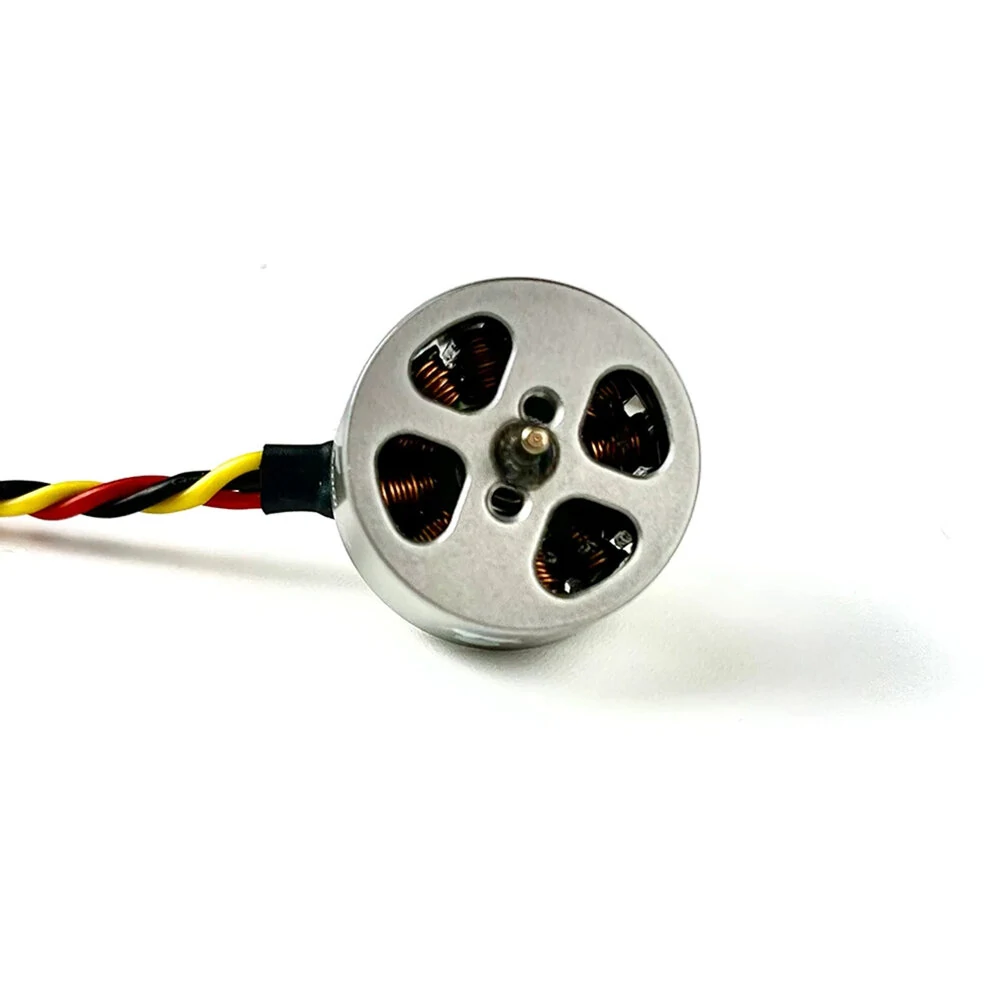

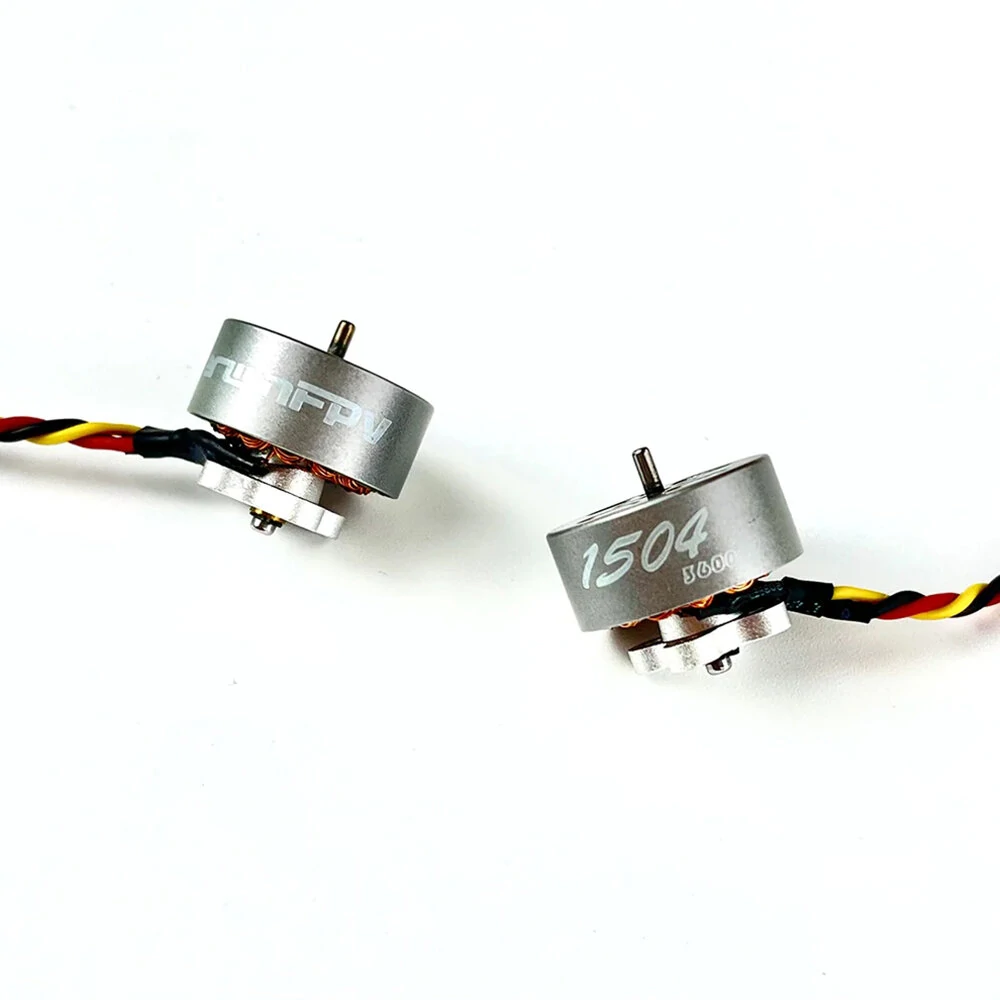

DarwinFPV 1504 2300KV 4-6S / 3600KV 4S Brushless Motor 1.5mm Shaft for CineApe 25 2.5 Inch Whoop 3-4 Inch Toothpick BabyApe II RC Drone FPV Racing

Availability:

1 in stock


  • SKU : 1985195
  • Condition : New
  • Brand : DarwinFPV
  • Processing Time : Ships Within 24-48 Hours
  • Return Policy : 30-day refund or replacement

Price range: $16.99 through $43.99

Introduction:

DARWINFPV 1504 Motor is a very cost-effective motor with an overall lightweight design weighing only 10g.Smooth running, powerful and easier to control. This motor is also a good choice if you are building a 2.5′ hoop or 4′ toothpick quadcopters.Features:The most cost-effective brushless motor. Like the 1504 motor of a well-known brand, it has mature production technology, sufficient raw materials and a complete supply chain, which essentially determine the characteristics of low price and high quality.Lightweight design, weighing only 10g, greatly improves the battery life of the drone.Compatible with 2.5-inch FPV drone and 3-4-inch toothpick FPV drone, which can be used for racing.The 1.5mm shaft fits perfectly with most 2.5-4 inch FPV propellers on the market.

Specifications:

Brand: DarwinFPV

Model: 1504

Item Name: 1504 2300KV 4-6S / 3600KV 4S Brushless Motor

Optional KV Version 2300KV 3600KV
Input Voltage 4-6S 4S
Number of slot poles 12N14P 12N14P
Stator size 15x4mm 15x4mm
Out shaft diameter 1.5mm 1.5mm
Mounting hole 9x9mm (M2) 9x9mm (M2)
Weight 10g 10g
Lead wire specifications 26#AWG 26#AWG
Maximum Power 192W 168W
Maximum Current 8A 10.5A
Application:

6S for 2.5 inch whoop FPV drone

6S for 3 inch toothpick quadcopters

4S for 4 inch toothpick quadcopters

4S for 2.5 inch whoop FPV drone

4S for 3 inch toothpick quadcopters

Packing Included:

1x 1504 Motor

4x M2*4 Screws

OR

2x 1504 Motor

8x M2*4 Screws
