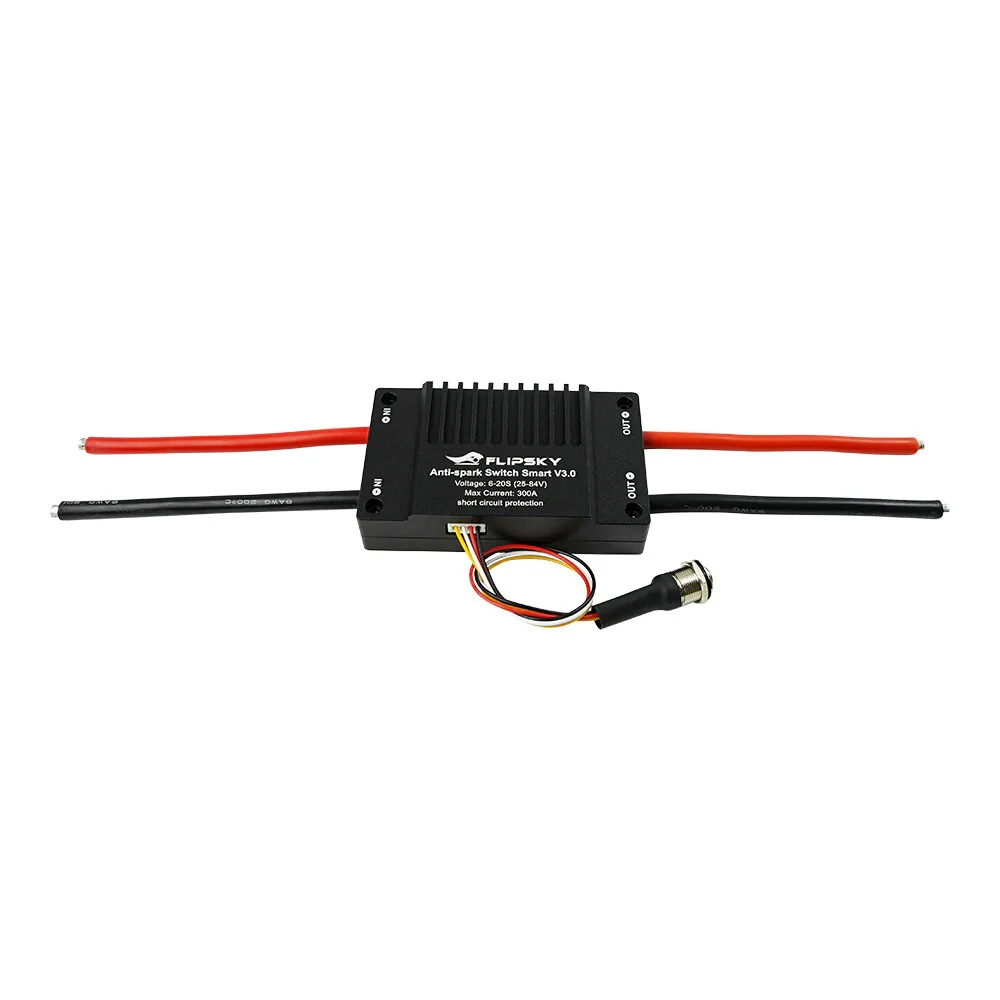

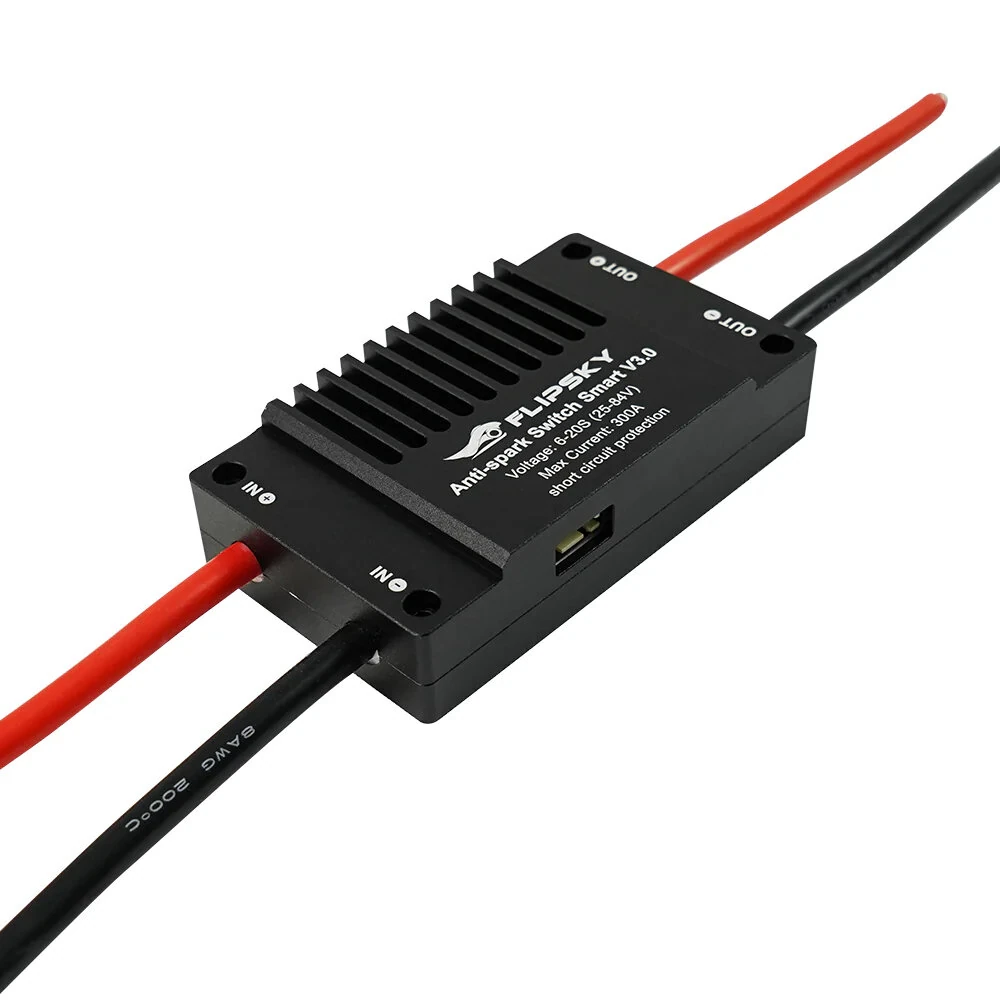

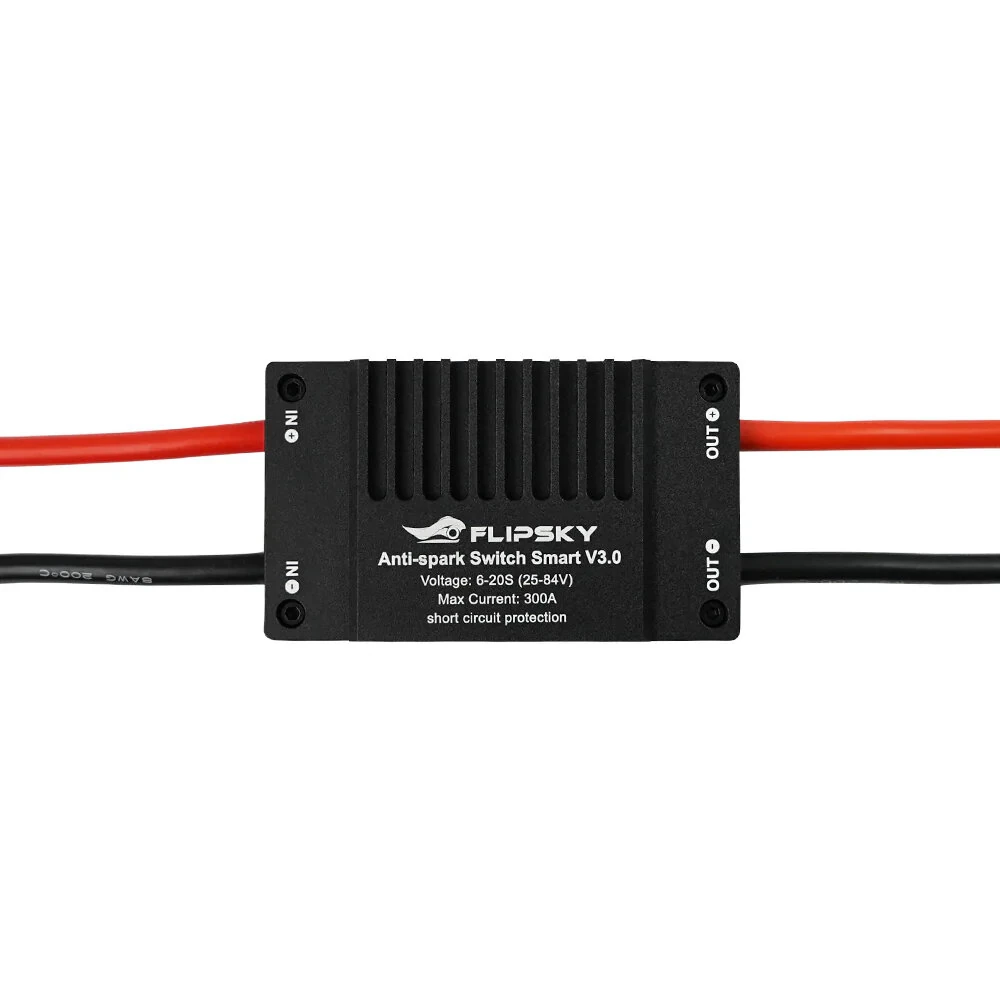

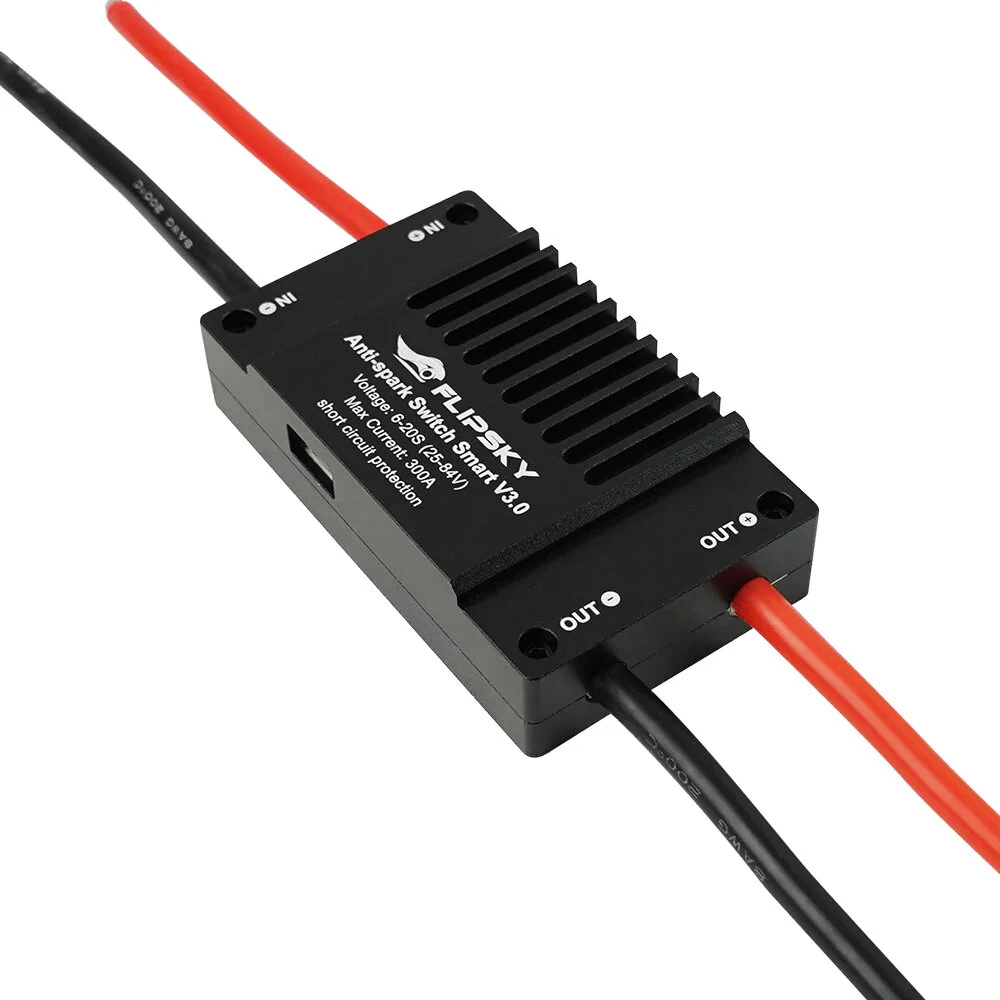

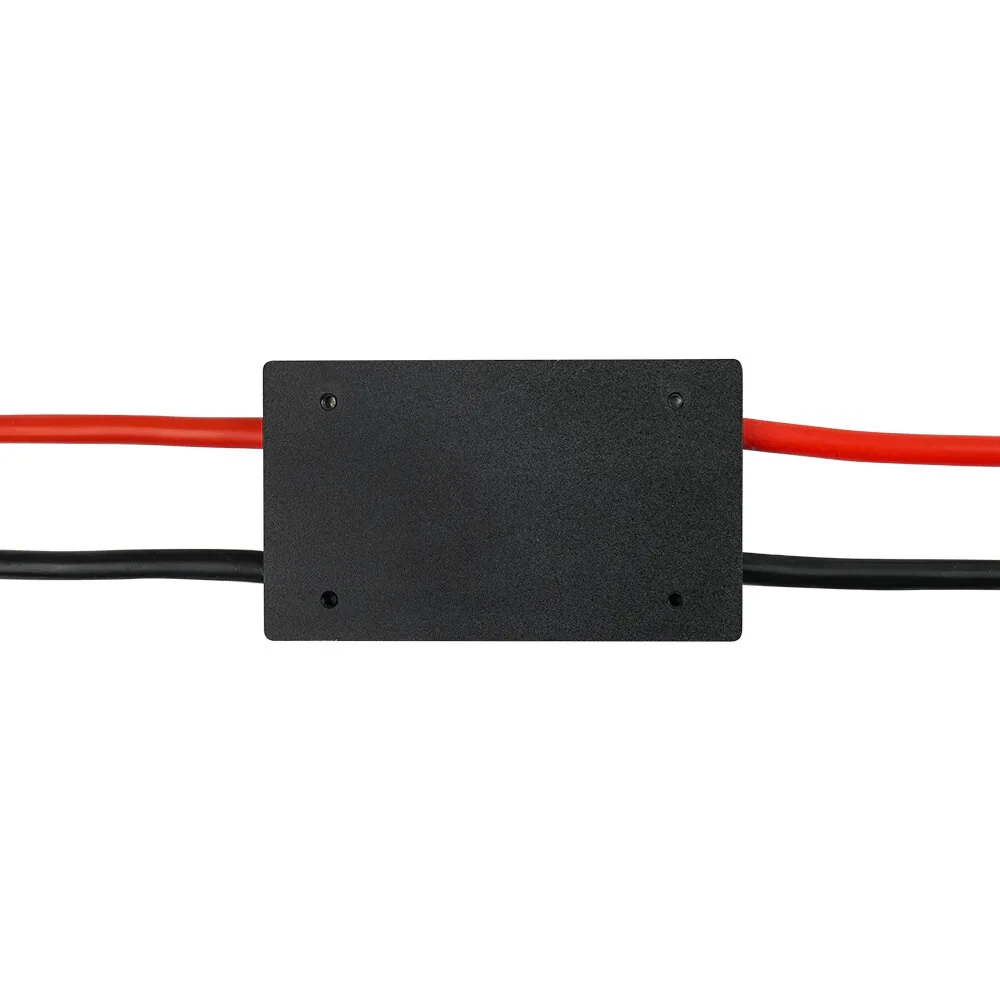

Flipsky Anti-spark Switch Smart 300A V3.0 For Electric Skateboard Electric Surfboards RC Cars Electric Go-karts Robots

Specification:
Brand: Flipsky
Item Name: Anti-spark Switch Smart
Working Voltage: 6-20S Li-Po
Output Current: Continuous max 300A (duration time depends on external heat dissipation conditions)
Diameter of Switch Button: 12mm (Self-lock switch)
Size: 97*57*24mm
Weight: 311g

Features:
– Metal shielding cover for good heat dissipation and reducing electromagnetic interference.
– Equipped with LED indicator light, users can check the status of the light to determine whether it works normally.
– If the light is always on, indicating the switch works normally. If the light flashes indicates that the short-circuit protection function has been triggered.
– Soft start-up: Increasing the current / voltage in the circuit slowly to achieve smooth load start-up. It can reduce the impact of start-up, protecting the load, switch and the entire circuit system and improve safety.
– Support start-up short circuit protection, working short circuit protection, preventing the controller and power supply system damage effectively, which improves the liability and safety of equipment.

Package included:
1 x Anti-spark Switch Smart
