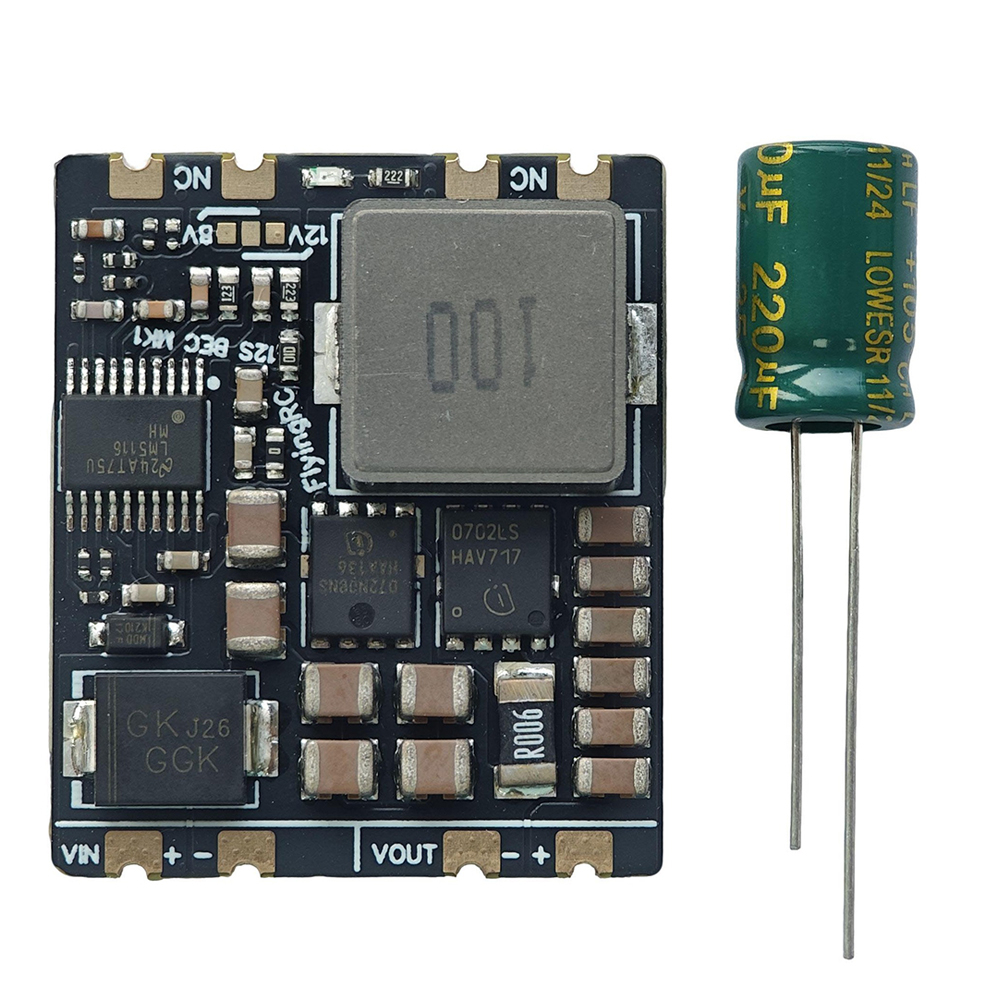

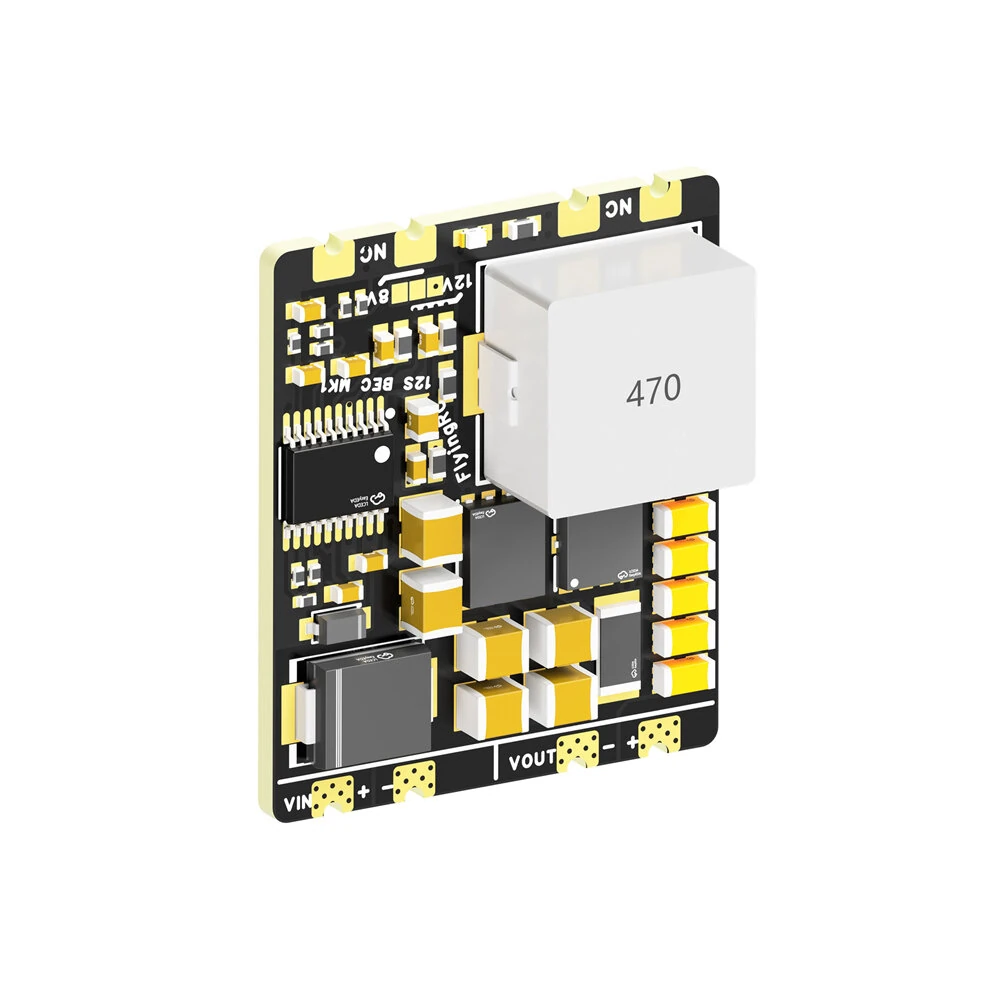

FlyingRC 10A 12S V1 BEC Step-down Module 5.2V/ 8V/ 12V Output with 35V 220UF Capacitor for RC FPV Racing Drones

Specification:

Brand: FlyingRC

Item name: 10A 12S BEC step-down module

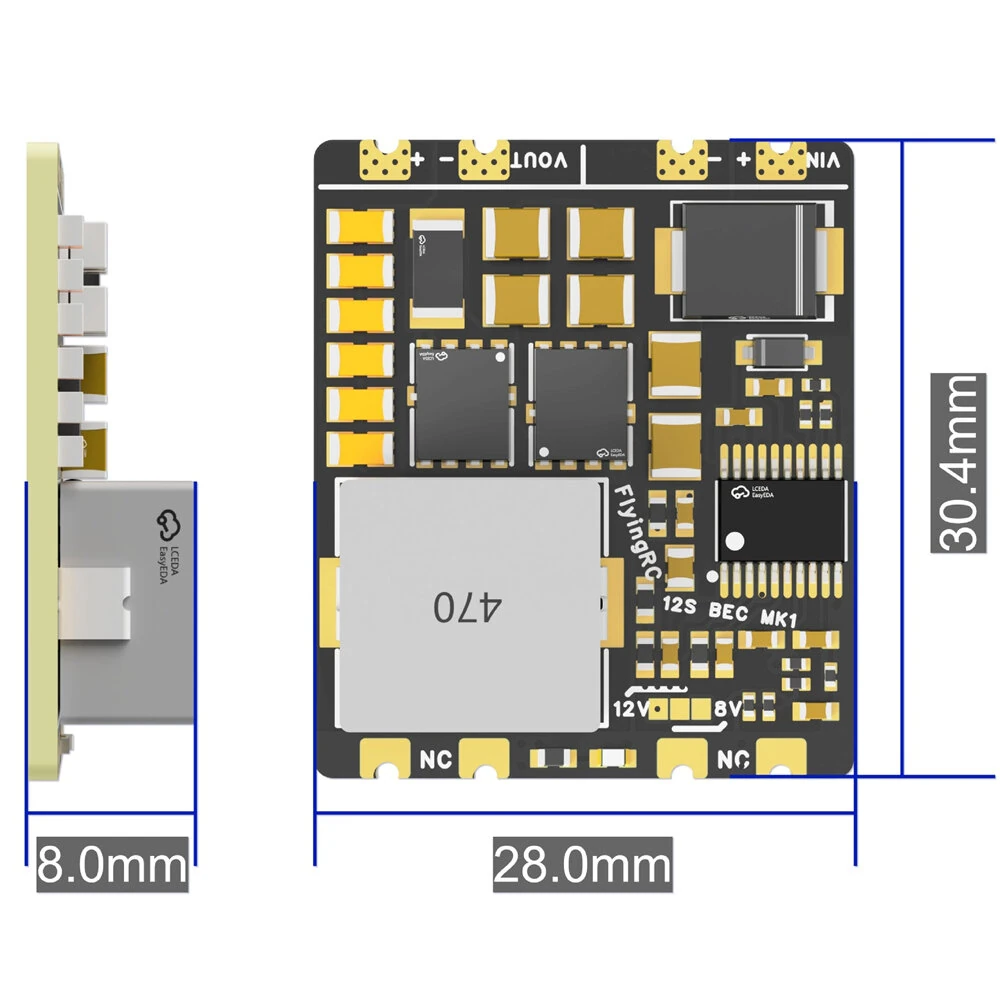

Size: 30.4x28x8mm (1.2×1.1×0.31inch)
Product Weight: about 11.3g (without capacitor), 11.9g (with capacitor)
PCB Layers: 4 layers
PCB Thickness: 1.60mm
Immersion Gold: 1μm
Electrolytic capacitor: 35V 220UF

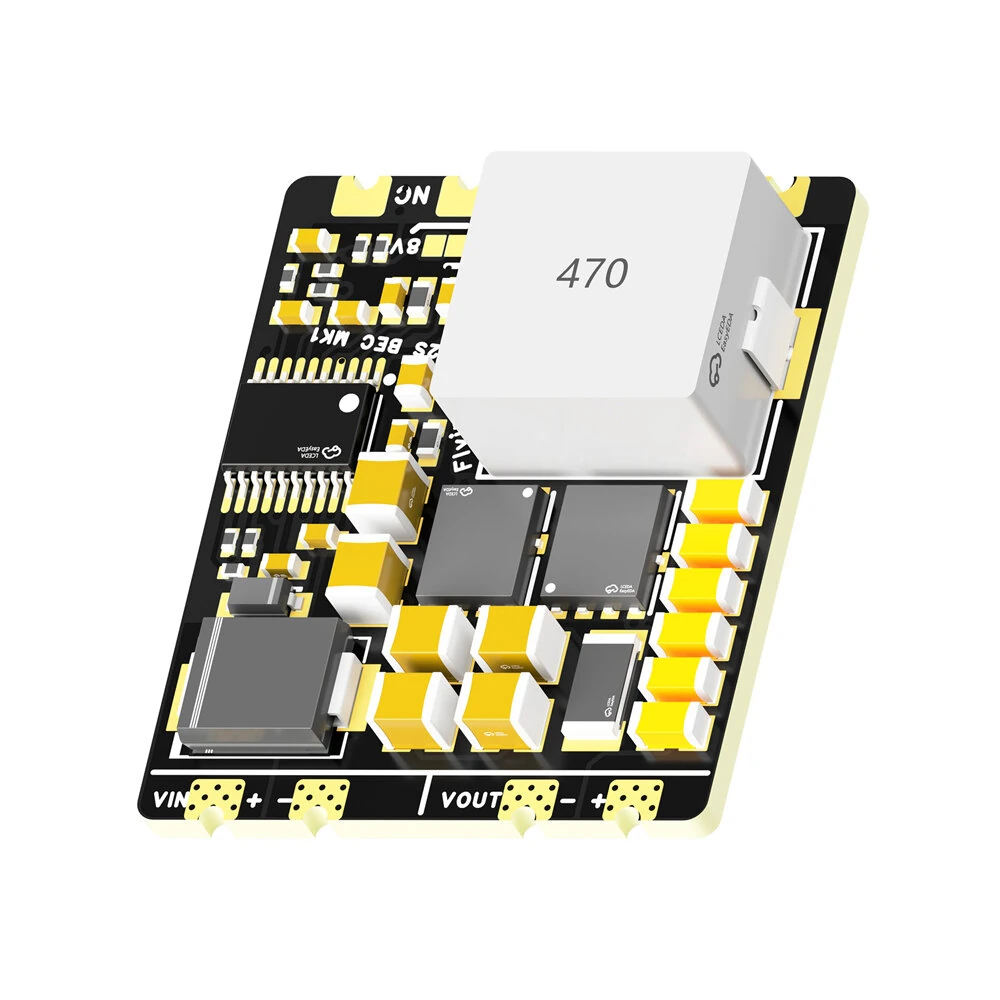

Product Features:
– The 10A 12S BEC V1 is a compact, high-performance BEC step-down module. It adopts the TI LM5116 chip with a voltage tolerance of 80V. Equipped with current loop control, it features maximum responsiveness, making it ideal for servo power supply.

– External dual 80V-tolerant MOS enable a maximum instantaneous output current of 12A, with a continuous output of 8A without heat dissipation and 10A with heat dissipation.

– Input Capacitance: 6pcs 1210 10uF MLCC in parallel

– Output Capacitance: 6pcs 1206 47uF MLCC in parallel

– Input Voltage: 6-60V, 2-12S LiPo (input voltage must be 0.8V higher than the set output voltage)

– Output Voltage: Selectable 5.2V, 8V, 12V. Default output is 5.2V; other voltages can be selected via jumper pads.
1. No shorting of jumper pads: default output 5.2V.
2. Shorting of jumper pads: select other output voltages.

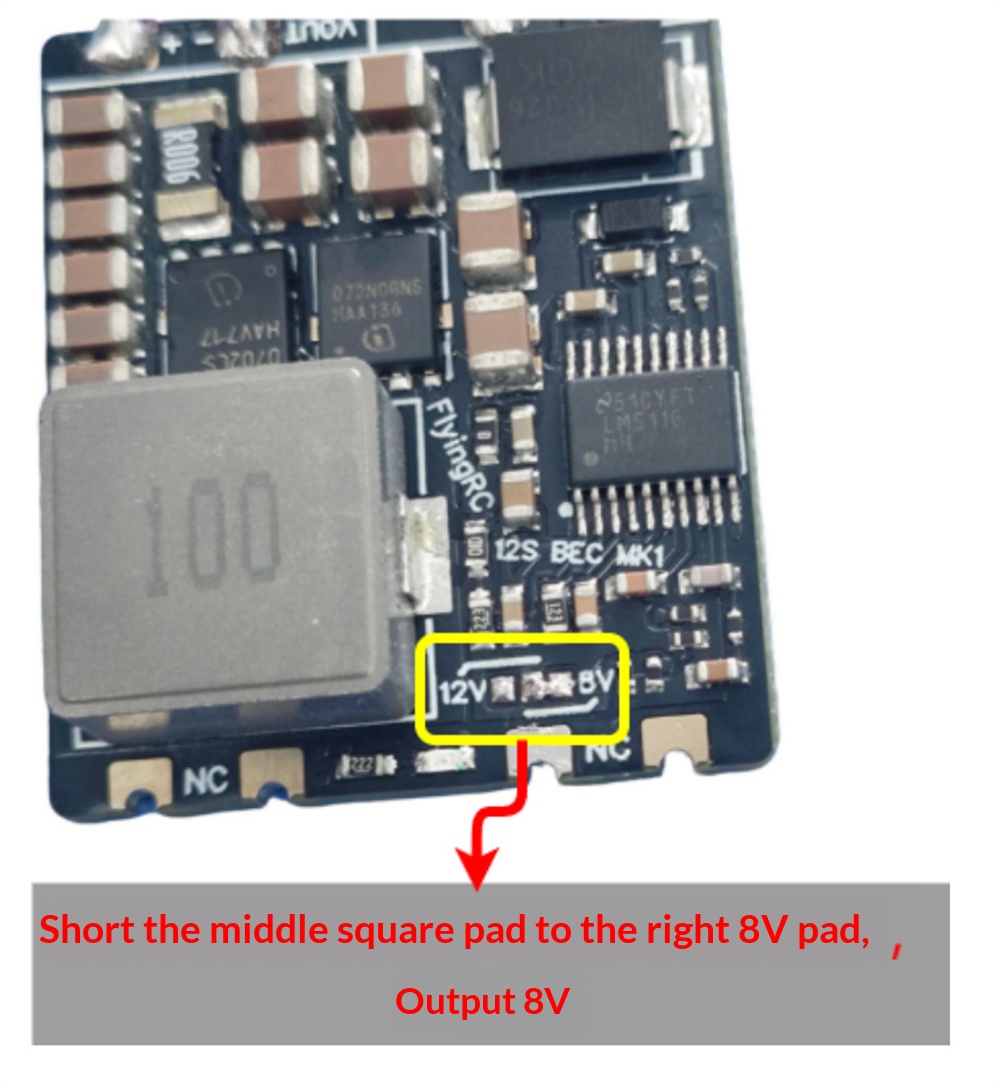

(Short-circuit the middle square pad with the 8V pad on the right to output 8V.)

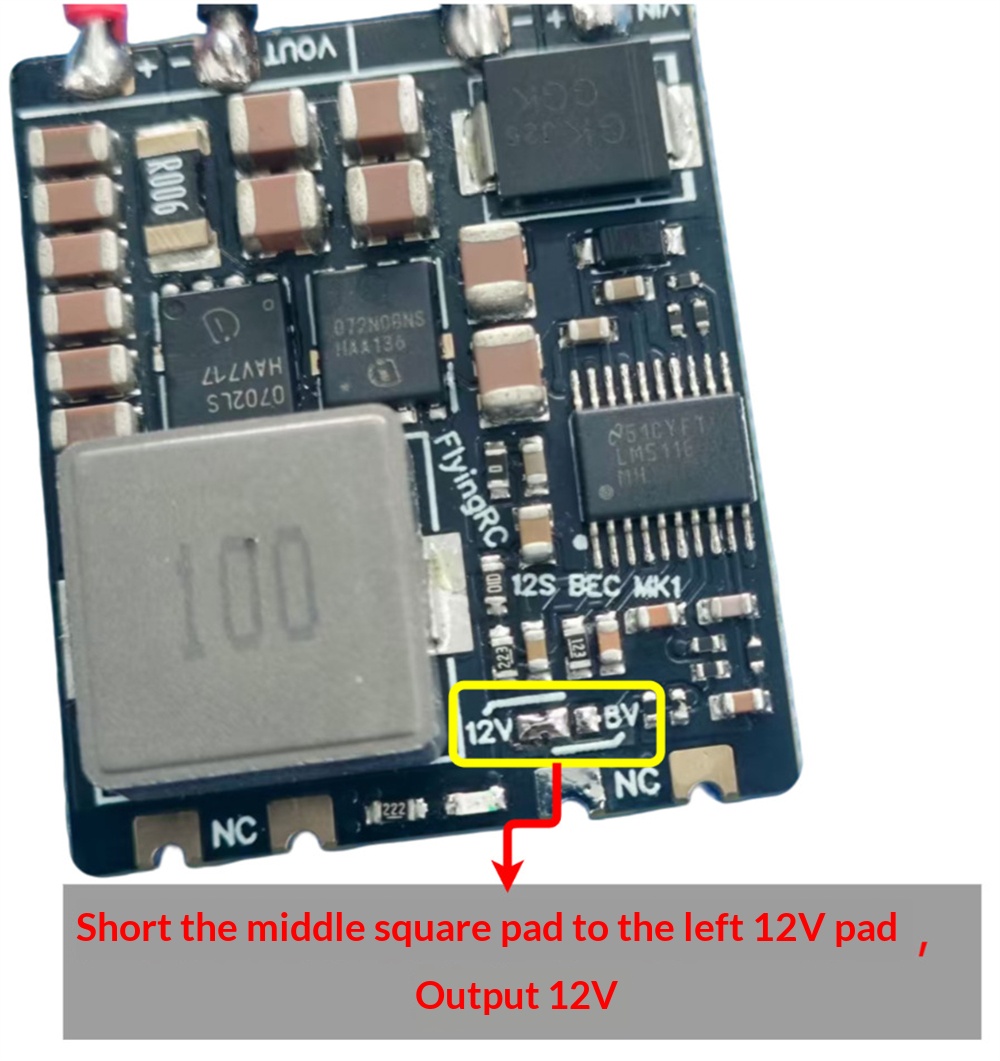

(Short-circuit the middle square pad with the 12V pad on the left to output 12V.)

Continuous Output Current:
1. Without heat dissipation (no heatsink, no airflow): 5.2V8A, 8V8A, 12V7A
2. With heat dissipation (with heatsink or airflow): 5.2V8A, 8V8A, 12V7A
3. Instantaneous Output Current: 5.2V12A, 8V12A, 12V11A

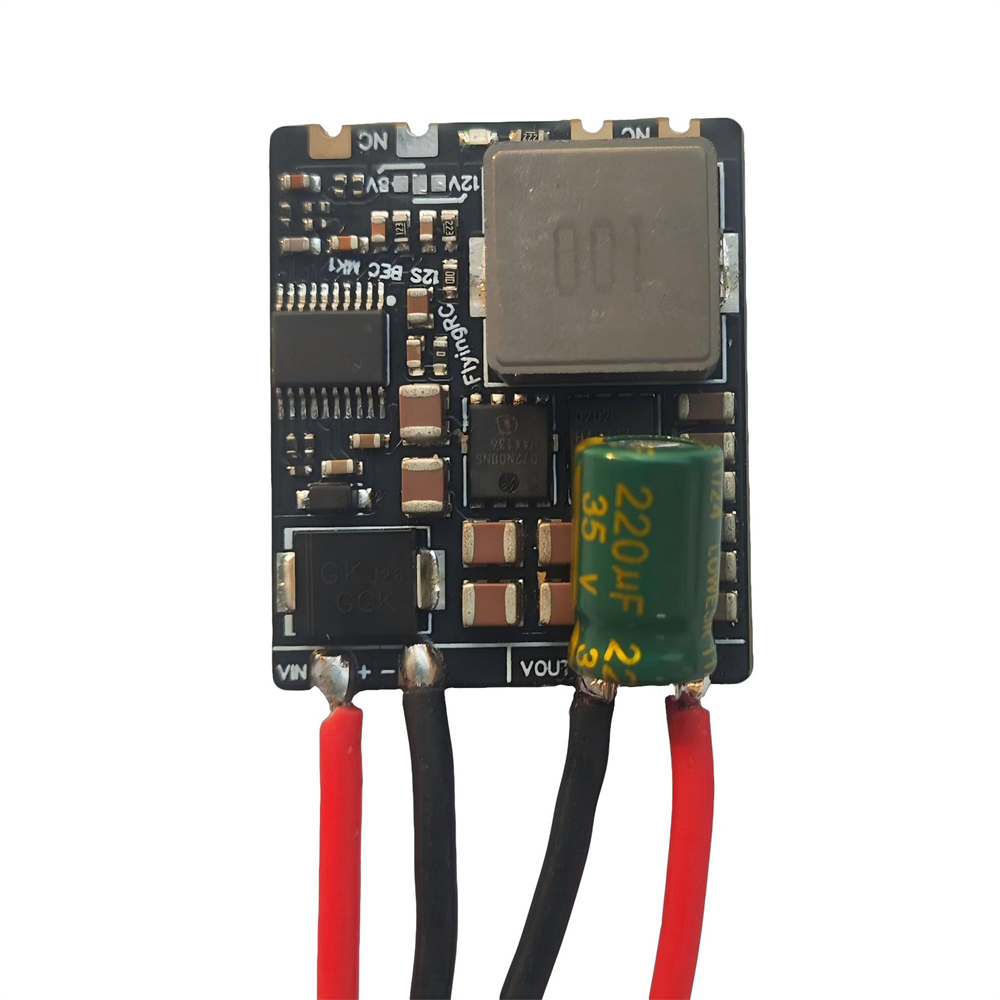

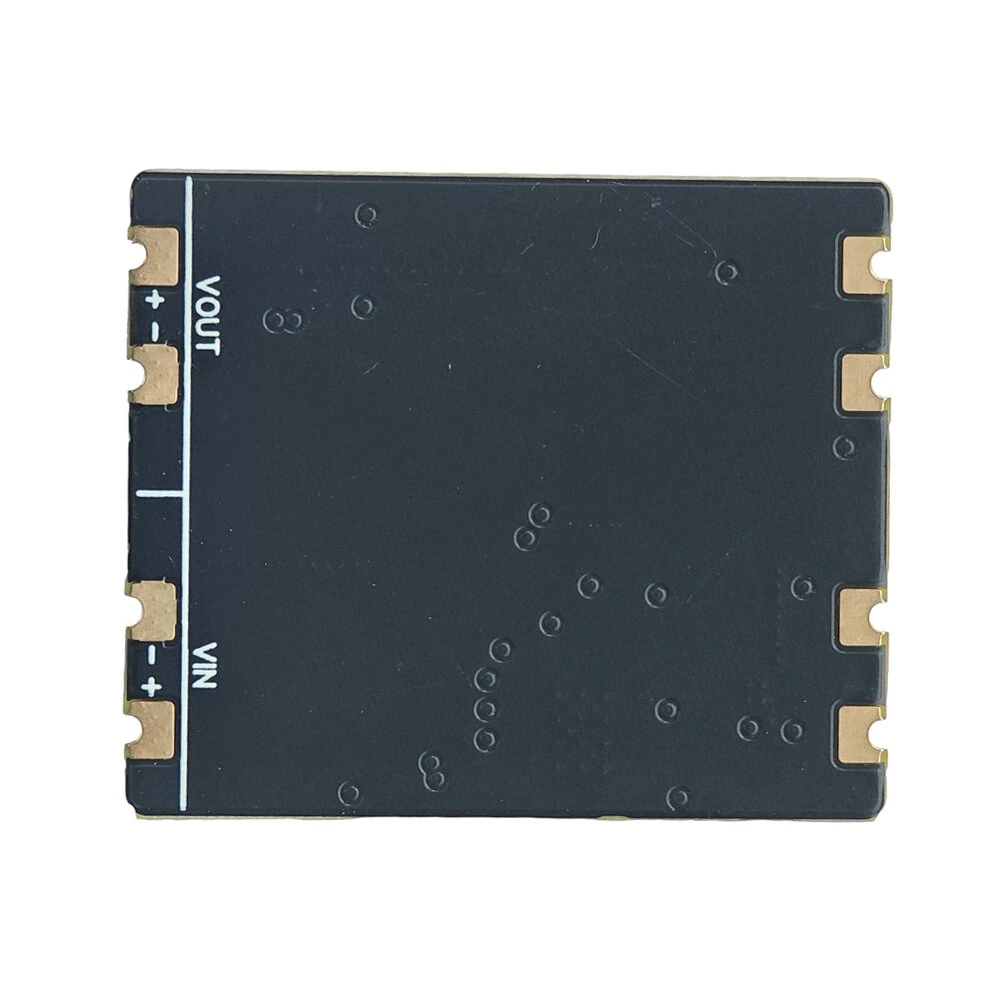

Usage Instructions:
1. Solder the power input wires.
2. Select the output voltage via jumper pads (skip this step if 5V output is required).
– No shorting of jumper pads: default output is 5V.
– Shorting of jumper pads: select other output voltages.
When selecting the 8V pad, the actual output voltage is 8.02V; when selecting the 12V pad, the actual output voltage is 12.02V.

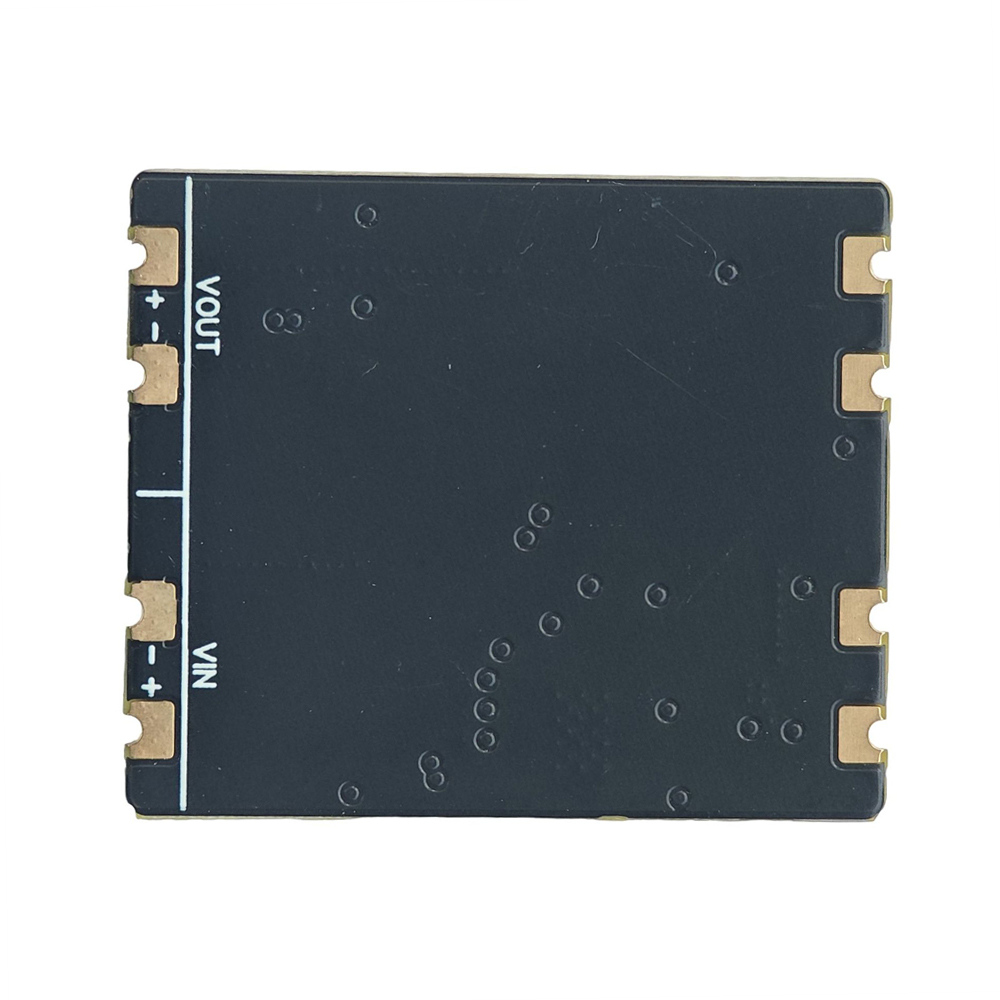

3. Solder the power output wires.
4. Solder the capacitor (capacitor: left is negative, right is positive).

Package included:
1 x BEC Step-down Module
1 x 35V 220UF Capacitor
