RC Airplane Parts

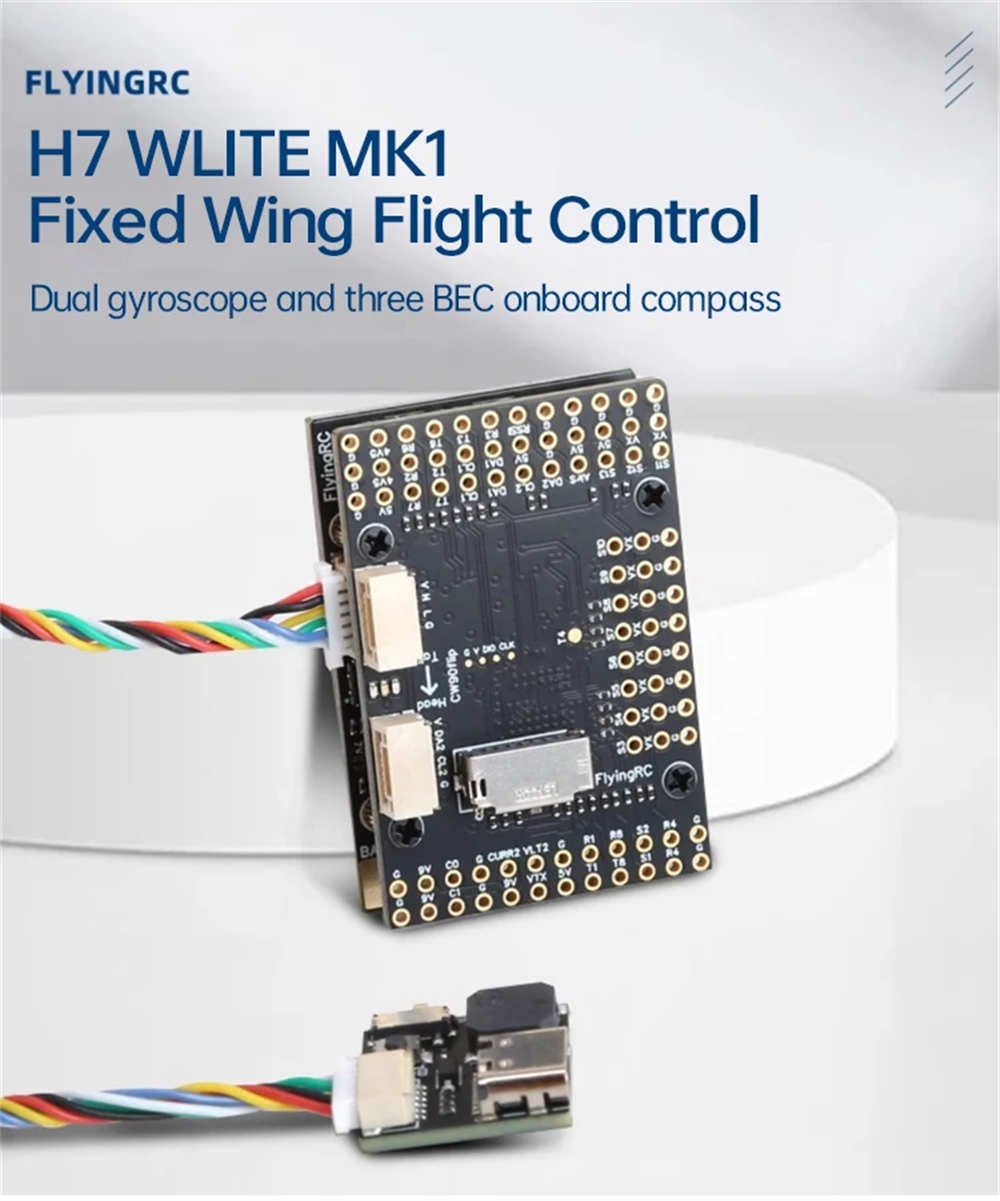

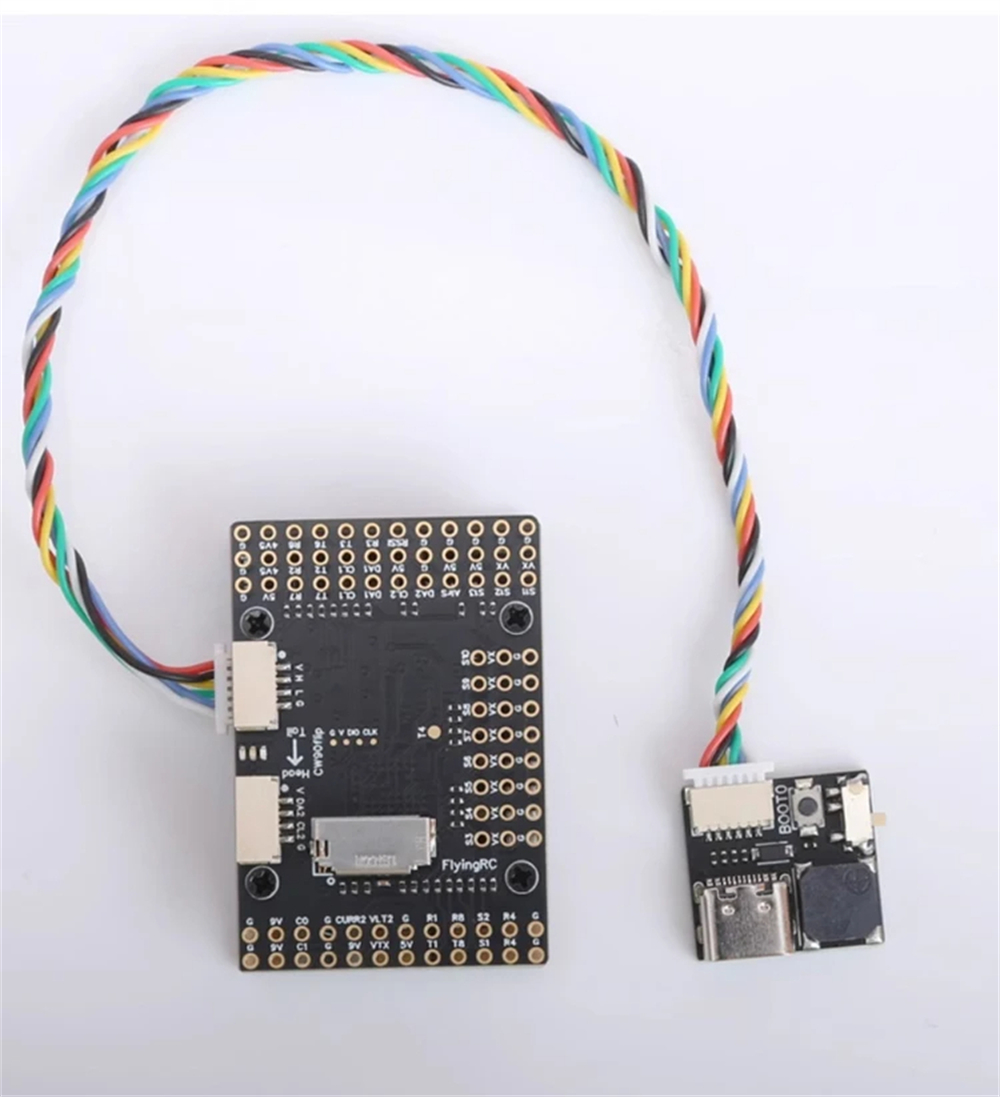

FlyingRC H7Wlite MK1 Fixed Wing Flight Controller H7 FC Onboard BEC Support AP/INAV/BF Firmware For RC Airplane
Availability:
1 in stock
- SKU : 2042532
- Condition : New
- Brand : FlyingRC
- Processing Time : Ships Within 24-48 Hours
- Return Policy : 30-day refund or replacement
$79.99 $114.99
Specification:
Model: FlyingRC H7Wlite MK1
Ardupilot: MatekH743
INAV: MATEKH743

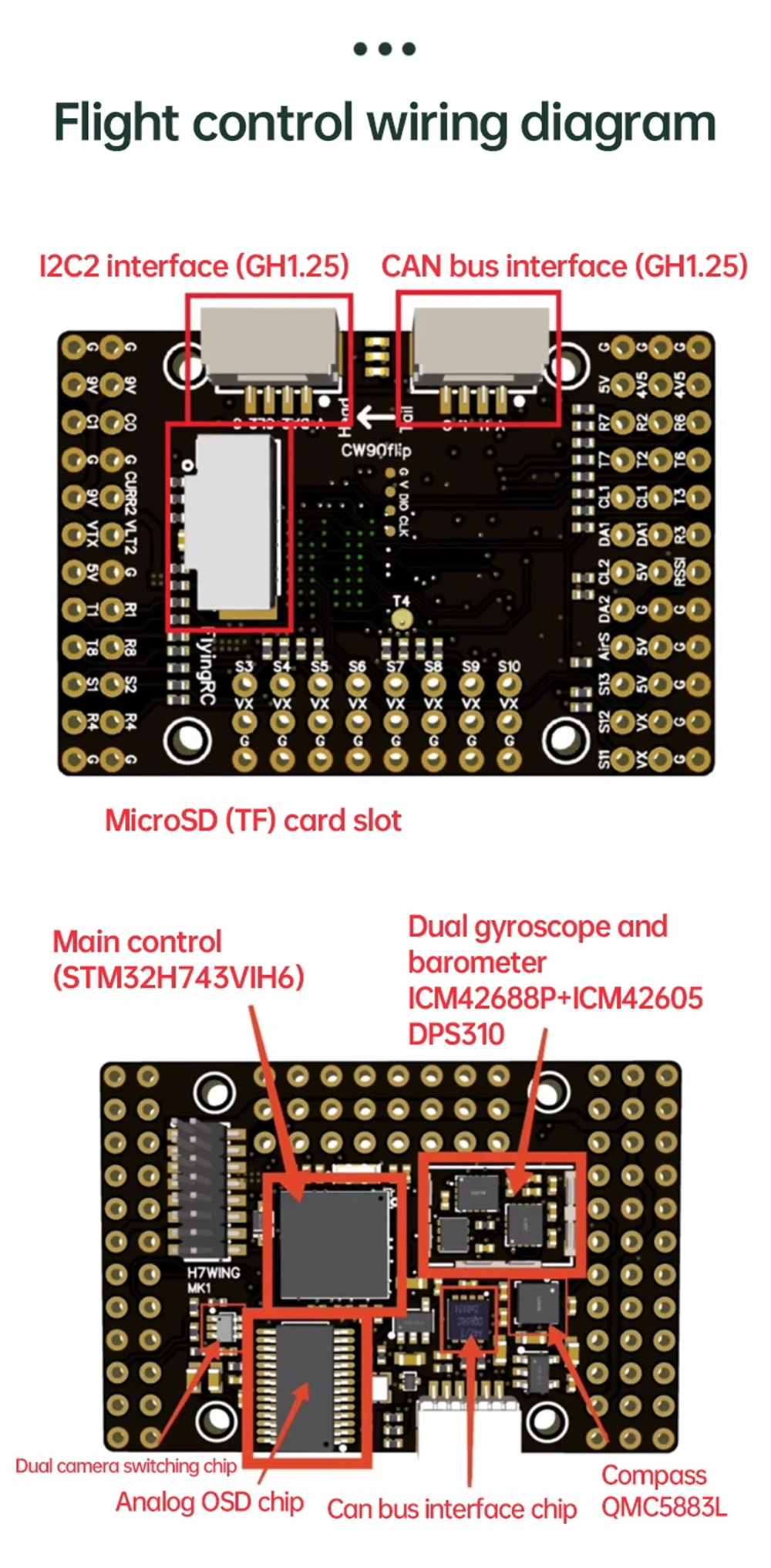

ChipSet:
Main control: STM32H743VIH6 2MB Flash
Gyroscope: ICM-42688-P, ICM-42605
Size: 30.3×44.4×13.6mm
Weight: 18.7g
Black Box: Onboard TF card slot, MAX 32GB
Barometer: DPS368
Onboard compass: QMC5883L
Function: 13 * PWM, 2 * i2C, 7 * UARTs, 1 * CAN
Analog OSD, Digital OSD, 3 * BEC
Ammeter: 100A/220A (Continuous/Burst)
Input Voltage: 7v~26v, 2~6s LiPo

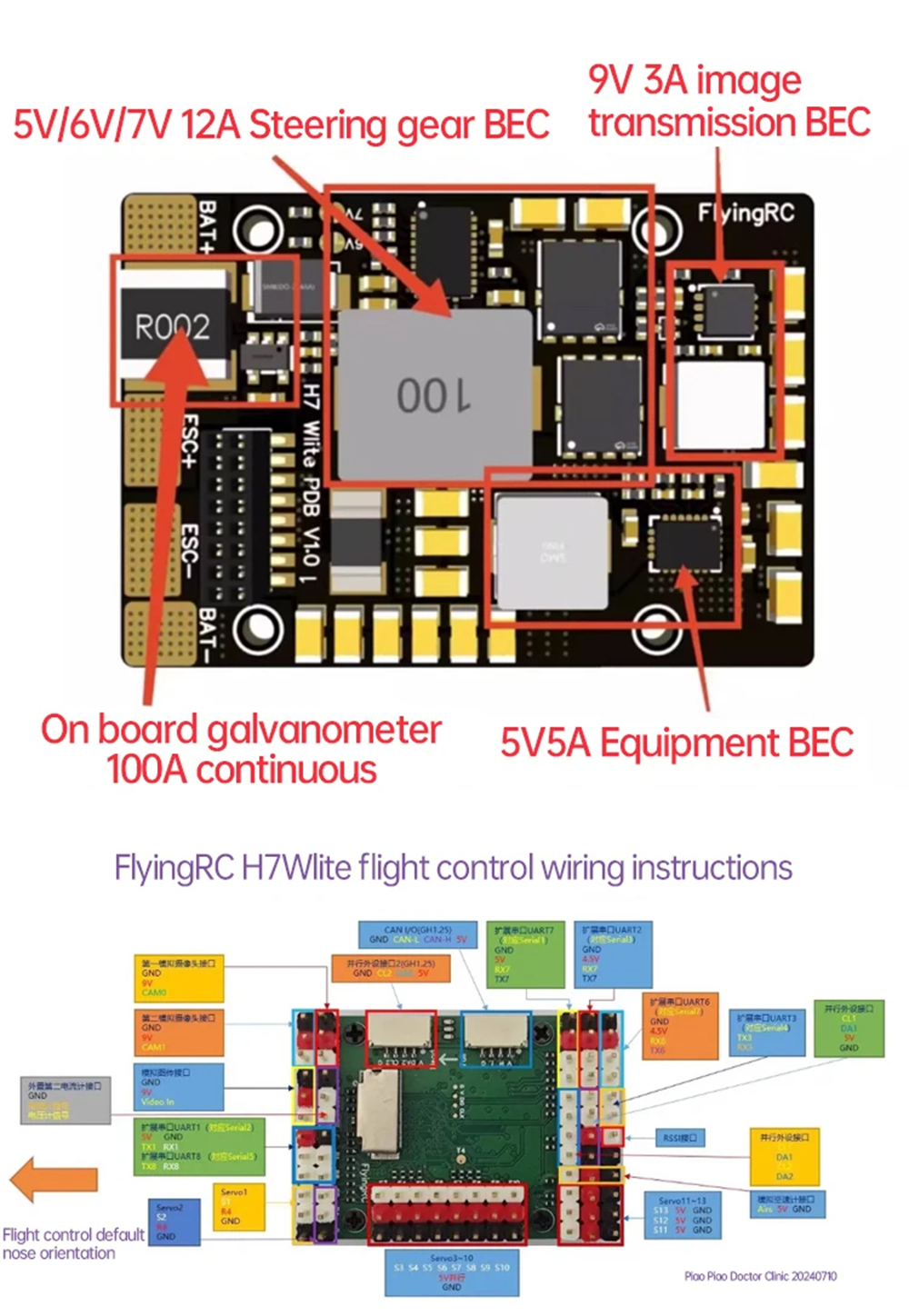

Onboard BEC: 1 * 5V12A, 1 * 5V5A, 1 * 9V3A
Package included:
1 x FlyingRC H7Wlite MK1 Flight Controller
