Flysky FS-TR8B 2.4GHz 8CH AFHDS 3 Micro Receiver PWM/PPM/i.BUS/S.BUS Output Support 2 Newport for FPV RC Drone Airplane Car Boat Robot

Flysky FS-TR8B 2.4GHz 8CH AFHDS 3 Micro Receiver PWM/PPM/i.BUS/S.BUS Output Support 2 Newport for FPV RC Drone Airplane Car Boat Robot

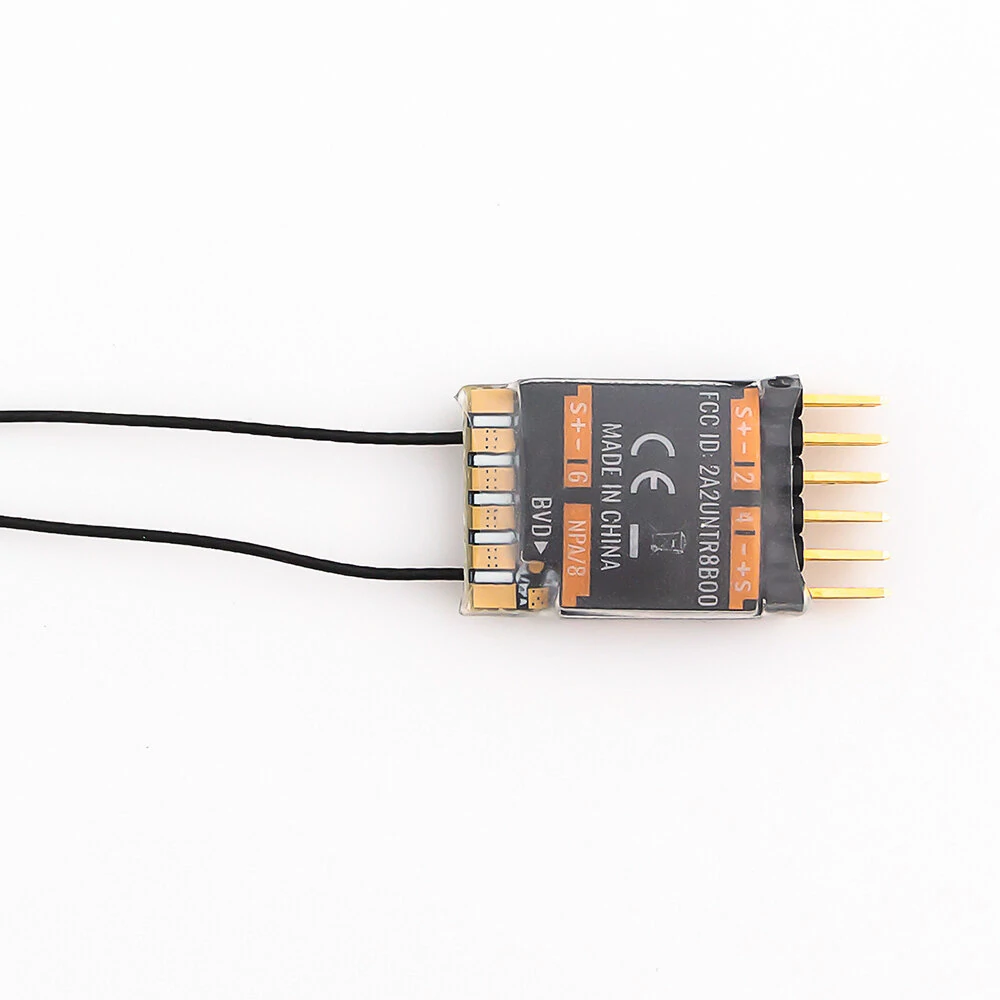

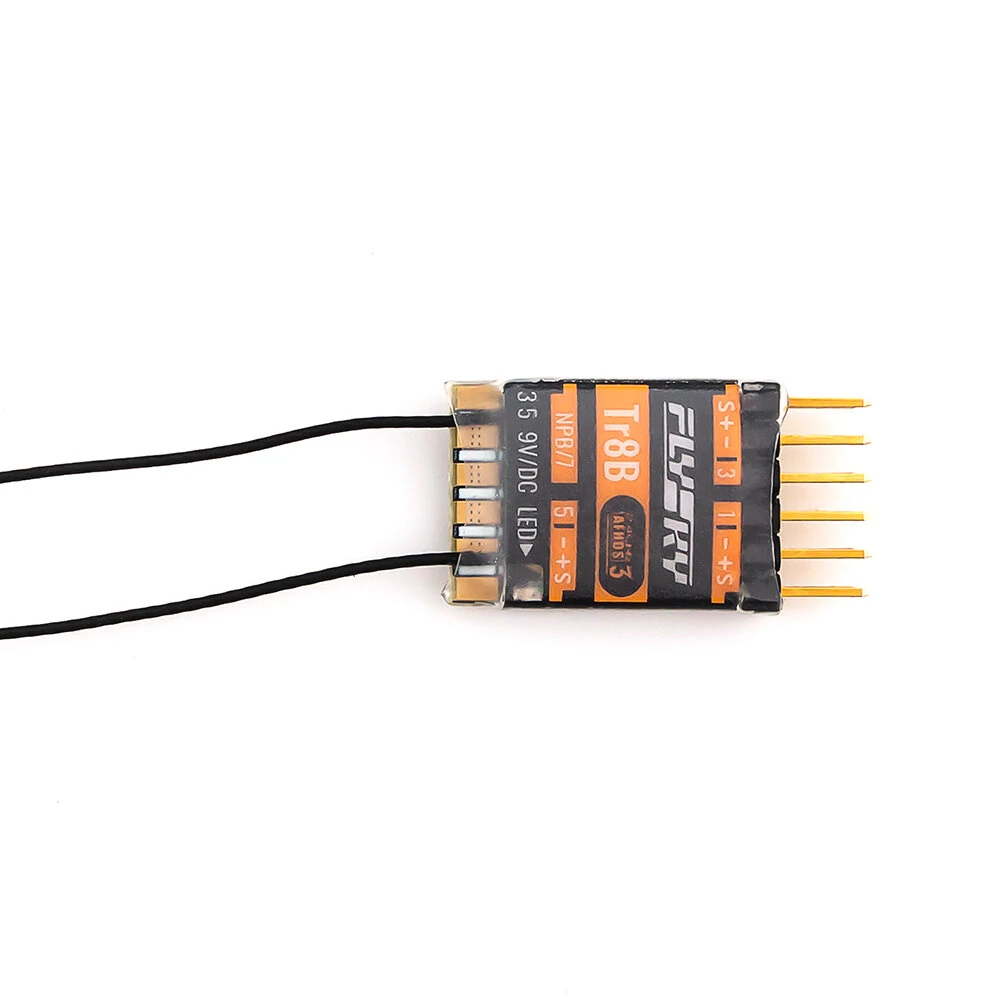

The Tr8B receiver based on AFHDS 3 protocol( third-generation automatic frequency hopping digital system) is micro receiver with 8 PWM channels. It features two button antennas, bidirectional data transmission and data returning. It supports 2 Newport function interfaces( Newport interface can be customized with the input or output signal type: i-BUS2/S.BUS/i-BUS/PPM, etc.). The receiver adapts all transmitters and RF modules with AFHDS 3 protocol. The design is also unique. We provide DIY accessories to meet special demands, in addition to meeting conventional applications.

Description:

Brand: FrSky

Model: Tr8B

Compatible Transmitters: Transmitters with AFHDS 3 protocol, such

as PL18 or NB4 series

Compatible Models : Indoor aircraft, gliders, cars, boats, fixed-wing

aircraft or robots.

PWM Channel: 8

RF: 2.4GHz ISM

2.4G Protocol: AFHDS 3

Antenna: Two antennas (ipex4)

Maximum Power: < 20dBm (e.i.r.p.) （EU）

Input Power: 3.5-9V/DC

Working Current: < 30mA（5V）

Data Output: PWM/PPM/i-BUS2/i-BUS/S.BUS

Temperature Range: -10℃ ~ +85℃

Humidity R ~ 95%

Online Update: Yes

Distance: >1000m (Air distance without interference)

Dimensions: 19.5*14.6*3mm (Excluding pins and antennas)

Weight: 0.9g (Excluding pins and antennas)

2g (Including 4*3 pins and two antennas)

Certifications: CE, FCC ID: 2A2UNTR8B00

Flysky FS-TR8B Receiver Manual, Click here

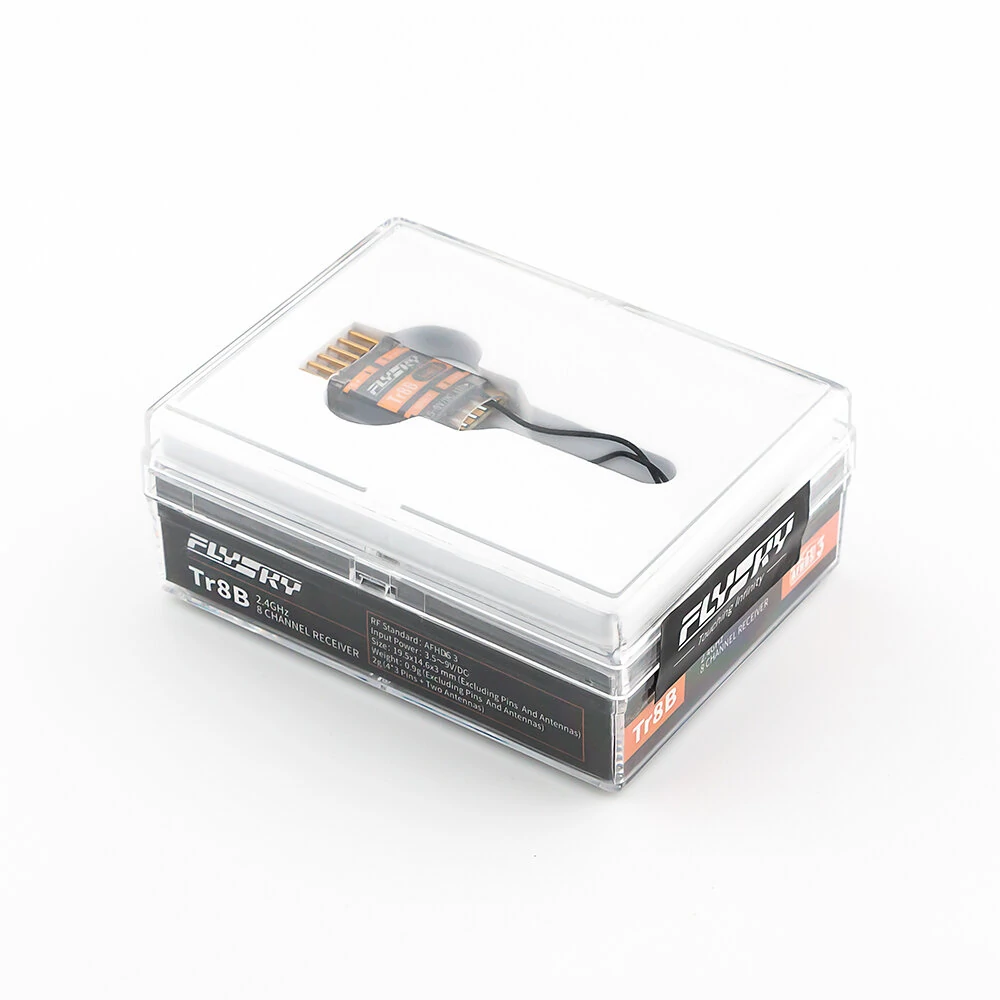

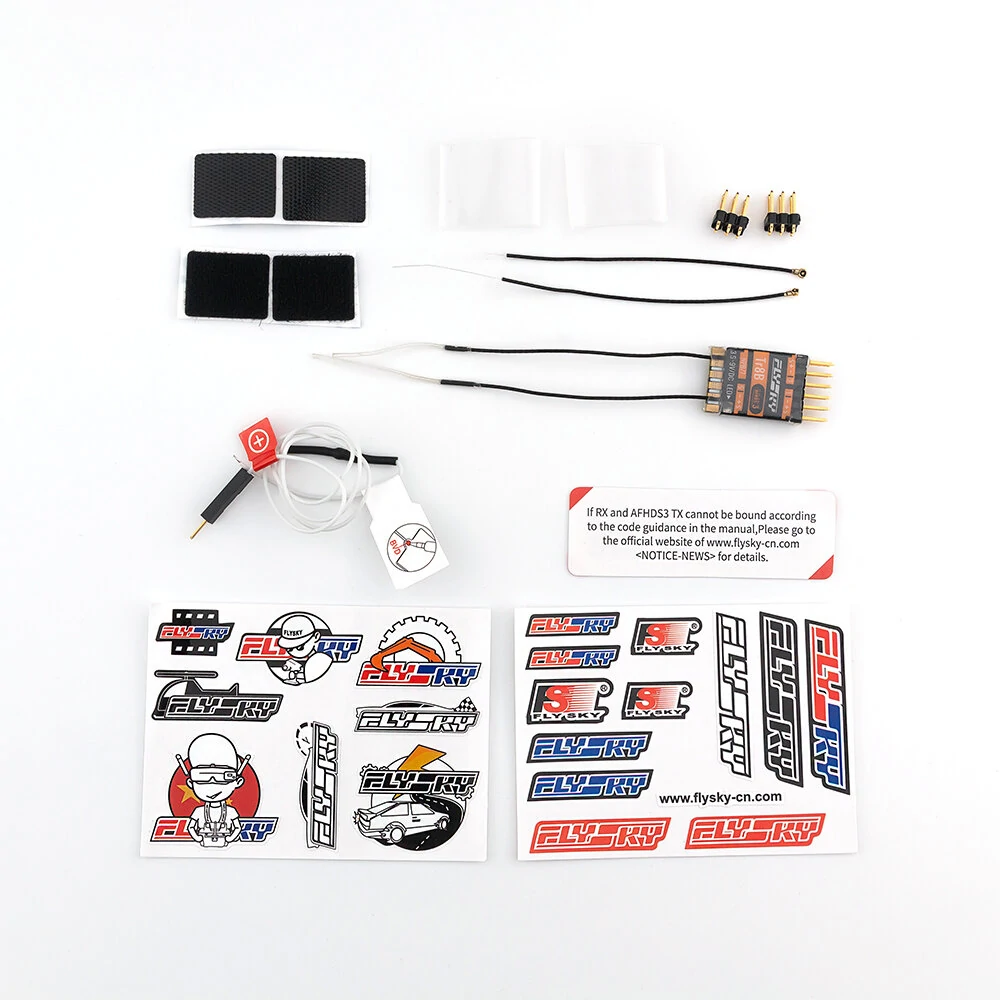

Package Included:

1x Flysky FS-TR8B 2.4GHz 8CH AFHDS 3 Micro Receiver
