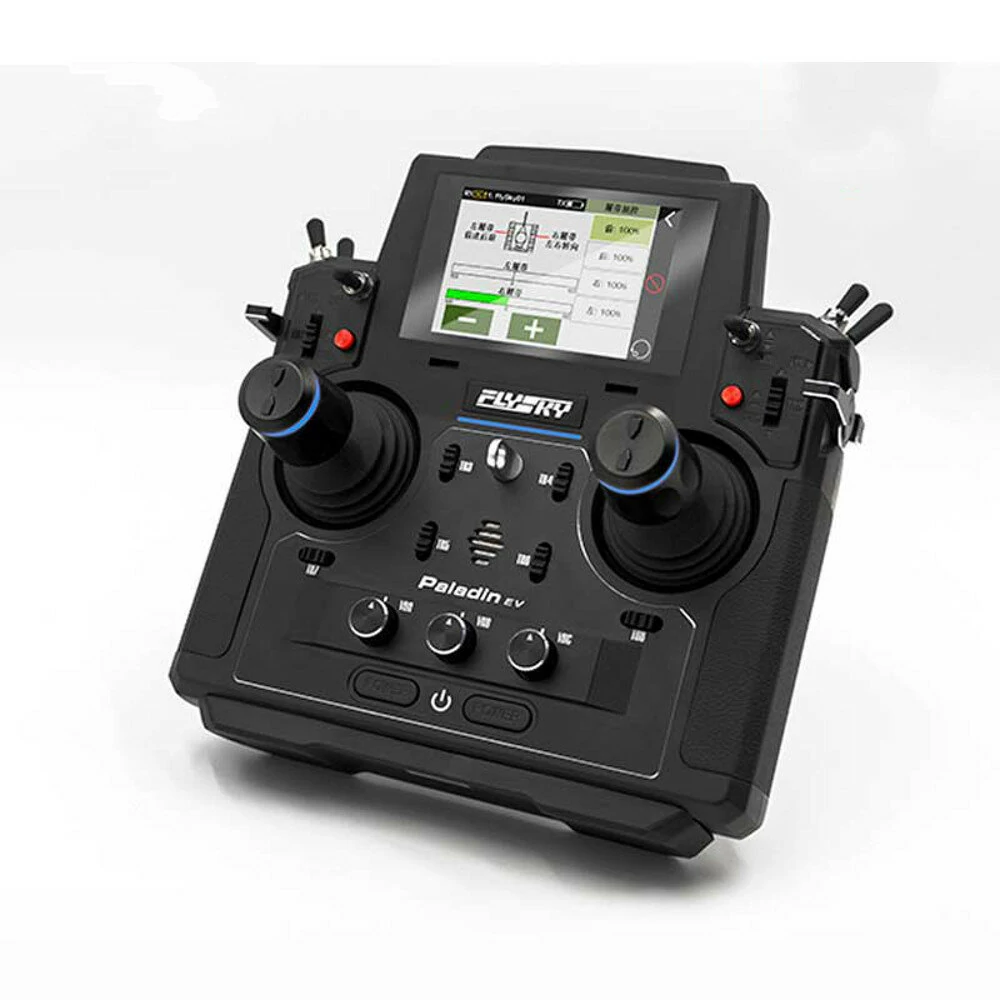

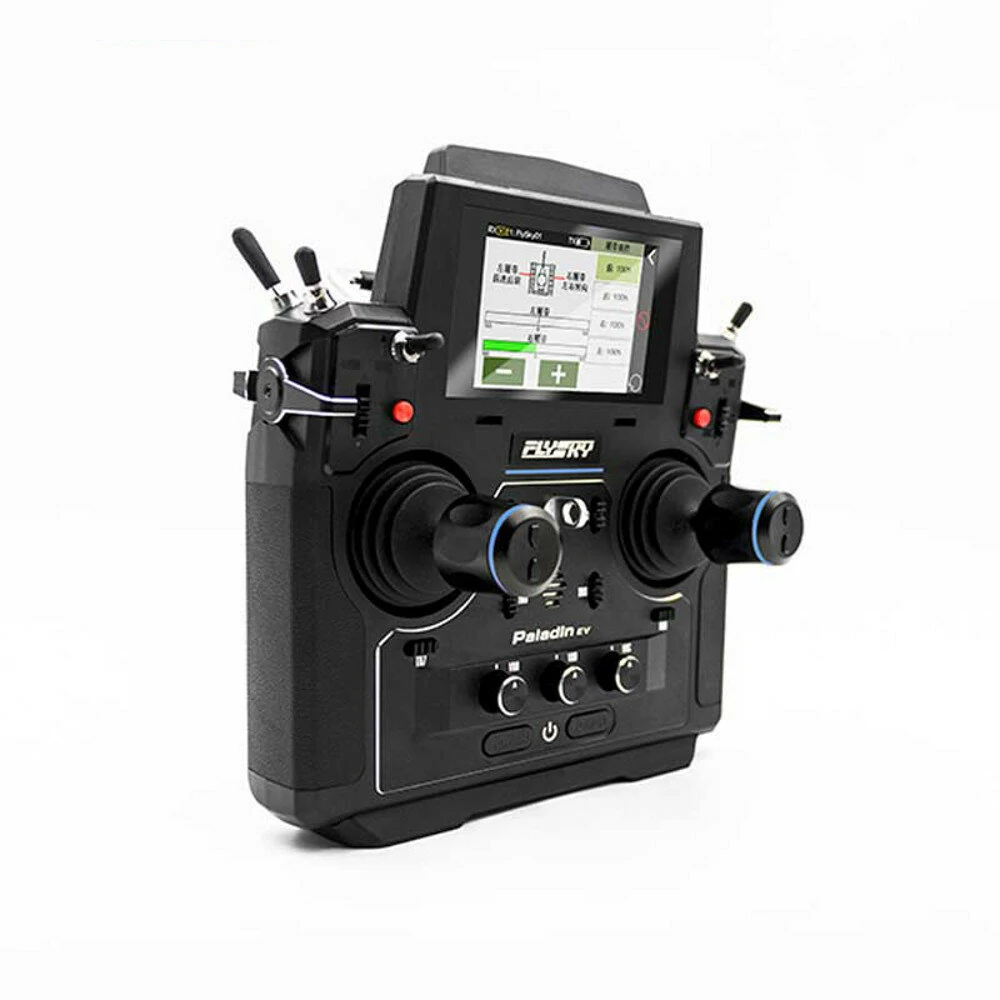

FLYSKY Paladin PL18 EV 2.4G 18CH 5D Hall Sensor Gimbals AFHDS 3 Radio Transmitter 3.5 Inch TFT Touch Screen for RC Engineering Vehicle

FLYSKY Paladin PL18 EV 2.4G 18CH 5D Hall Sensor Gimbals AFHDS 3 Radio Transmitter 3.5 Inch TFT Touch Screen for RC Engineering Vehicle

Overview:

PL18EV is an 18-channel transmitter dedicated to engineering vehicles, equipped with 2.4GHz AFHDS 3 (third-generation automatic frequency hopping digital system). The standard configuration is an FGr12B receiver!

AFHDS3 (third-generation automatic frequency hopping digital system) is a newly developed digital wireless system. It is compatible with single antenna bidirectional real-time data packet transmission and data stream transmission. With the advantages that come with the WS2A wireless system and the new 2.4GHz chip, the system can dynamically set: number of channels, channel resolution, range, anti-interference requirements and latency to meet the needs of different users.

Features:

– Metal Hall multi-dimensional joystick.
– Double metal toggles with self-return.
– Dual 18CH dual-models remote control mode.
– Mechanical model exclusive structure.
– Track mixed control function.
– Full-colour touch screen in English and Chinese.

Hardware highlights:

Rocker type: 5D Hall waterproof rocker + 2 levers

The third rocker: one on the left and one longitudinal centering lever

Other controls: 6 gear switches (the length of the gear is not the same as the reset, accessories can be modified) + 3 knob keys + 2 self-locking buttons + 8 fine-tuning buttons (two-way buttons)

Display screen: 3.5-inch TFT color screen, 320*480 dot matrix, LCD white backlight, capacitive touch screen

Vibration/sound alarm: adjustable vibration intensity + different alarm sounds and real voice ic alarm and prompt sound

Other accessories: The flagship version comes standard with a bracket with hand rest + shoulder strap

Charging: Support Mirco USB and Q1 wireless charging

Battery: Built-in 4300mAh high-capacity lithium battery

Software highlights:

Number of channels: 18 ratio channels

Dual model control: support

Data backup and setting sharing and storage capacity: Fusi remote control butler realizes model data backup and sharing. The remote control can store 20 sets of models

Upgrade: USB connected to the computer through the Fusi remote control butler, software network upgrade

Additional functions: timer, logic switch, simulator

Custom function + control All channels can be customized function + custom allocation control and fine-tuning

Unique model function: double ratio curve + delay function + 20 groups of customizable mixing control + track mixing control function

Paladin PL18 EV Transmitter Specification:

Brand: FlySky

Product Model: Paladin PL18 EV

Channels: 18

Adaptable receivers: all AFHDS 3 receivers

Model Type: engineering vehicles, simulation ship etc.

RF: 2.4GHz

RF Power: < 20 dBm

2.4GHz Protocol: AFHDS 3

Distance: >300m (open without interference ground)

Channel Resolution: 4096

Battery: 1S (3.7V) * 4300mAh (built-in)

Charging Interface:Micro USB/wireless charging

Charging Time: 4h@5V*2A/7h@5V*2A (wireless charging)

Life time: >5.5h (standard accessories)

Low Voltage Warning:< 3.65V

Antenna Type: Dual antenna

Display:HVGA 3.5 TFT，320*480

Language: Chinese and English

Simulator: USB Simulator

Data Interface: USB、Non-standard interface（USART）、PHJACK（PPM）

Temperature Range: -10℃—+60℃

Humidity R-95%

Online Update: Yes

Color: black

Standard version size: 290*260*165MM

Standard version weight: 2.5KG

Certification:CE，FCC ID：N4ZFT1800

FGr12B Receiver Specification:

Model Type: FGr12B

PWM Channels: 12

RF: 2.4GHz ISM

2.4GHz Protocol: AFHDS 3

Distance: >500m（open without interference ground）

Antenna Type: Single antenna

Power: 3.5v-9V

RSSI: Yes

Data Interface: i-BUS/S.BUS/PPM/PWM

Temperature Range: -10℃—+60℃

Humidity R-95%

Online Update: Yes

S*25mm*17.5mm

Weight: 11.2g

Certification: CE，FCC ID:N4ZFGR12B

Paladin PL18 EV Manual and Upgrade, click here

Note:
1. Please understand the product might have some colour difference due to different monitors and scenes.
2. Please allow slight deviation for the measurement data.
Package Included:

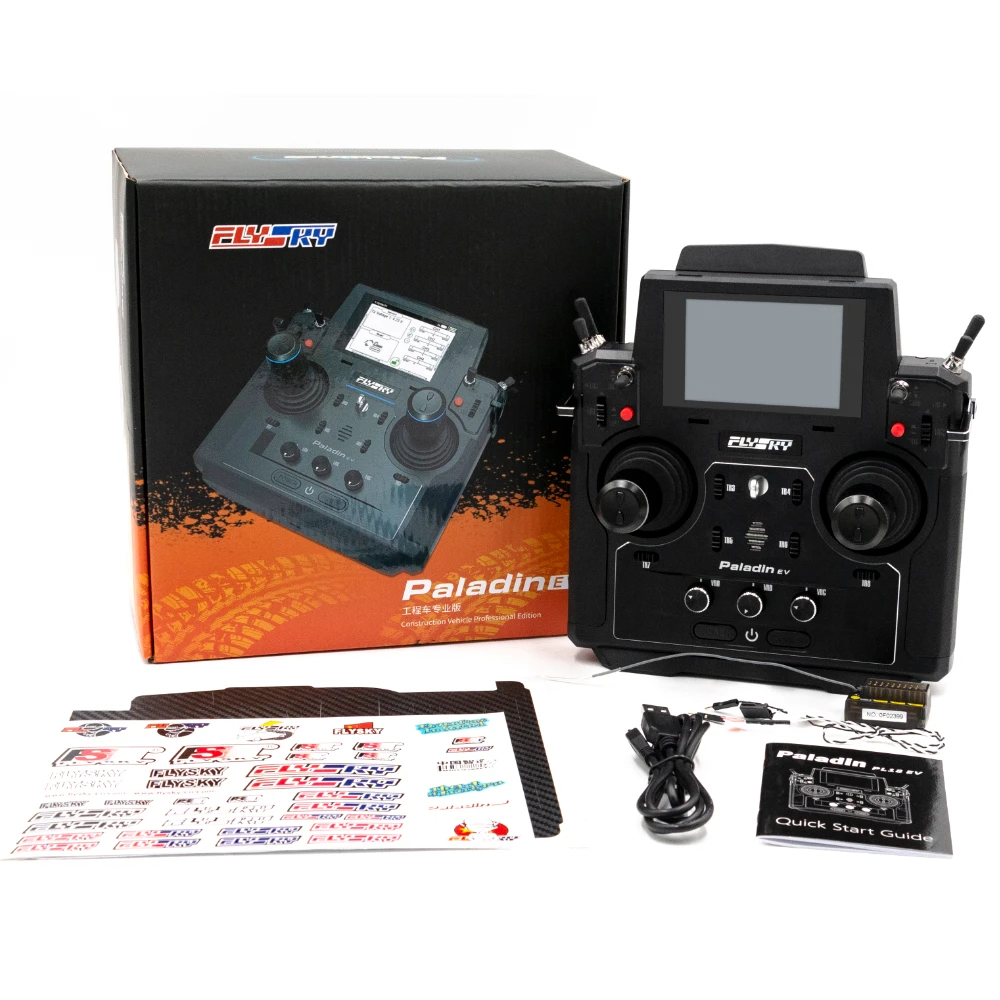

Standard Version:

1x PL18 EV transmitter with 301 high frequency + high frequency fixing plate + thin hand glue

1x FGR12B receiver

1x Quick Operation Guide

1x Micro USB cable

1x LOGO sticker 1 (pure logo)

1x LOGO sticker 2 (with other designs)

1x PL18 body sticker

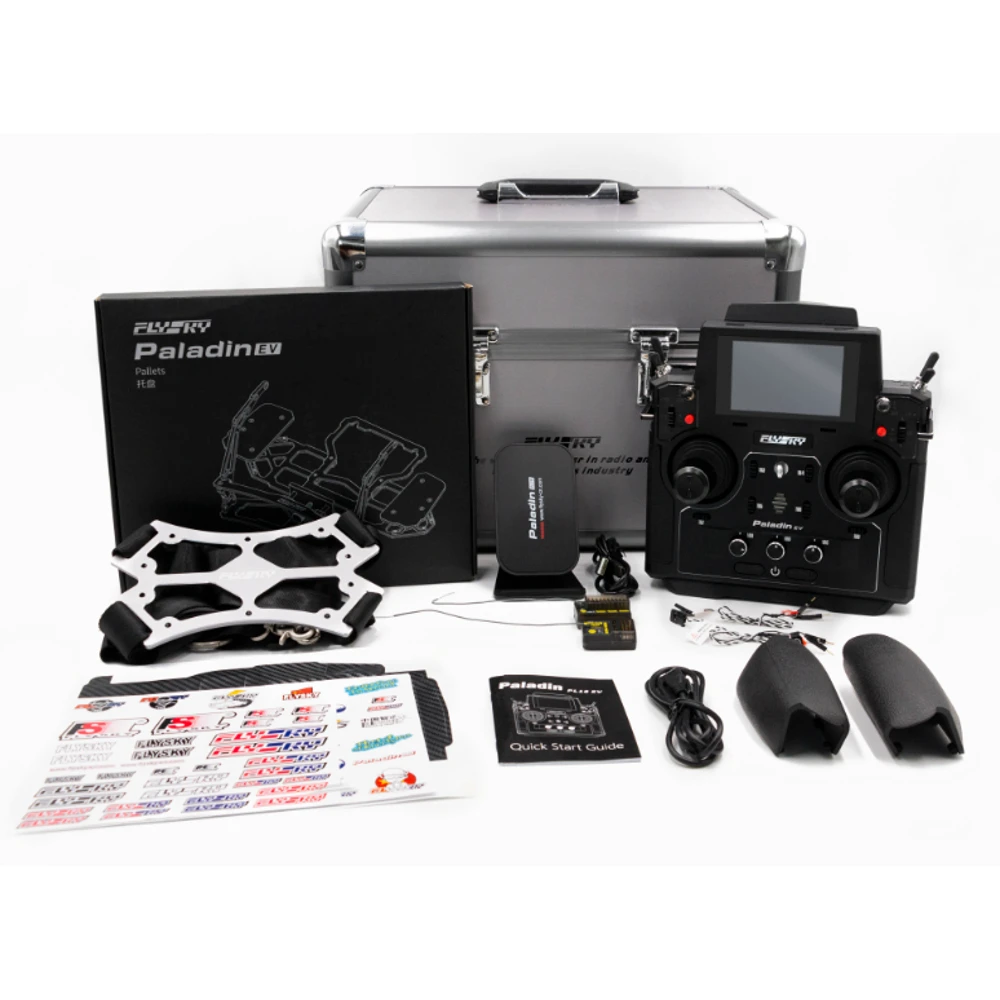

Flagship Edition:

1x PL18 EV transmitter with 301 high frequency + high frequency fixing plate + thin hand glue + large hand glue

1x FGR12B+FGr8B receiver + cable

1x wireless charging dock

1x Quick Operation Guide

1x Micro USB cable

3x Toggle switch rubber cover

1x tray (with hand rest)

1x Tray strap

1x LOGO sticker 1 (pure logo)

1x LOGO sticker 2 (with other designs)

1x PL18 body sticker

1x Aluminum box
