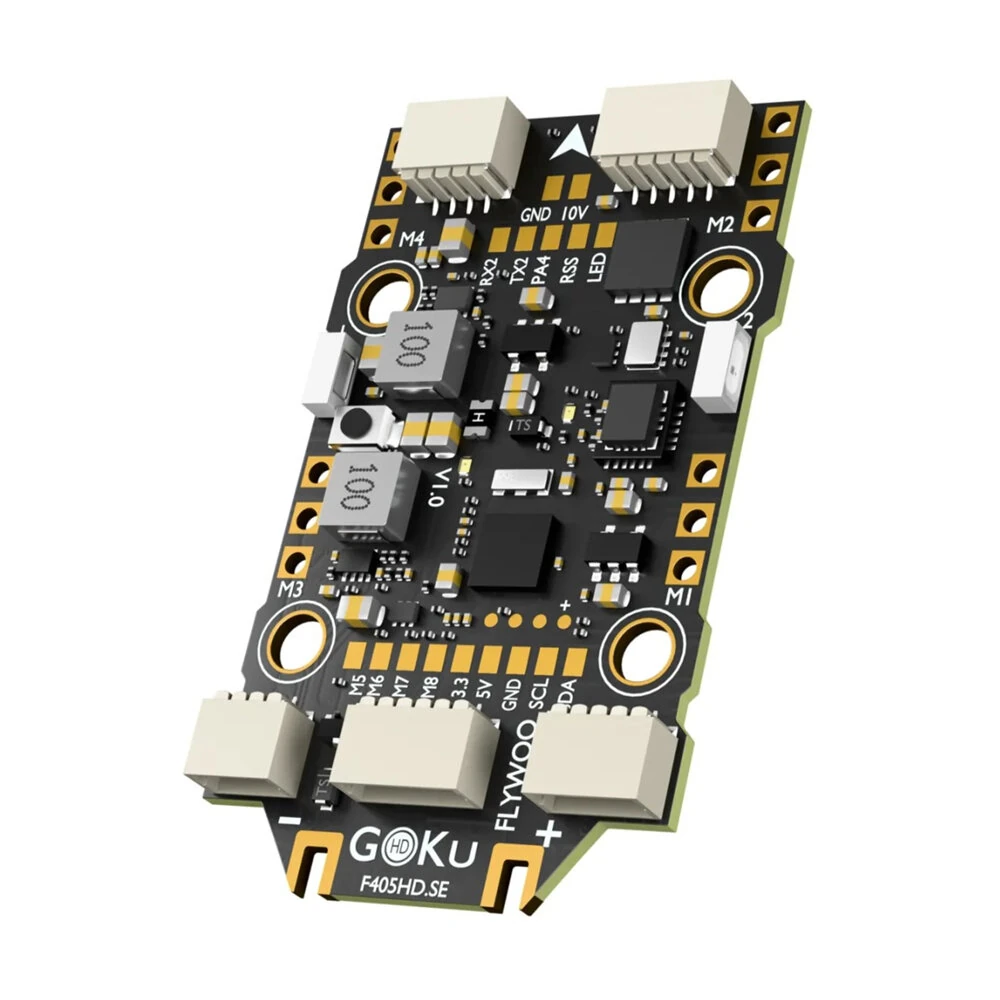

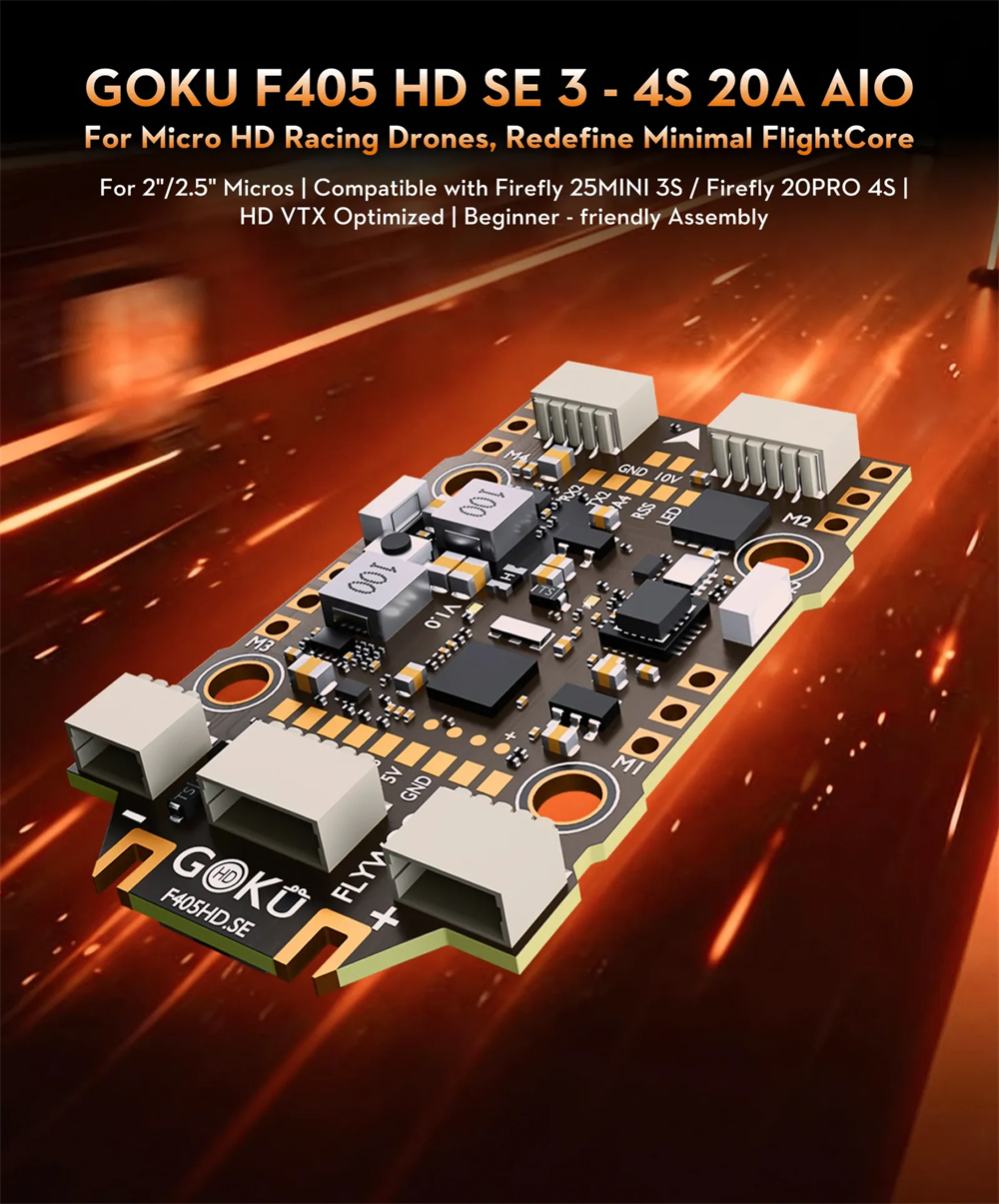

Flywoo GOKU F405 SE HD 3-4S 20A AIO Plug and Play Compatible with O4 / O4 Pro for Firefly 25mini 3S / Firefly 20pro 4S Micro FPV Racing Drones
1 in stock
- SKU : 2051161
- Condition : New
- Brand : Flywoo
- Processing Time : Ships Within 24-48 Hours
- Return Policy : 30-day refund or replacement
$130.99 $163.99
Description:
Micro FPV enthusiasts have long struggled with tedious assembly, messy wiring, excessive soldering, and the trade-off between flight controller performance and weight.
Our GOKU F405 SE 3-4S 20A AIO solves all these. Designed specifically for 2-inch and 2.5-inch drones with deep compatibility for Firefly 25mini 3S and Firefly 20pro 4S, it reimagines HD FPV building and flying.
Powered by STM32F405 and ICM42688-P/ MPU6000 gyro for responsive, butter-smooth control. Features dedicated dual BEC for direct DJI O4 Air Unit connection on 3-4S (no extra BEC needed). Full plug-and-play ports mean only motor wires require soldering – easy even for beginners. At just 6.5g with standard 20×20mm mounting, it delivers the perfect balance of functionality and lightness.
Highlights:

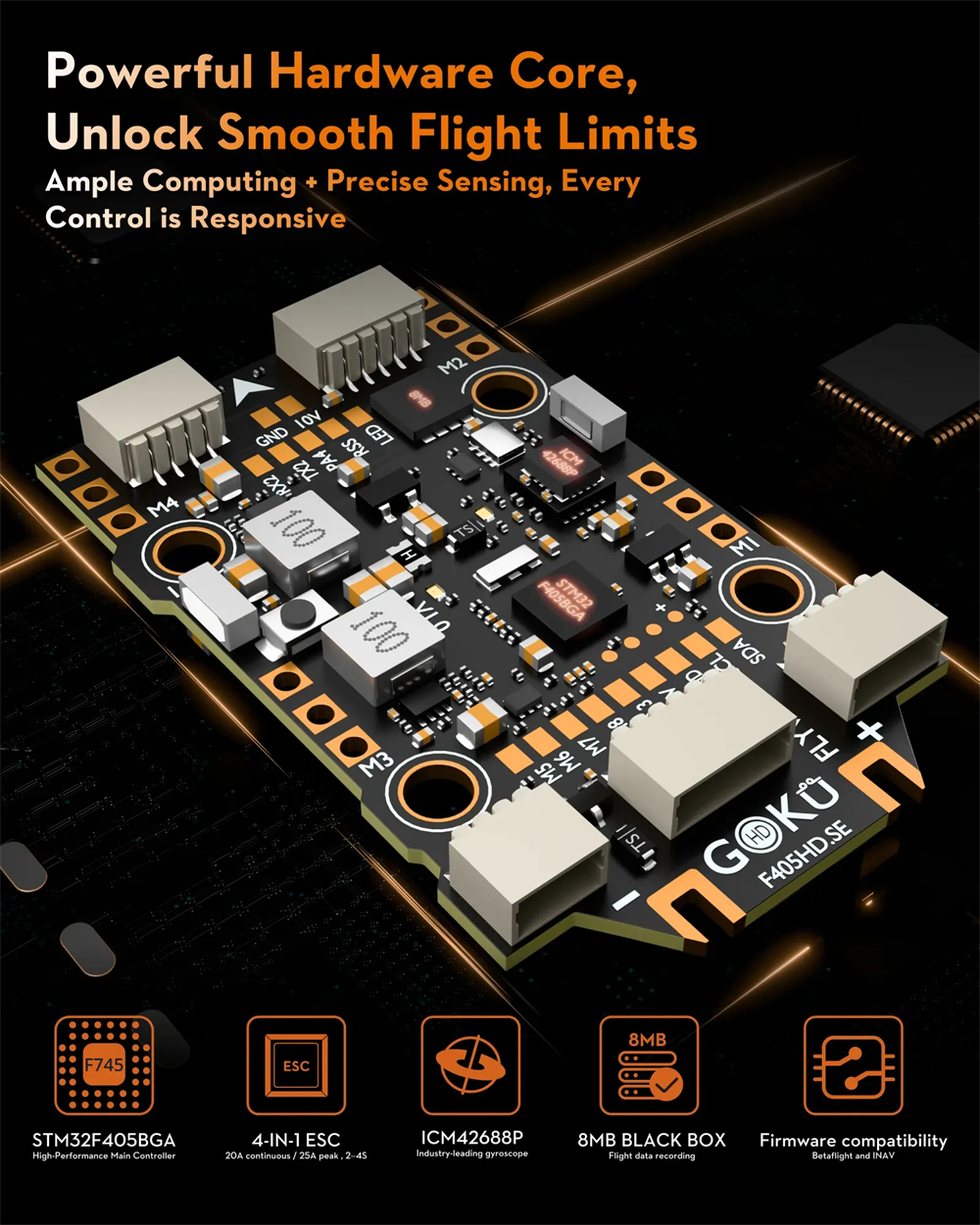

* Butter-Smooth Flight: STM32F405 MCU + ICM42688-P (MPU6000) gyro for ultra-responsive, jitter-free control.
* Powerful & Efficient: 20A continuous / 25A peak current, supports 3-4S LiPo batteries.

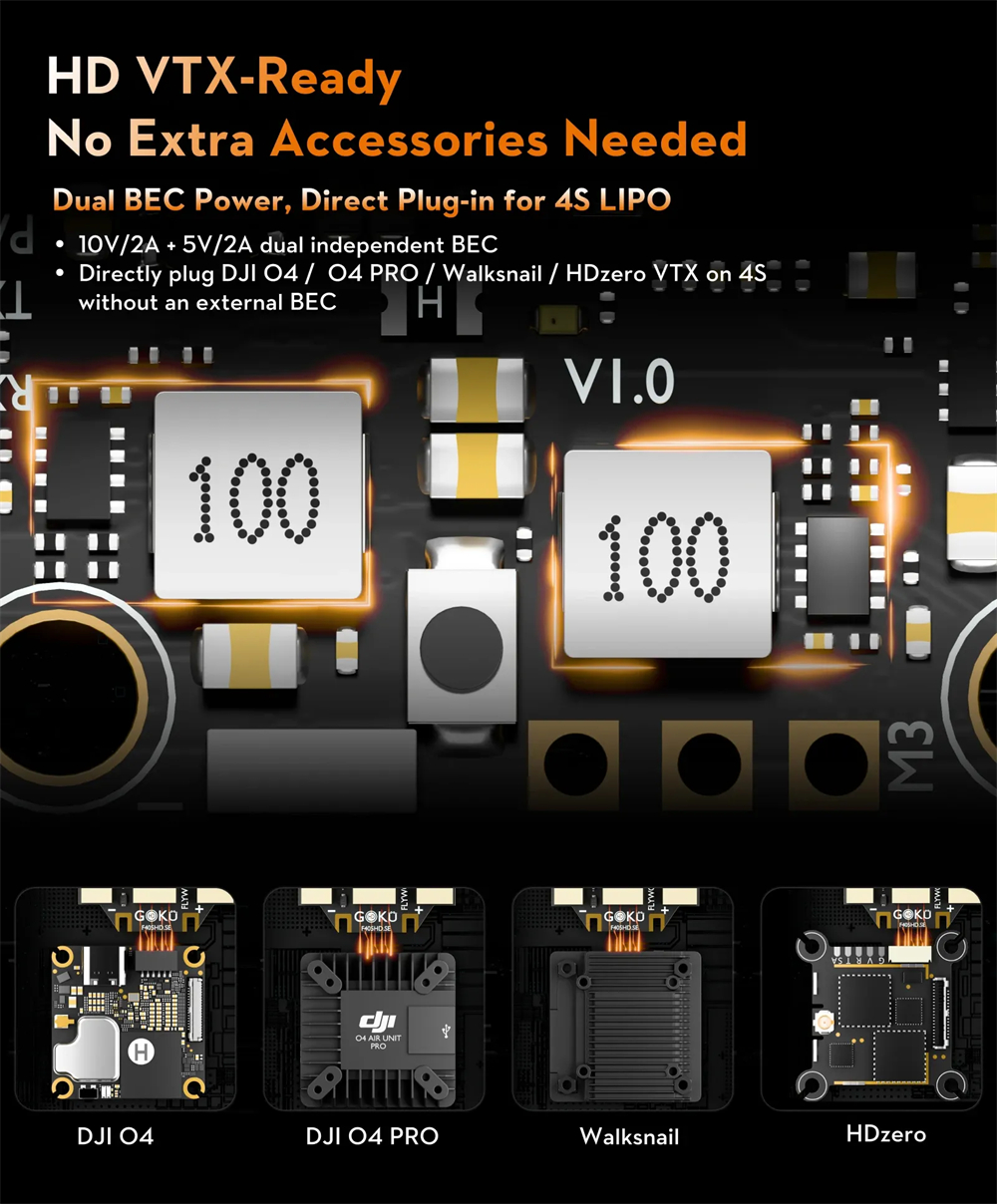

* Plug-and-Play HD FPV: Dual BEC (10V/2A + 5V/2A) for direct DJI O4/Air Unit connection, no extra regulators needed.

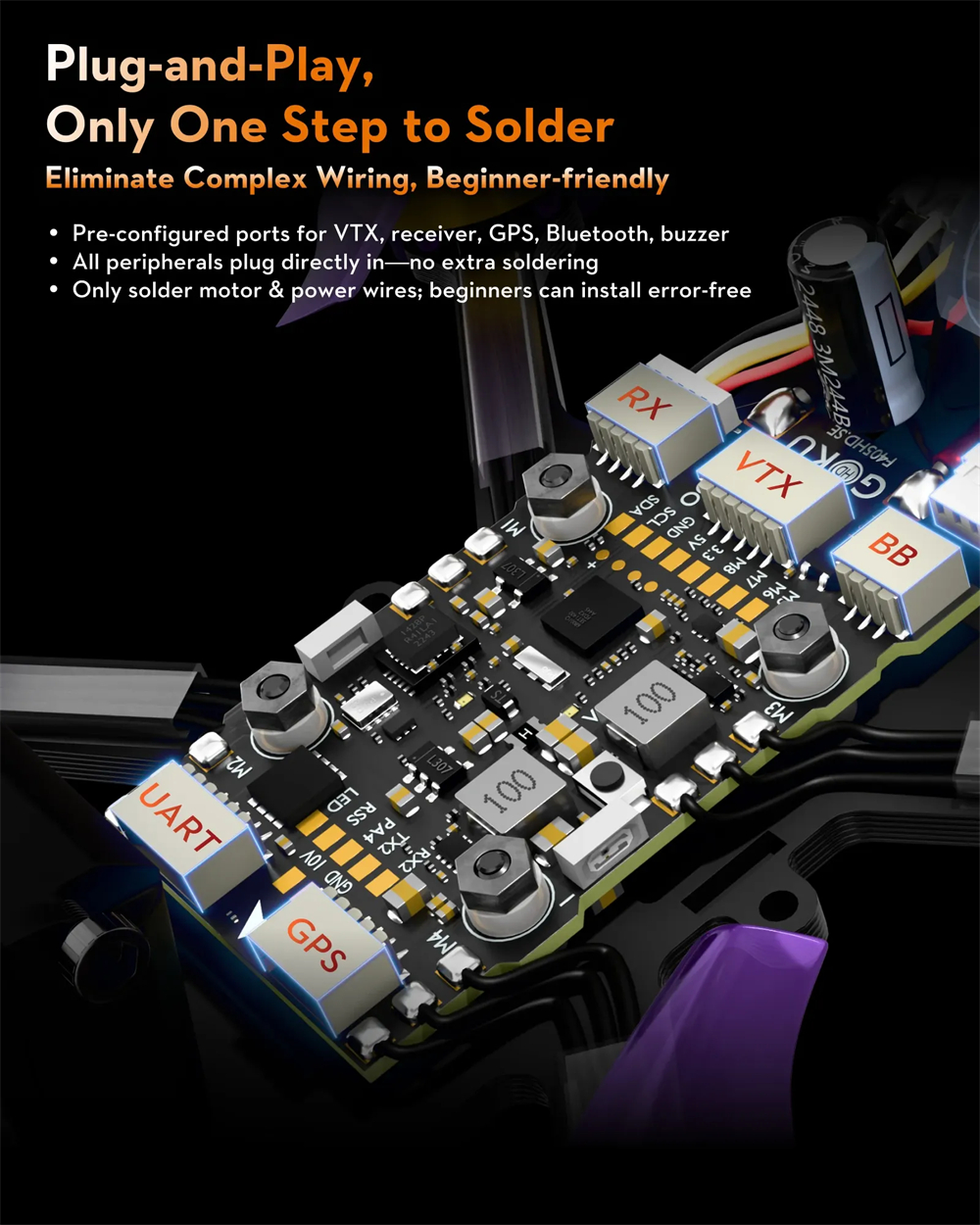

* Beginner-Friendly Build: Full plug-and-play ports, only motor wires require soldering.
* Ultra-Light & Compact: 20x20mm standard footprint, only 6.5g, deeply optimized for Firefly 25mini 3S & 20pro 4S.
* Unlimited Flight Modes: Onboard 8MB black box, supports Betaflight/INAV dual firmware.
* Hassle-Free Tuning: Bottom-mounted vertical Type-C port, no disassembly needed for firmware flashing.

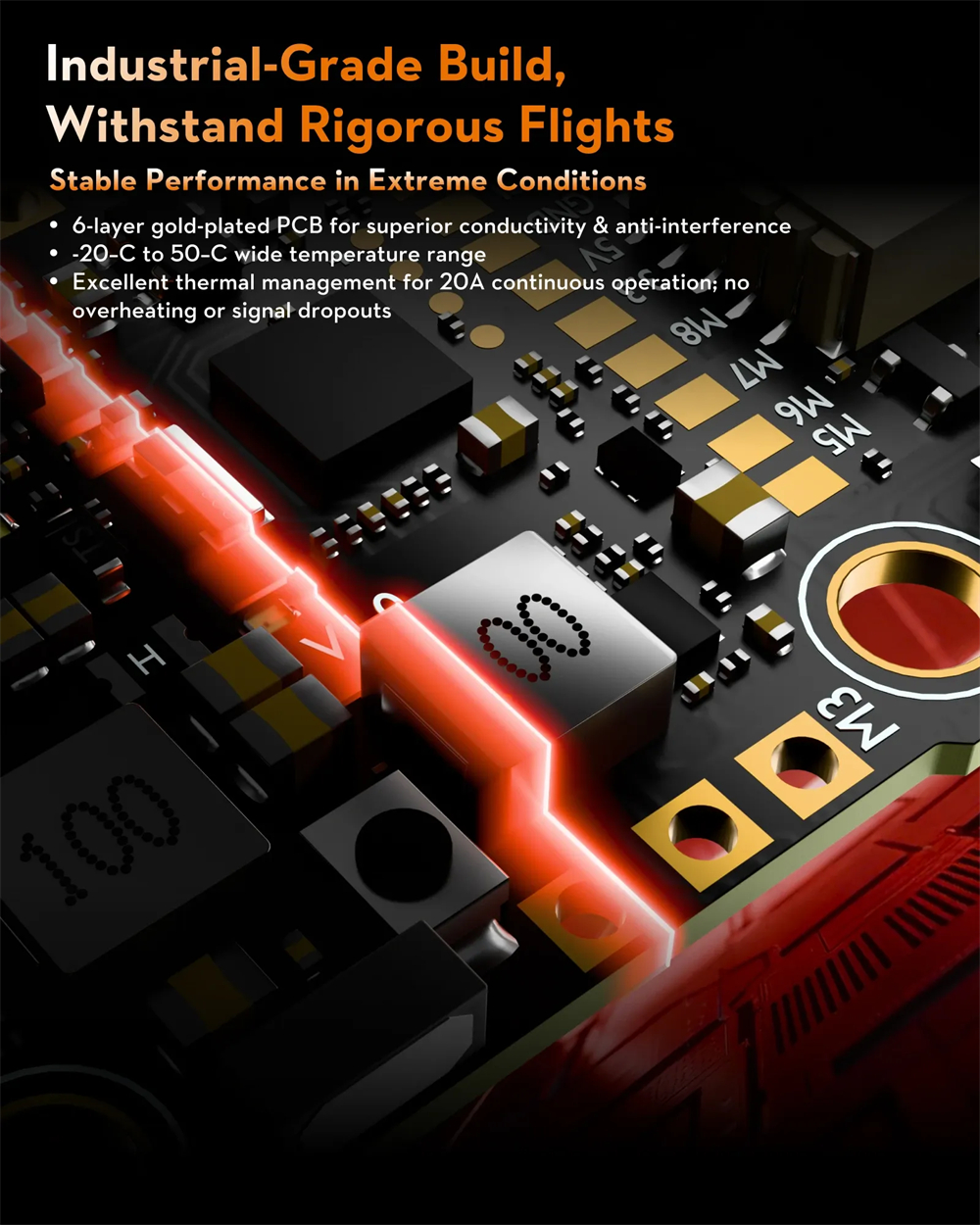

* Built to Last: 6-layer gold-plated PCB, stable operation from -20°C to 50°C.
Specification:
Brand: Flywoo
Model: GOKU
| Product Model | GOKU F405 SE 3-4S 20A AIO |
| MCU | STM32F405BGA |
| Gyro | ICM42688P |
| ESC | 4-in-1, 20A continuous / 25A peak per channel |
| Input Voltage | 3–4S LiPo |
| BEC Output | 10V/2A + 5V/2A dual independent |

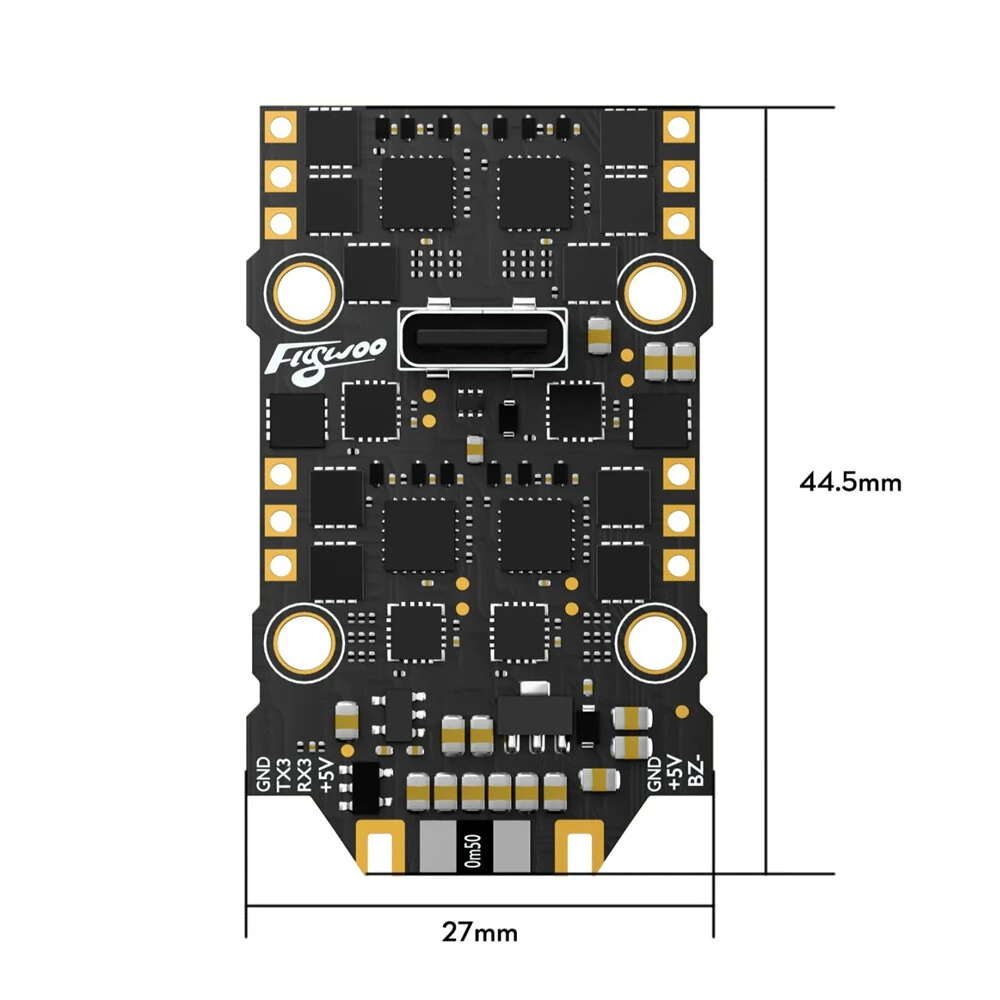

| Mounting Holes | 20×20mm standard |

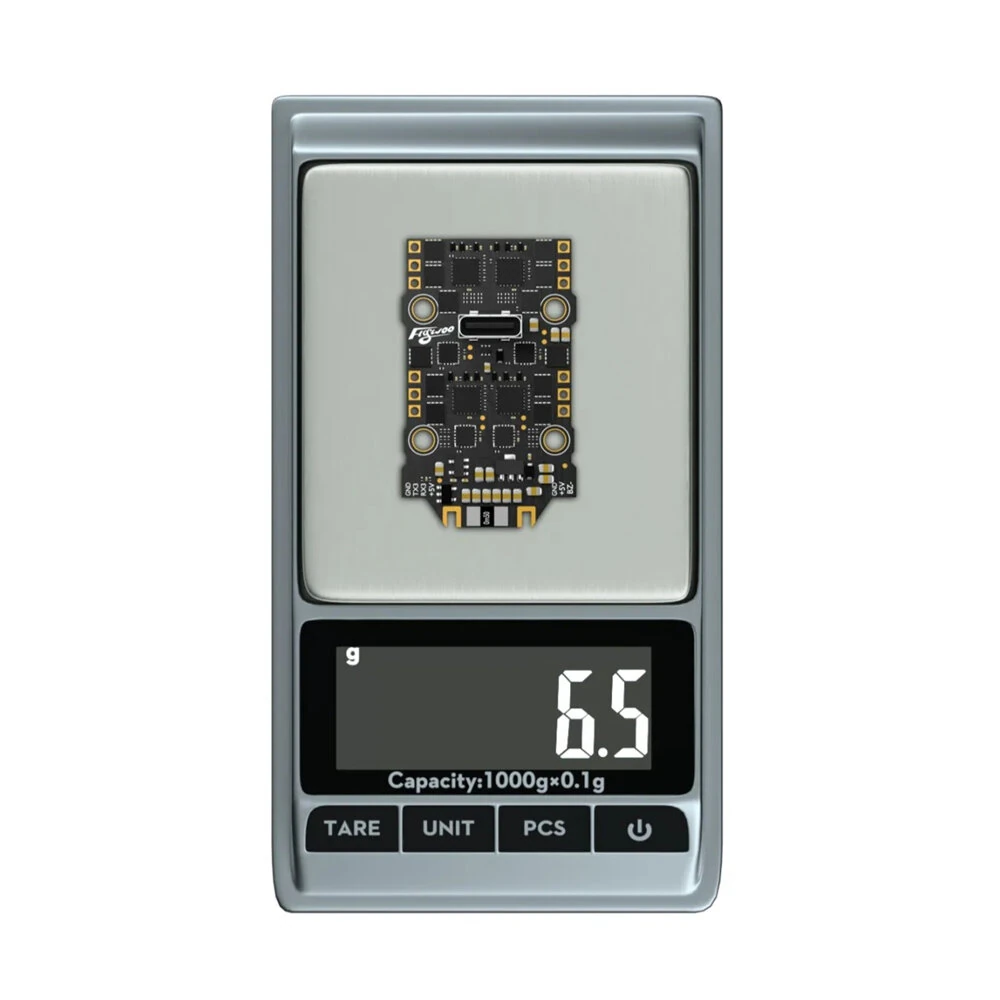

| Net Weight | 6.5g |
| On-Board Storage | 8MB flight black box |
| Interfaces | HD VTX, receiver, GPS, Bluetooth, buzzer ports; bottom Type-C |
| FC Firmware |
BetaFlight Firmware: FLYWOOF405S_AIO INAV Firmware: FLYWOOF405HD |
| Compatible Drones | Firefly 25mini 3S, Firefly 20pro 4S, 2 Inch / 2.5 Inch micro FPV drones |
| ESC Firmware | G_H_30_48KHz_Bluejay |
Package Included:
1 x GOKU F405 SE 3-4S 20A AIO
5 x M2X10 cup head screws
5 x M2 nylon nuts
5 x M2*6.6 shock-absorbing balls
1 x 220U 25V capacitor
1 x XT30 Male 18WG power cord
1 x Buzzer Connection Cable
1 x GPS Connection Cable
1 x O4O4 PRO Connection Cable
1 x Receiver Connection Cable
