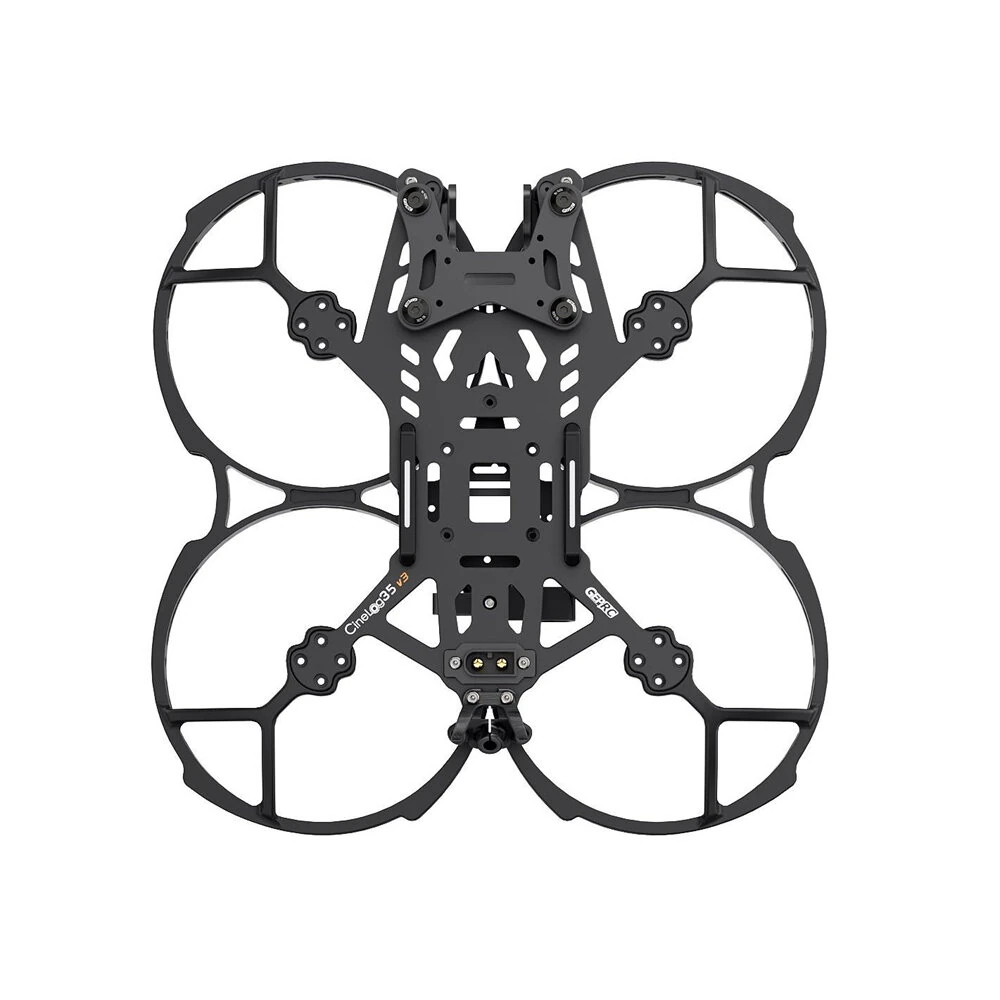

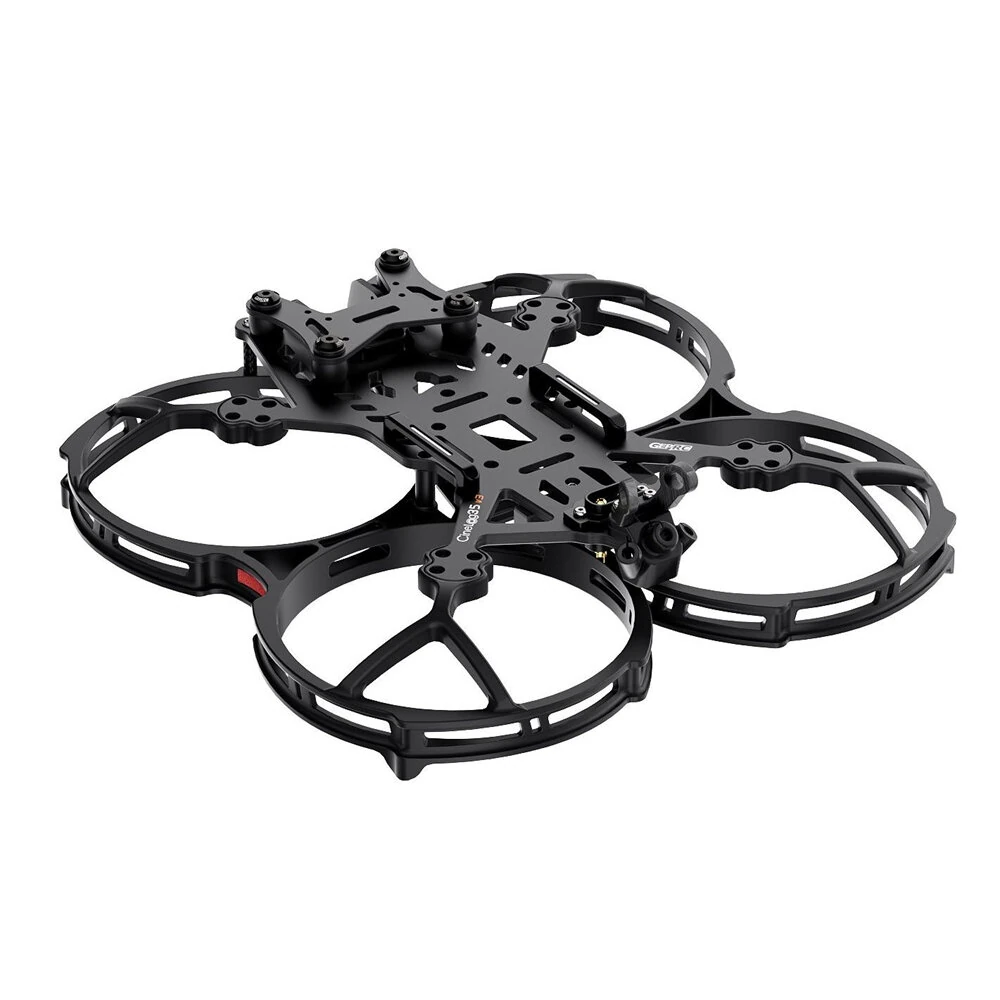

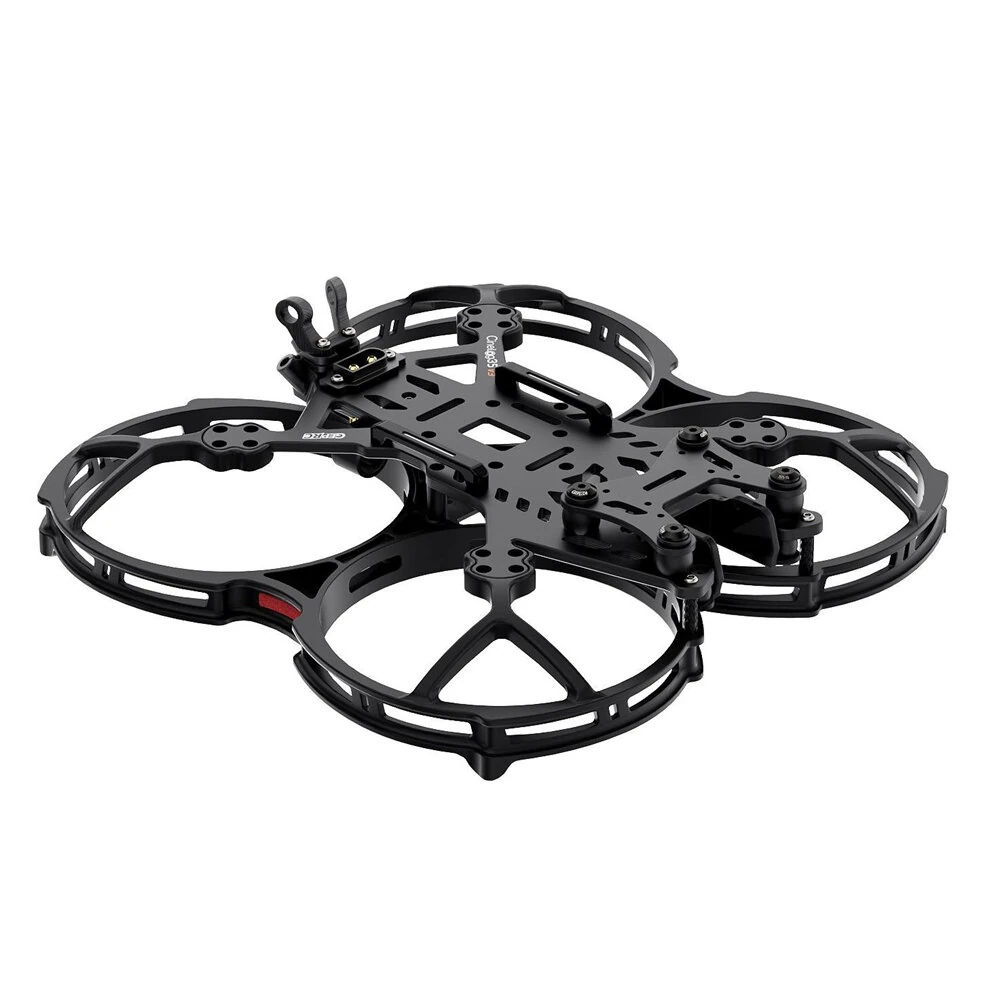

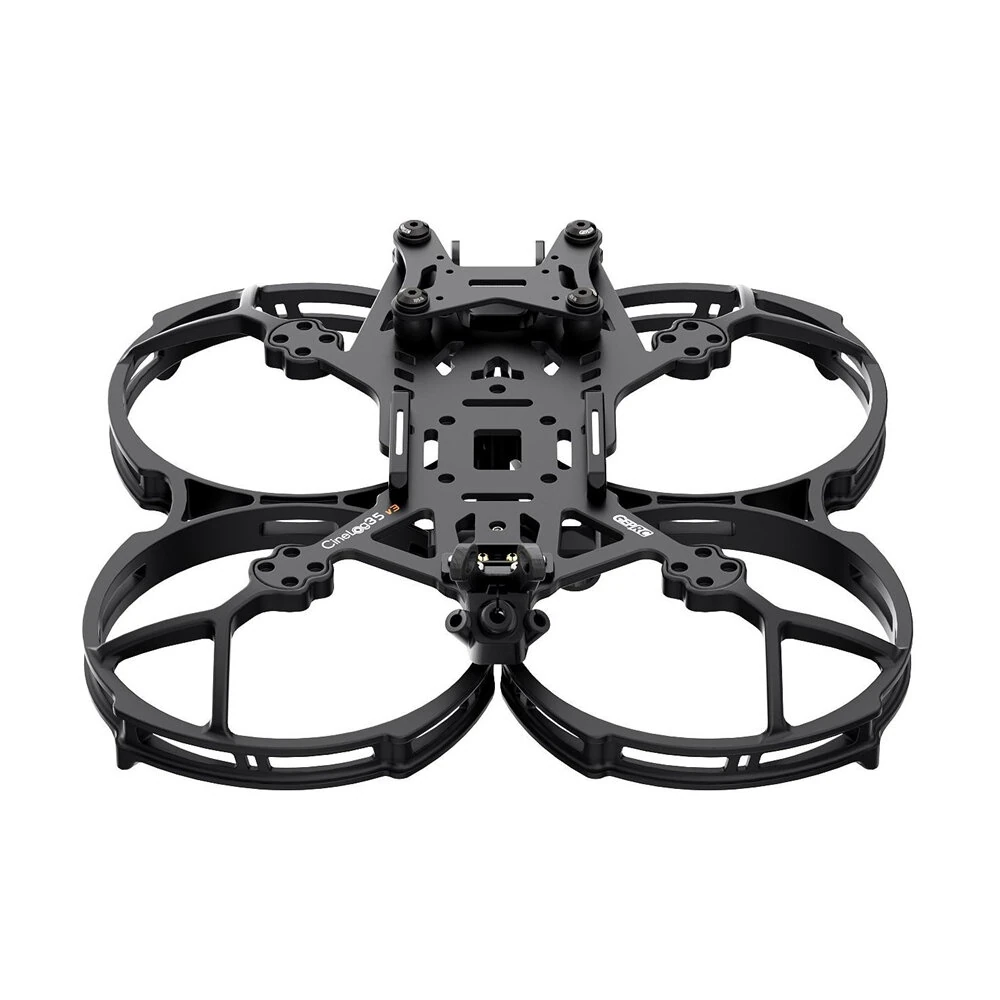

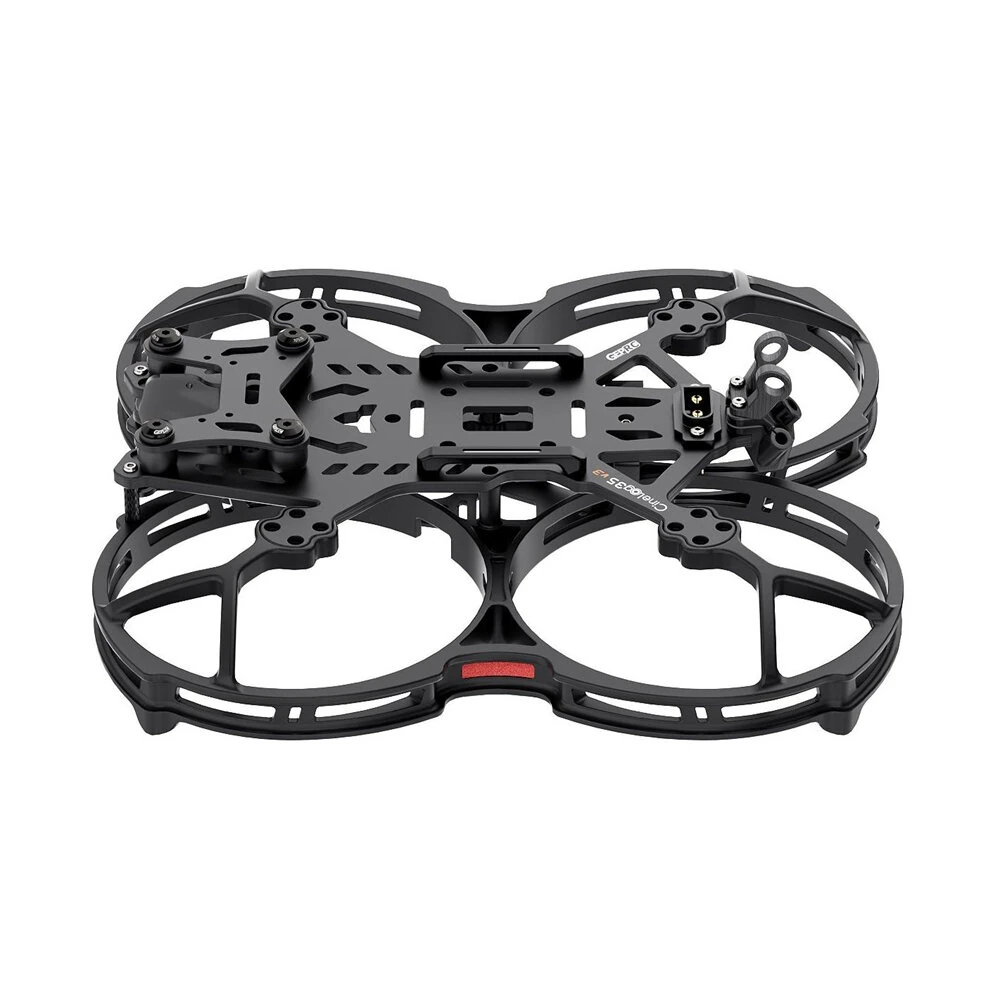

GEPRC CineLog35 V3 142mm 3.5 Inch 6S Frame Kit Compatible with DJI O4 Air Unit Pro for RC FPV Racing Drone

Description:
The Cinelog35 Series has been upgraded with the V3 frame kit to fully support the O4 Air Unit Pro HD digital transmission system.
The GEP-CL35 V3 frame has been specifically re-molded to fit the O4 Pro module, allowing users to easily access the Type-C port for data transfer and conveniently insert or remove the memory card.
With newly tuned damping balls, featuring improved damping ratios, the camera’s jello effect is effectively minimized for clearer and more stable footage.
Feature:
– Compatible with the O4 Air Unit Pro HD digital transmission system.
– Bottom-mounted camera design connected via tuned damping balls for effective vibration isolation.
– Updated molds for the O4 Air Unit Pro module, allowing easy Type-C access for data transfer and quick memory card insertion/removal.
– Designed with a GPS mount compatible with 22mm × 22mm × 8.2mm GPS units.
– Main carbon plate finished with a matte black coating for a refined and premium appearance.
Specification:
Brand: GEPRC

Model: CL35 V3
Product Name: 3.5 Inch Frame kit
W
Gimbal Plate T
Main Plate T
Bottom Plate T
FC M × 25.5mm
VTX M × 20mm / 25.5mm × 25.5mm
Motor M × 12mm
Camera Mounting W
Duct Inner D
Prop Size: 3.5 Inch
Frame Weight: 126.8g

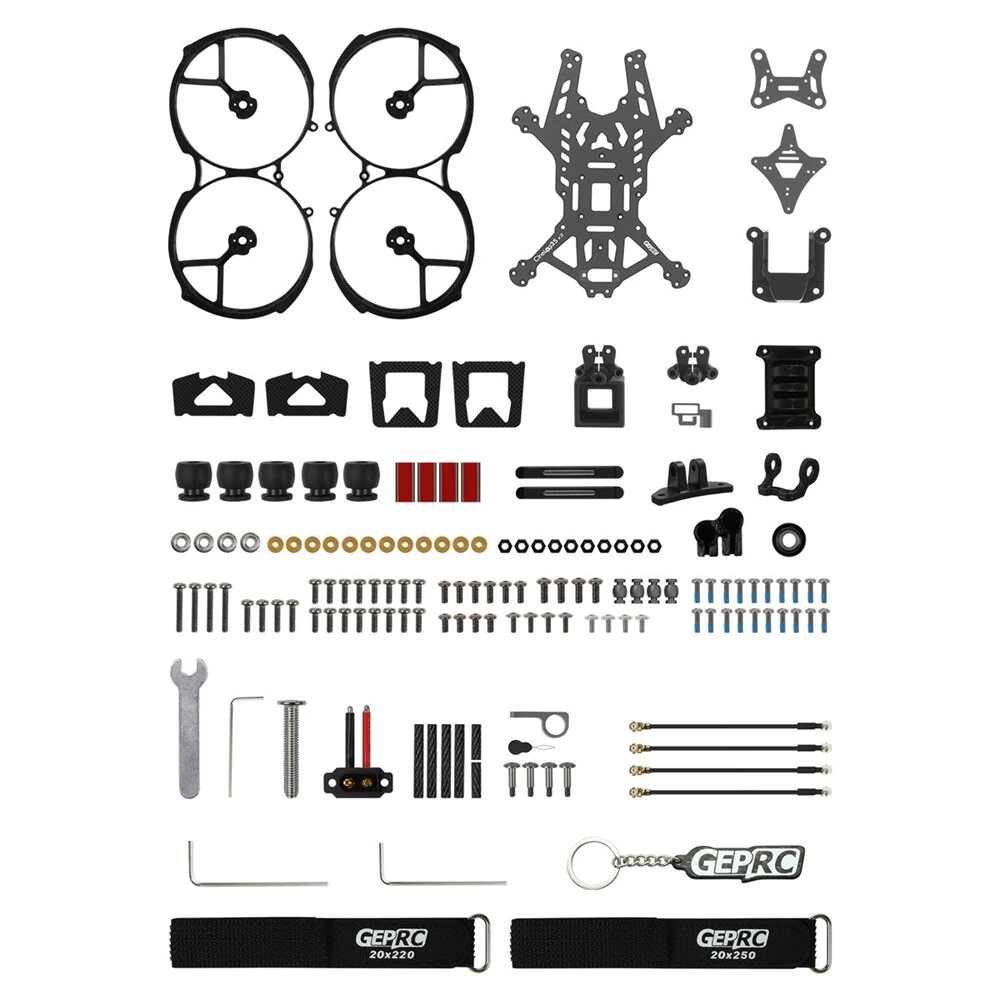

Package included:
1 x Main Carbon Plate
1 x Gimbal Carbon Plate
1 x Bottom Carbon Plate
1 x Prop Guard (pair)
1 x Camera Mount
1 x Receiver Mount
1 x T-Antenna Mount
1 x Capacitor Mount
1 x Power Connector Mount
1 x VTX Antenna Mount
1 x GPS Mount
1 x Action Camera Base Mount
4 x 40mm UFL Antenna Extension Cables
2 x Battery Anti-Slip Pads (sets)
2 x Battery Strap Aluminum Mounts
1 x XT60EW-M Plug
1 x 20×220mm Battery Strap
1 x 20×250mm Battery Strap
Small Accessories
4 x M2*3.3*25 Textured Aluminum Standoffs
4 x Motor Wire Management Tubes
1 x Small Action Camera Base
6 x Camera Damping Balls
4 x Gimbal Damping Balls
1 x Damping Ball Installation Tool
1 x 3.0mm L-Shaped Hex Wrench
1 x 2.0mm L-Shaped Hex Wrench
1 x 1.0mm L-Shaped Hex Wrench
1 x M8 Wrench
1 x Keychain
Screw Pack
20 x M2*7 Pan Head Screws
16 x M2*8 Pan Head Screws
6 x M2*6 Pan Head Screws
4 x M2*5 Pan Head Screws
4 x M2.5*6 Pan Head Screws
10 x M2 Hex Nuts
4 x M3 Pres-Fit Nuts
12 x M2 Pres-Fit Nuts
