Description:

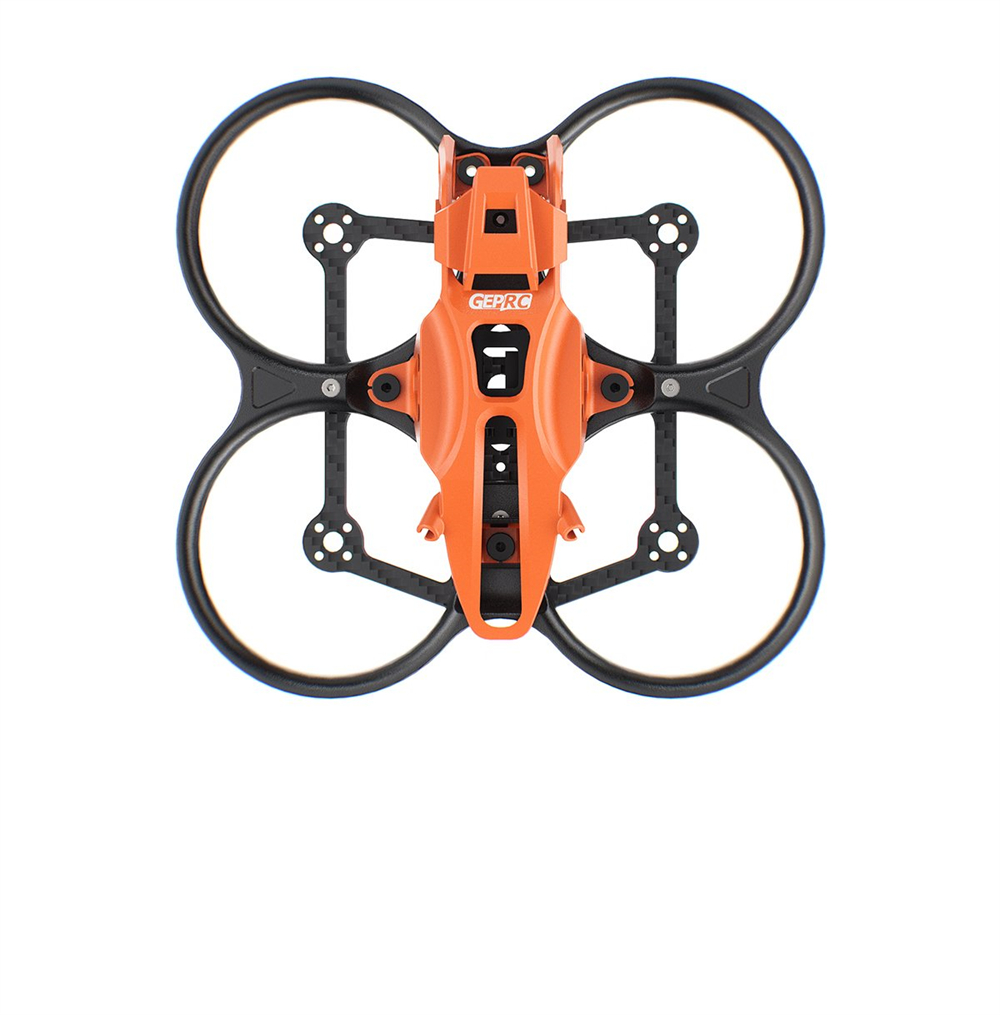

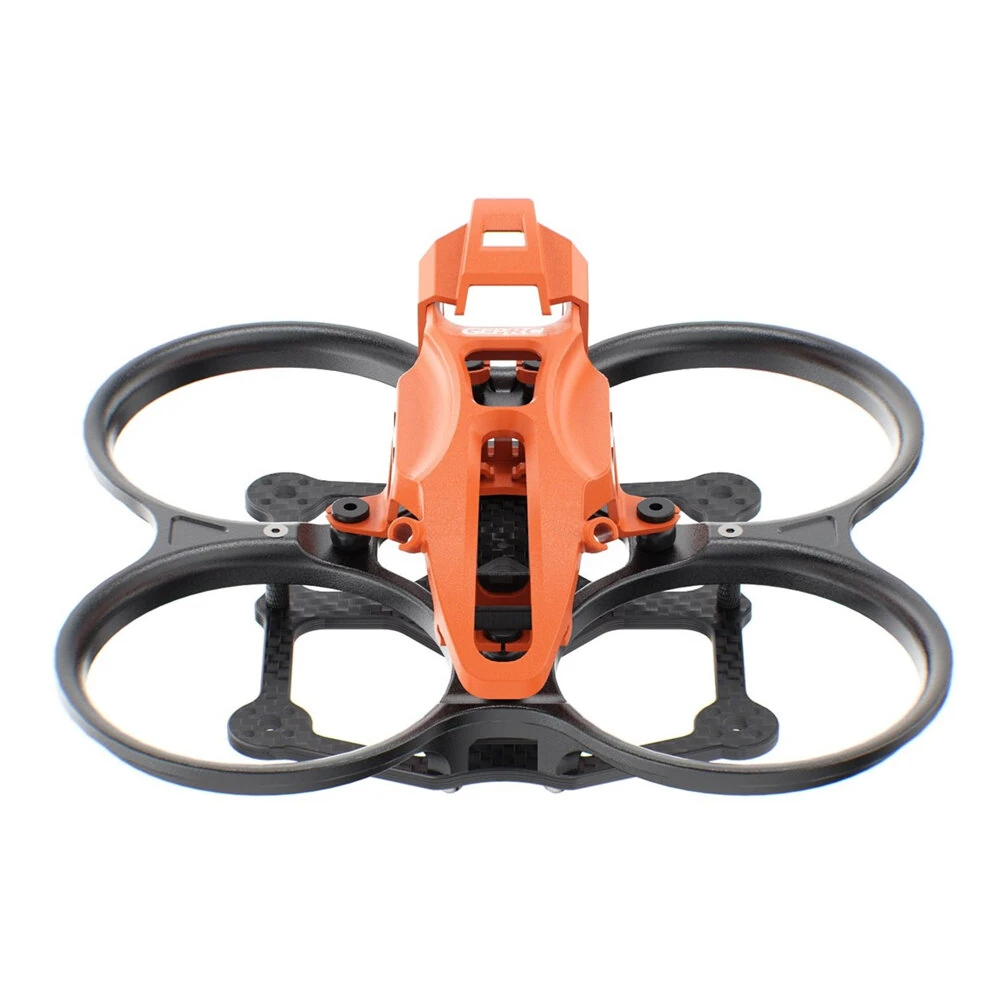

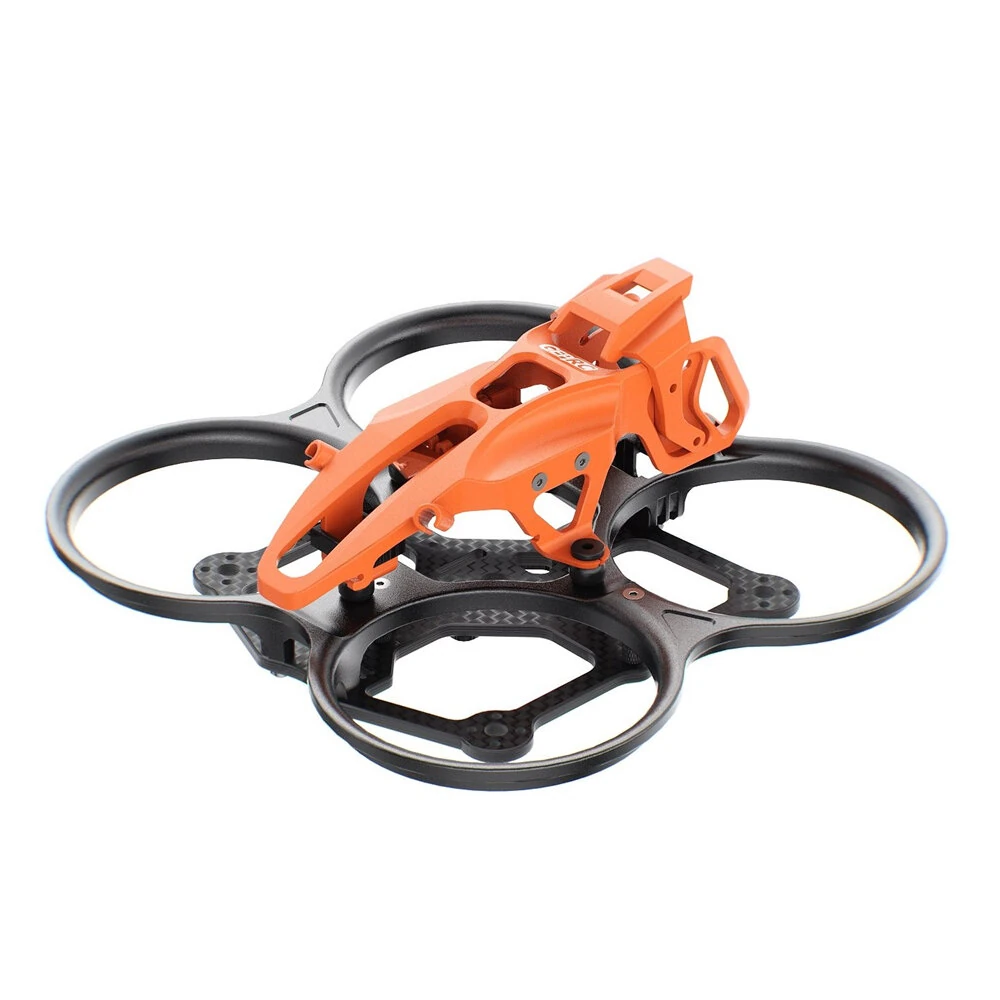

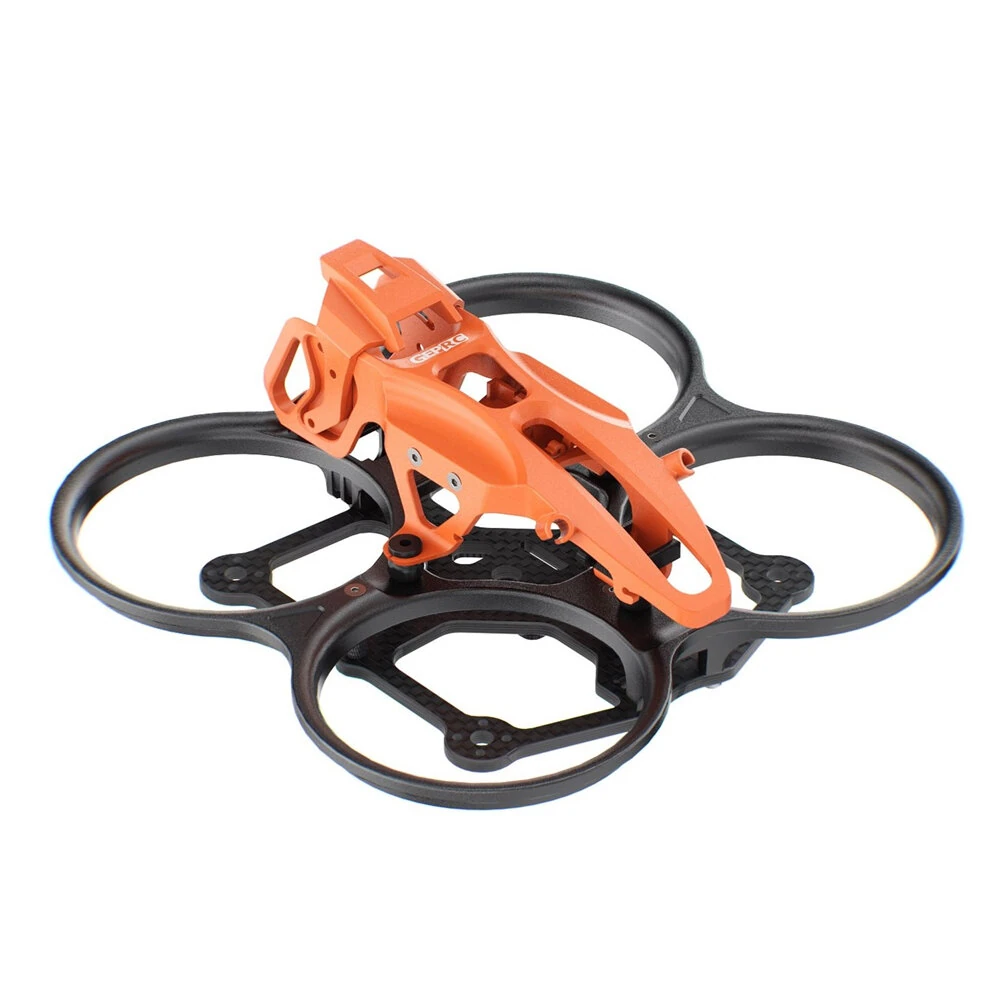

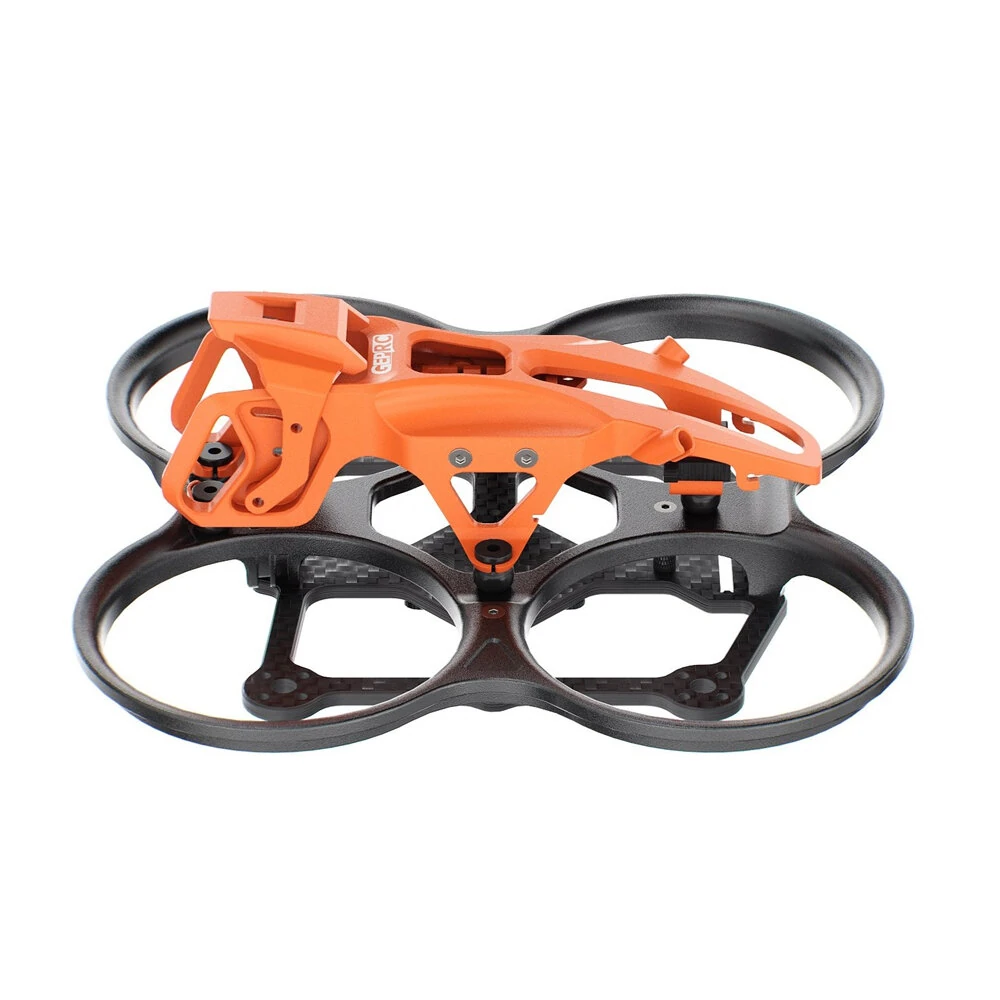

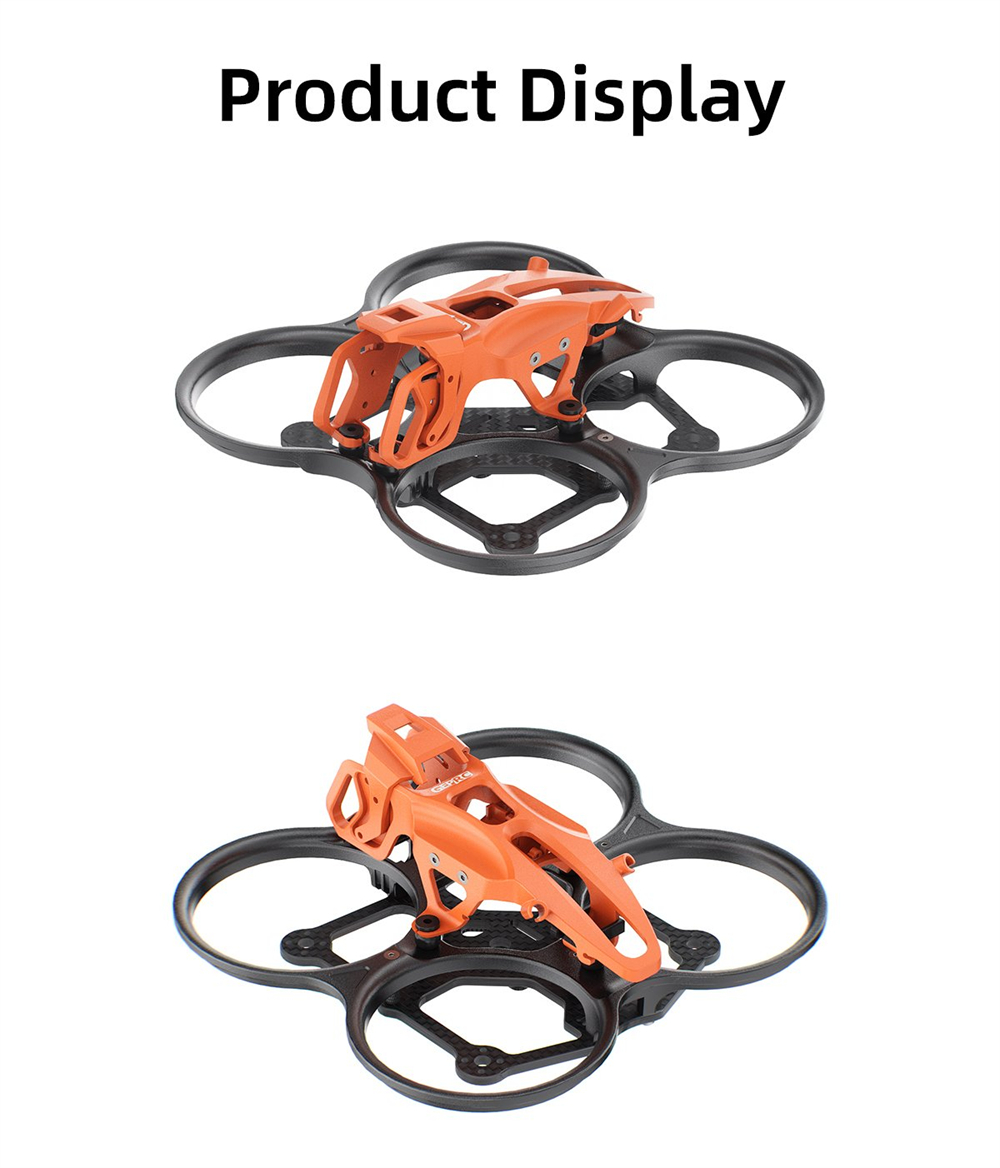

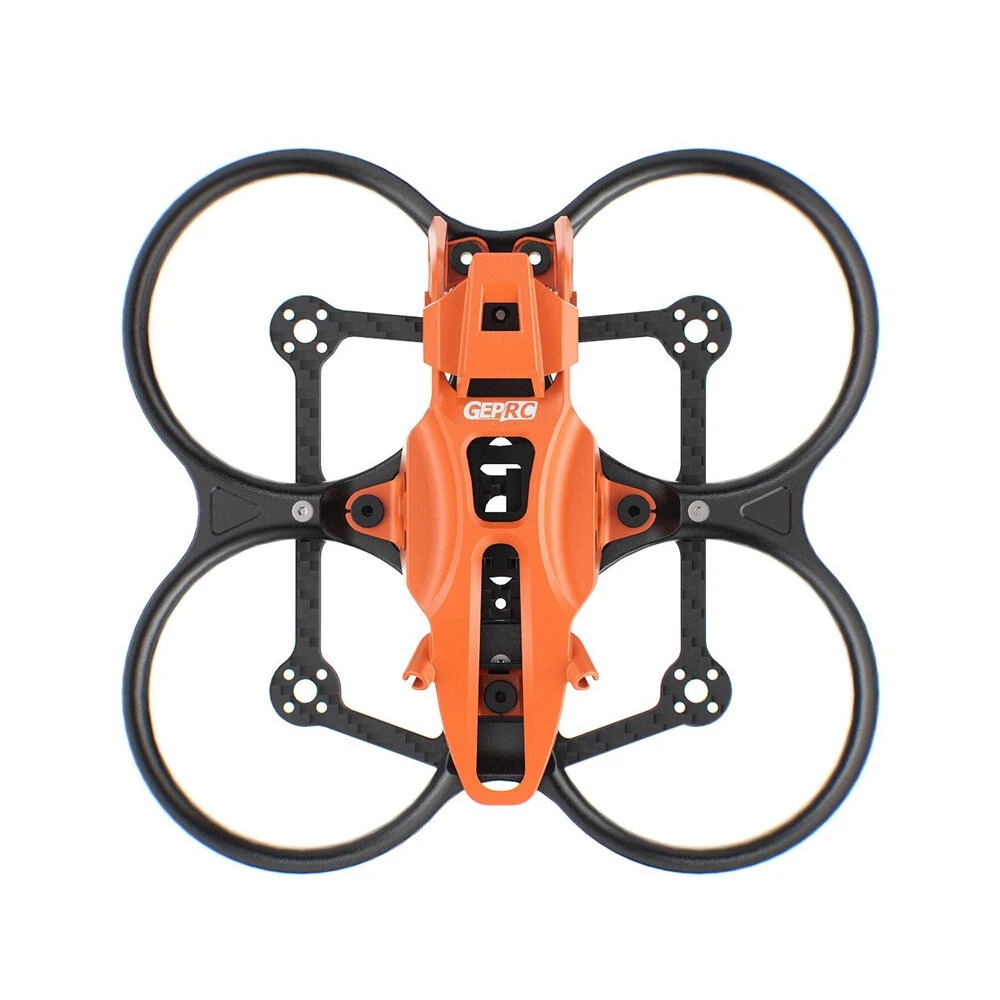

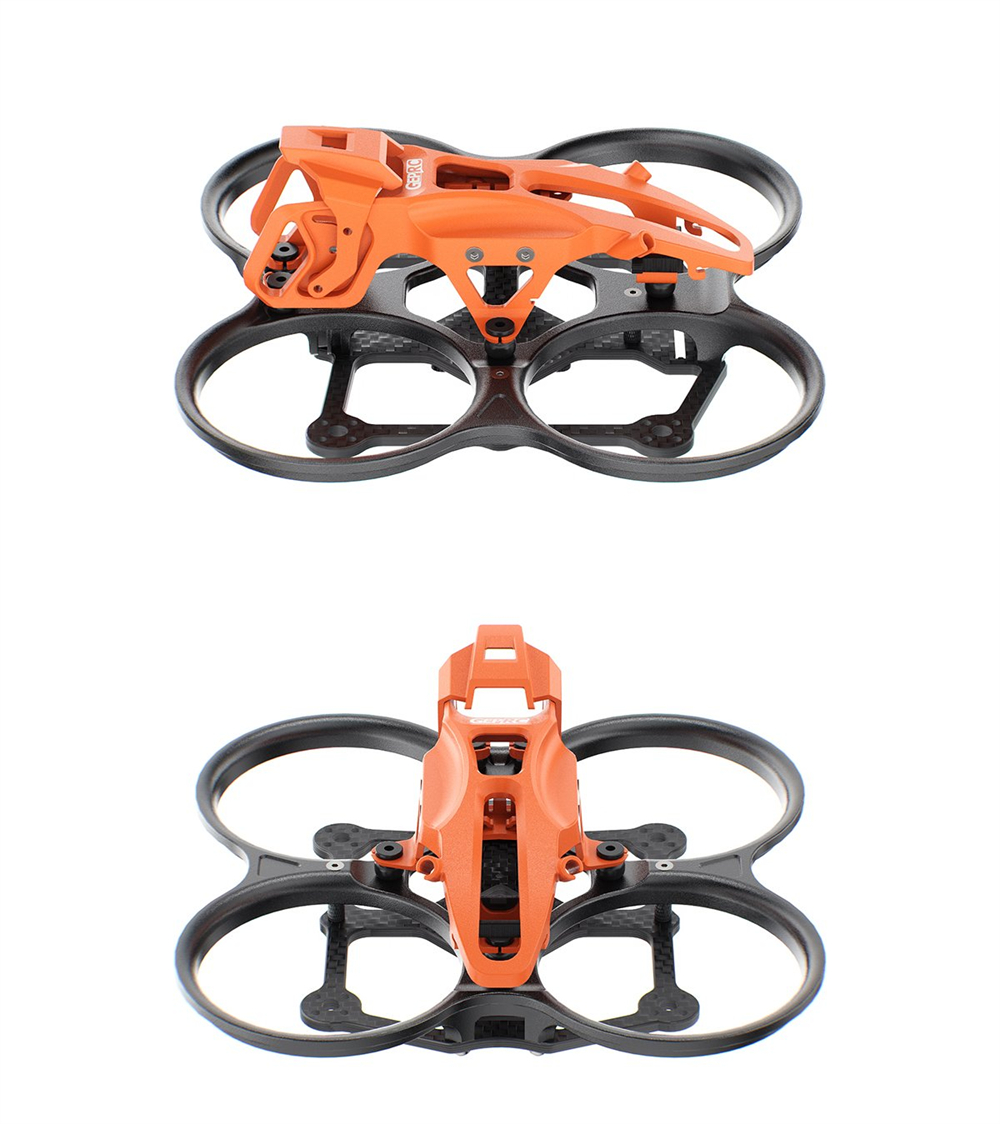

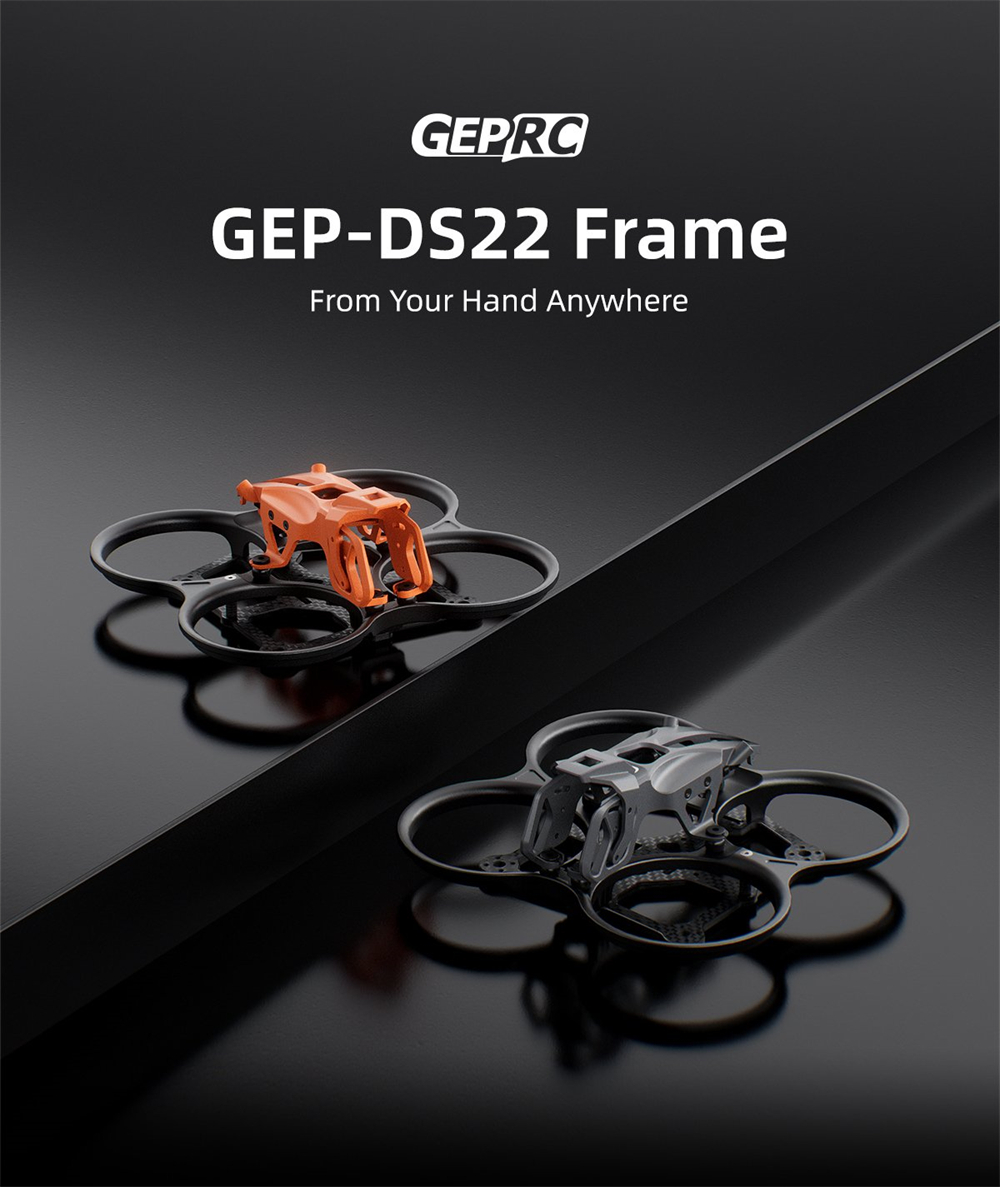

The GEP-DS22 is a 2.2-inch FPV frame designed specifically for both indoor and outdoor cinematic flying.
Guided by the philosophy of Safety Meets Performance, it seamlessly combines comprehensive protection, strong power, and enduring flight performance within a compact body.
Crafted from high-toughness composite materials with an optimized mechanical structure, it builds a durabl prop guard and frame body that effectively absorbs collision impacts.
Meanwhile, the GEP-DS22 offers customizable color options, allowing every pilot to assemble a unique, personalized drone that reflects both technical skill and distinct taste.

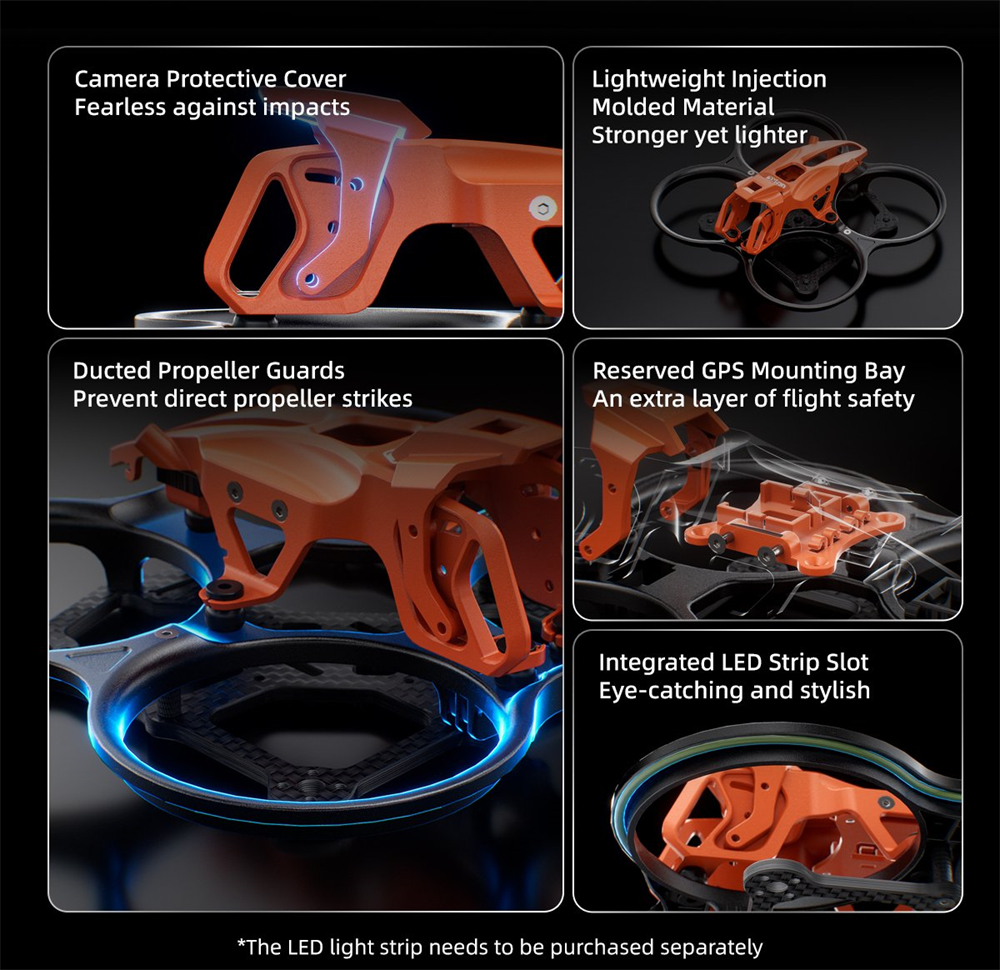

Feature:
– The enhanced nylon composite material provides superior structural strength and crash resistance.

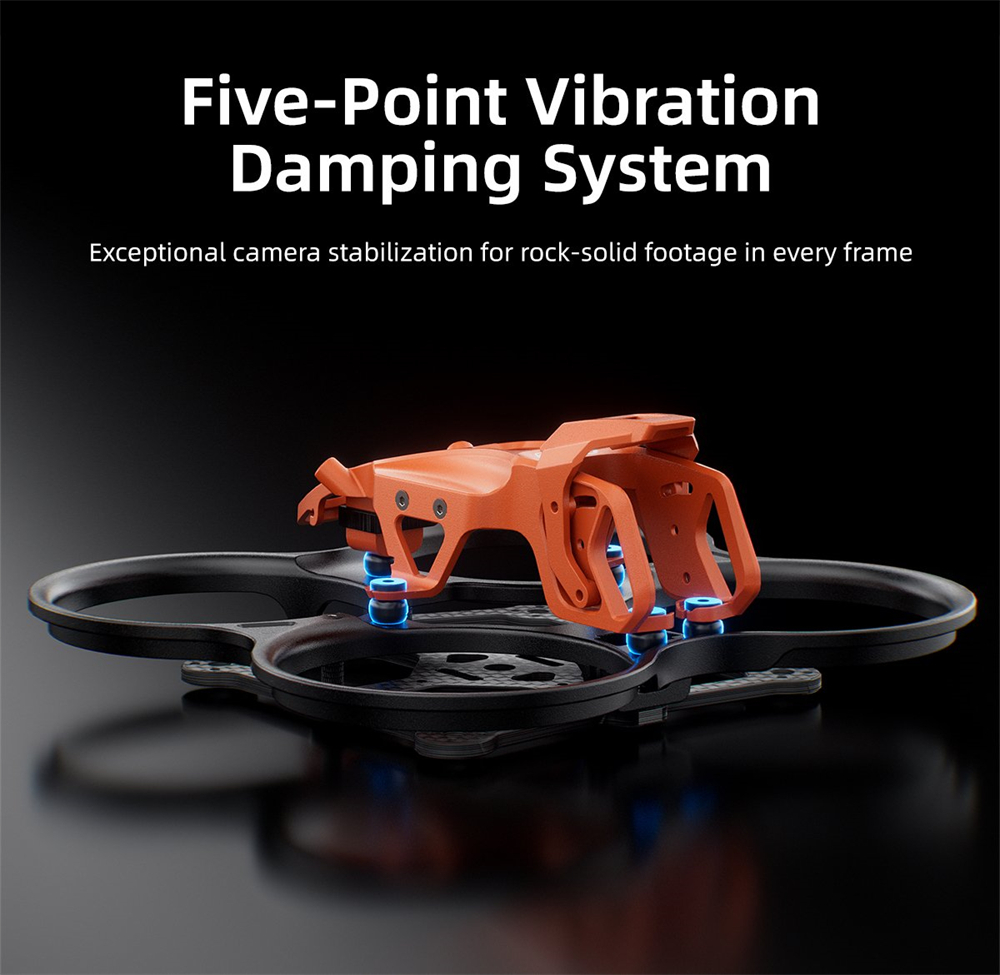

– The five-point floating damping system is a first-ever design that greatly improves vibration damping.
– The multi-color components allow you to mix and match different parts to build your own signature drone.
– The pre-reserved Nano GPS mounting holes enable safer flights with added GPS capability.
– The dedicated canopy for the O4 Pro camera offers reliable protection for every shot.
– The quick-release top plate and prop guard make maintenance simple and efficient.

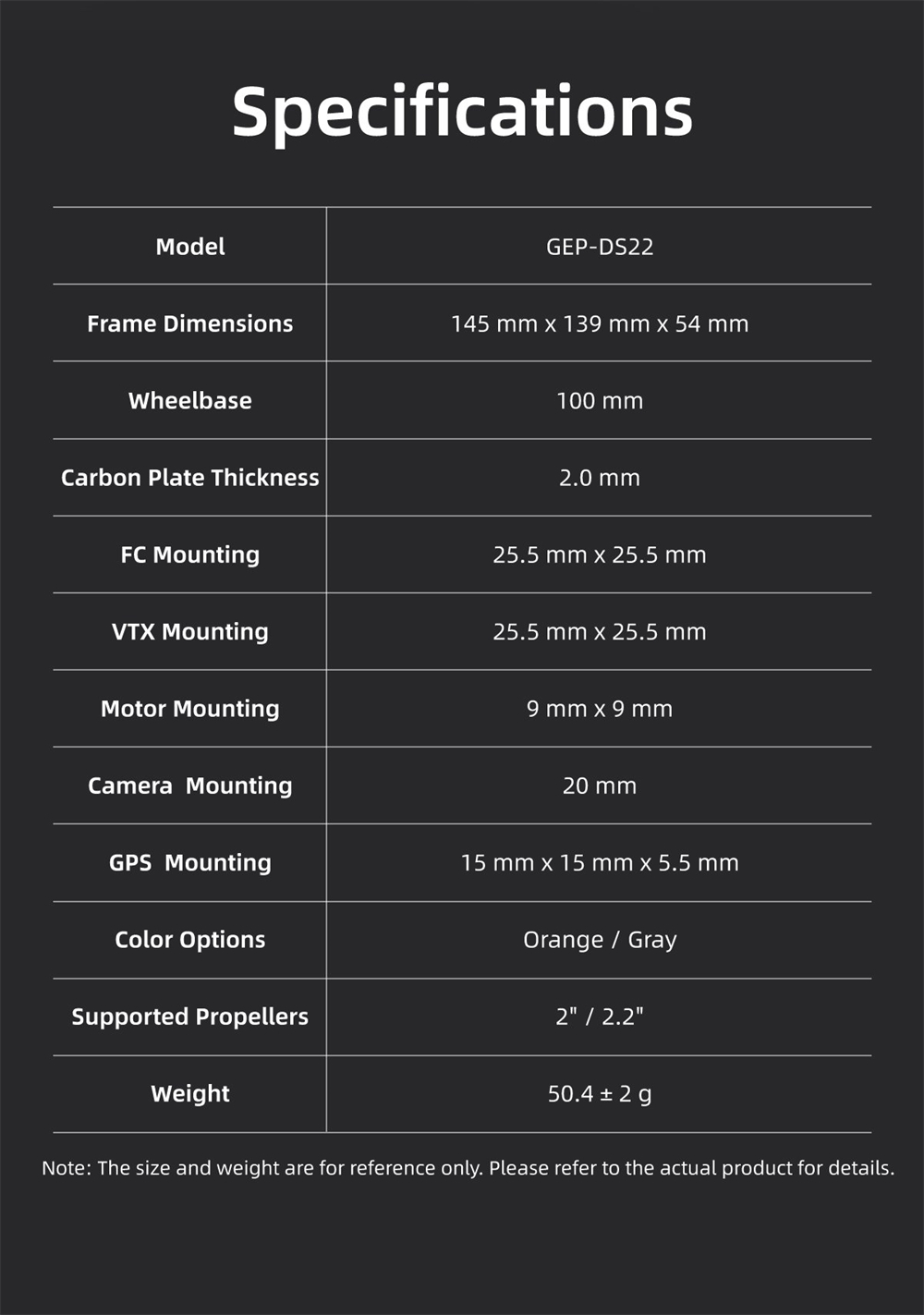

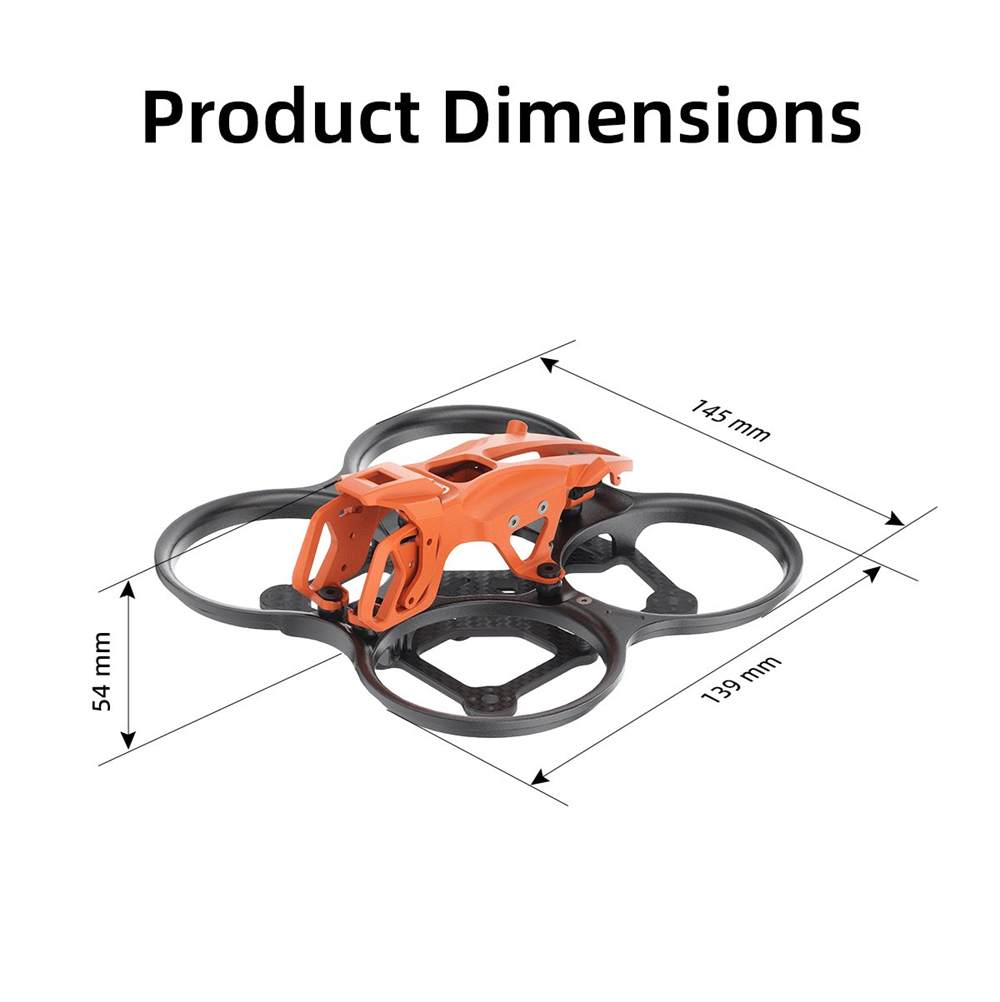

Specification
Brand: GERPC
Model: GEP-DS22
Item Name: 2.2 Inch Frame Kit
Prop Guard Color: Black
Frame Size: 2.2 inch
Wheelbase: 100 mm
Main Carbon Plate Thickness: 2.0 mm

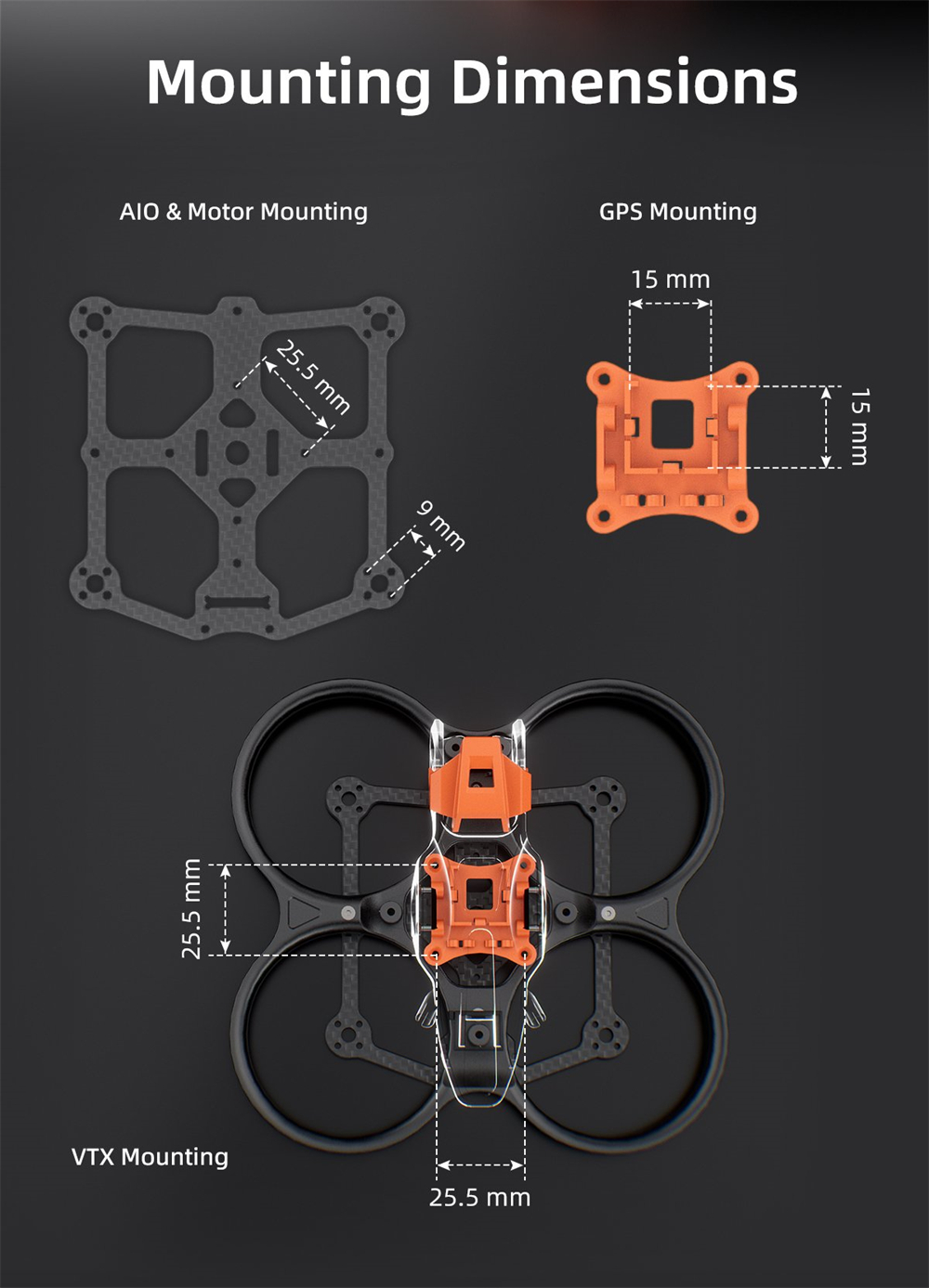

FC Mounting: 25.5 mm x 25.5 mm
VTX Mounting: 25.5 mm x 25.5 mm
Motor Mounting: 9 mm x 9 mm
Camera Mount Width: 20 mm
Power Connector: XT30U-M
Propeller Size: 2.2 inch
Frame Weight: 50.4 ± 5 g

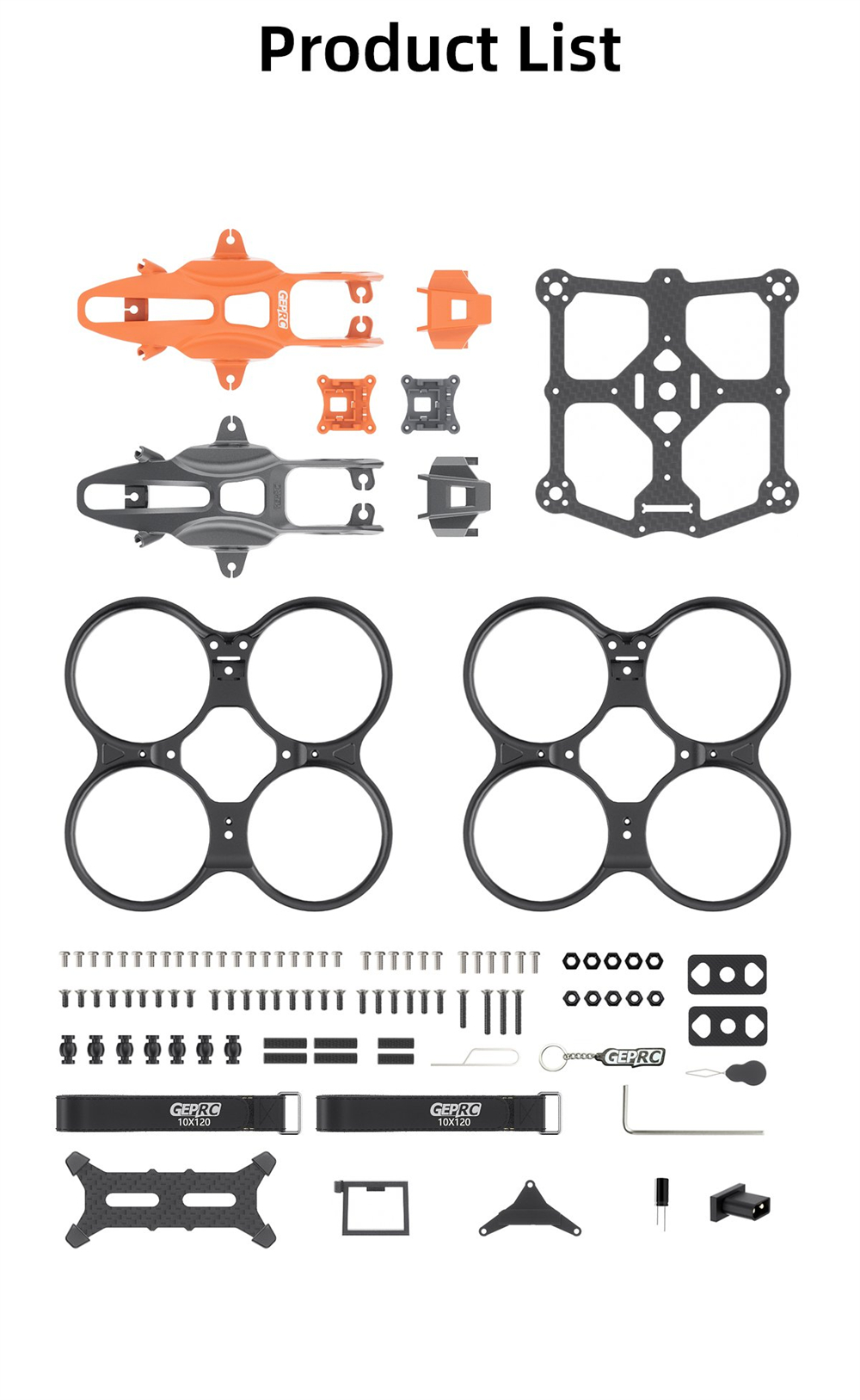

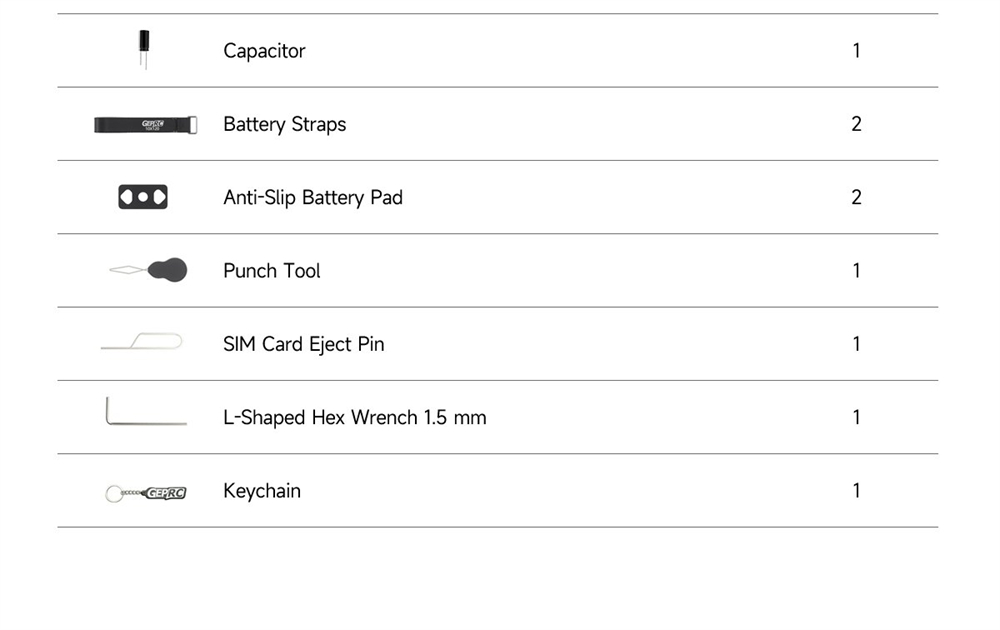

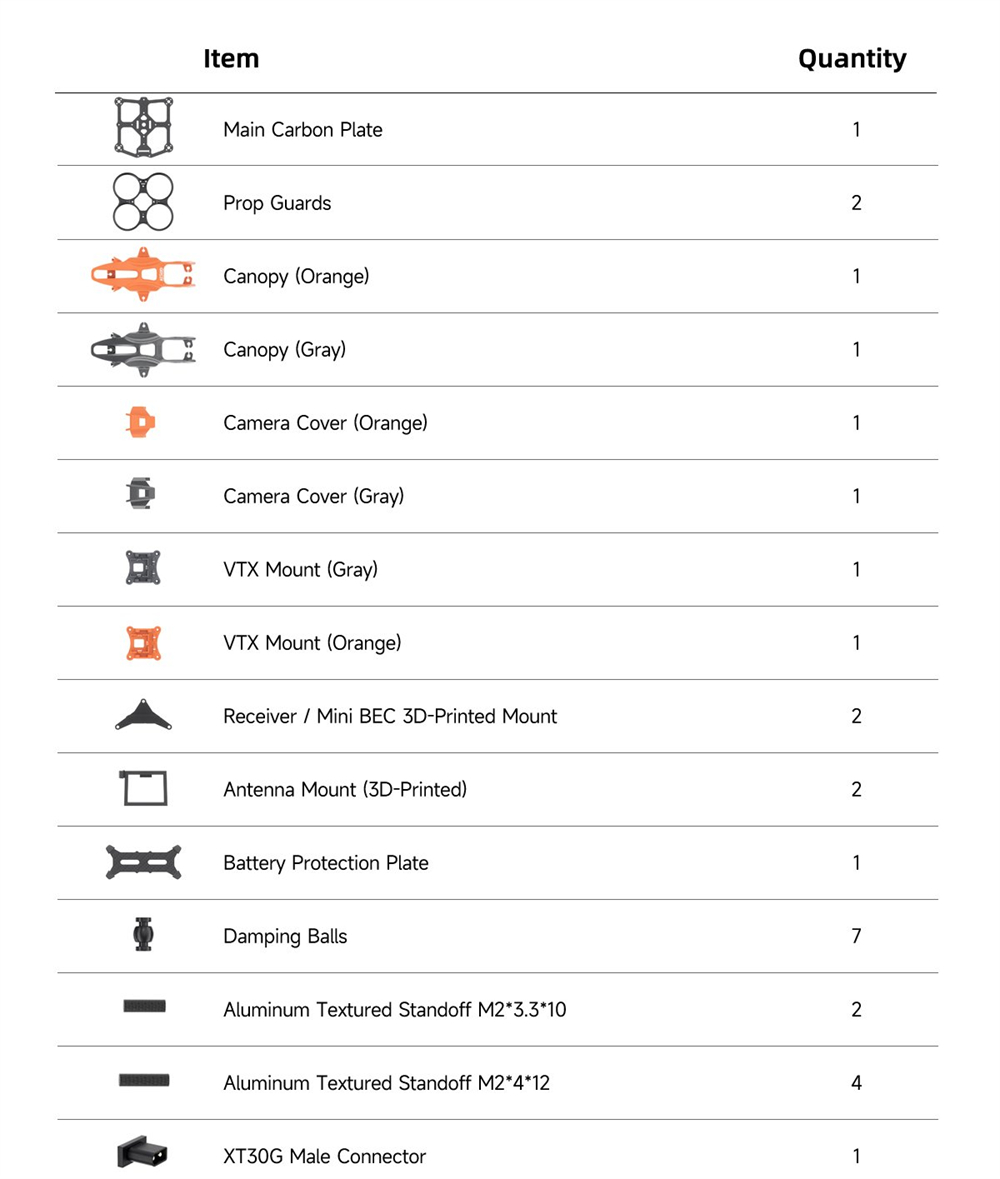

Package Included:
2 × Propeller Guards
1 × Main Carbon Plate
2 × Canopies
2 × Camera Protective Cover

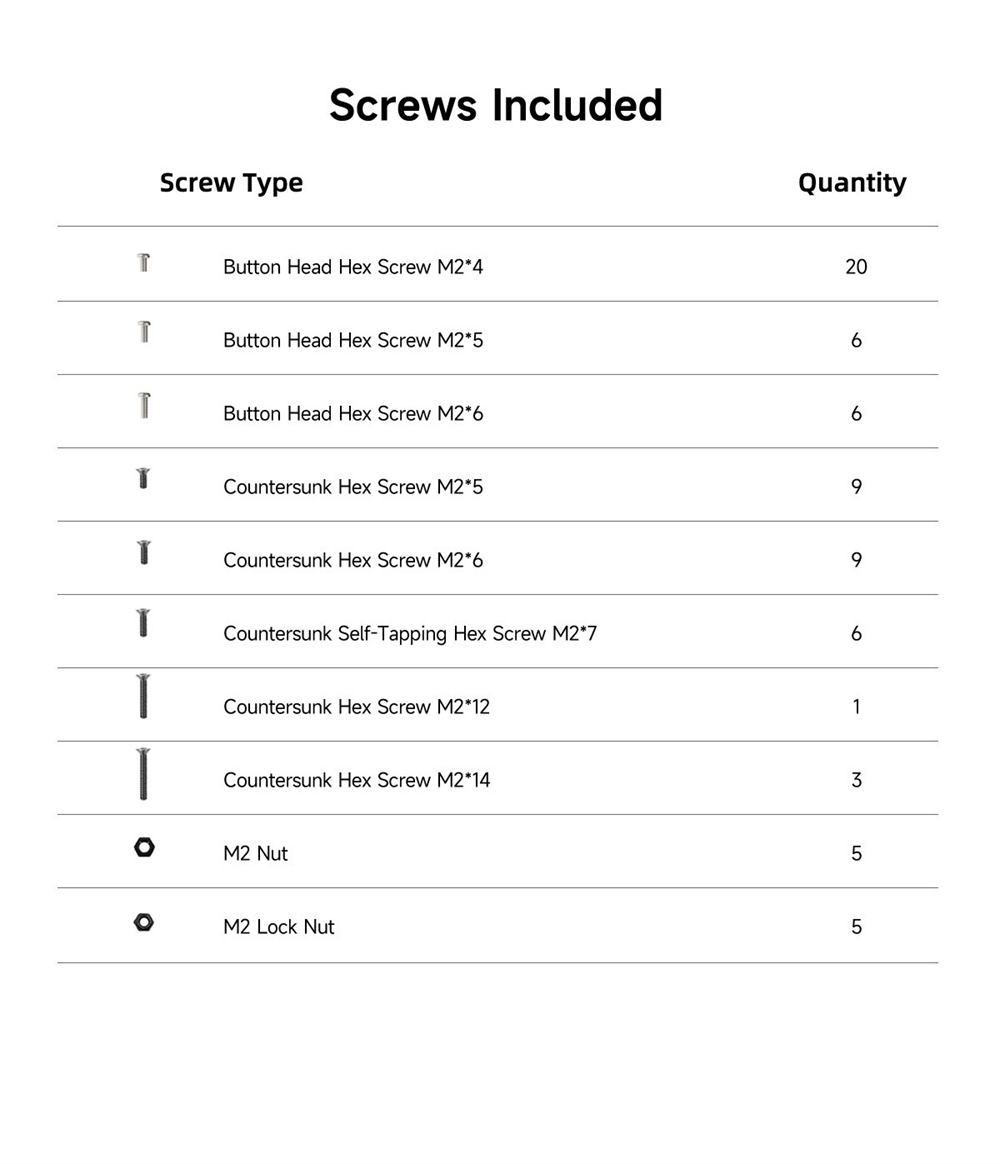

1 × Screw Pack
1 × 1.5 mm L-Shaped Hex Wrench
2 × Battery Straps
1 × Battery Pad
