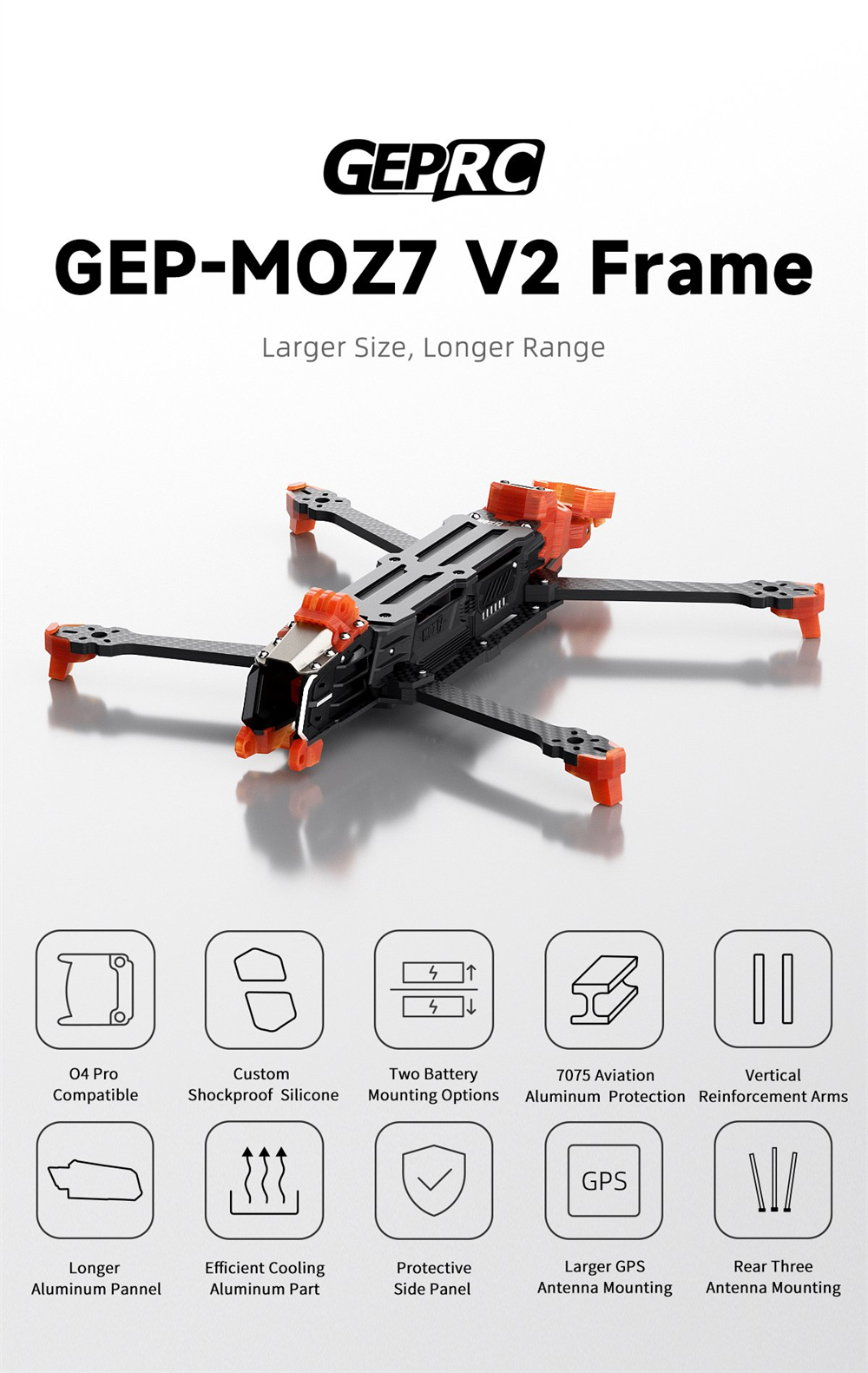

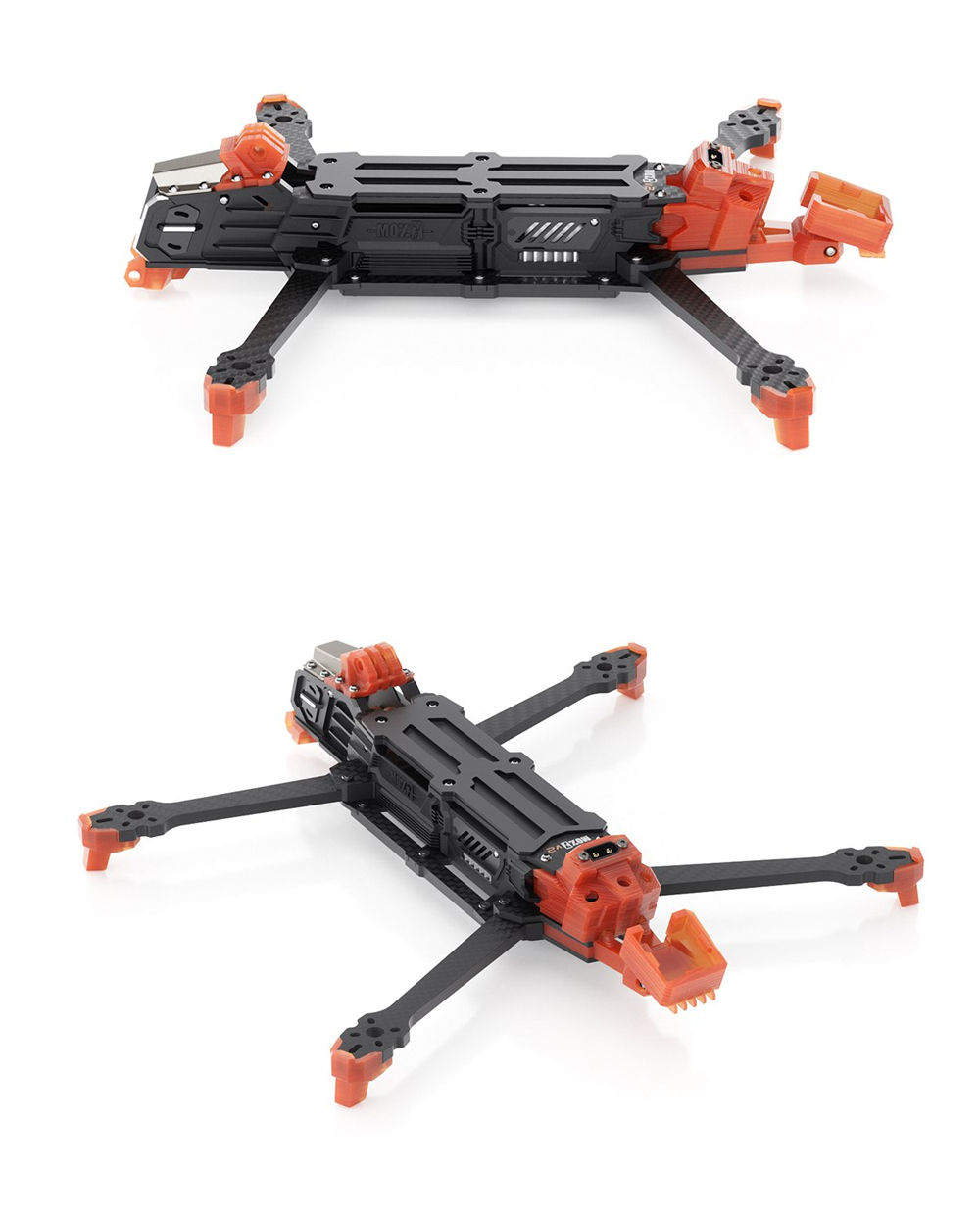

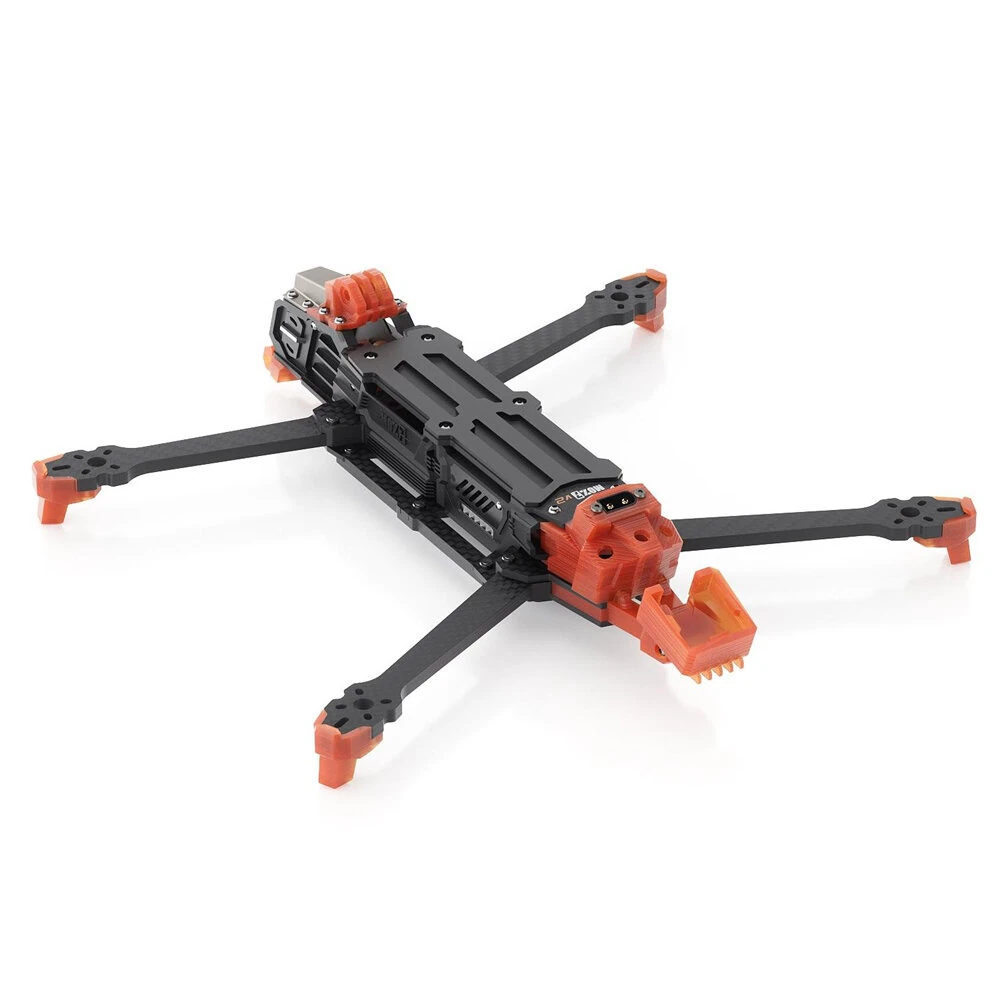

GEPRC GEP-MOZ7 V2 336mm 7.5 Inch Frame Kit Compatible with O4 Air Unit Pro HD VTX for FPV Racing Drone

Description:

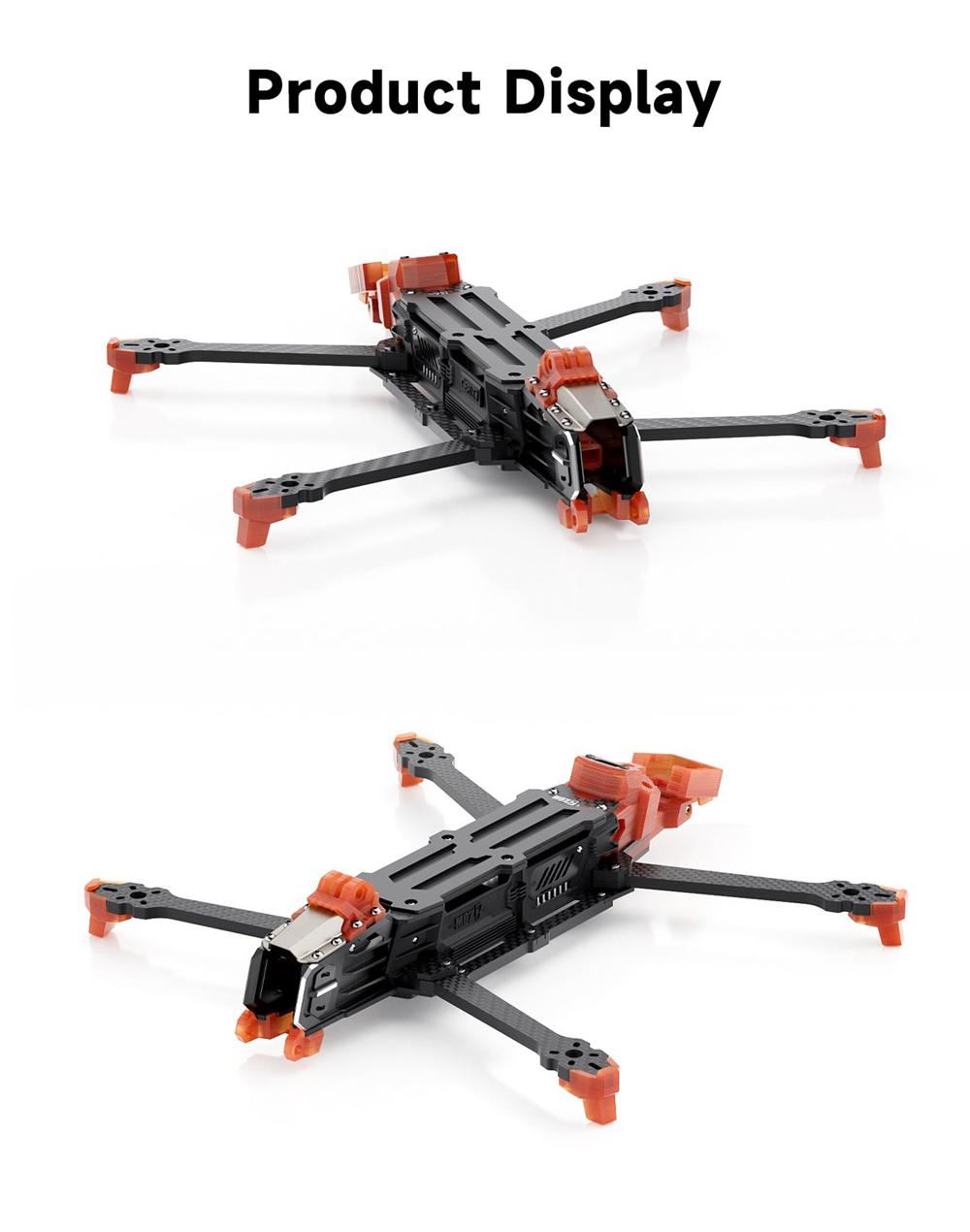

The GEP-MOZ7 V2 is a 7.5-inch long-range frame designed for the O4 Air Unit Pro HD VTX. It also supports 8-inch propellers and a wide range of compatible electronics setups.

Its extended front design ensures a clear, unobstructed view when using the O4 Pro VTX. The metal top plate protects the camera lens, while reinforced side arms increase rigidity and support bottom-mounted battery configurations. The VTX mount accommodates larger heat sinks for improved cooling performance, and the GPS mount supports M1025-series GPS units.

GEPRC remains committed to the FPV industry, continuously releasing high-quality, reliable products to enhance the user experience.

Features:
– Compatible with the O4 Air Unit Pro HD VTX, with no props visible in the camera view.

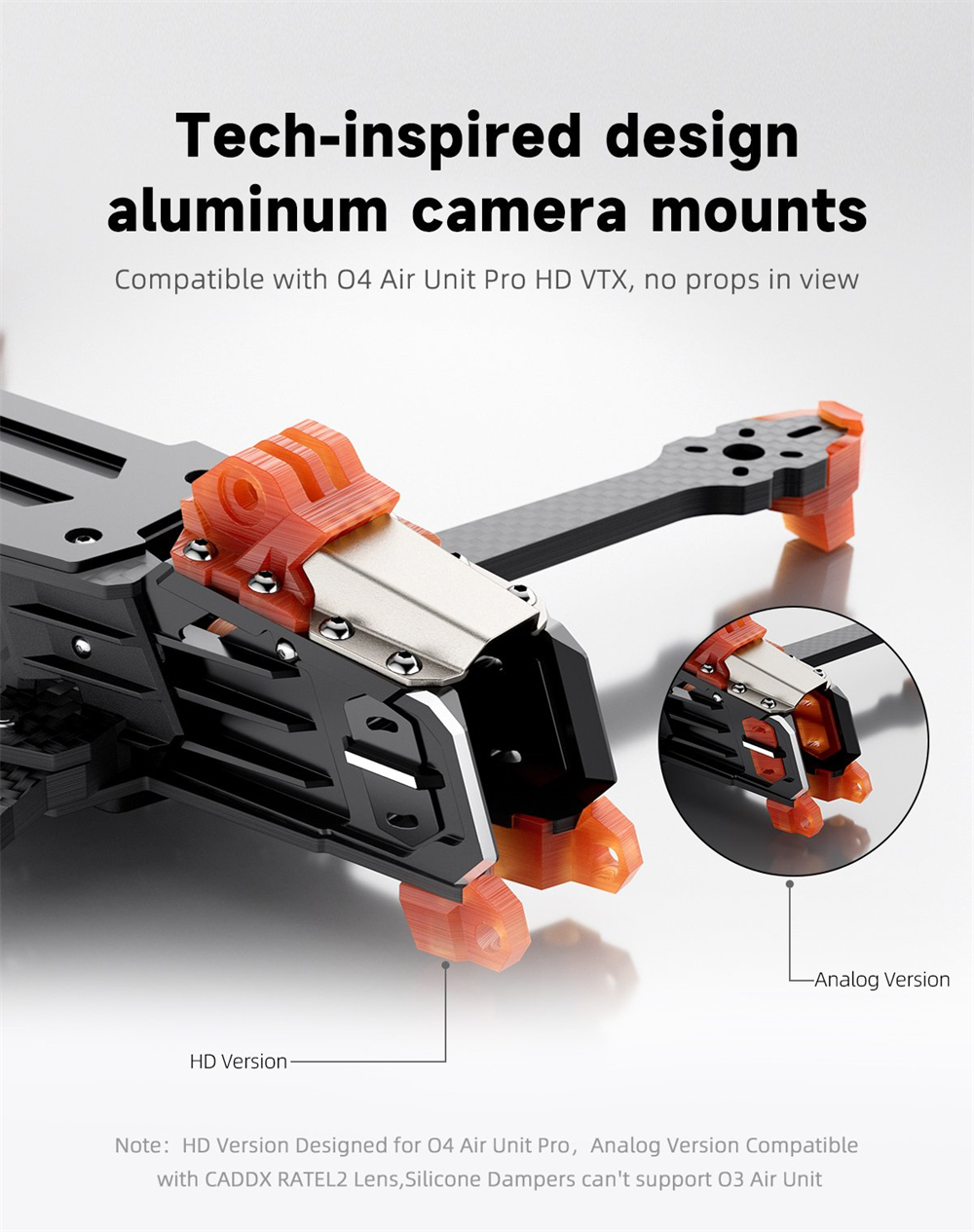

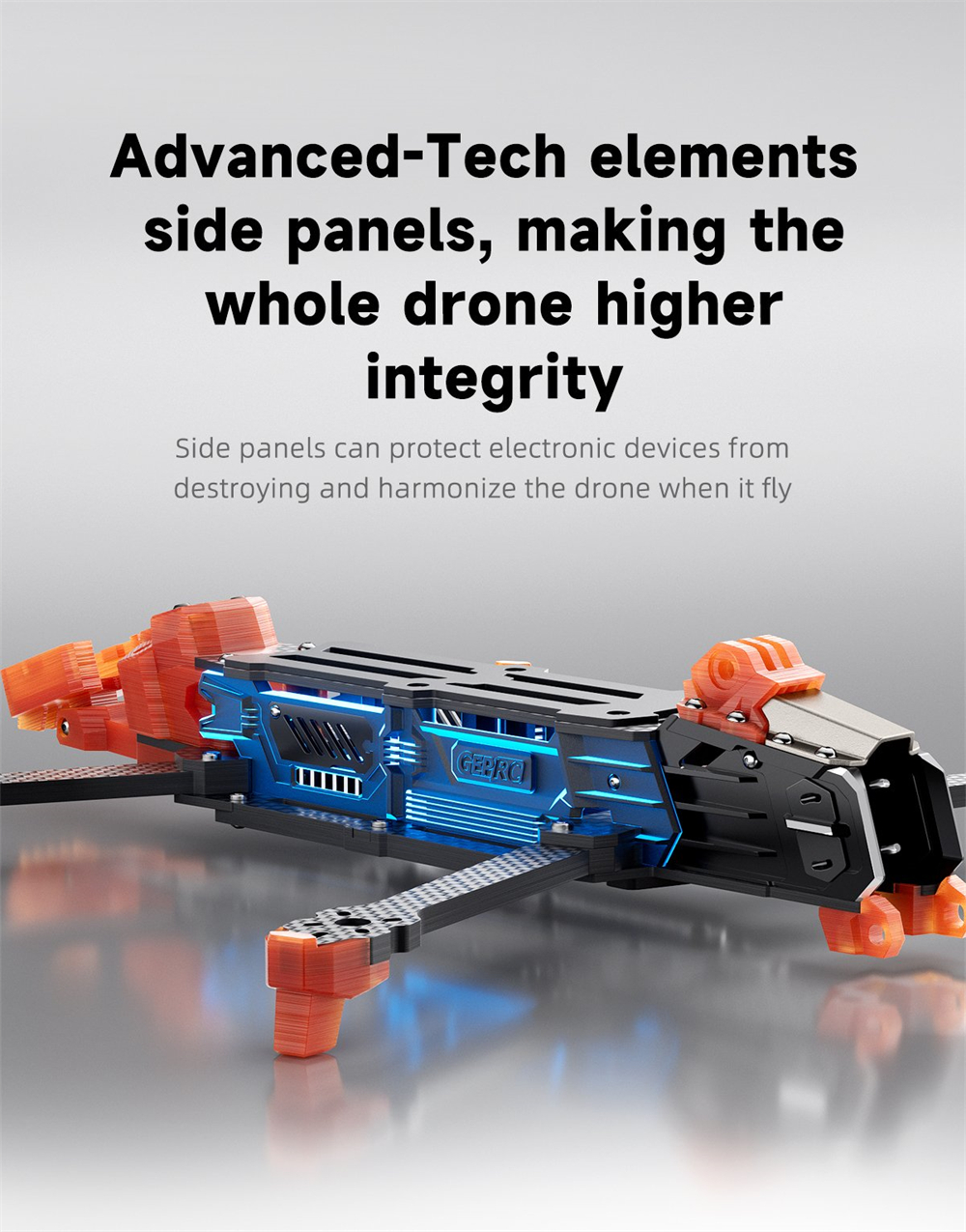

– Tech-inspired design featuring aerospace-grade aluminum camera mounts and a metal top plate for lens protection.

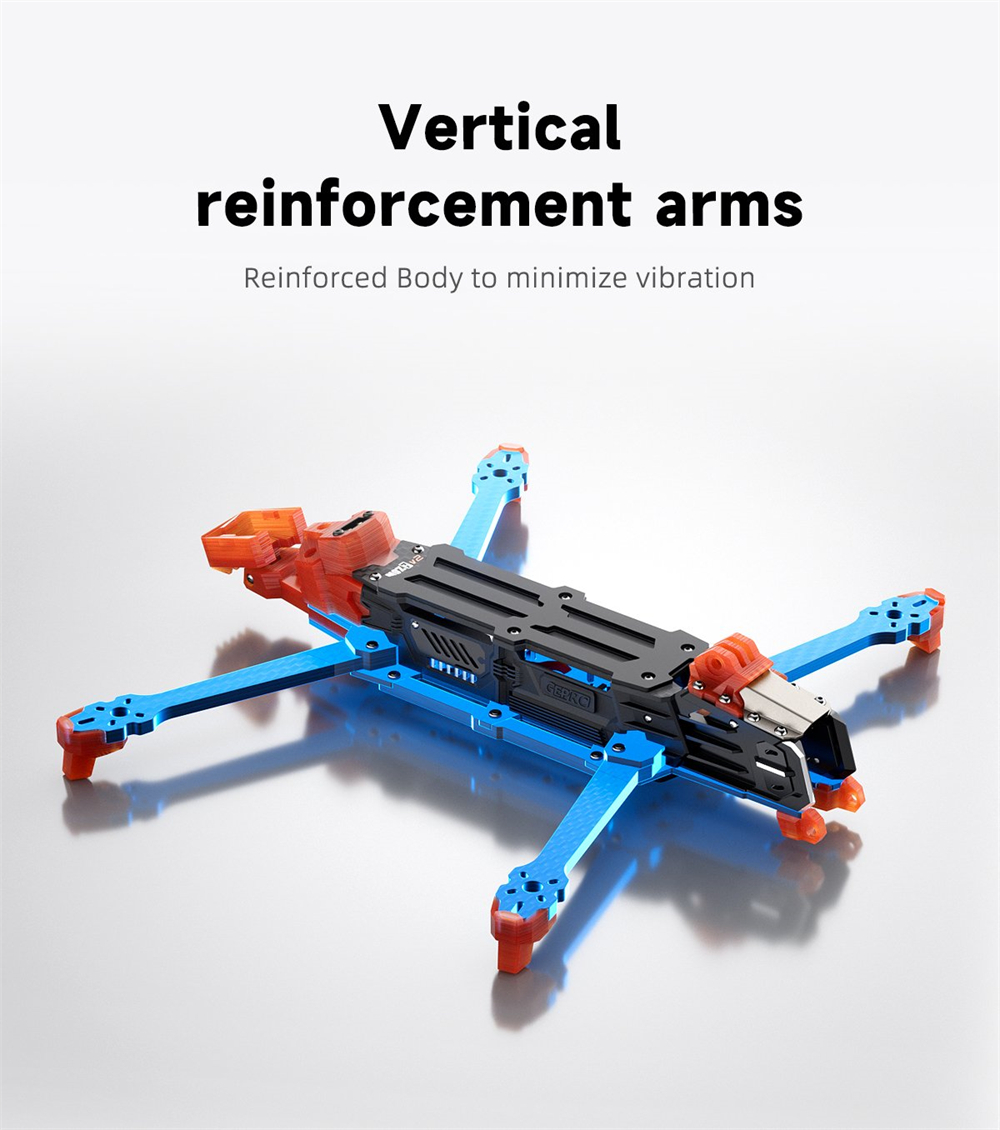

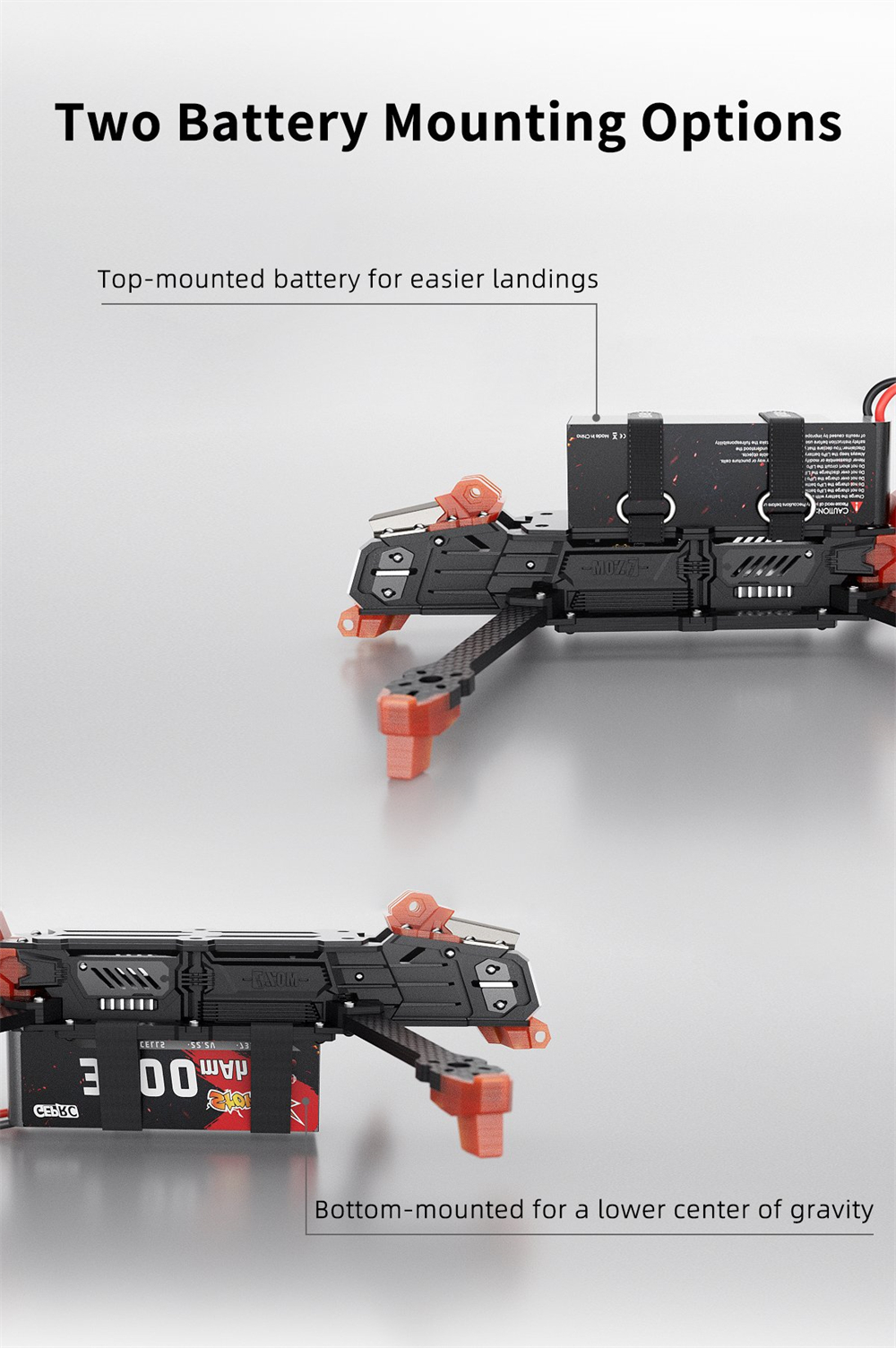

– Vertical reinforcement structure and 6mm-thick arms ensure flight stability and support for bottom-mounted batteries.

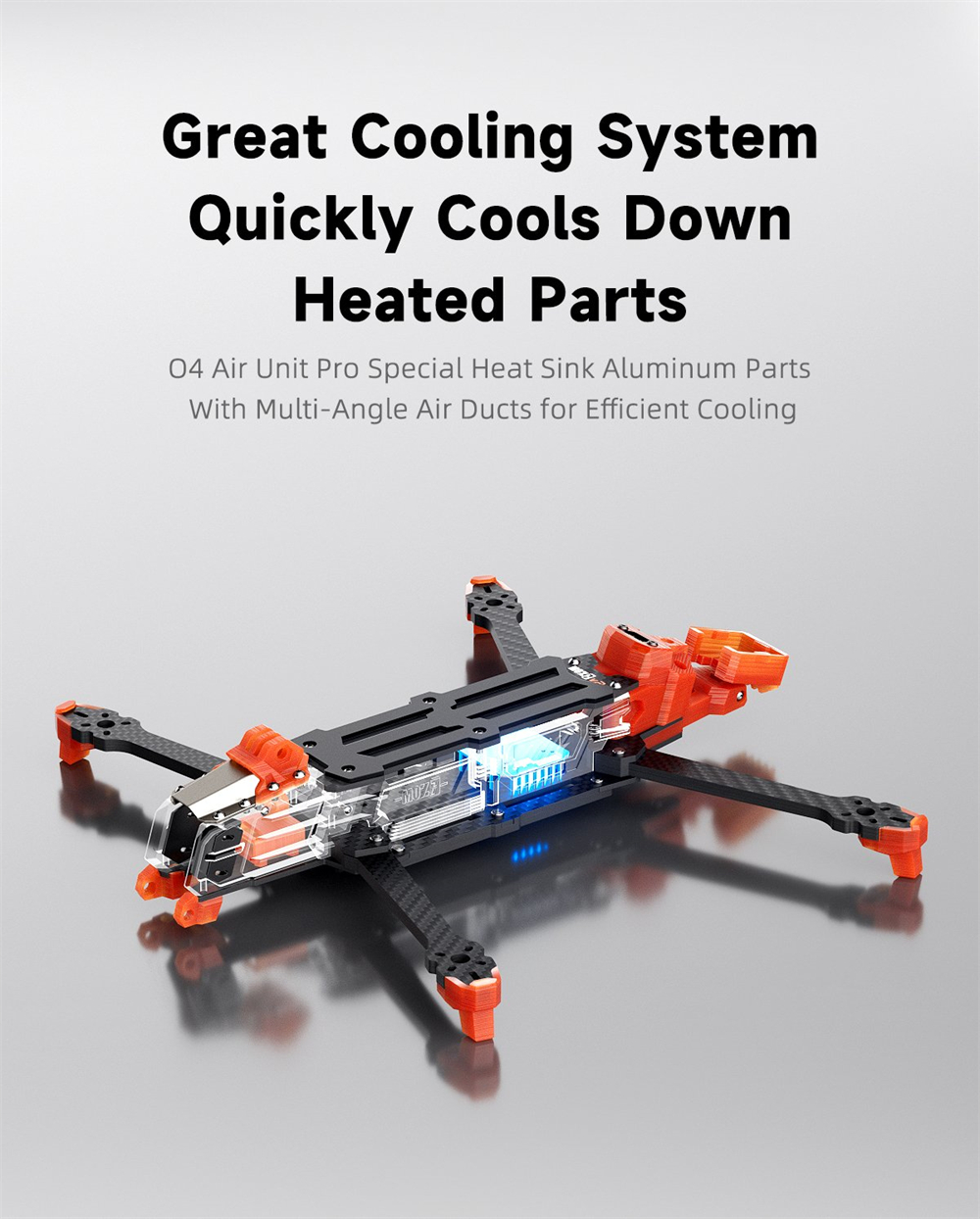

– O4 Air Unit Pro heat sink with fin and vent design for efficient cooling.

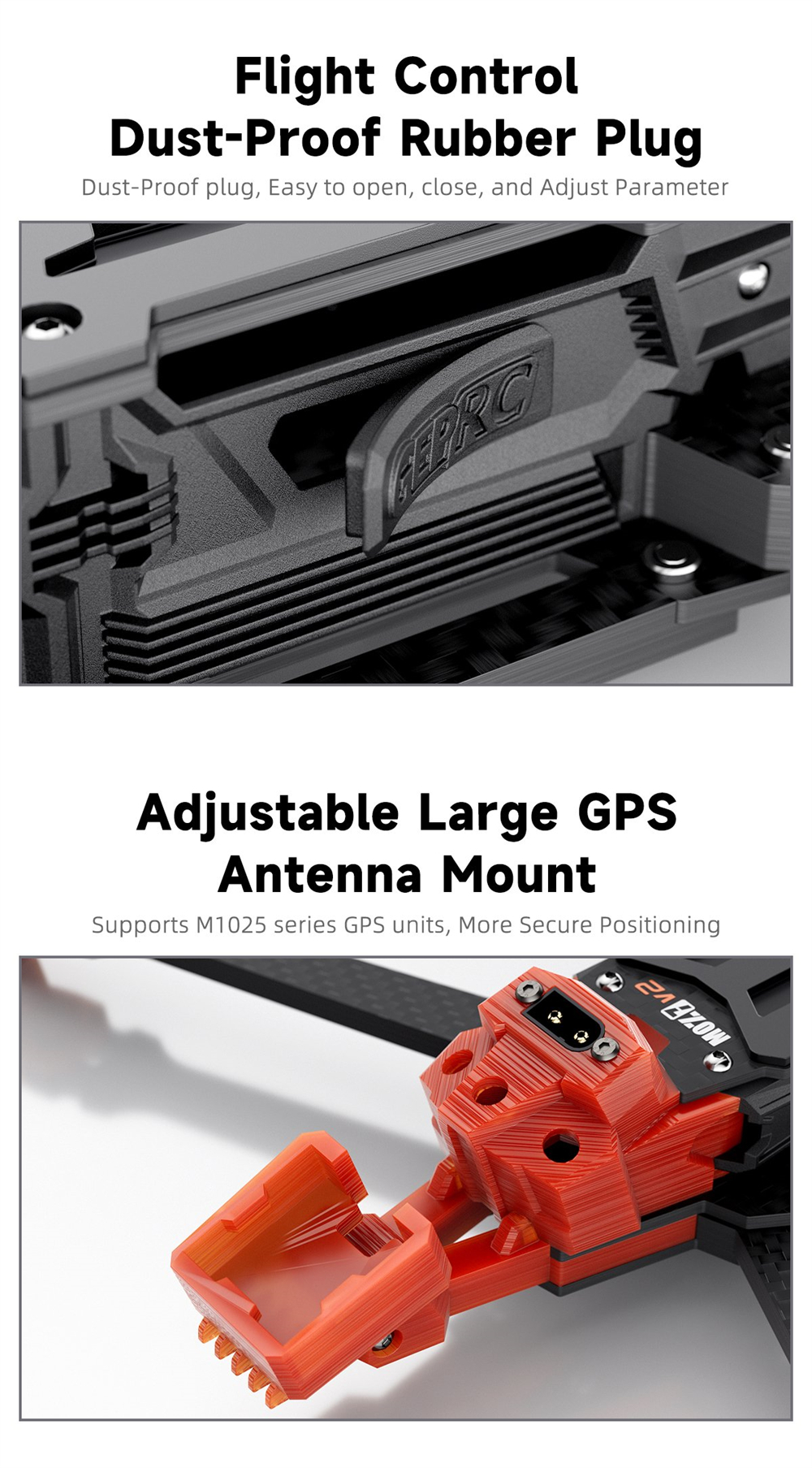

– Adjustable 25x25mm GPS antenna mount, supports larger GPS units for faster satelite lock.
– Front T-shaped antenna mount and rear vertical antenna for dual-frequency reception.

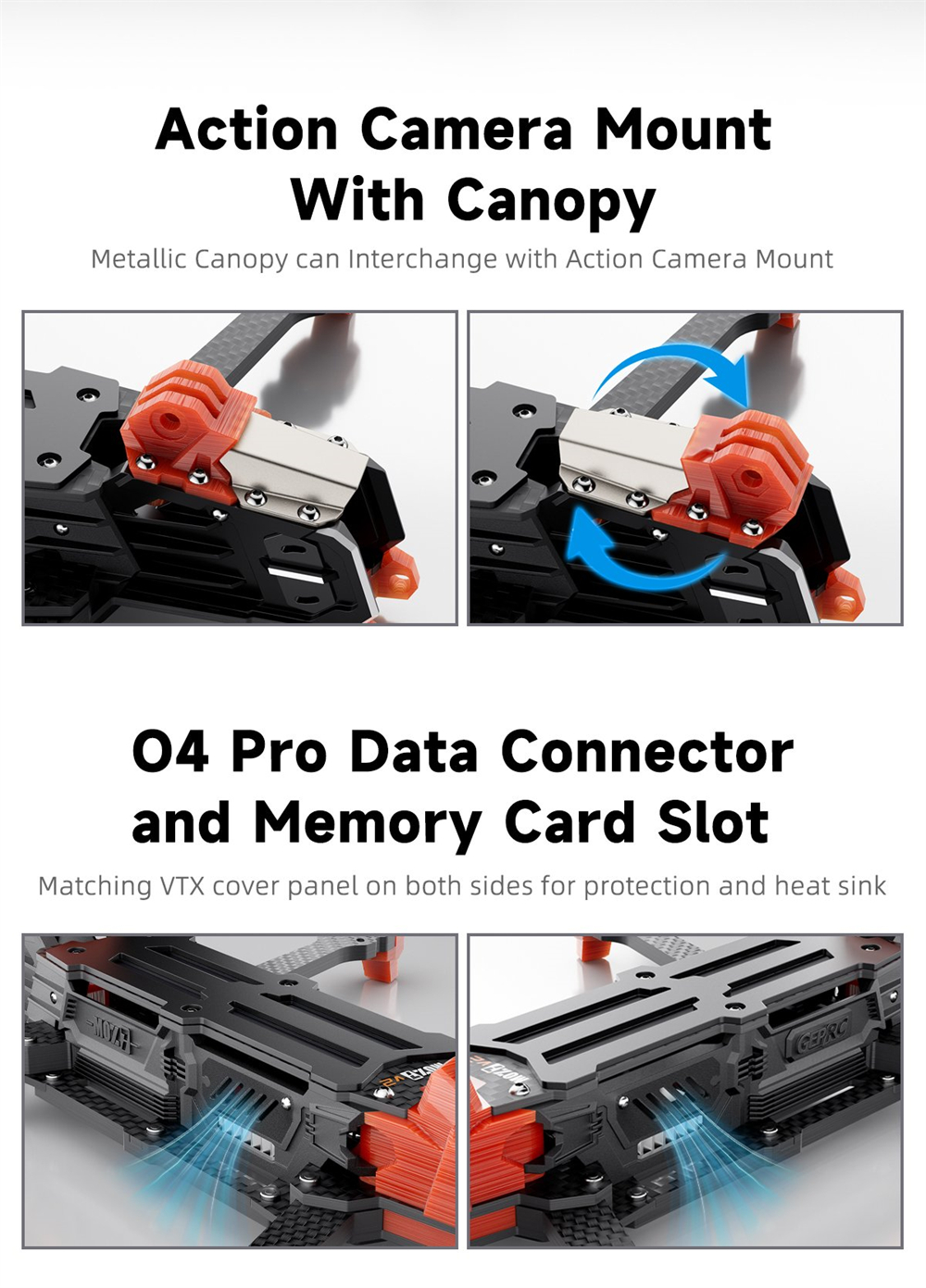

– Action camera mount is interchangeable with metallic canopy for center of gravity adjustment.

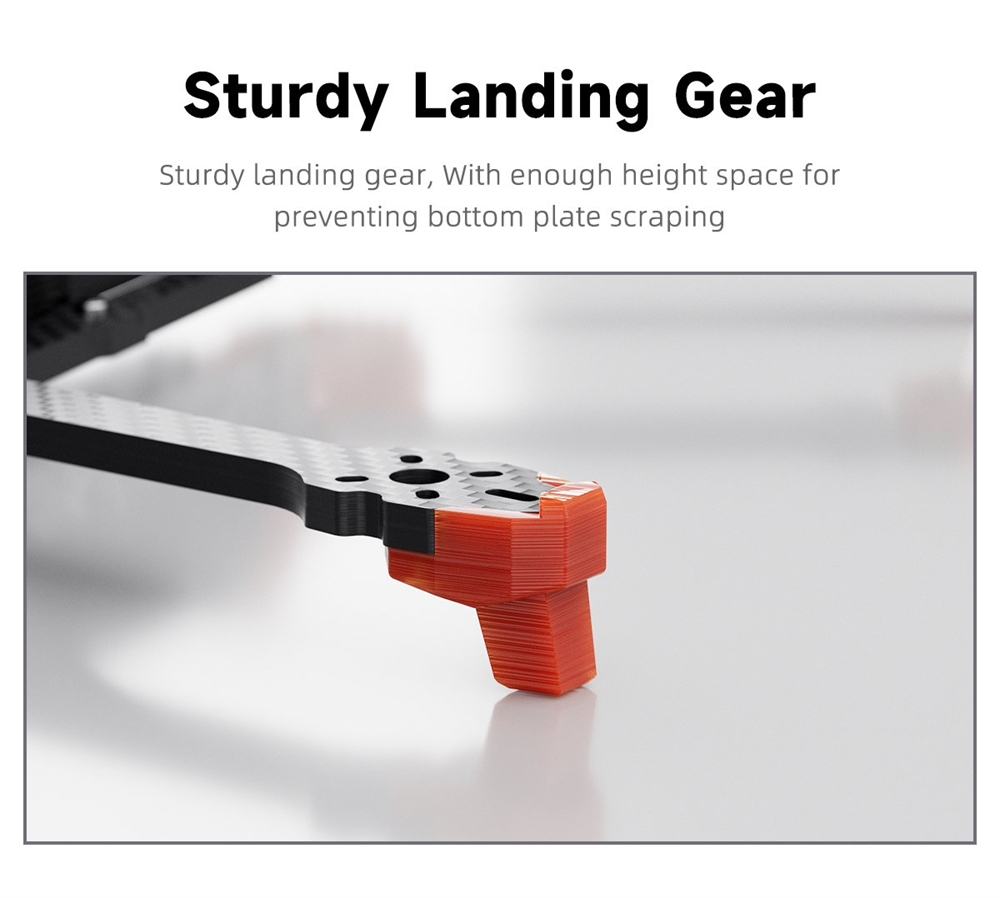

– Durabl landing gear prevents the bottom plate from scraping during landings.

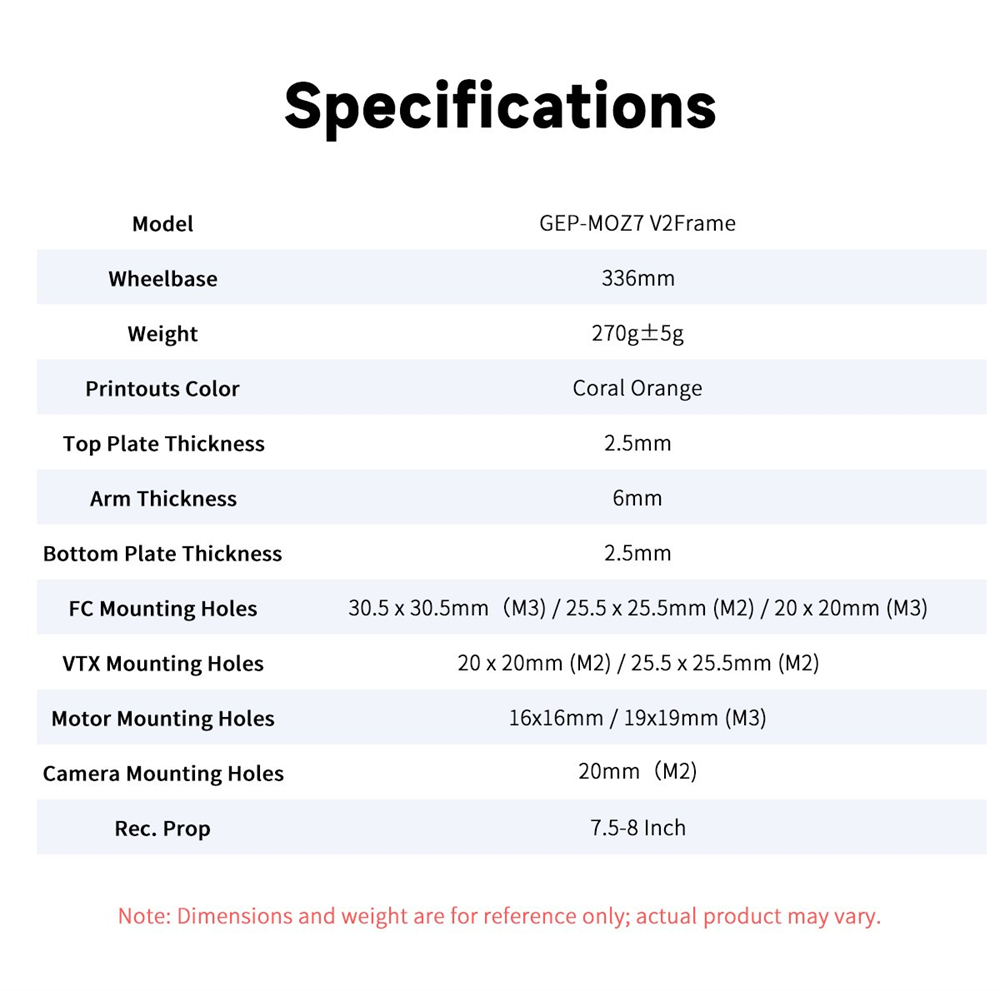

Specification:
Brand: GEPRC
Model: MOZ7 V2

Item Name: 7.5 Inch Frame Kit for O4 Pro

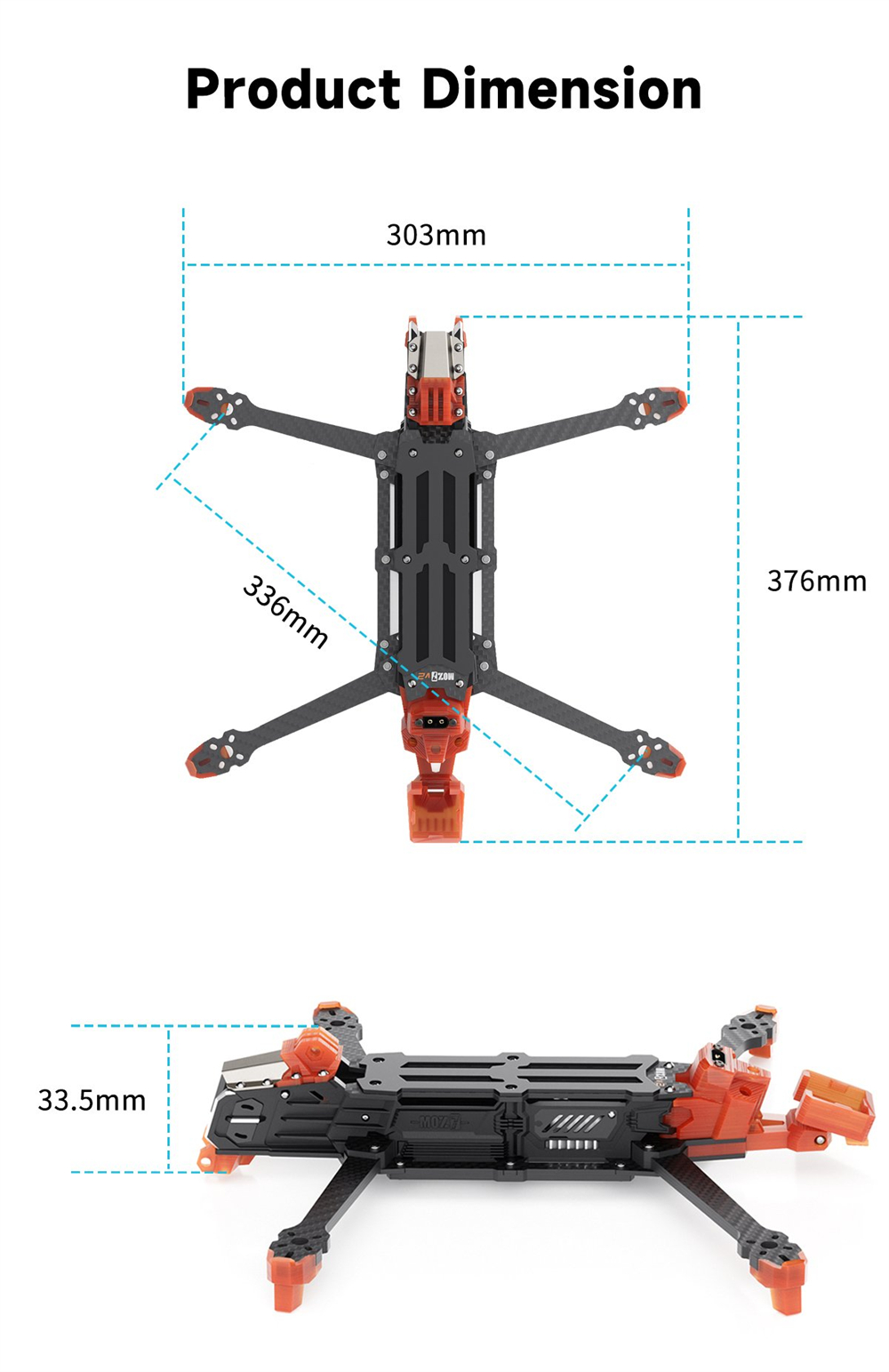

Dimension: 376mm × 303mm × 35.5mm

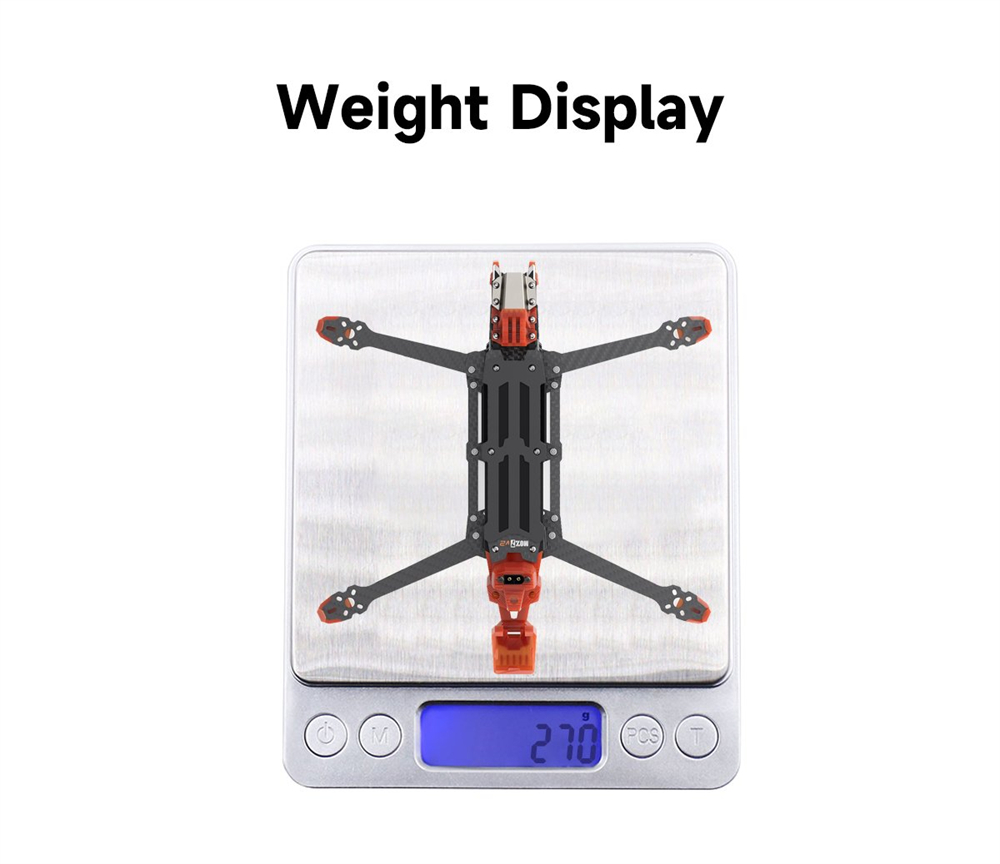

Weight: 270g ± 5g
Wheelbase: 336mm
Top Plate Thickness: 2.5mm
Bottom Plate Thickness: 2.5mm
Arm Thickness: 6mm
Clamp Plate Thickness: 3mm
FC Mounting Holes: 30.5×30.5mm（M3) , 25.5×25.5mm (M2) , 20x20mm (M3)
VTX Mounting Holes: 25.5×25.5mm（M2），20x20mm（M2）
Motor Mounting Holes: 16x16mm / 19x19mm (M3)
Lens Mounting Holes: 20mm (M2)

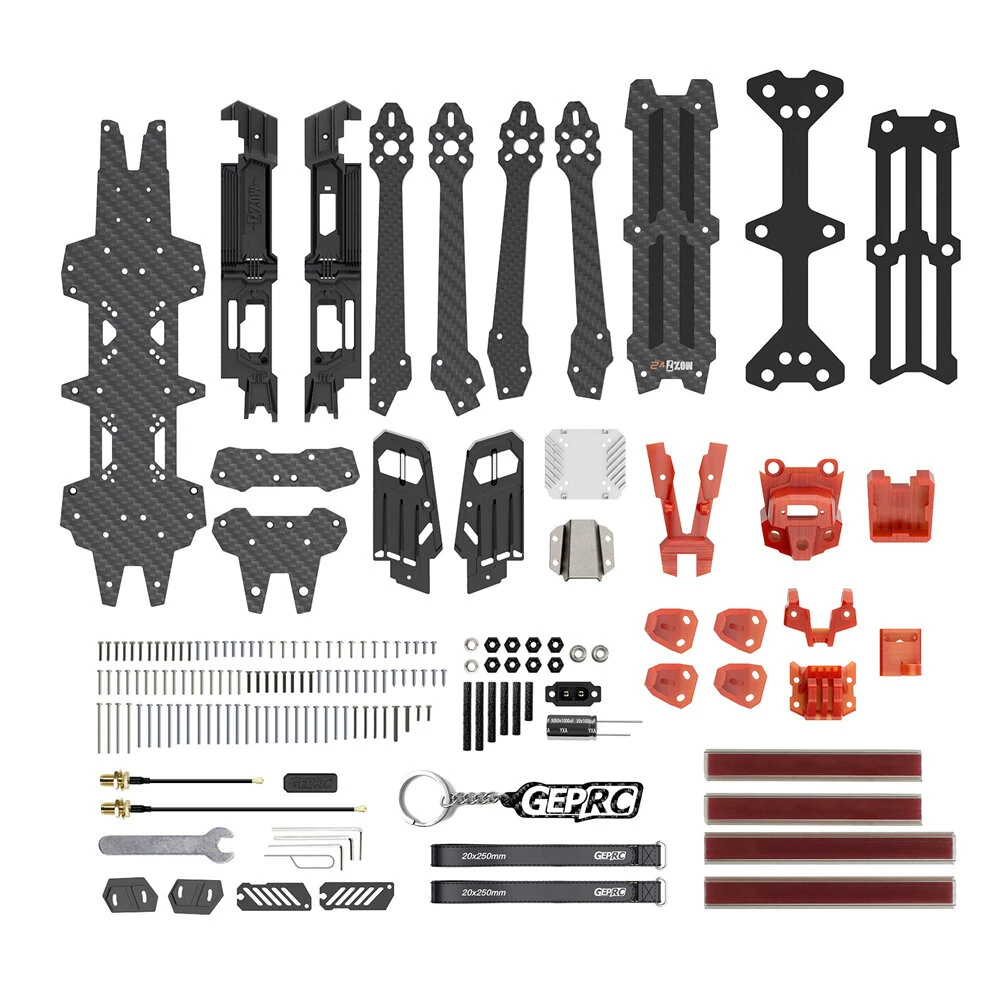

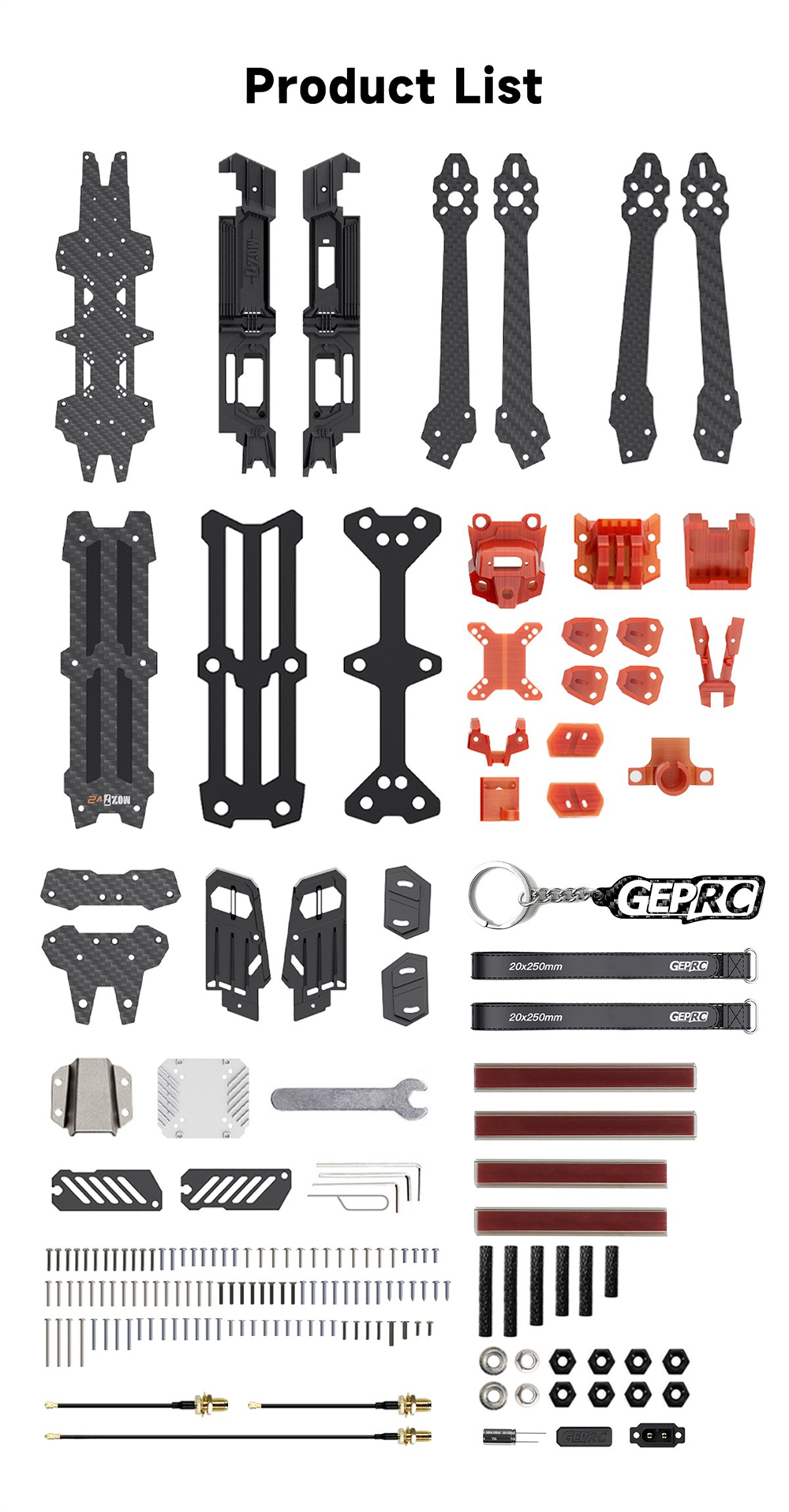

Package Included:
1 x GEP-MOZ7 V2 Frame Kit
2 x M20*300mm battery straps
1 x Upper battery anti-slip pad
1 x Lower battery anti-slip pad
1 x Printed parts pack
1 x 1.5mm L-shaped screwdriver
2 x 2mm L-shaped screwdrivers
1 x 3mm L-shaped screwdriver
1 x M8 wrench
1 x Screw pack
