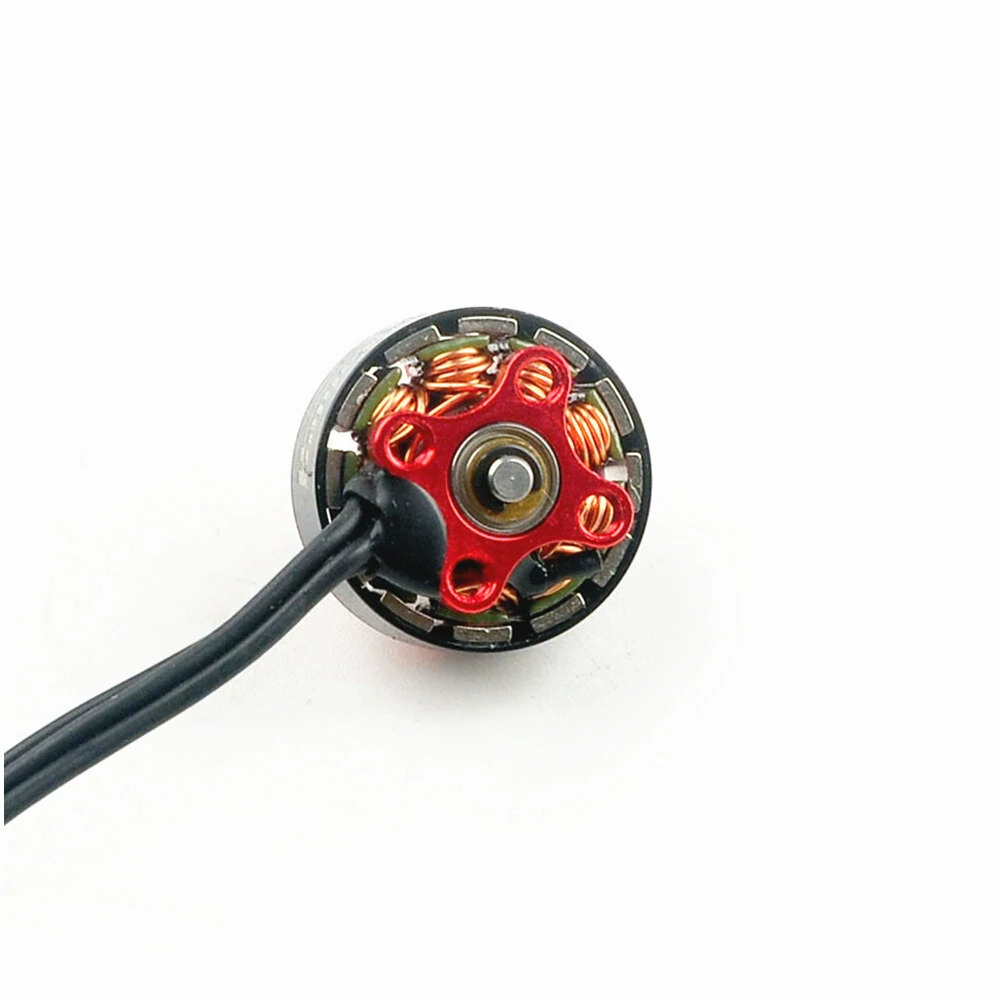

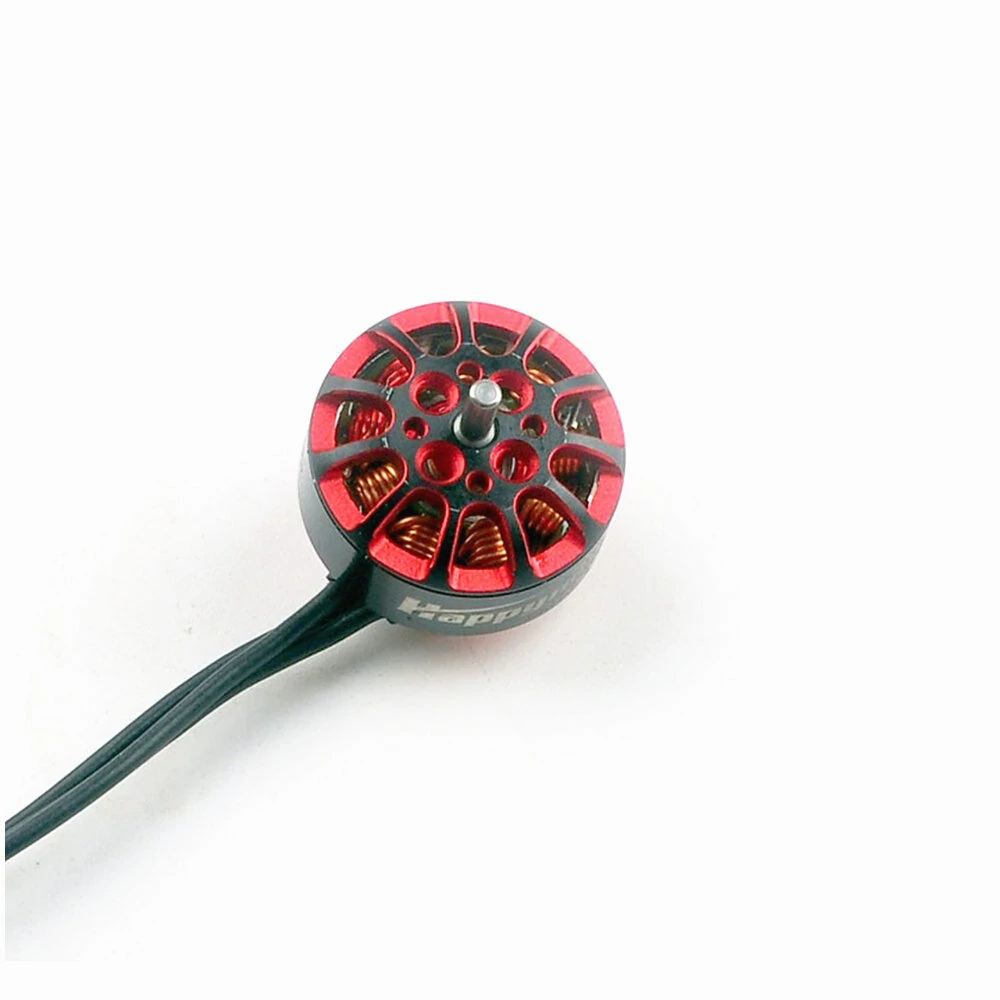

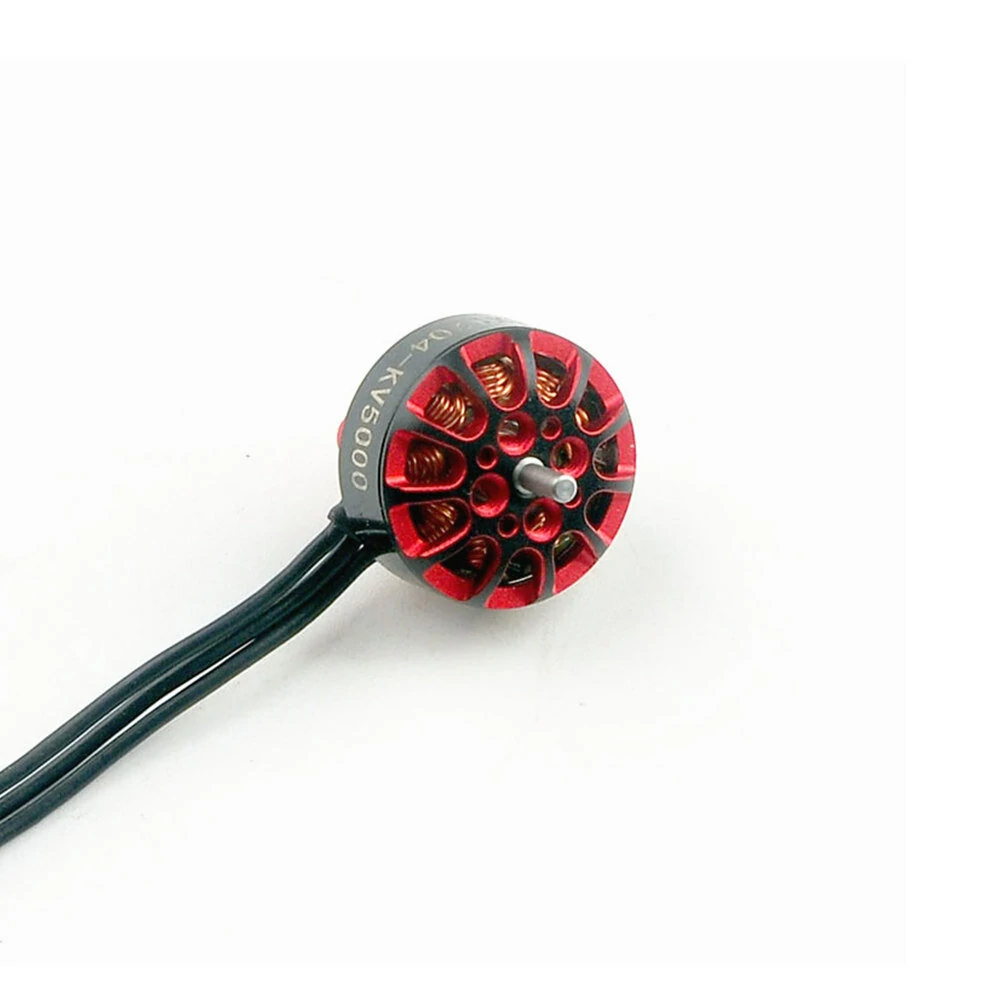

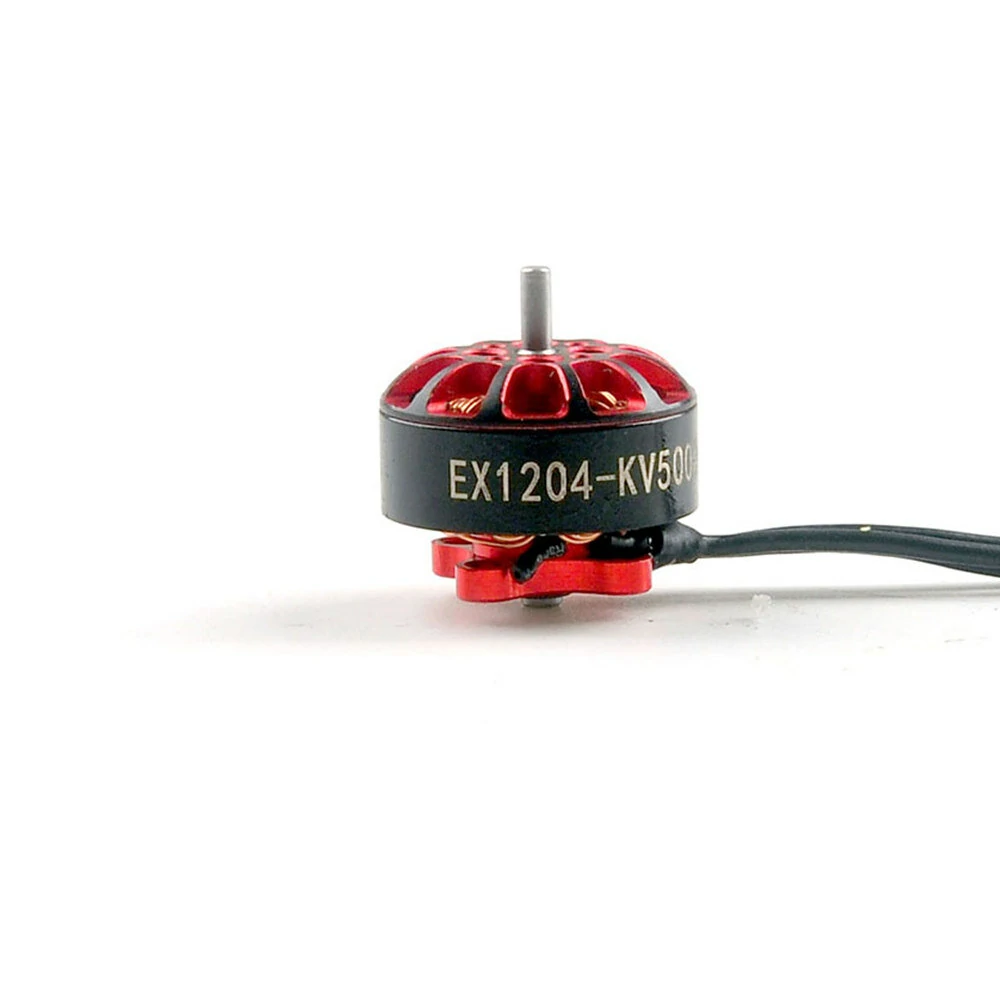

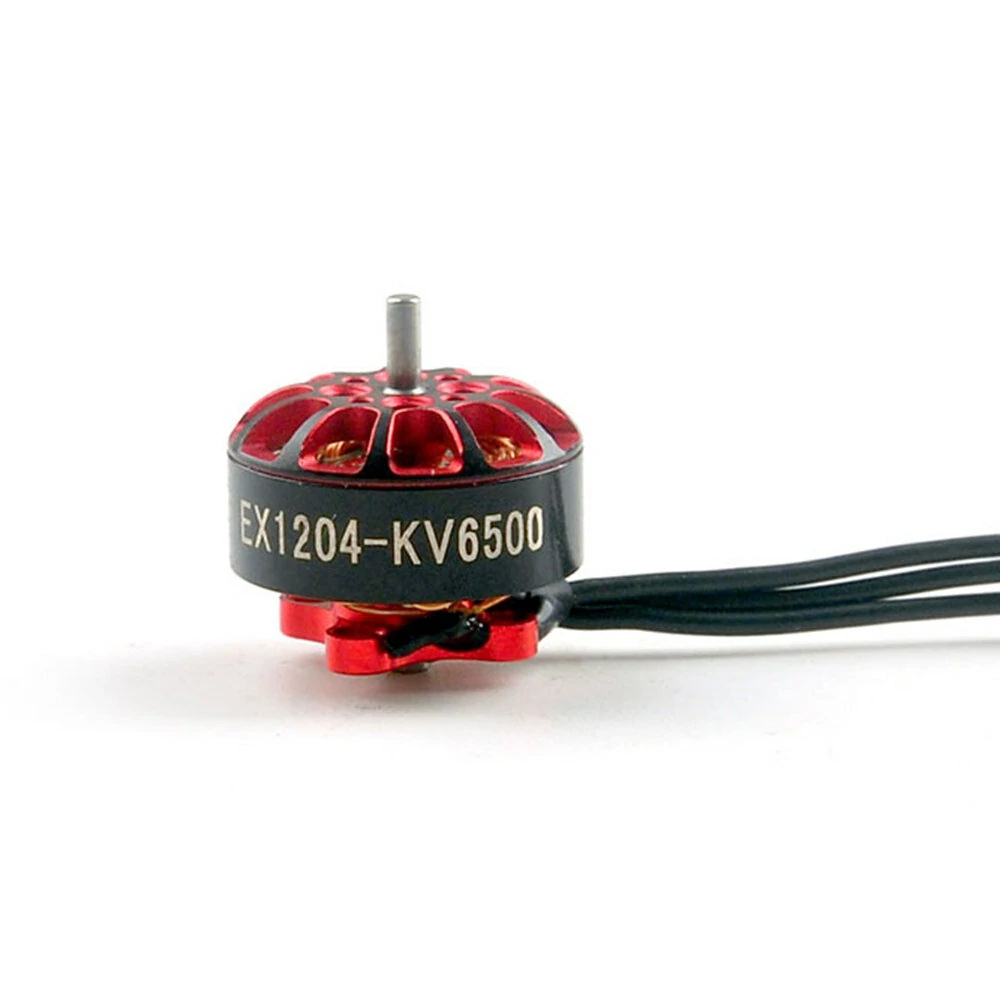

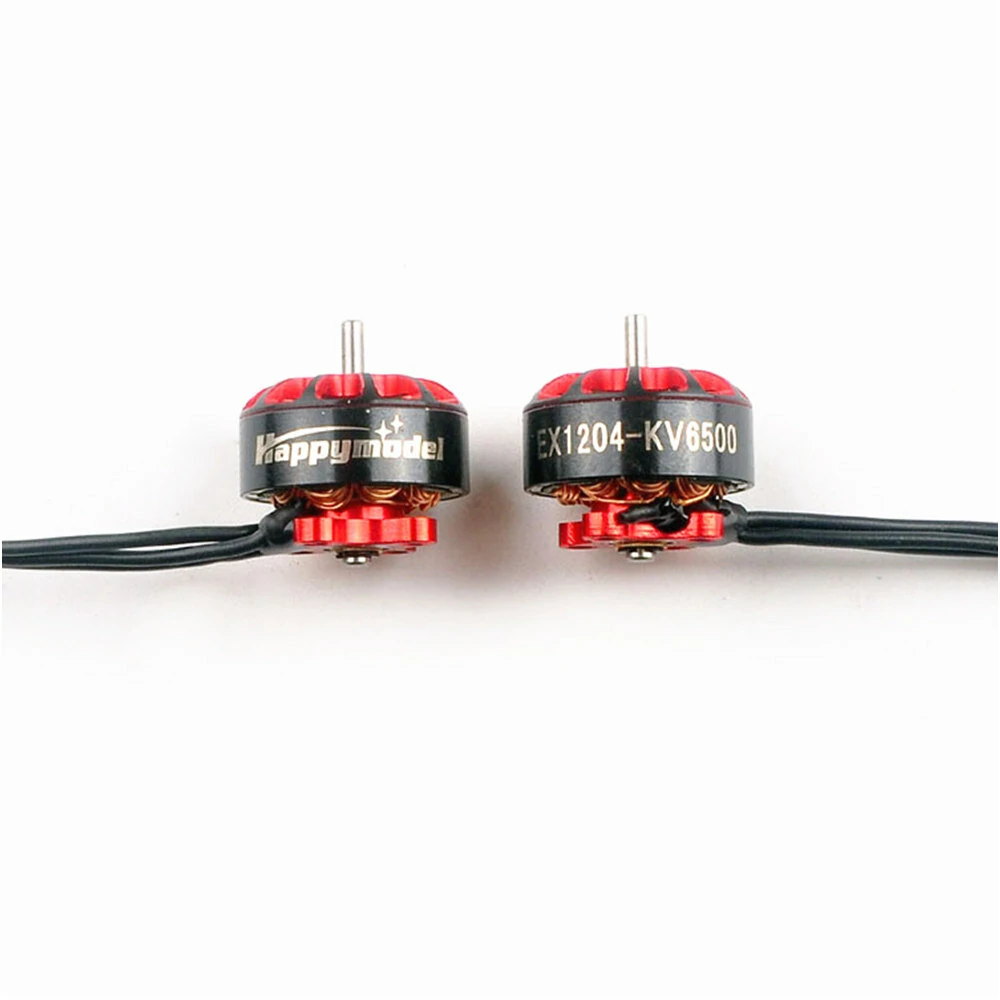

Happymodel EX1204 1204 5000KV 2-4S / 6500KV 2-3S Brushless Motor w/ 60mm Wire & Connector for 3 Inch Micro RC Drone FPV Racing

Specification:

Brand Name: Happymodel

Model: EX1204

Item Name: 1204 5000KV 2-4S / 6500KV 2-3S Brushless Motor

Input Voltage: 2-4S@5000KV; 2-3S@6500KV

KV: 5000KV / 6500KV ( Optional)

Model: CW / CCW ( Optional)

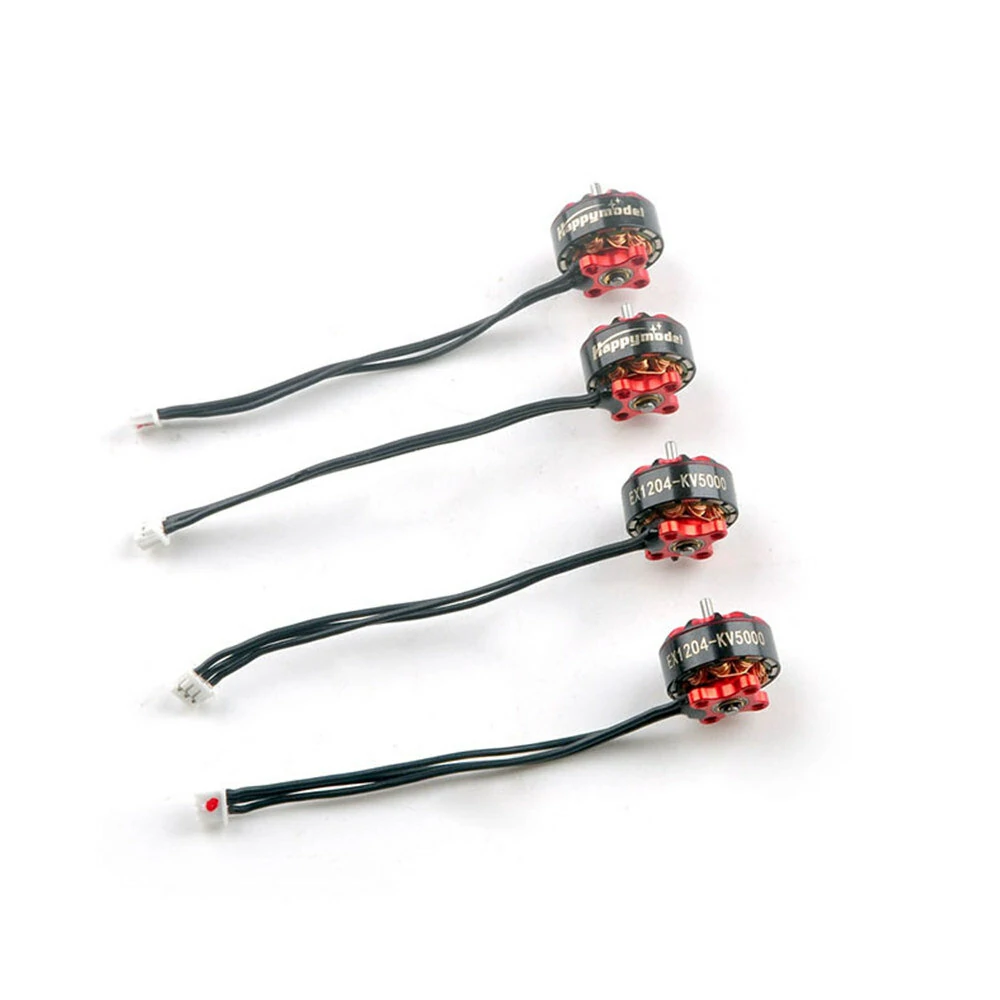

CW Version: Black Wire With Red Point Remard on the Plug Connector,

would spin rotation in CW while using w/ Crazybee Series Flight Controller.

CCW Version: Black Wire WITHOUT Red Point Remard on the Plug Connector,

would spin rotation in CCW while using w/ Crazybee Series Flight Controller.

Quantity: 1 PC

Configu-ration: 9N12P

Stator D
Stator L
Inner Shaft Diameter: Φ2mm
Outer Shaft Diameter: Φ1.5mm

Cable L

Plug Connector: JST1.25mm 3pin
Motor Dimension: Φ15×16.2mm (Dia.xLen)

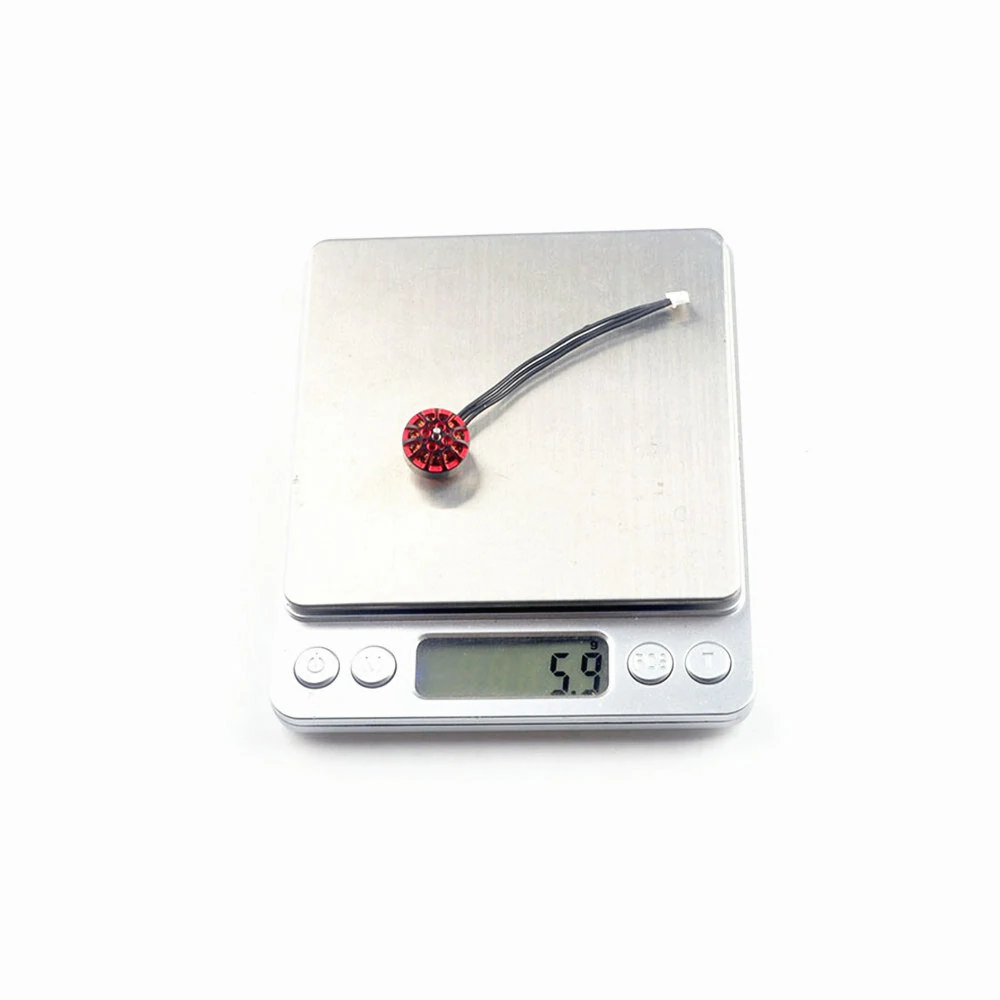

Weight:5.9g

Pacakge Included:

1x Happymodel EX1204 Motor
