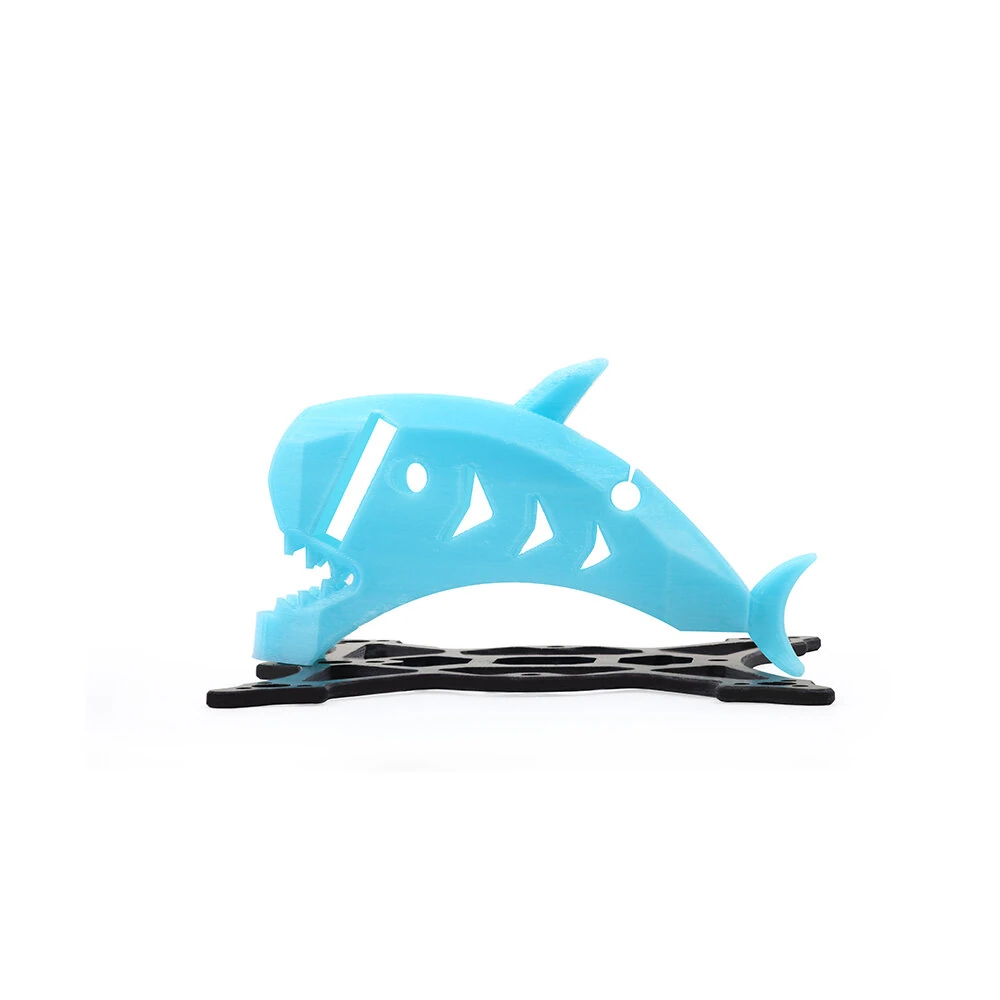

HGLRC Drashark 75mm Wheelbase 1.6 Inch Frame Kit for FPV Racing Drone

Notice:1. It is Empty Frame Kit, not include FC,ESC, Motor, Propeller, VTX, Camera, Battery, etc.2. It Comes unassembled. Need build by buyers.

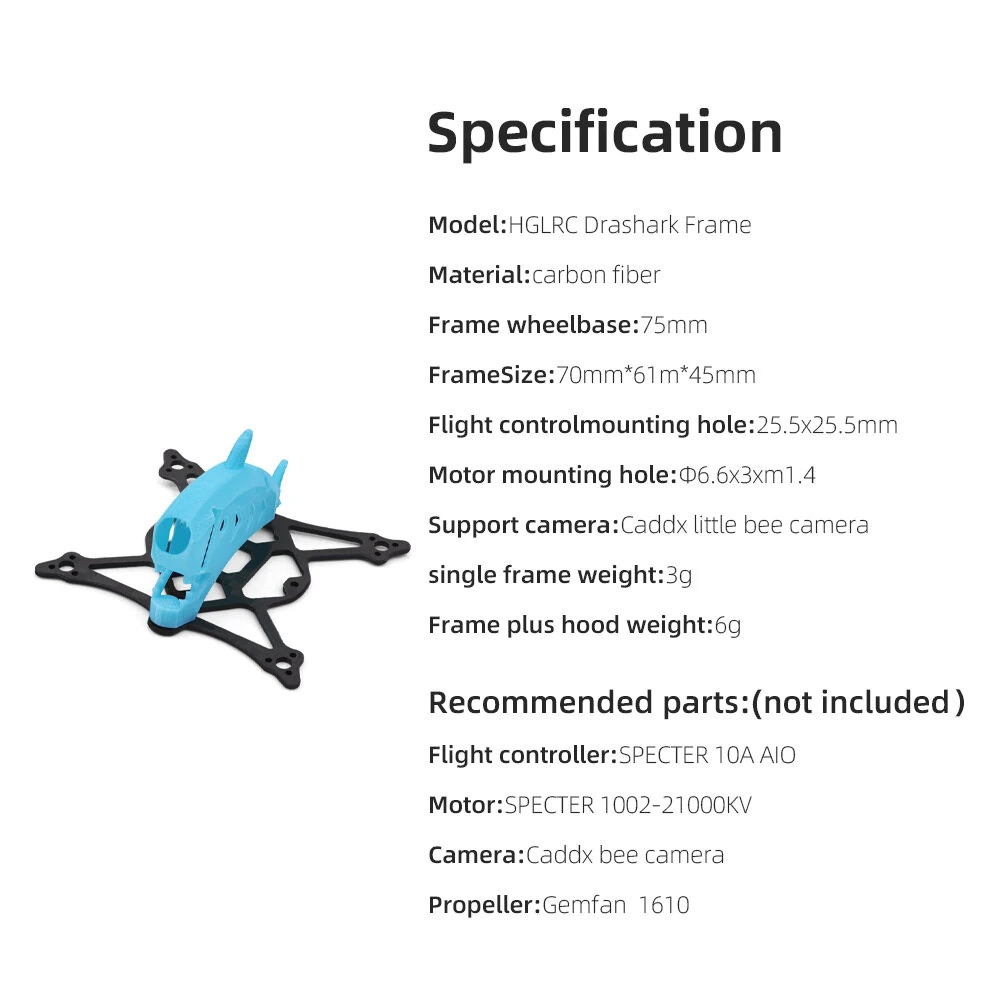

Specifications:
Brand: HGLRC
Model: Drashark Frame
Material: Carbon Fiber
Frame W
Frame S*61m*45mm
Flight Control Mounting Hole: 25.5×25.5mm

VTX Mounting H x 25.5mm
Motor Mounting Hole: Φ06.6 x (3 x M1.4)

Support Camera: Caddx Little Bee Camera

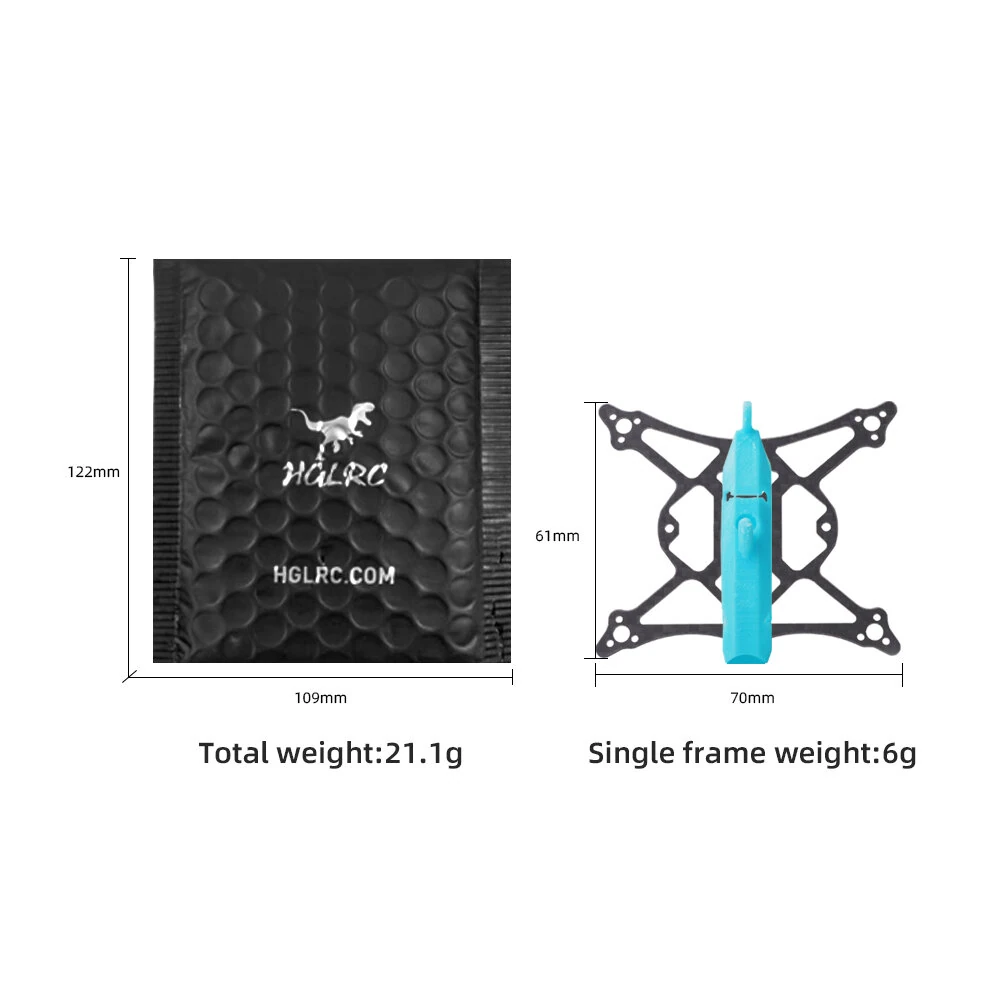

Single Frame Weight: 3g
Frame Plus Hood Weight: 6g

Features:
1. Suitable for HGLRC Drashark drone accessories
2. The frame supports SPECTER 1002 motor mounting holes.
3. The frame-fixed battery can be fixed with printed parts.

Recommended Parts: (Not Included)
Flight Controller: 25.5×25.5mm HGLRC SPECTER 15A ELRS AIO Flight Controller
Motor: HGLRC SPECTER 1002 21000KV 1S Brushless Motor
Camera: Caddx Ant Lite 1/3” CMOS 1.8mm 1200TVL
Propeller: 4 Pairs Gemfan 40mm 1610 1.6×1.0 1.6 Inch 2-Blade Propeller

VXT: iFlight BLITZ 4.9G PIT/25mW/400mW/1000mW/2500mW High Power VXT

Lipo Battery: 6PCS GAONENG GNB LiHV 1S 3.8V 660mAh 90C LiPo Battery

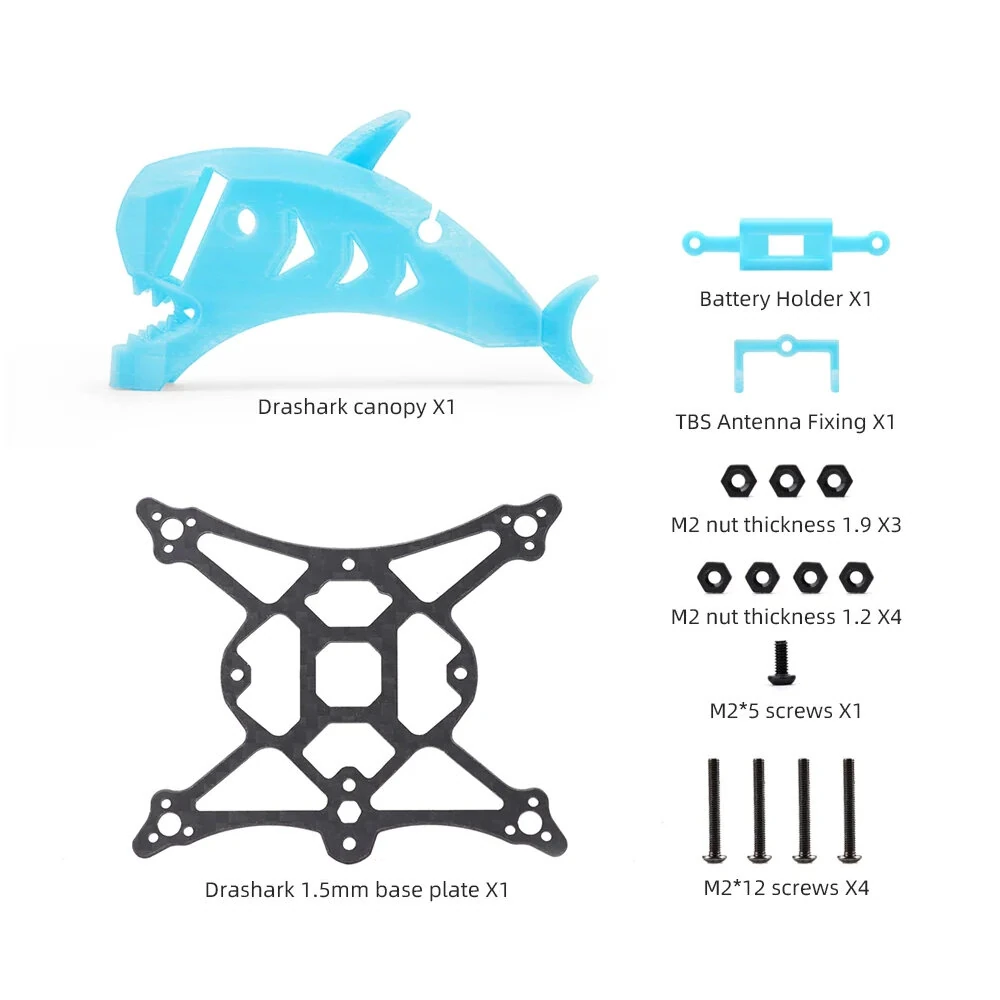

Package Includes:

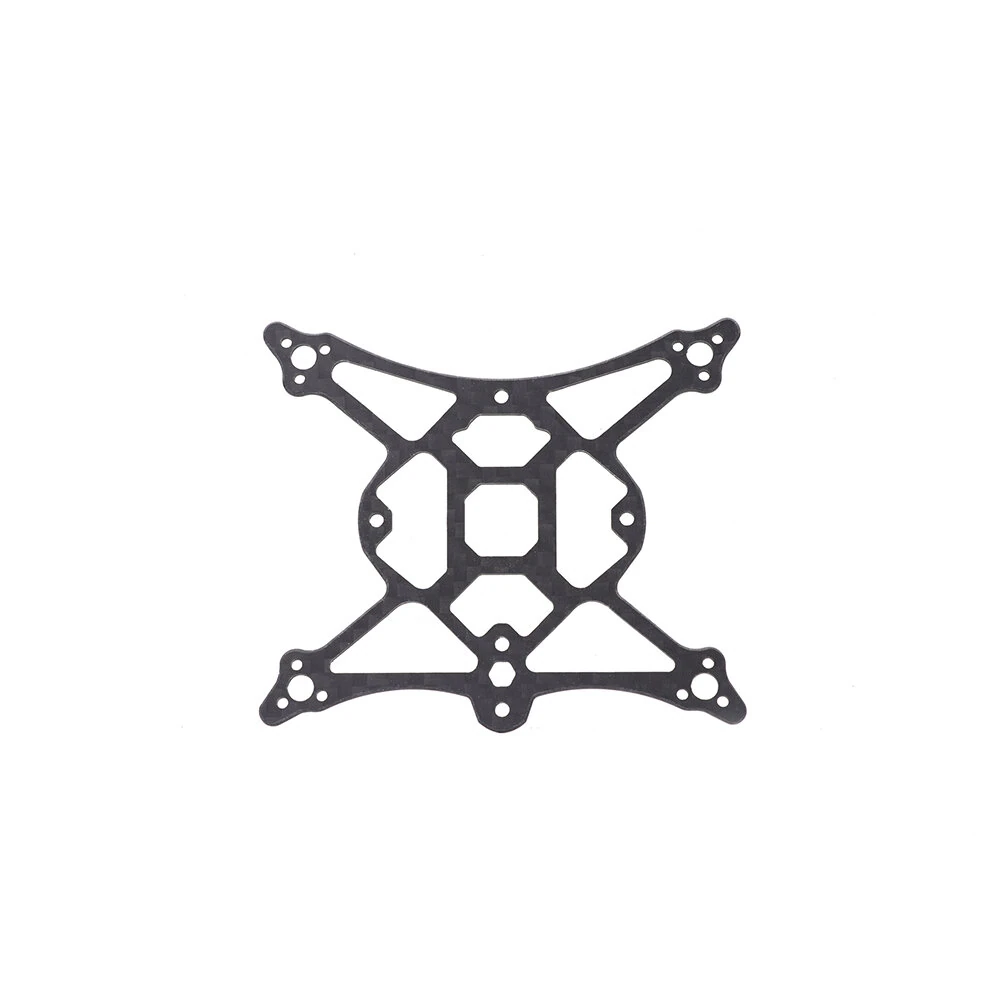

1x Drashark 1.5mm Base Plate

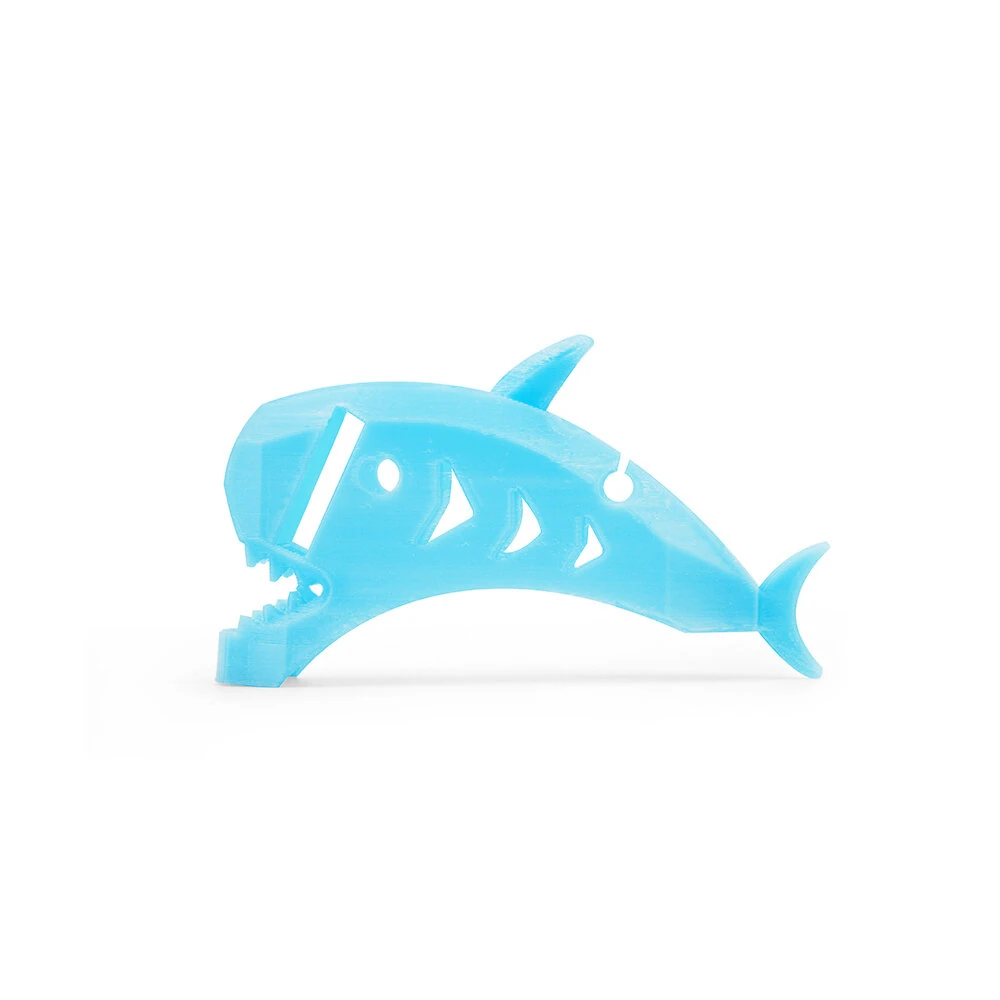

1x Drashark Tpu Canopy
1x Drashark Tpu Battery Compartment V2
1x Drashark Tbs Antenna Fixing Piece Tpu
3x M2*1.9 Nylon Nut
4x M2*1.2 Nylon Nut
1x M2*5 Half Round Head Hexagonal M2*5 Black Nickel Plated Screw
4x Semi-Round Head Hexagonal M2*12 Black Nickel Plated Screws
