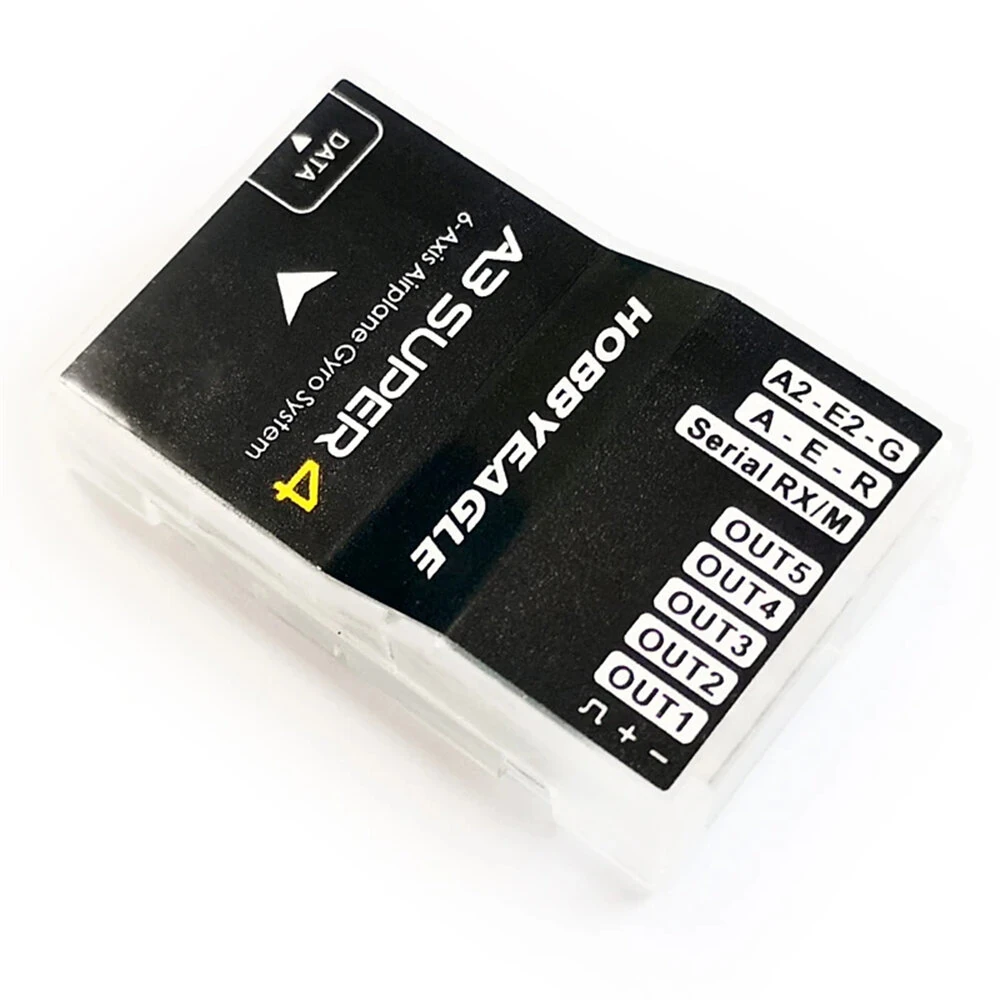

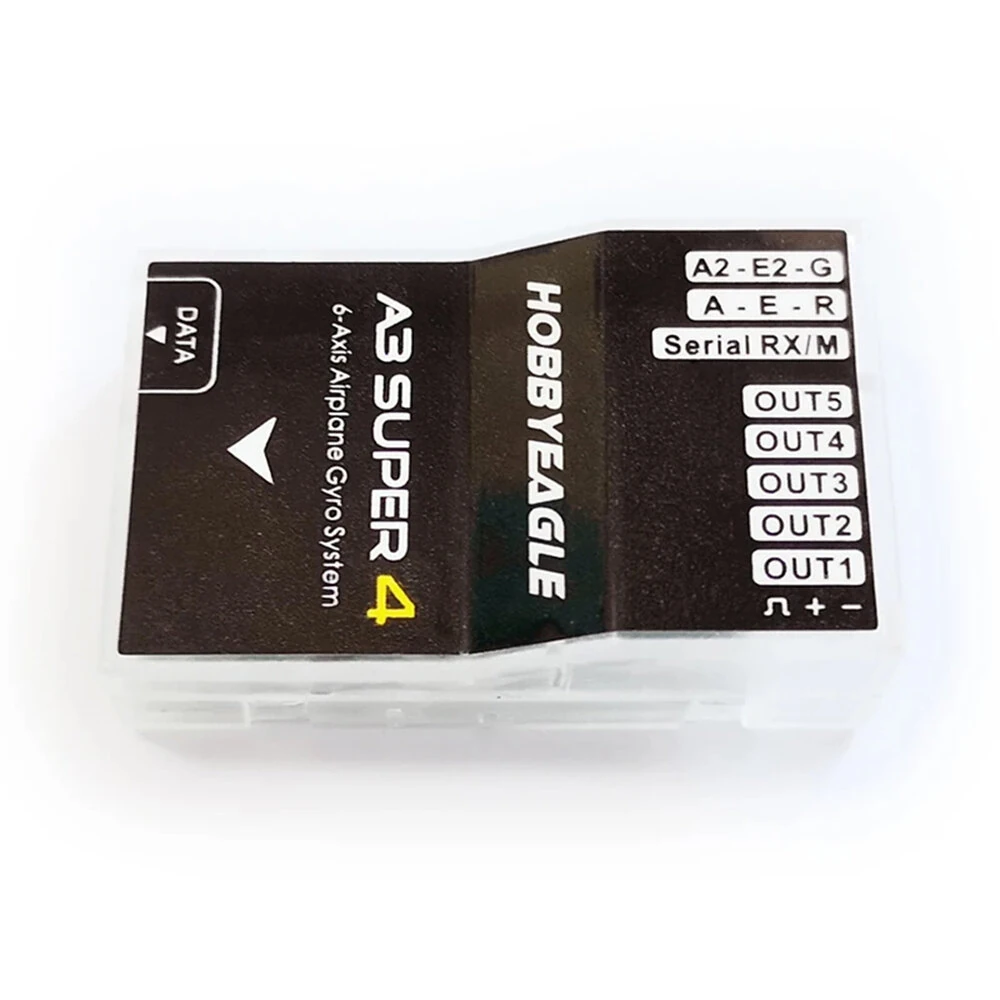

HobbyEagle A3 Super 4 Flight Controller 6-axis Gyro & Stabilization Balancer for RC Airplane Fixed-Wing

Description:

The A3 Super 4 it is a high-performance and powerful 6-axis gyroscope and balancer specially designed for fixed-wing aircraft models. On the basis of the previous generation, the hardware design is further improved, and the full support for multi-protocol digital serial receivers and the addition of customizable output interfaces make it more user-friendly and more reliable in use.

Specifications:

Brand: HobbyEagle

Model: A3 Super 4

Item Name: Fixed-wing flight control

Material: ABS

Color: Black

Main Controller: 32-bit MCU

Sensor: High-precision 6-axis MEMS Sensor

Input Voltage: DC3.6V ~ 8.4V

Working current: 20mA@5V

Weight: 4.8g (Excluding Wires)

Size: 30*19.5*7.5mm

Serial Receiver Protocols Supported:

PPM Receiver

for Futaba SBus (compatible with FrSky SBus, JETI SBus, RadioLink SBus, TBS SBus and WFLY WBus)

Spektrum DSM2/X 1024 Receiver

Spektrum DSM2/X 2048 Receiver

Spektrum SRXL

Multiplex SRXL / JR XBUS Mode B

Graupner SUMD

FlySky iBus

JETI EXBus

TBS/ELRS CRSF

Feature:

*32-bit processor, high-precision 6-axis MEMS sensor, Perfect hardware design and stable firmware for more reliable performance.

*6 flight modes and 6-stage mode switching, including gyro off mode, normal stabilization mode, lock mode, angle mode, balance mode and hoist mode.

*Full support for PWM, PPM and multi-protocol digital serial receivers.

*Flexibly configurable output interface, providing 2 pass-through output channels.

*Dual ailerons, dual elevator systems, built-in flying wing (delta wing) and V-tail mixing.

*Remote overall gain adjustment.

*Firmware can be upgraded, support setting card parameter adjustment.

User Manual, Click Here

Spektrum DSM2/X Adapter Manual, Click Here

Software & Driver, Click Here

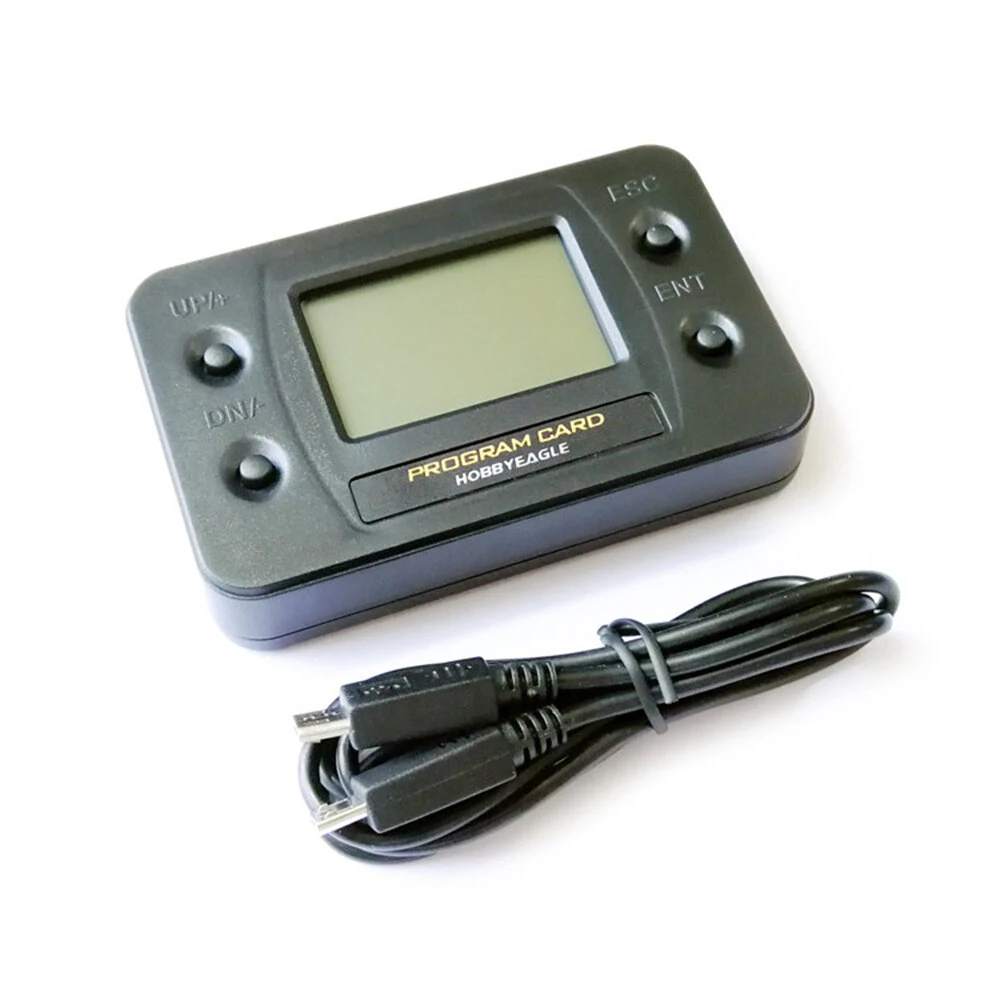

Only Program Card Version Included:

1 x Program Card

1 x Data Cable

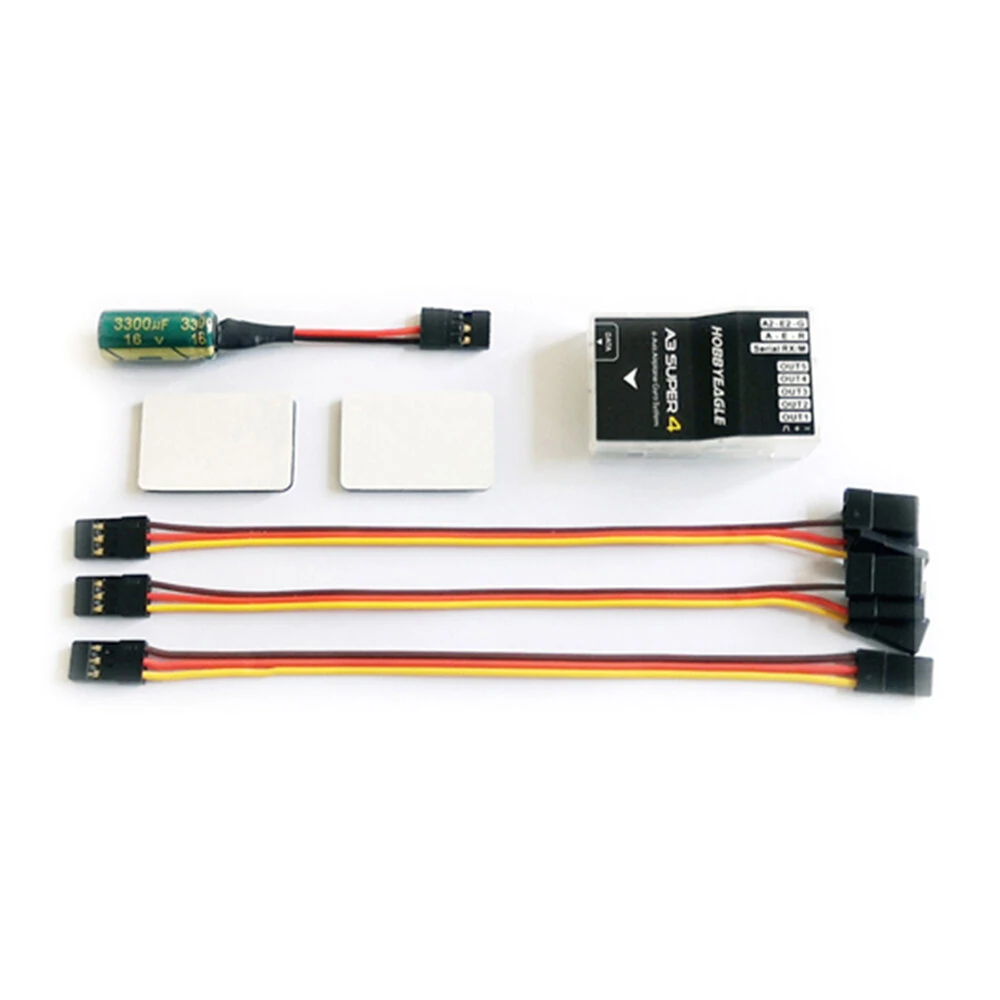

Lite Edition Included:

1 x A3 Super 4 Flight Controller

3 x Receiver Cable

2 x Double-sided Tapes

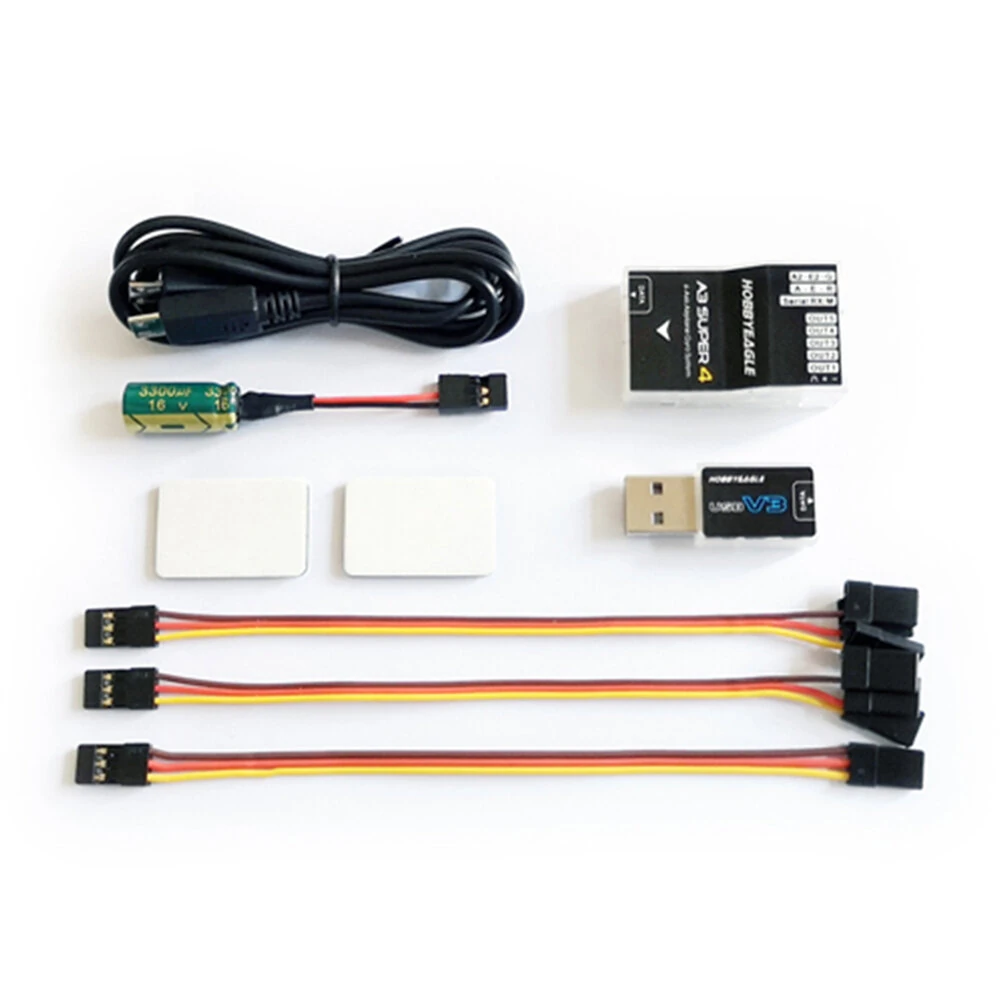

Standard Edition Included:

1 x A3 Super 4 Flight Controller

1 x Capacitor

3 x Receiver Cable

1 x Data Cable

1 x USB Adapter

2 x Double-sided Tapes

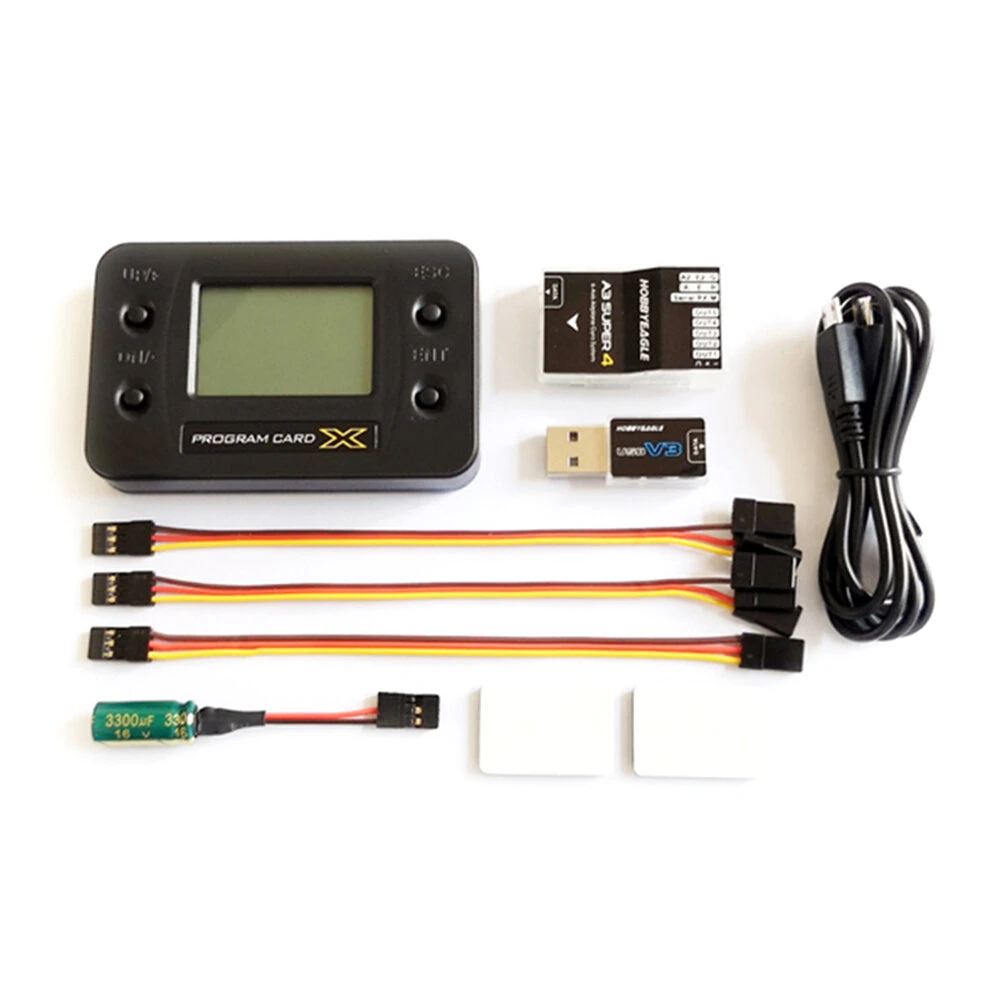

Full Set w/ Program Card Edition Included:

1 x A3 Super 4 Flight Controller

1× Program Card

1× USB Adapter

3 x Receiver Cable

1 x Data Cable

1 x Capacitor

2 x Double-sided Tapes
