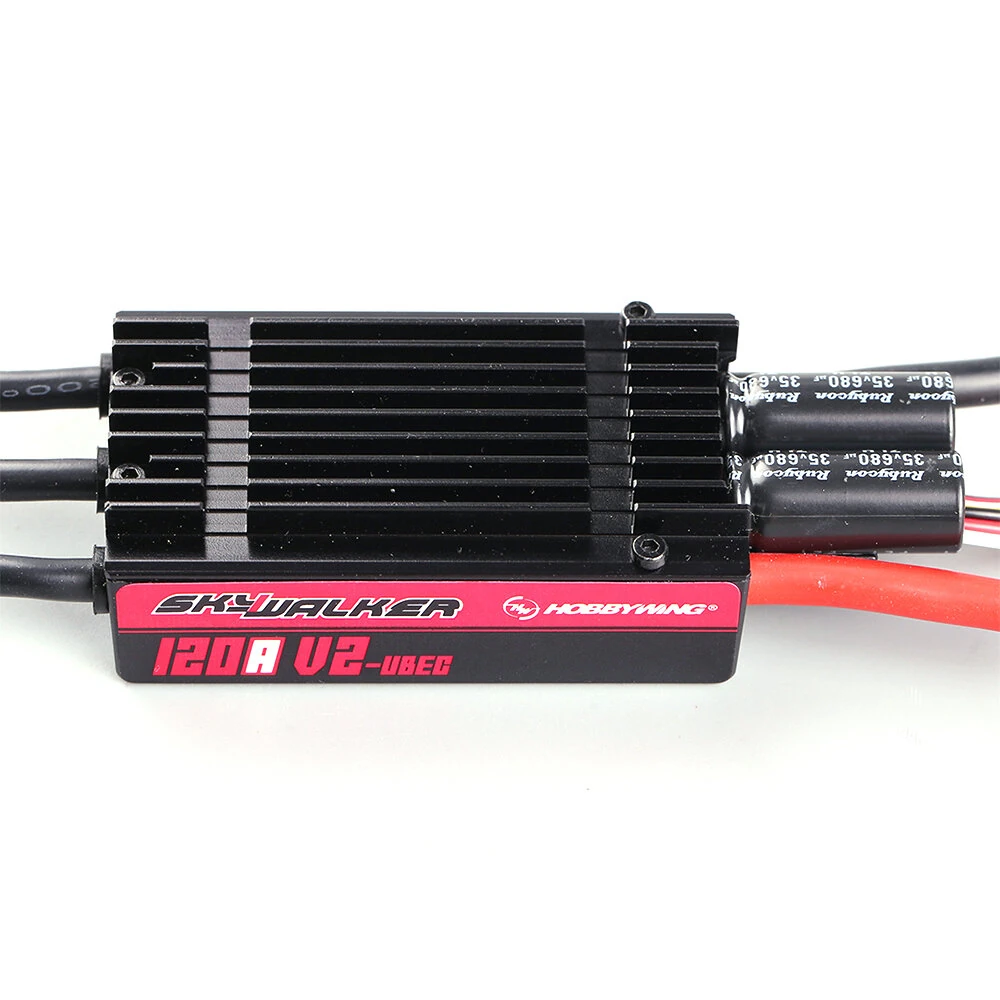

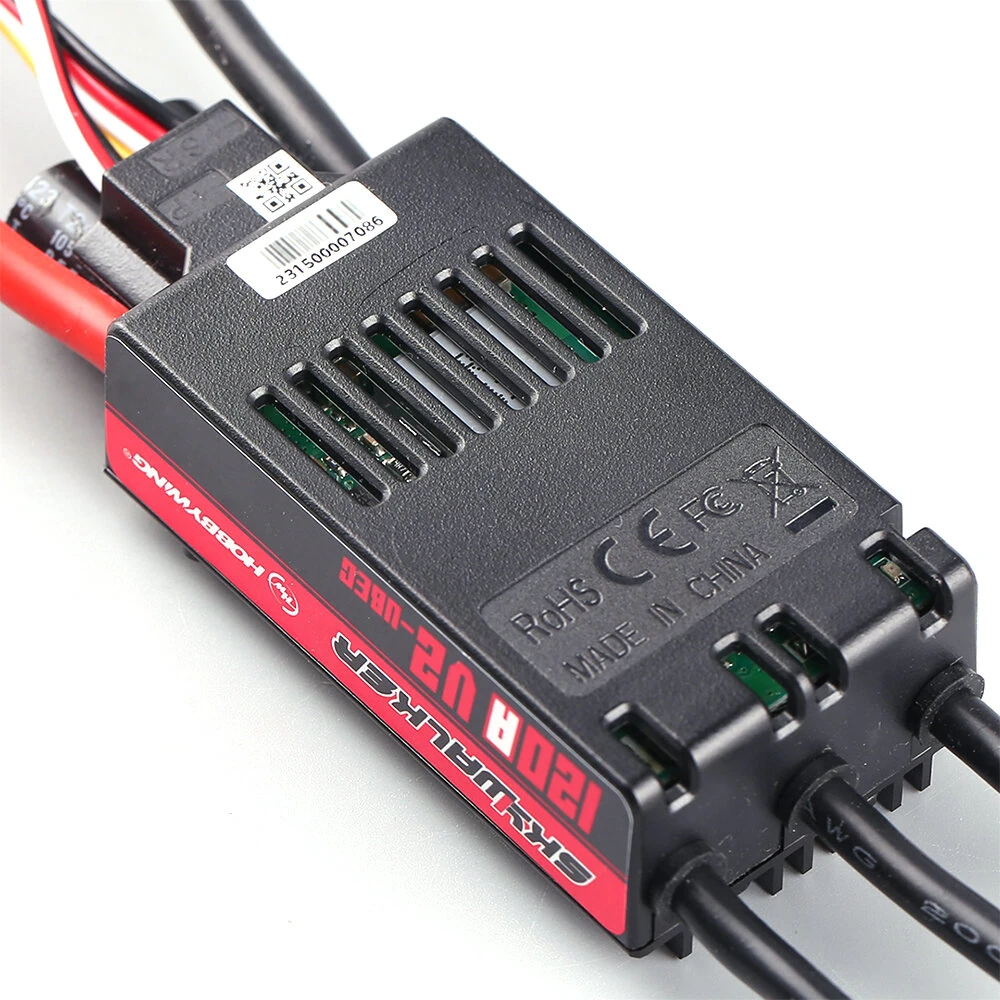

Hobbywing SkyWalker 120A V2 UBEC Brushless ESC With Reverse Brake 3-8S For RC Airplane Fixed Wing

Specifications:

Brand Name: Hobbywing

Product Name: Skywalker 120A V2

Product Number: 30205450

Brushed/Brushless: BL

High Voltage/Regular: Regular

Cont./Peak Current: 120A/150A

Input: 3-8S LiPo

BEC Output: Switch Mode:5V/6V/7.4V/8.4V,10A/30A

Input Wires: Red-10AWG-150MMx1, Black-10AWG-150MMx1

Output Wires: Black-12AWG-100MMx3

Input Connectors: NO

Output Connecotors: 4.0 Gold Connectors (Female)

Transmitter: Supported

LED Program Card: Not Supported

LED Program Box: Supported

LCD Program Box: Not Supported

WiFi Module: Not Supported

OTA Programmer: Not Supported

Program Port: Program Wire Firmware

Firmware Upgrade: Not Supported

Size: 83x35x22mm

Weight: 117g

Features:

– Brushless ESC provides efficient and reliable performance for fixed wing aircrafts.

– It offers a wide range of programmable settings, allowing users to customize the ESC to their specific needs.

– Fast and smooth throttle response, better stability and flexibility during flight.

– With Reverse Brake and Linear Reverse Brakes mode enabled can effectively shorten the landing distanceof the aircraft to simulate the landing of a real aircraft.

– Multiple protection features include abnormal input voltage, ESC thermal, throttle signal loss (or Fail Safe), and low voltage cutoff effectively prolongs the life of the ESC.

English Manual, Click Here

Package Included:

1x HobbyWing SkyWalker 120A-V2-UBEC Brushless ESC
