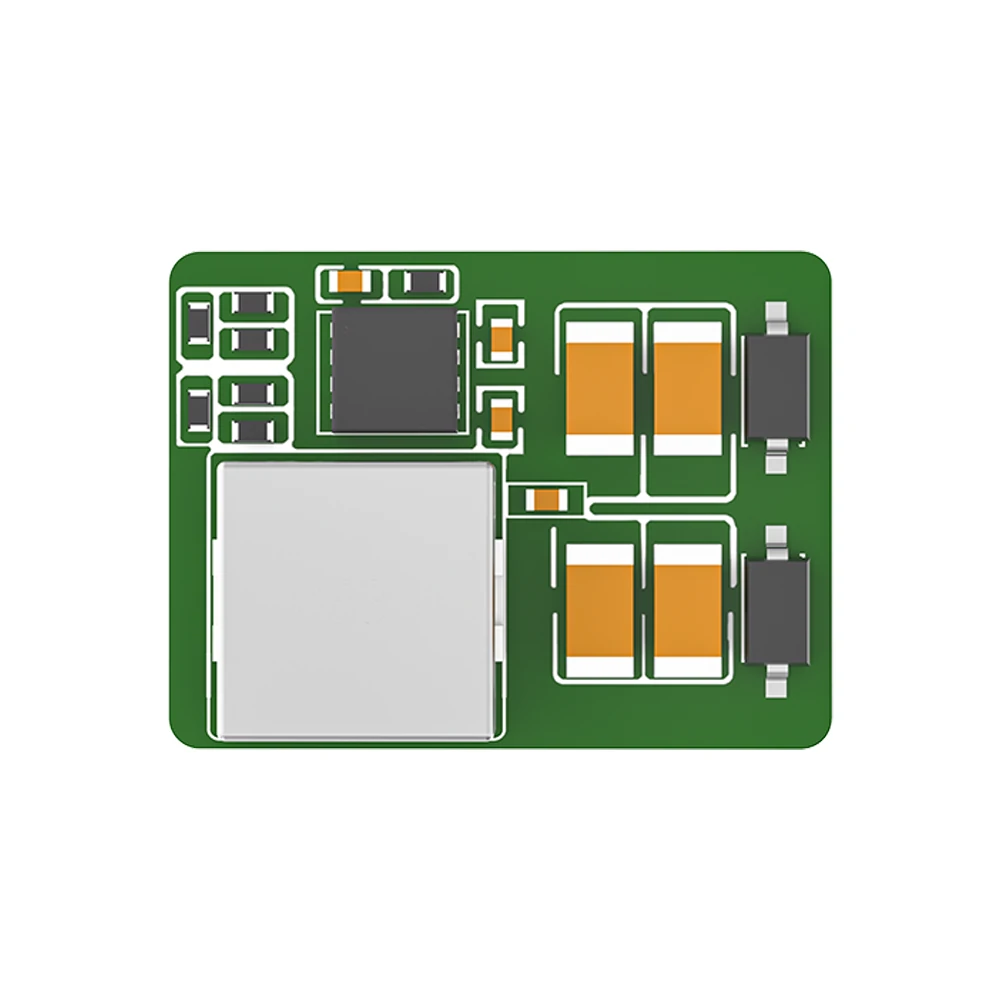

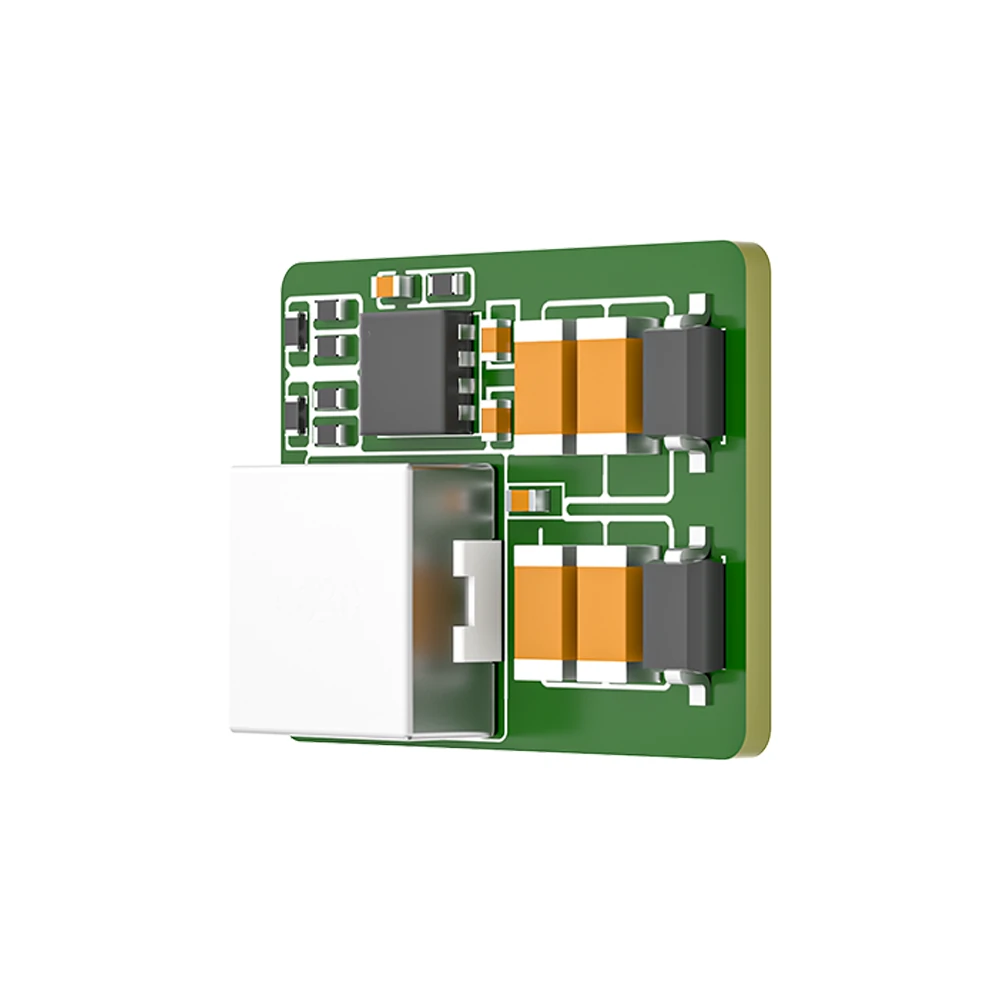

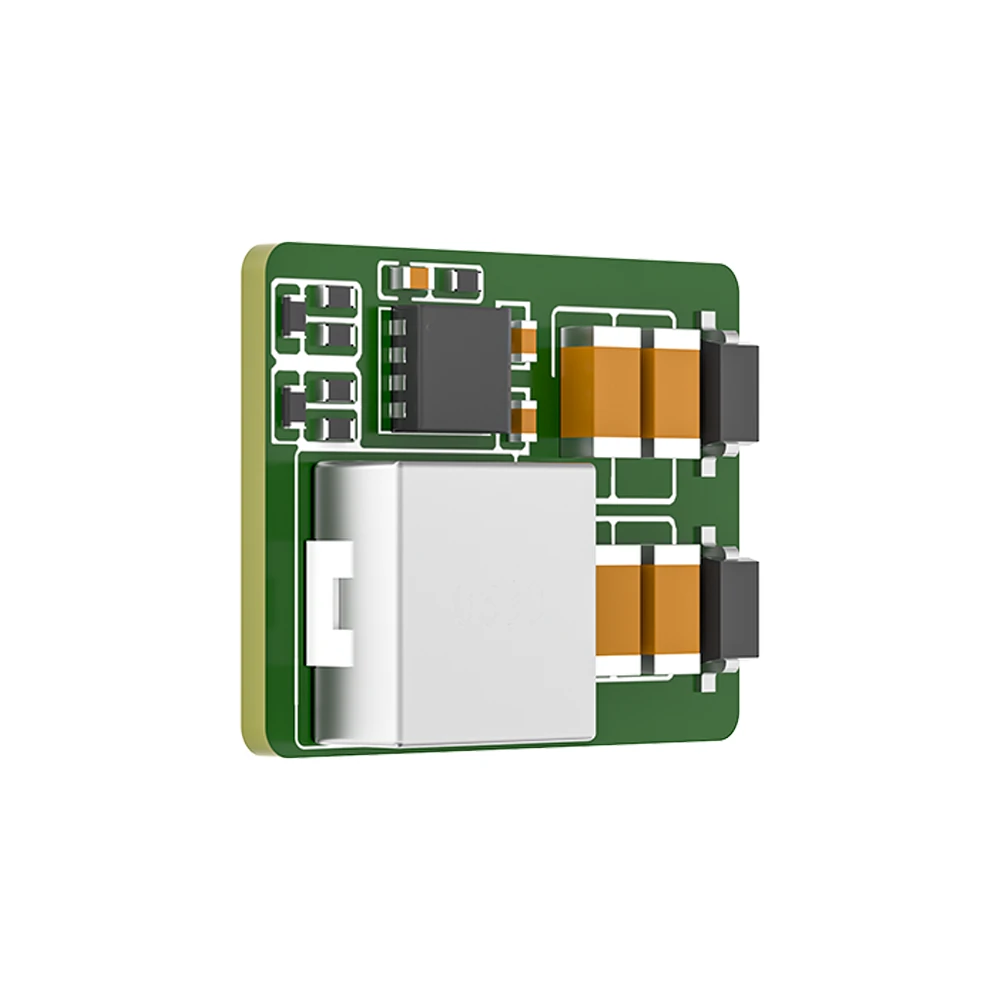

iFlight BLITZ V1.1 5V 2A 12V 3A 2-6S BEC Power Module for RC Drone FPV Racing Drone

Description:
The BLITZ ESC features step-down switch mode, high-efficiency synchronous rectification, and the ability to step down from an input voltage of up to 26V to a low output stable voltage, which makes it ideal for step-down voltage applications.

It offers a very compact solution to achieve 2A/3A output current over a wide input supply voltage (6 to 26V).

Features:
– Step-down switch mode
– High-efficiency synchronous
– Wide 6V to 26V Input voltage range
– The voltage output can be 5V or 12V adjustable. (default 5V)

Note:
If there is sparking phenomenon when the power is turned on, it is recommended that the input voltage should not exceed 26V.

Specification:
Brand: iFlight
Model: BLITZ BEC Module V1.1

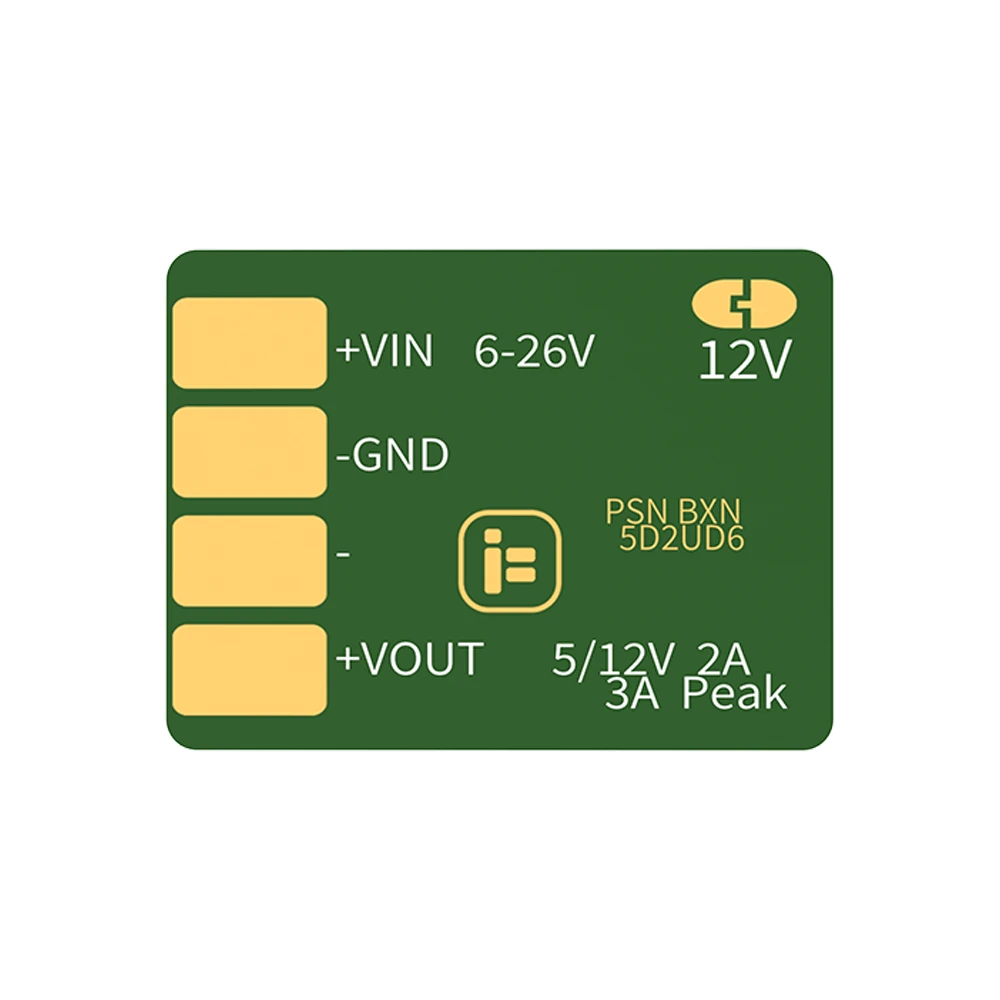

Input voltage: 6-26V
Output voltage/current: 5V or 12V. Average 2A / Peak 3A
Conversion efficiency: the average efficiency of output 12V is above 92%, and the average efficiency of output 5V is above 88%.
Size: 16*12*4.5mm
Pins distance: 2.55mm
Weight: 1.8g±0.1g

Package Included:
1 x iFlightBLITZ BEC V1.1
1 x Connecting Cables
