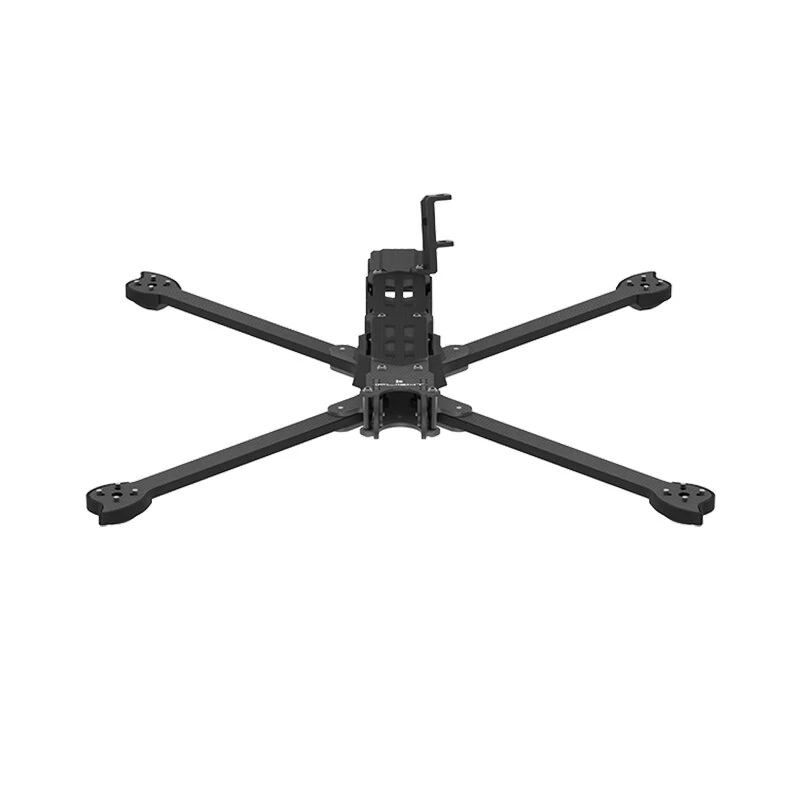

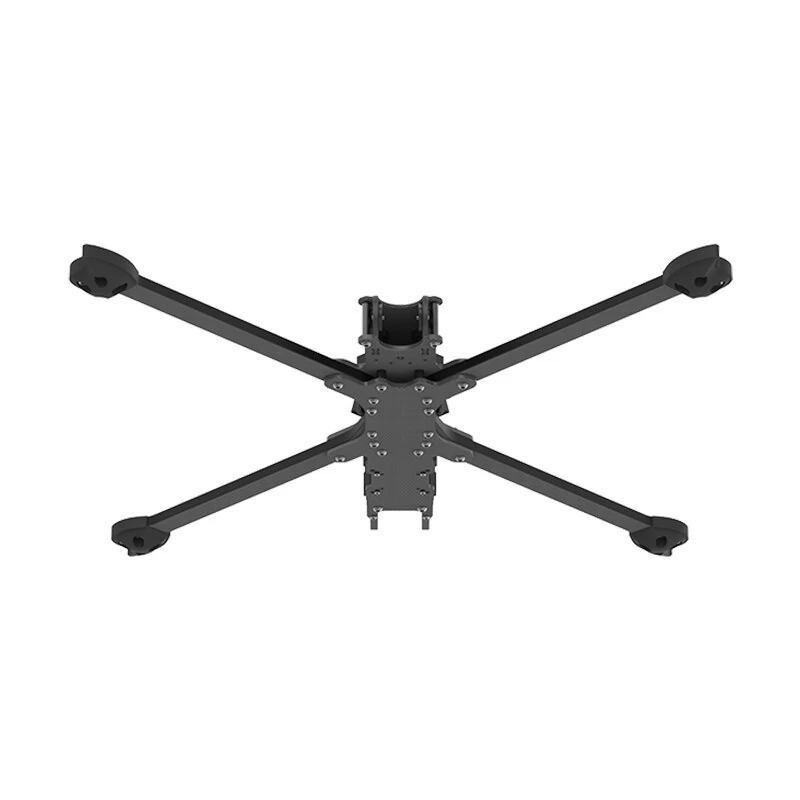

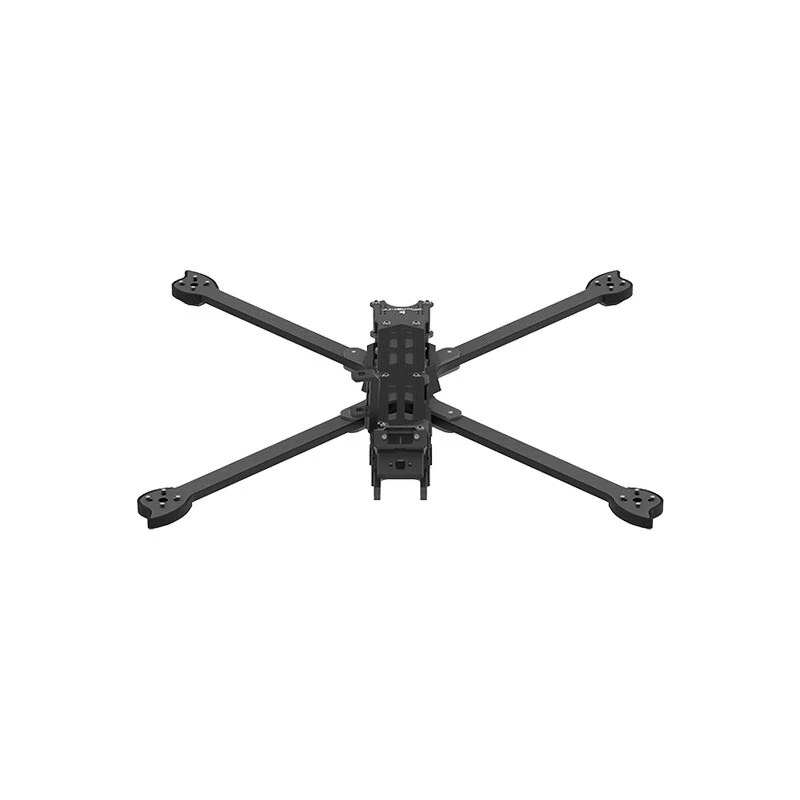

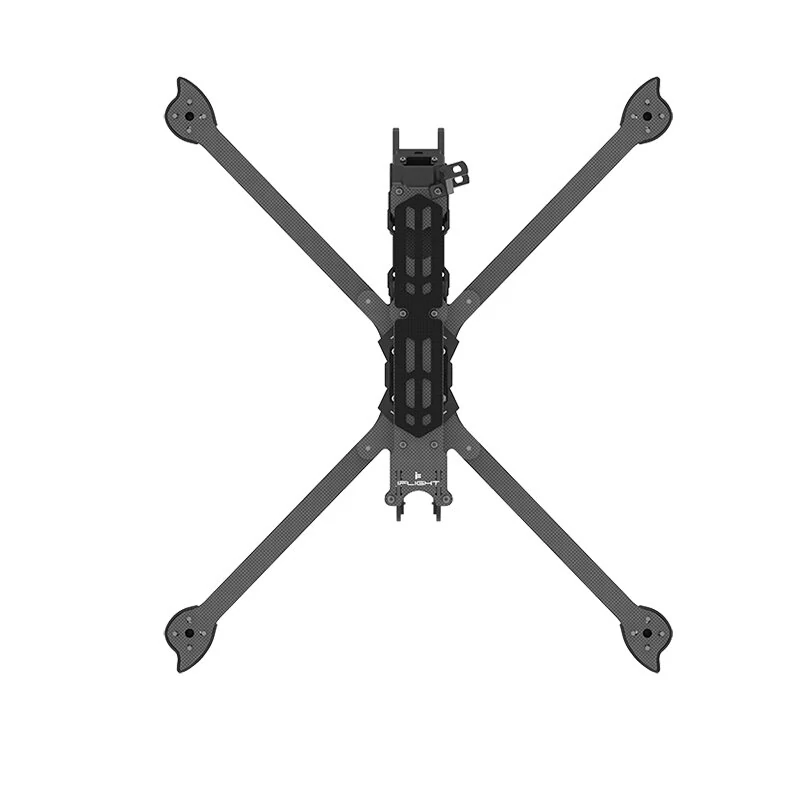

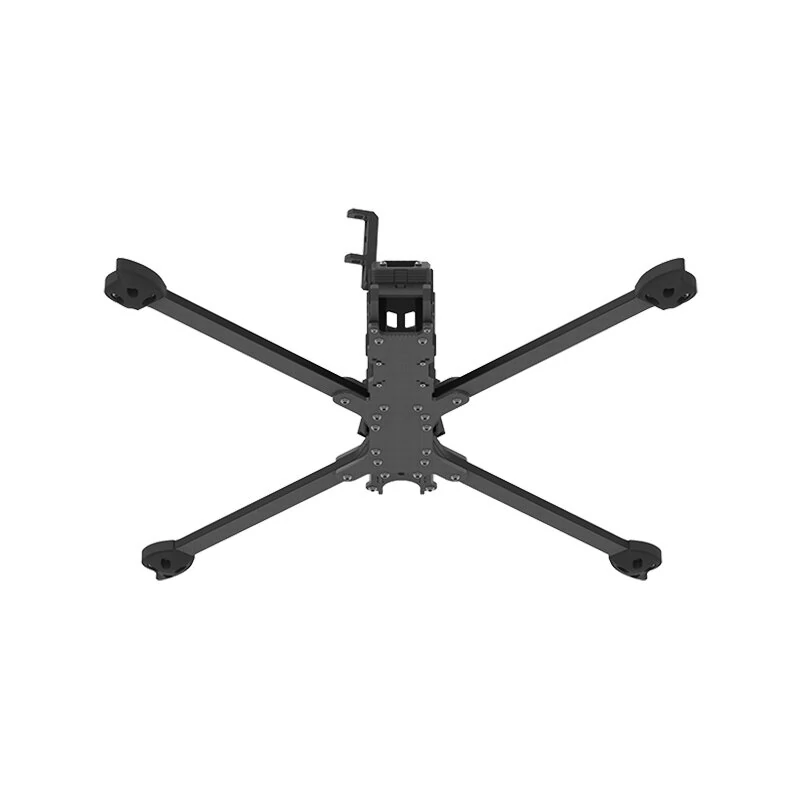

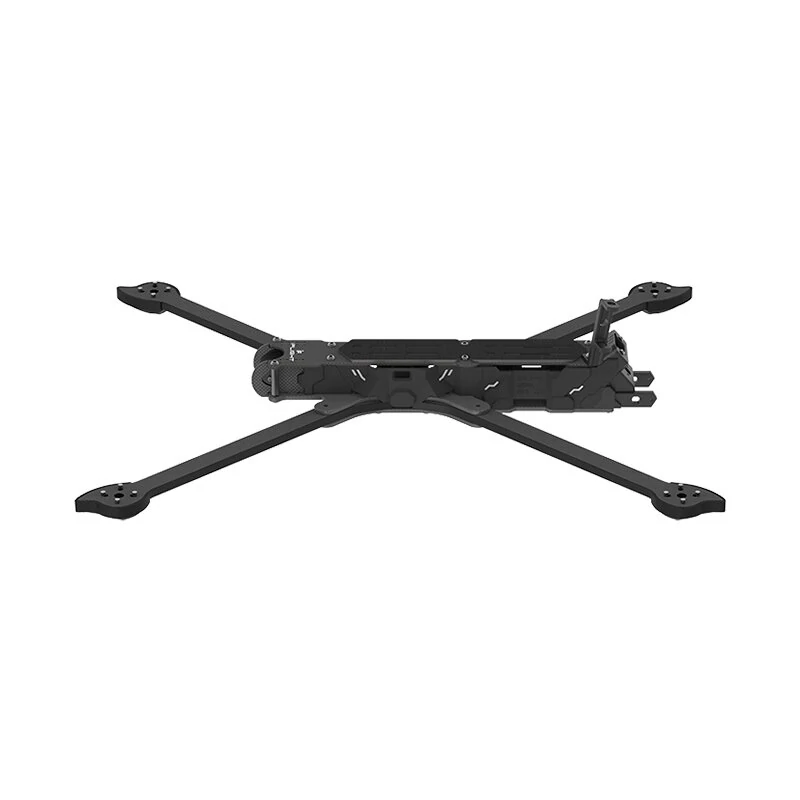

iFlight Chimera CX10 ECO 10 Inch 452mm Wheelbase Long Range Frame Kit for DIY RC Drone FPV Racing

Description:
It’s proud to announce the release of the CX10 ECo Frames, CX10 is a 10′ size quadcopter, fit for the DJI O3 Air Unit system and Caddx Digital FPV system on it.

Specifications:
Brand: iFlight

Model: Chimera CX10 ECO
Product Name:452mm Wheelbase 10 inch Frame Kit
Wheelbase: 452mm
Frame Dimension: L338*W299*H34mm
Arm Thickness: 6mm
Bottom Plate Thickness: 3mm
Top Plate Thickness: 2mm
Upper Plate Thickness: 3mm
Maximum Flight Stack Height: 21mm
Max VTX Height: 30mm
Flight Stack Mounting: 30.5*30.5mm φ3mm
VTX Mounting：20*20 Φ2mm/ 25.5*25.5 Φ1.6mm/ 30.5*30.5 Φ3mm
Motor Mounting：16x16mm/19x19mm Φ3mm
Weight: 383g

Recommend Parts: ( NOT Included)

FC & ESC: 30.5×30.5mm iFlight BLITZ ATF435 FC & E55S 55A BL_S 4IN1 ESC Stack

Brushless Motor: iFlight XING-E 3110 900KV Brushless Motor

Propeller: HQProp MQ10x5x3 1050 10 Inch Carbon Nylon 3-Blade Propeller

Analog VTX: iFlight BLITZ 5.8GHz PIT/25mW/400mW/1000mW/2500mW MMCX VTX

Lipo Battery: iFlight Fullsend 22.2V 8000mAh 6S Li-ion Battery XT60 Plug

Packing Included:
1 x CX10 ECO Frame
1 x Screw Bag
1 x TPU Set
1 x Battery anti-slip mat
2 x Battery straps
4 x AMASS MR30 Plugs

NOTE:
The vertical antenna mount will be in the box when shipped and needs to be installed by the customer.
