iFlight ExpressLRS 2.4GHz/900MHz ELRS 100mW Dual-Band True Diversity RX Receiver with Dual Antenna Support Gemini / True Diversity / Gemini Xrossband for FPV RC Drones

iFlight ExpressLRS 2.4GHz/900MHz ELRS 100mW Dual-Band True Diversity RX Receiver with Dual Antenna Support Gemini / True Diversity / Gemini Xrossband for FPV RC Drones

Description:
The iFlight ELRS Receiver redefines reliability with its dualband technology, supporting 2.4GHz, 868MHz, and 900MHz frequencies. Featuring a temperature-compensated crystal oscillator (TCXO), it ensures stable performance in any environment. Choose between single or dual-antenna configurations for enhanced compatibility and signal strength. Perfect for long-range flights, aerial photography, and FPV freestyle, this receiver delivers unmatched precision and reliability for all your flying needs. Elevate your experience with iFlight.
Feature:
– Advanced Diversity Modes: Supports GemX, Gemini, and True Diversity RF modes for superior interference resistance and reception (Note: To use GemX, a high-frequency transmitter module that supports GemX mode is required).
– Shielded Design: Protects electronics and improves interference resistance.
– SH1.0 Connector: Ensures easy and reliable installation.
Specification:
Brand: iFlight
Model: ELRS 100mW Dual-band Diversity RX
MCU: ESP32-Pico D4
RF: LR1121
Receiver Type: GemX
Telemetry power: 100mW (20dBm)
LNA: N/A(868/900MHz) / YES (2.4G)
Dimension:24.3*18.5*6.5mm(±0.5）
Weight: 4.9g(±0.5g）
Lua Script: iF GemX 100mW RX
TCXO: Yes
Firmware Version: ELRS 3.5.3
Package included:

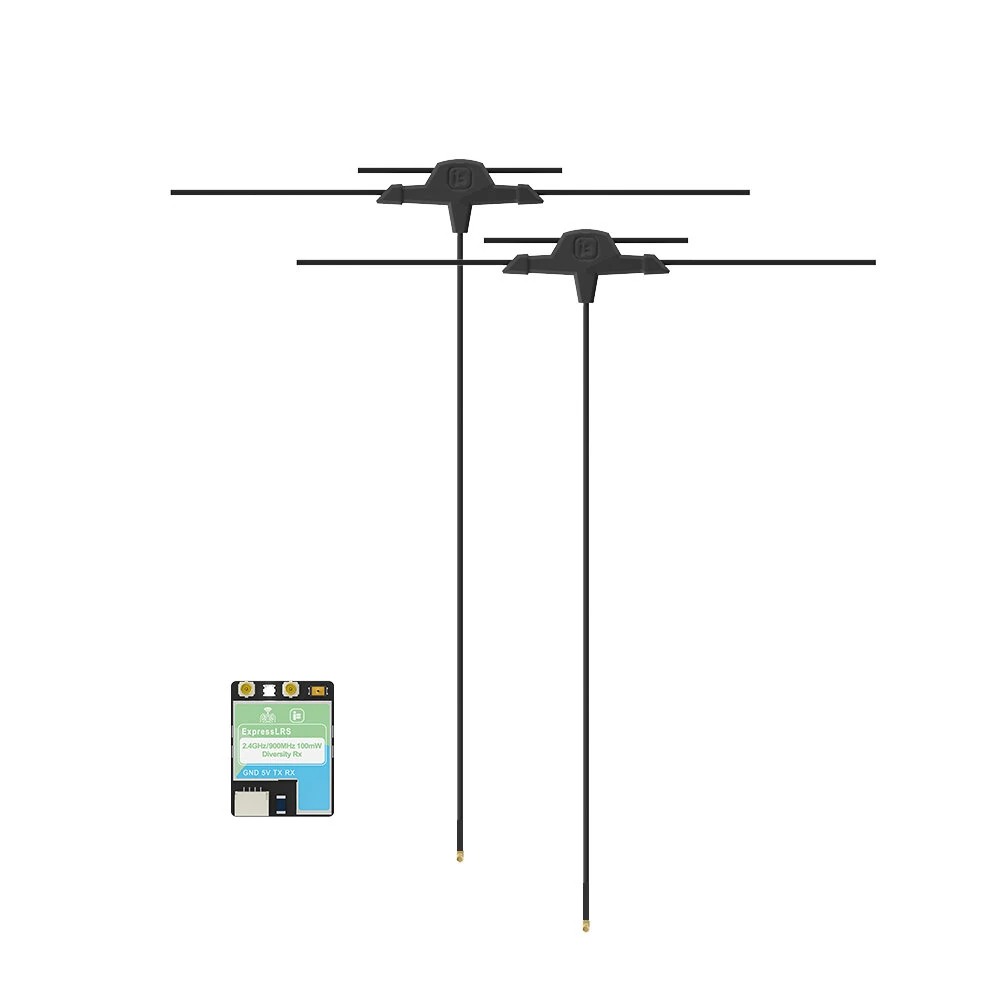

1 x ELRS 100mW Dual-band Diversity RX
2 x Antenna
