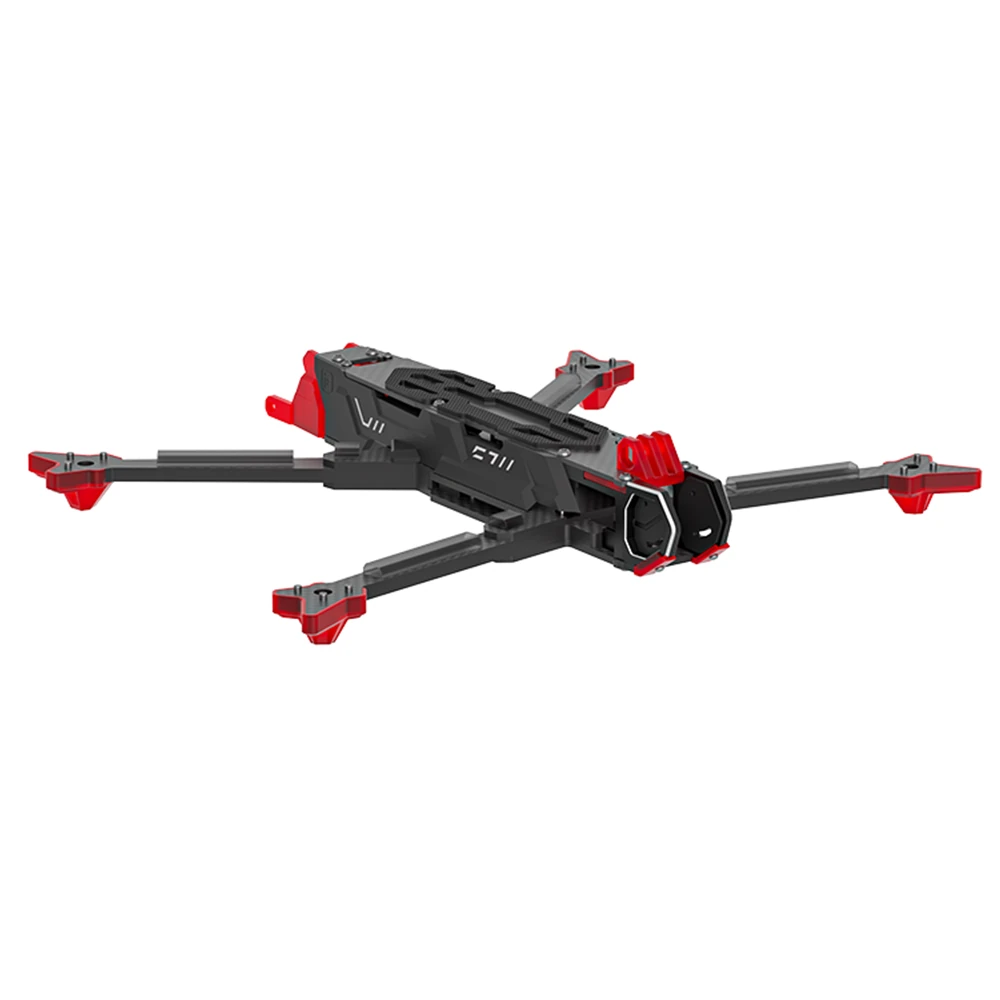

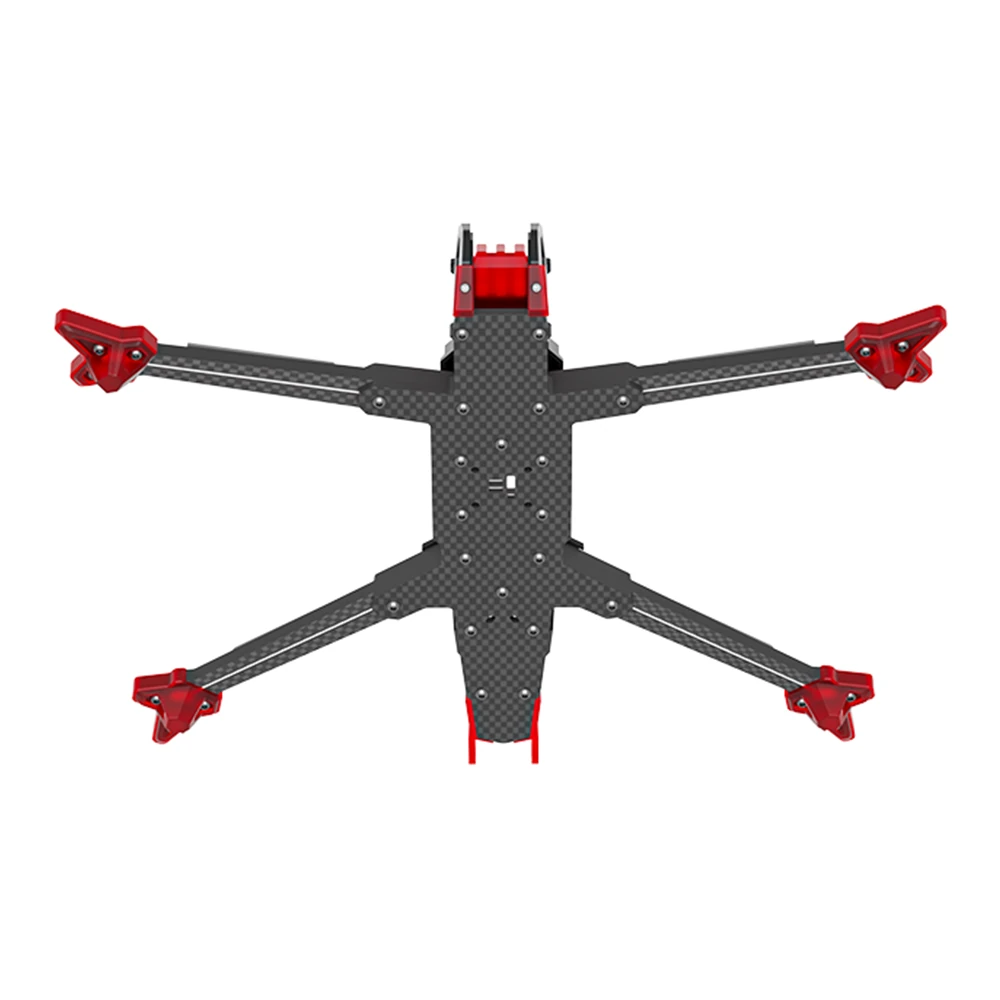

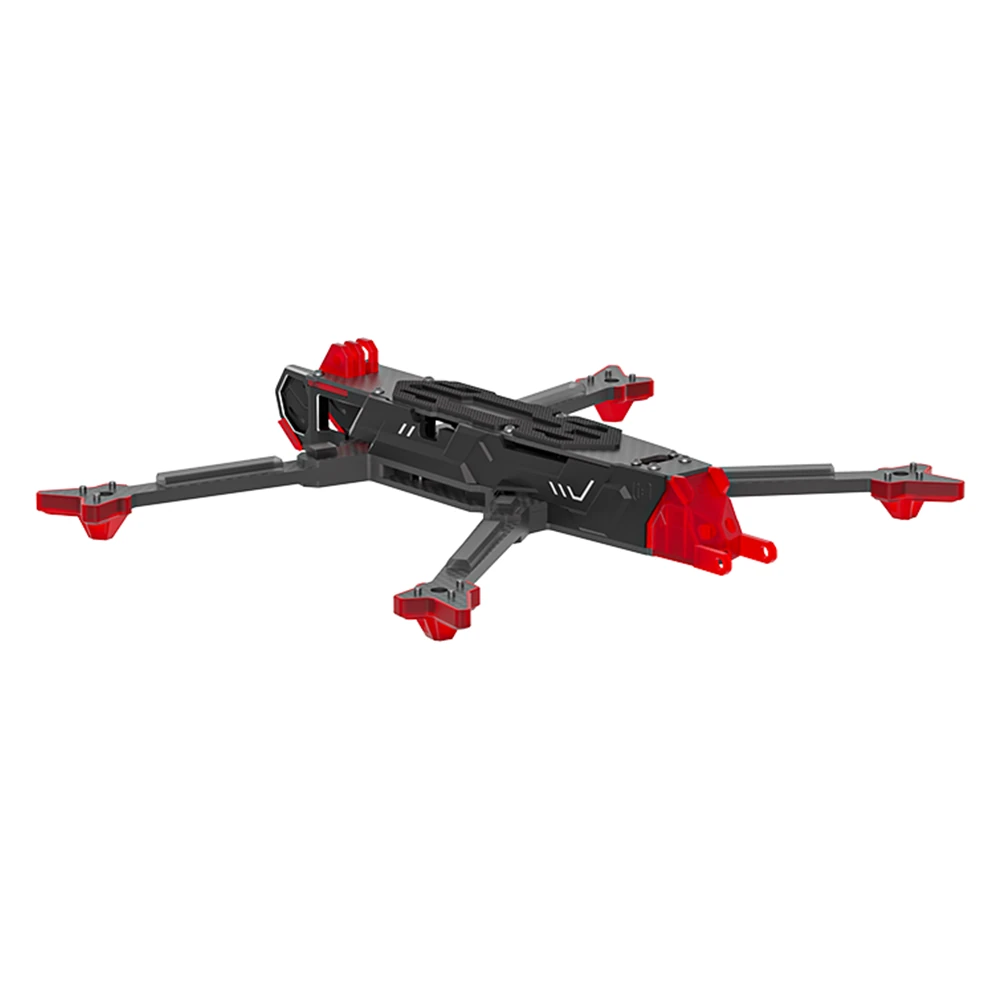

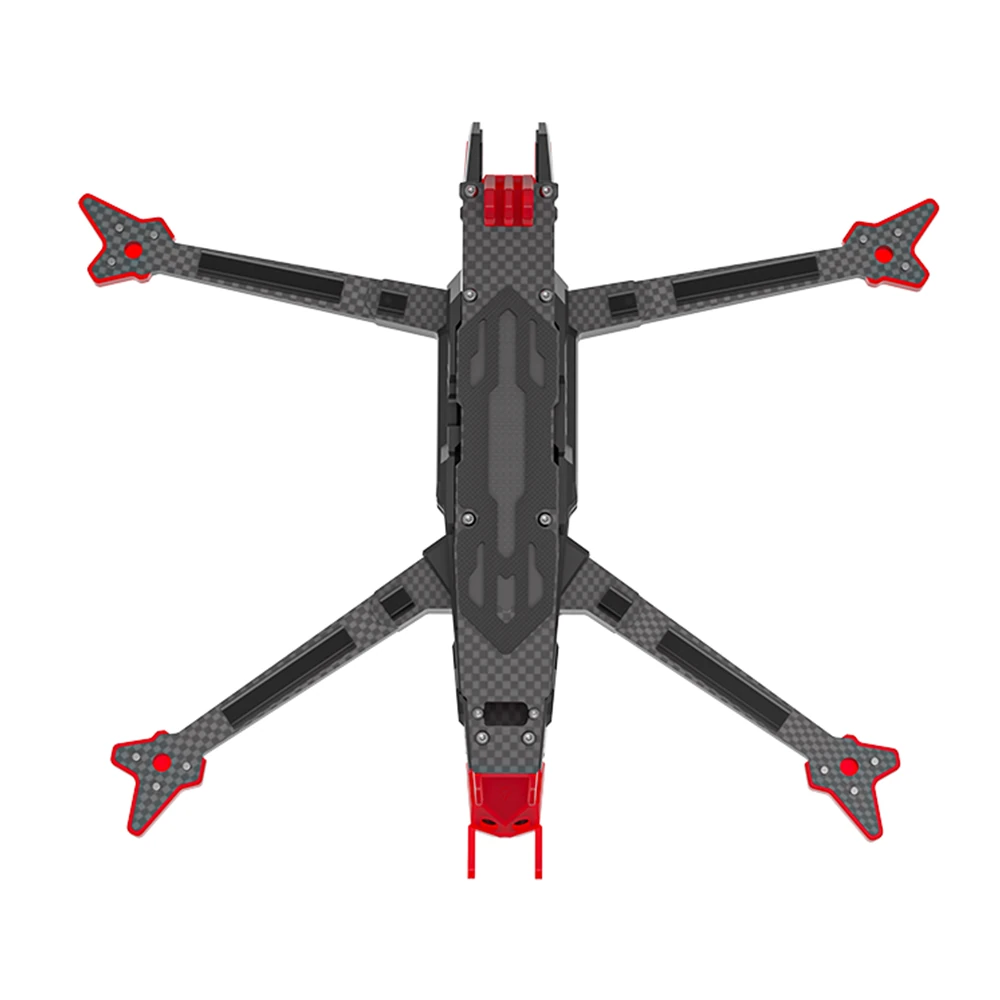

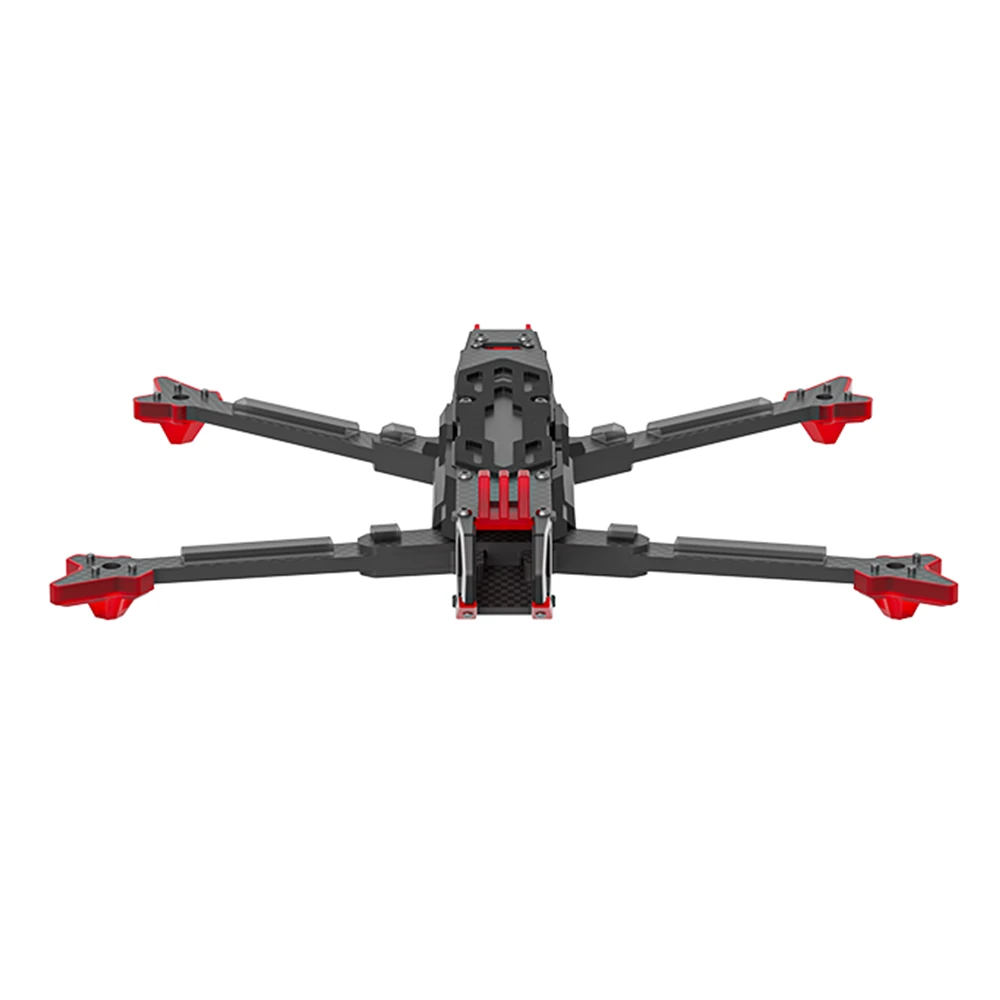

iFlight SH CineLR 7 O4 Pro 6S 334mm 7 Inch Frame Kit Compatible with XING2 2809 1250KV Motors for RC FPV Racing Drone

Note:
– Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
– Comes unassembled. Need build by buyers.

Description:
The SH CineLR 7 Longrange Frame Kit opens up endless possibilities, delivering lightning-fast speed and exceptional performance. It supports high-capacity batteries for extended flight times, allowing you to explore the skies like never before. When paired with the advancedDJI O4 Air Unit Pro for video transmission, it provides ultra-high-definition resolution. The SH Series features an innovative frame design that keeps propellers out of view, enhancing your aerial experience.

Features:
– Quick-release side panels
– Provide protection against debris and allow for easy maintenance while ensuring a cleaner setup with no cable entanglement.
– Integrated Action Camera Base Mount
– Sleek and integrated design, redefine aesthetics.
– Rear-mounted Power Connector
– Optimized weight distribution for improved flight stability and precision.
– Reinforced Arm Base
– Strengthened the connection between the arm base and the drone to improve durability.

Specificaitons:
Brand: iFlight
Product Name: SH CineLR 7 Frame Kit
Wheelbase: 334mm
Frame Dimension: L285*W196*H45mm
Arm Thickness: 6mm
Bottom Plate Thickness: 3mm
Top Plate Thickness: 2mm
Upper Plate Thickness: 3mm
Mid-Lower Plate Thickness: 6mm
Maximum Flight Stack Height: 20mm
Maximum VTX Height: 22mm
Flight Stack Mounting: 20*20/Φ3mm 30*30/Φ3mm
Motor Mounting: 19*19/Φ3mm
VTX Mounting: 25.5*25.5/Φ2mm
Weight: 336g±5g
Compatibility: DJI O4 Air Unit Pro

Recommend Parts: ( NOT Included)

FC & ESC: 30.5×30.5mm iFlight BLITZ F7 FC E55S 55A 4IN1 ESC Stack VTX & Camera: DJI O4 PRO Air UnitBrushless Motor: XING2 2809 1250KV motorsPropeller: HQ 7.5X3X3 propellers

Battery: iFlight Fullsend 22.2V 8000mAh 6S Li-ion Battery

Package Included:
1 x SH CineLR 7 Frame Kit
2x IPEX to RP-SMA Antenna Pigtails
1 x TPU Set
1 x GPro TPU Base Mount
1 x Screw Bag
2 x Anti-slip Battery Pad
2 x Battery Strap
