Multi Rotor Parts

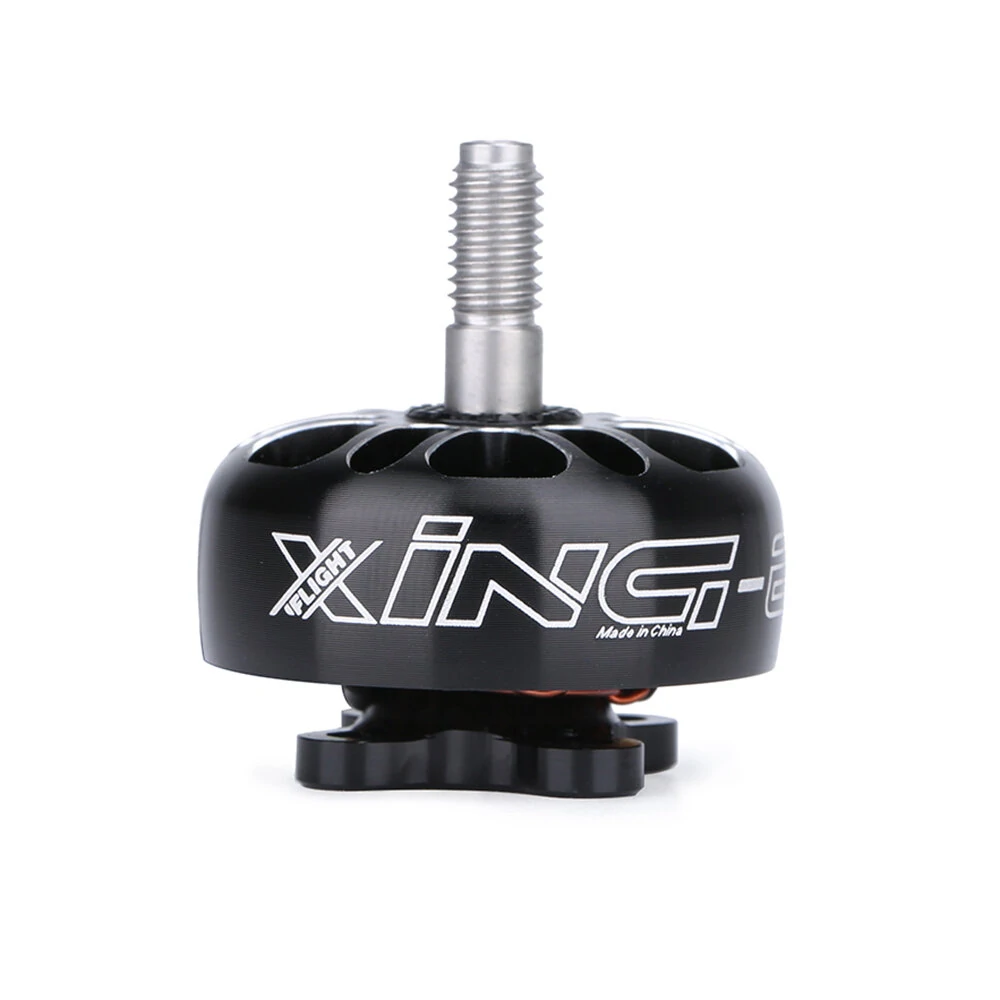

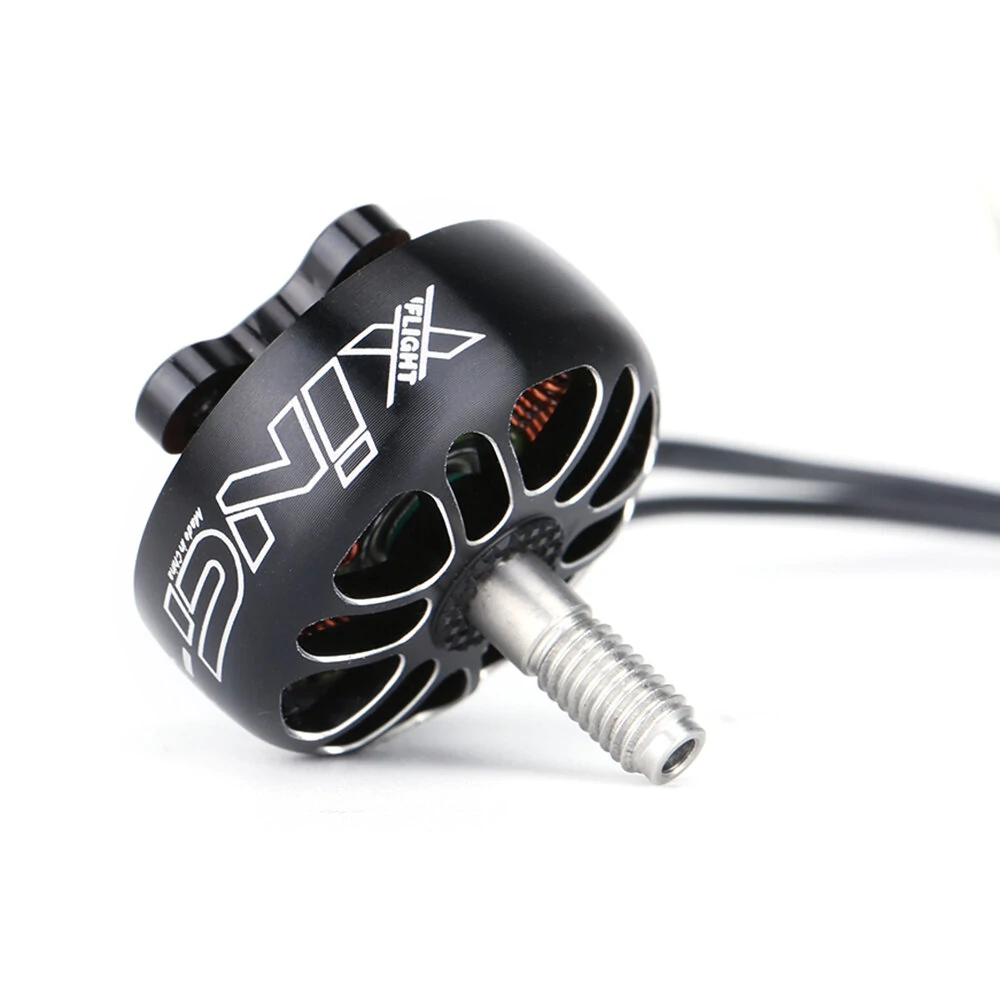

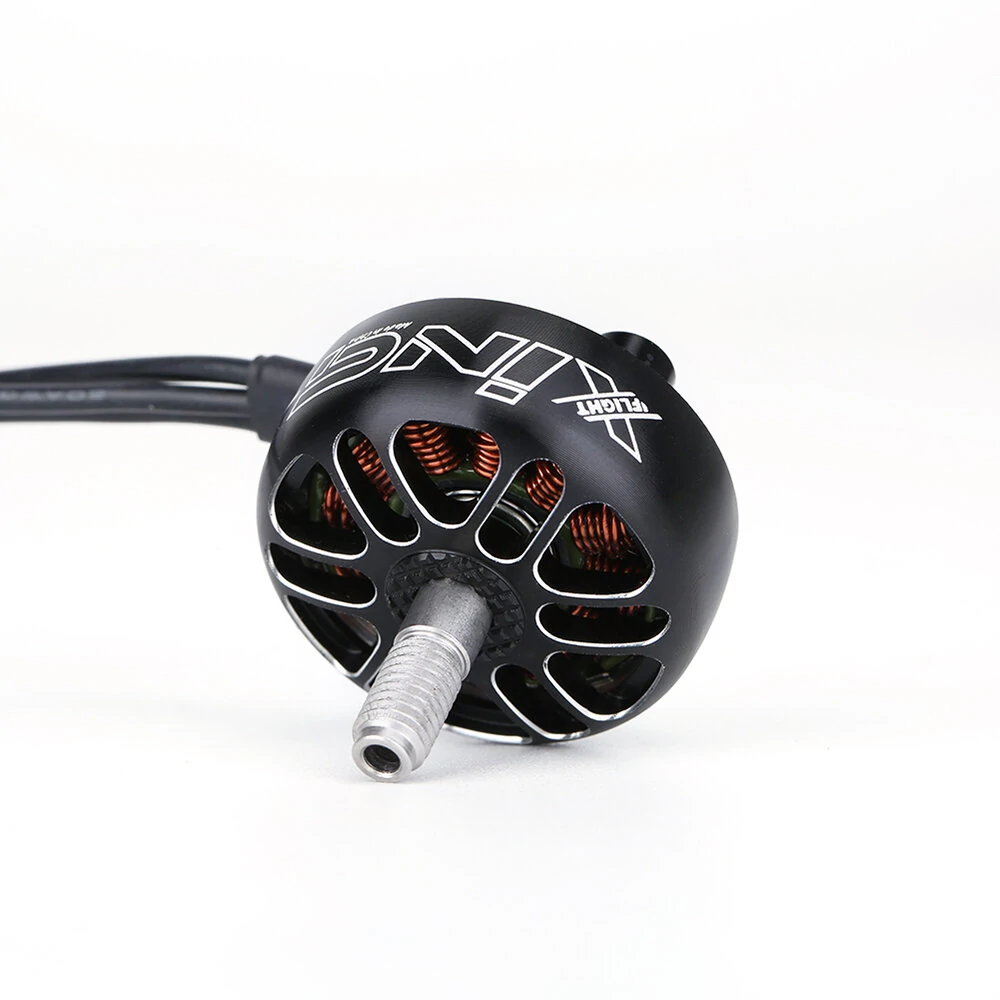

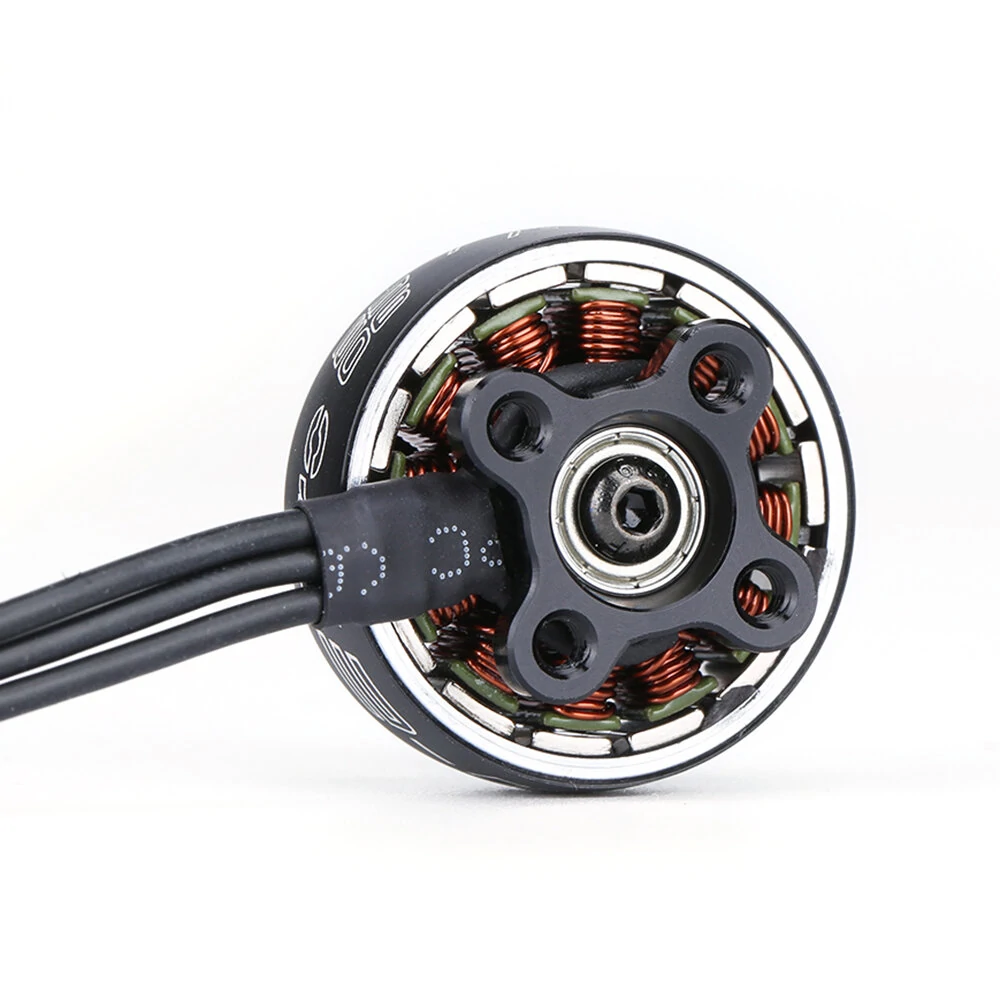

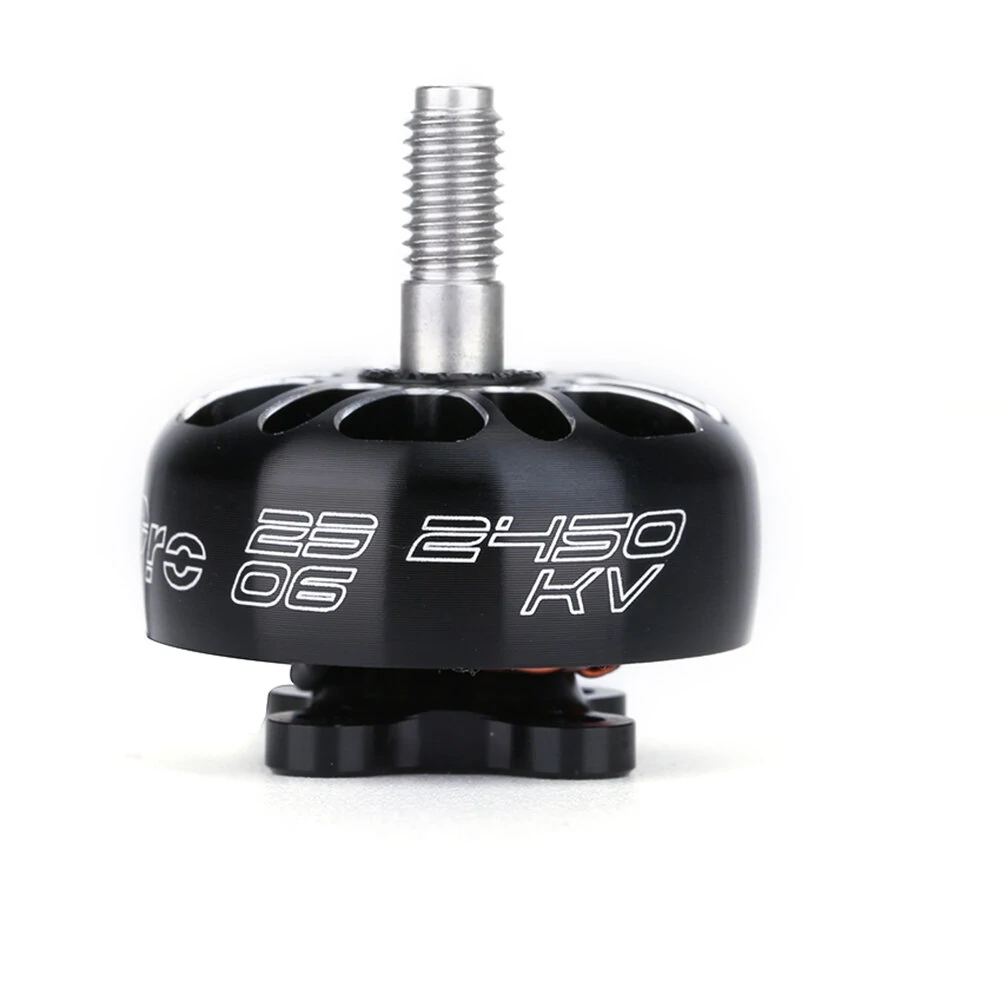

iFlight XING-E Pro 2306 1700KV 3-6S / 2450KV 2-4S Brushless Motor for RC Drone FPV Racing
Availability:
1 in stock
- SKU : 1518198
- Condition : New
- Brand : XING-E
- Processing Time : Ships Within 24-48 Hours
- Return Policy : 30-day refund or replacement
Price range: $23.99 through $25.99
Notice: Version A and Version B product are same. Called A and B just as to distinguish between different warehouses， A= CN Warehouse; B= Others warehouse ( like CZ, AU, USA etc.)
Specification:
Brand Name: iFlight
Model: XING-E Pro 2306
Item Name: 2306 1700KV 3-6S / 2450KV 2-4S Brushless Motor
KV: 1700KV / 2450KV ( Optional)
Input Voltage: 2-4S Lipo@2450KV ; 3-6S@1700KV
Version: CW Screw Thread
Quantity: 1 PC
Configuration: 12N14P
Stator Diameter: 23mm
Stator Length: 6mm
Shaft Diameter: 5mm
Motor Dimension: 29.5×18.7mm (Dia*Len)
Weight: 33.1g
Idle Current(10) @10V: less than 1A@1700KV; less than 2A@2450KV;
Max. Con. Power (180S): 893W@1700KV; 748.8W@2450KV;
Internal Resistance: 76.4mΩ@1700KV; 47.3mΩ@2450KV;
Max. Current (180S): 37.2A@1700KV; 44.57A@@2450KV;
Package Included:
1x iFlight XING-E 2306 Motor
1x Motor Nut
4x Screws
