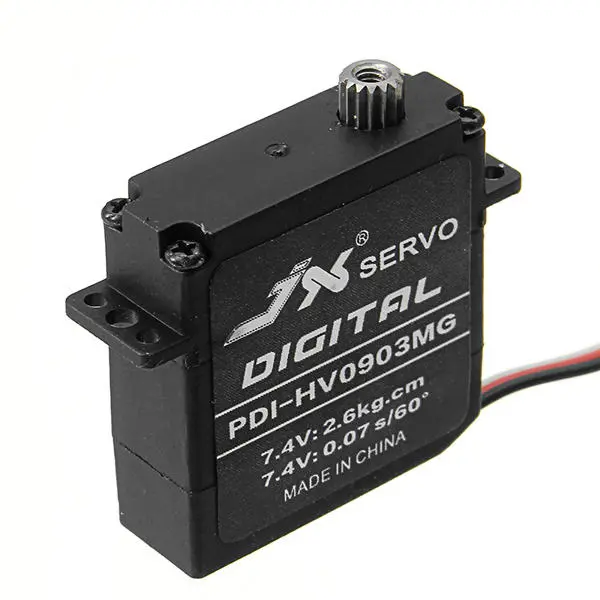

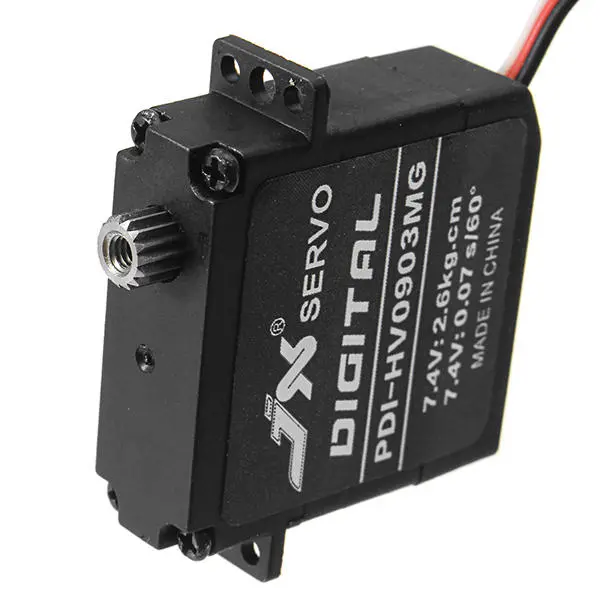

JX Servo PDI-HV0903MG 9.4g High Torque Digital Standard Servo For RC Model 2pcs Description: Brand name: JX Item number: PDI-HV0903MG 9.4g High Torque Digital Standard Servo
Dead band: 2μs
Control System: +Pulse Width Control
Working frequence: 1520μs / 330hz
Operating Voltage: DC6~7.4 V
Operating Temperature Range: -10 to + 60°C
Operating Speed (6V): 0.09sec/60°
Operating Speed (7.4V): 0.07sec/60°
Stall Torque (6V): 2kg.cm
Stall Torque (7.4V): 2.6kg.cm
Potentiometer Drive: Direct Drive
Dimensions: 23.5X8X24mm
Weight: 9.4g (0.33oz)

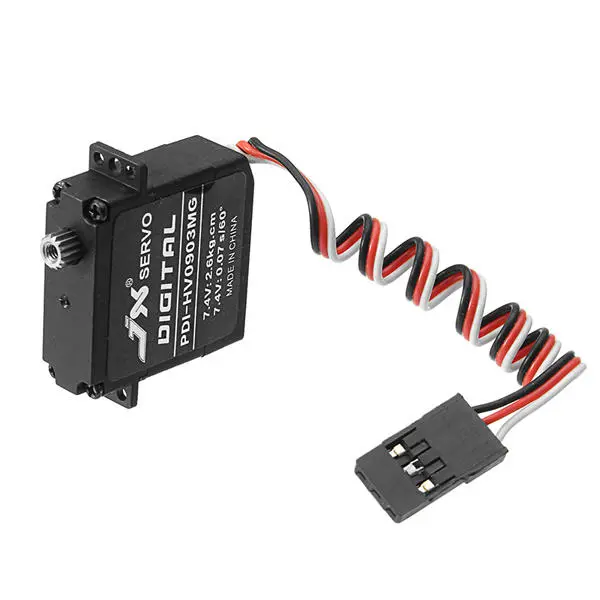

Connector Wire Length: JR/Futaba 150 mm
Bearing: 2BB Package Included: 2X JX PDI-HV0903MG 9.4g High Torque Digital Standard Servo
