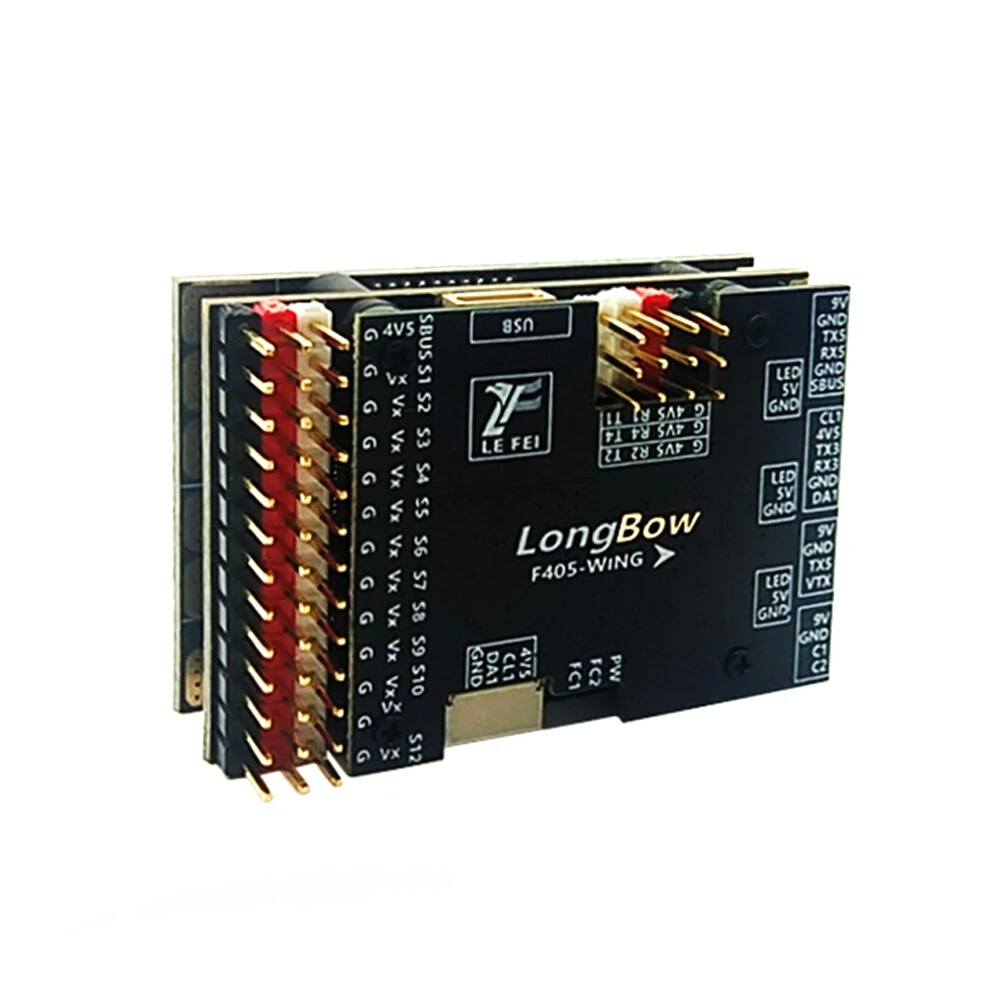

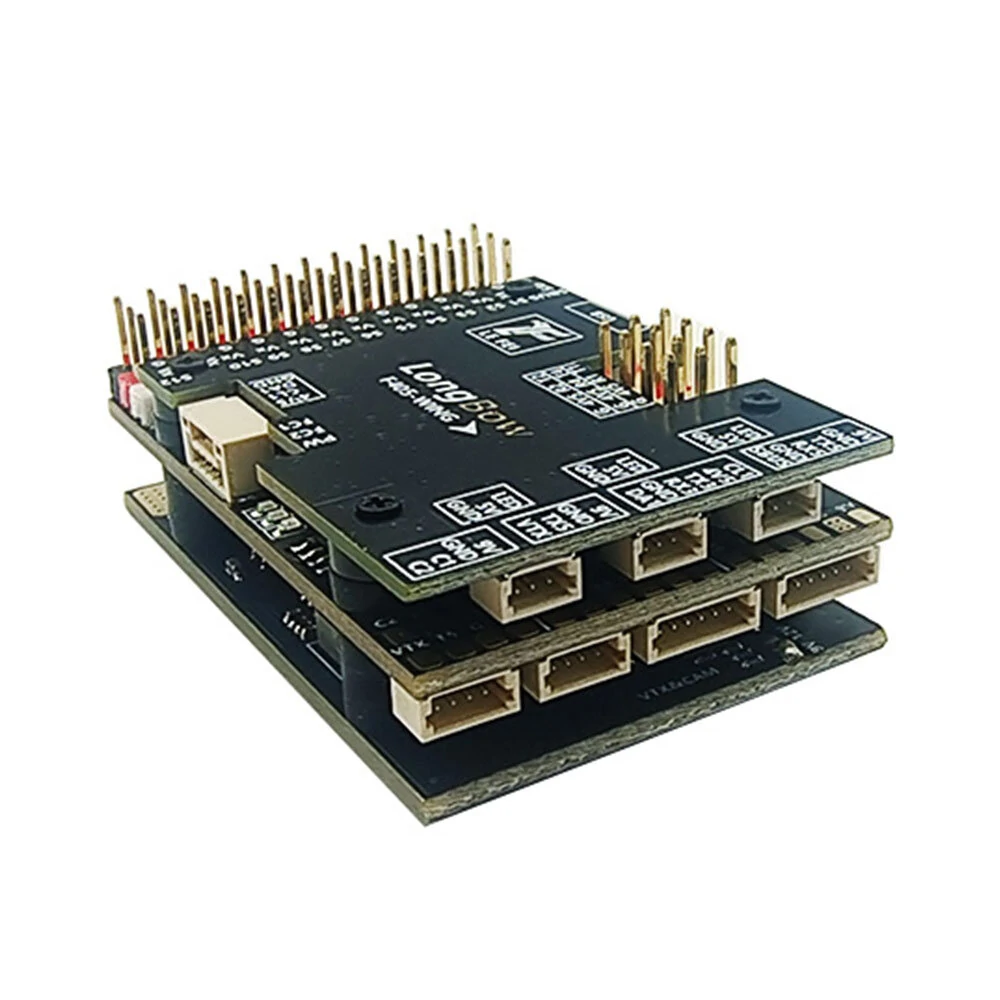

Lefei LongBow F405 WING Flight Controller for RC Airplane Support VTOL Ardupilot INAV
1 in stock
- SKU : 2016534
- Condition : New
- Brand : Lefei
- Processing Time : Ships Within 24-48 Hours
- Return Policy : 30-day refund or replacement
$60.99 $87.99
Specifications:
Brand Name: Lefei
Product Name: LongBow F405 WING
MCU: STM32F405, 168MHz,1MB Flash
IMU: ICM-42688-P
BARO: SPL006-001
OSD: AT7456E
BLACK BOX: MicroSD
UART: x6 uarts(UART1,UART2, UART3, UART4, UART5,UART6 (connect to wireless))
I2C: 1x Compass,AirSpeed
ADC: 2x (Voltage, Current)
PWM: 12
ELRS/CRSF: Connect to UART1
SBUS: Built in inverter (UART2 – RX)
STATUS LED: 3×LED
FIRMWARE:
INAV: Longbow F405WING
Default: Ardupilot: LongBow F405 WING
LongBow F405 WING PDB Speceifications:
Input: 7~36V (2~6S LiPo)
Voltage: Ratio: 1K: 10K
Current: Continuous 120A, MAX 215A
FC BEC: 5.2V, Continuous 2A, Max 3A
VTX Camera BEC: 9V/12v, Continuous 2A Max 3A
Servo BEC: 5.2V/6V/7.2V, Continus 6A, Max 8A
LongBow F405WING WIRELESS BOARD Speceifications:
Mode:
BLE, connect LongBow APP
Wifi, connect Qground, MIssionPlanner, Inav Configure
BT SPP, connect Qground, MIssionPlanner, Inav Configure
Onboard RGB:
3× WS2812. indicate Arm and GPS status
5.2V – 1.3A, support 6 LEDS
English Manual, Click Here
Firmware
APM Firmware, Click Here
INAV Firmware, Click Here
Package Included:
1x Lefei LongBow F405 WING Flight Controller
