MATEK F405-WMO Flight Controller ICM42688P IMU MatekF405-TE ArduPilot for Fixed Wing RC Airplane
1 in stock
- SKU : 2041917
- Condition : New
- Brand : MATEK
- Processing Time : Ships Within 24-48 Hours
- Return Policy : 30-day refund or replacement
$97.99 $139.99
Specification:
Brand: MATEK
Model: Flight Controller F405-WMO
MCU: STM32F405RGT6, 168MHz , 1MB Flash
IMU: ICM42688-P
Baro: SPL06-001
OSD: AT7456E
Blackbox: SD card slot

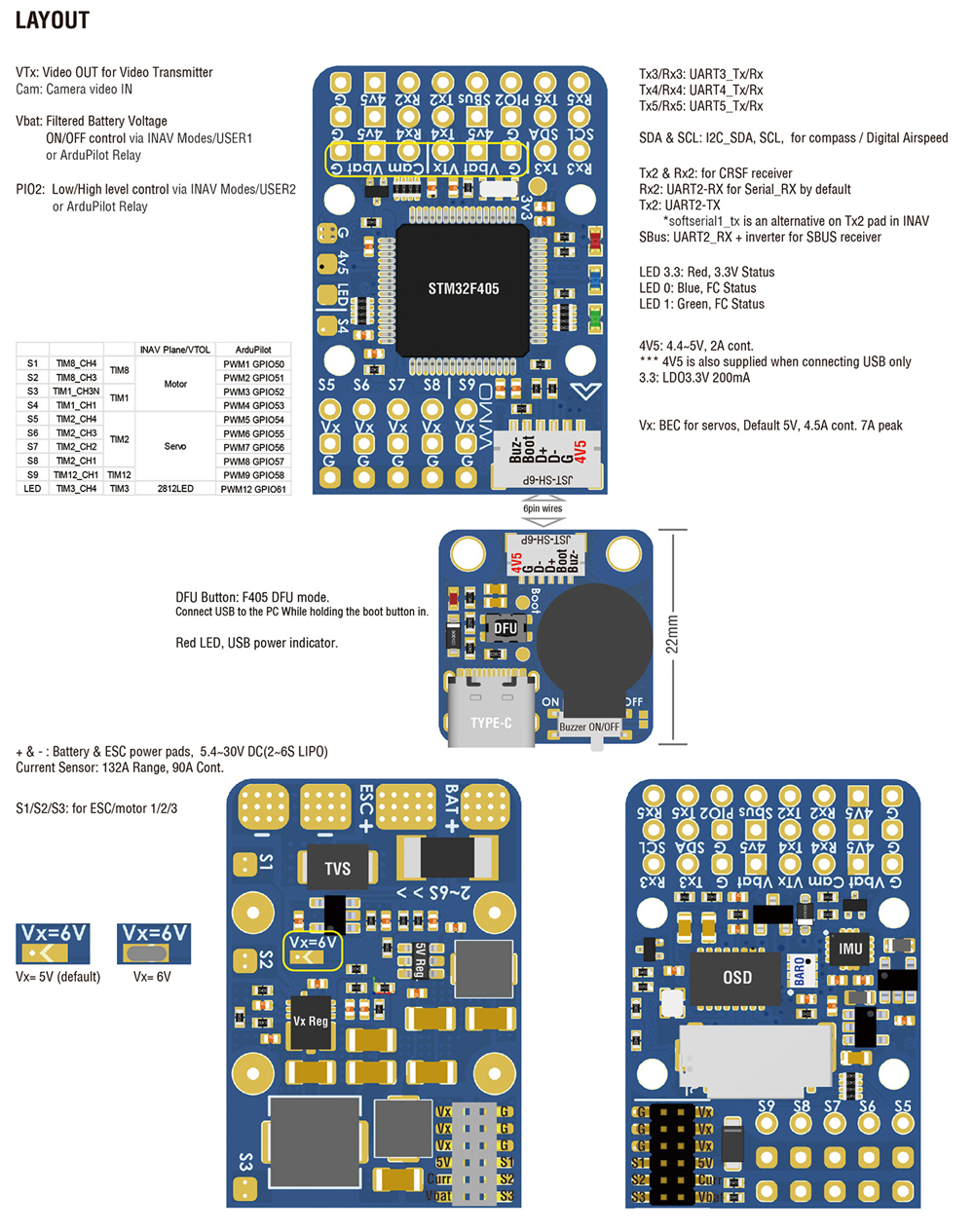

– 4x UARTs
– 10x PWM outputs
– 1x I2C
– 2x ADC (VBAT, Current)
– 1x spare PINIO
– Vbat output ON/OFF control
– USB/Beep Extender with Type-C(USB2.0)
– Built in inverter on UART2-RX for SBUS input
Power
– 5.4~30V DC IN (2~6S LiPo)
– 132A Current Sense (INAV Scale 250, ArduPilot 40A/V)
– PDB/Current sense resistor: 90A continuous, 132A burst.
– BEC 5V(4v5) 2A for FC & Peripherals
– BEC Vx 4.5A cont.(7A peak) for servos, 5V/ 6V option
– Filtered Vbat for VTX and camera
– LDO 3.3V 200mA
– Battery Voltage Sensor: 1k:20k
FC Firmware

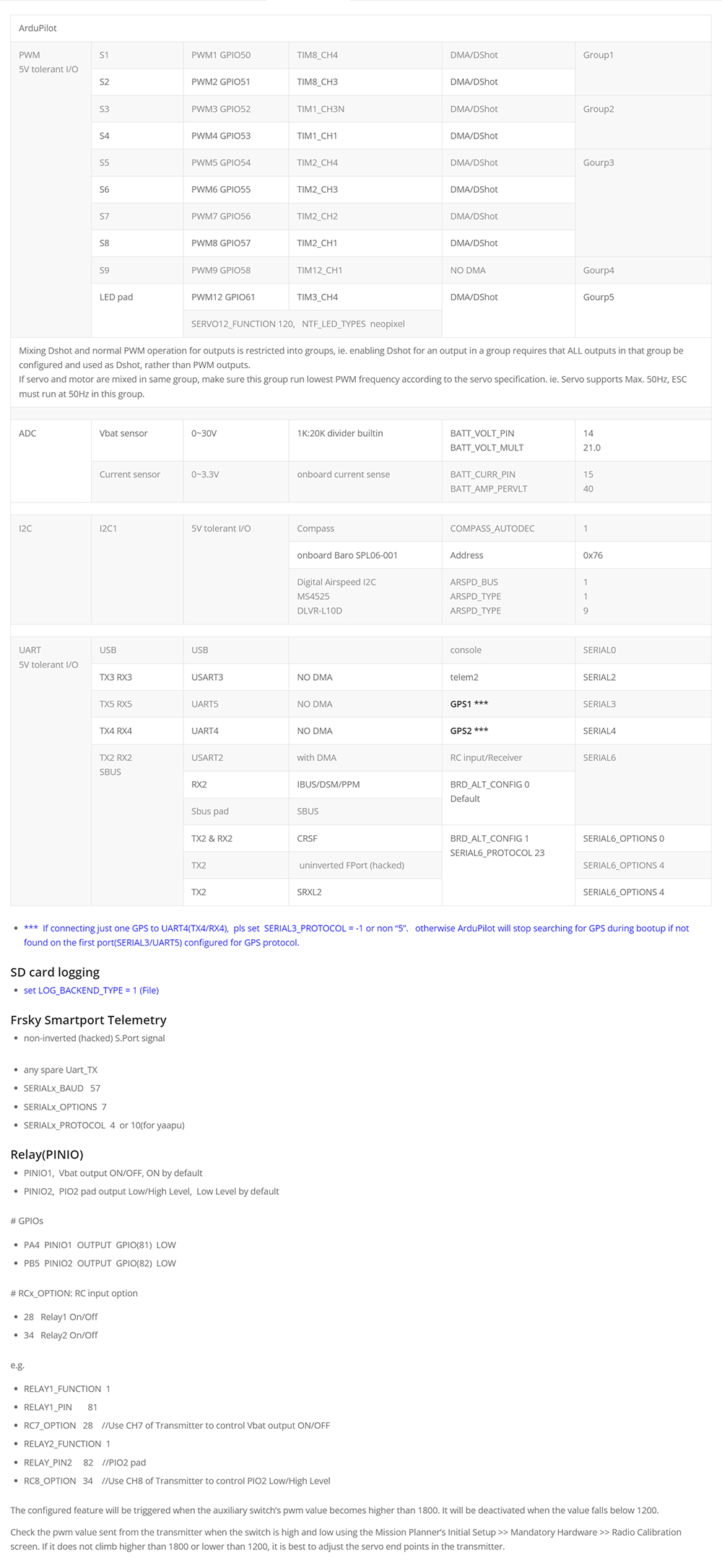

ArduPilot: MatekF405-TE

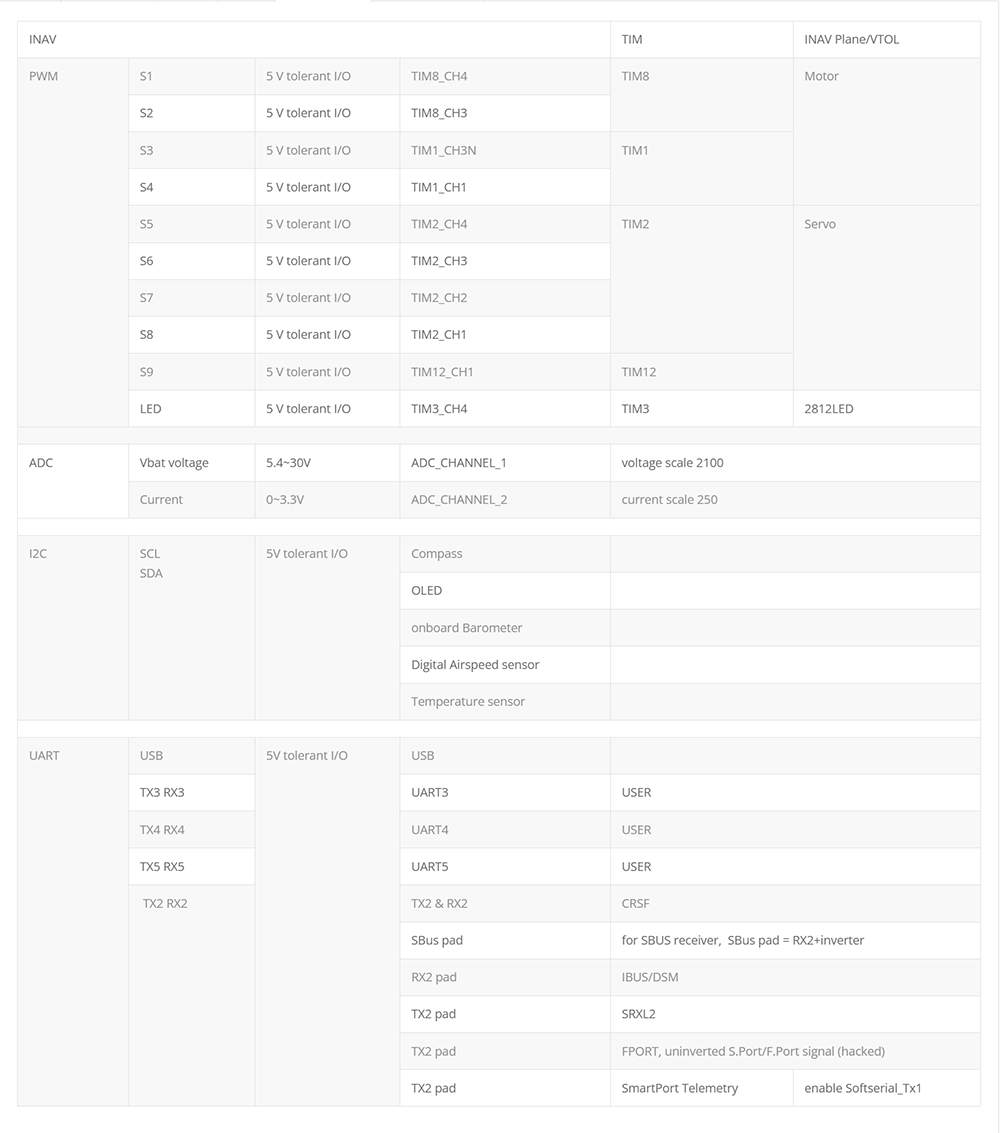

INAV: MATEKF405TE_SD
Physical

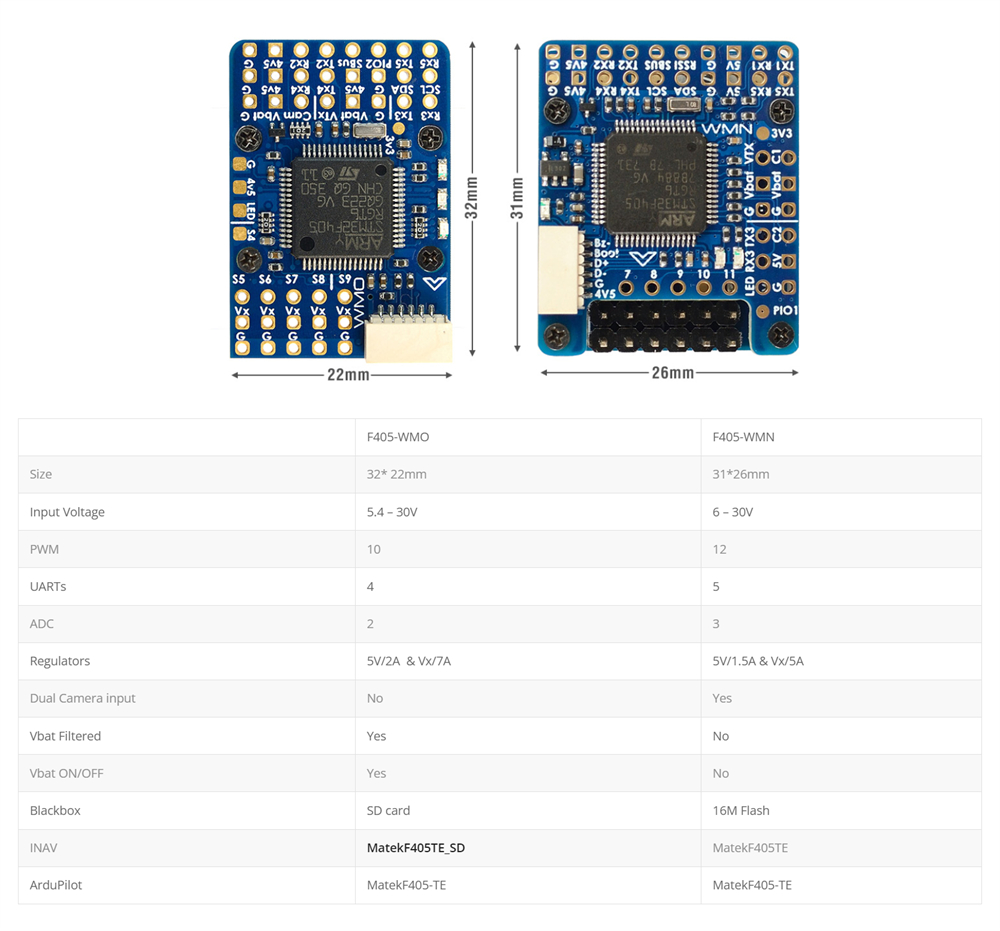

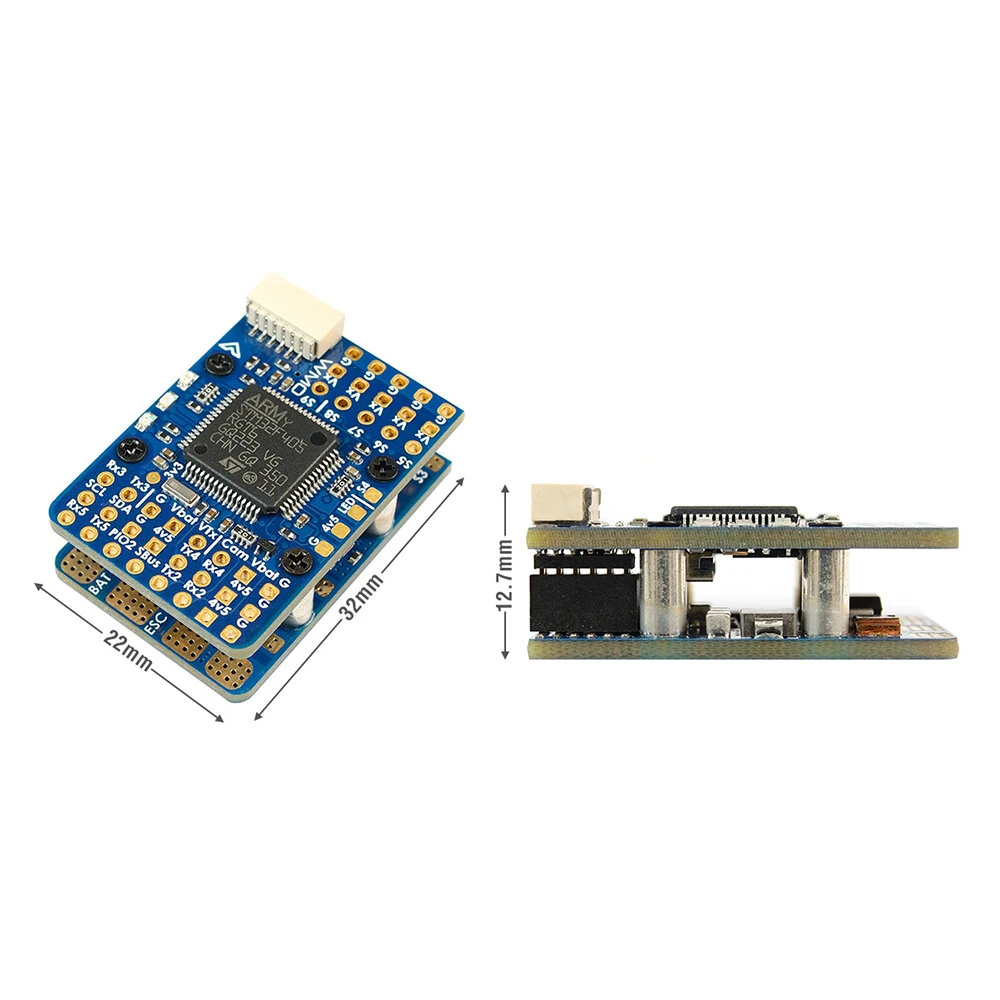

Dimensions: 32 x 22 x 12.7 mm
Weight: 9g
Package Included:

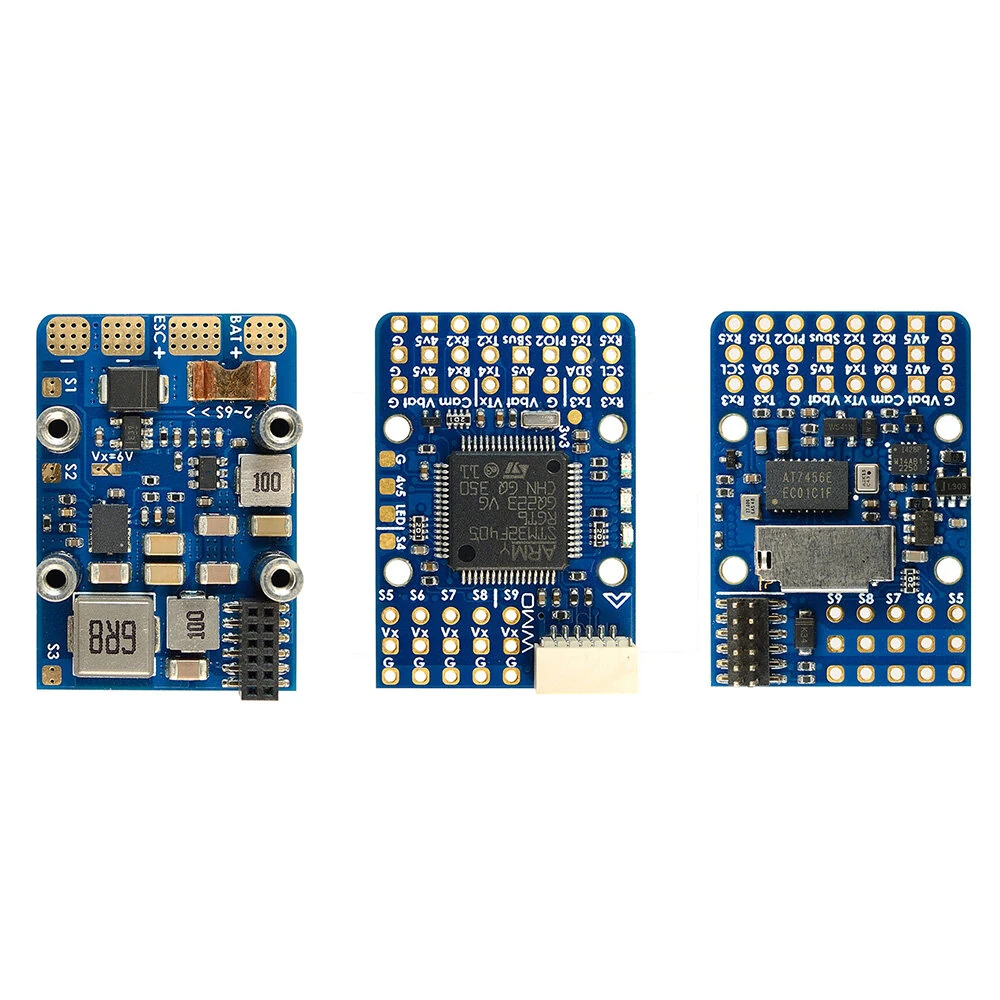

1x F405-WMO
1x USB(Type-C)/Beep (Passive buzzer) Extender + 20cm JST-SH-6P cable for USB extender
Dupont 2.54 pins (Board is shipped unsoldered)
