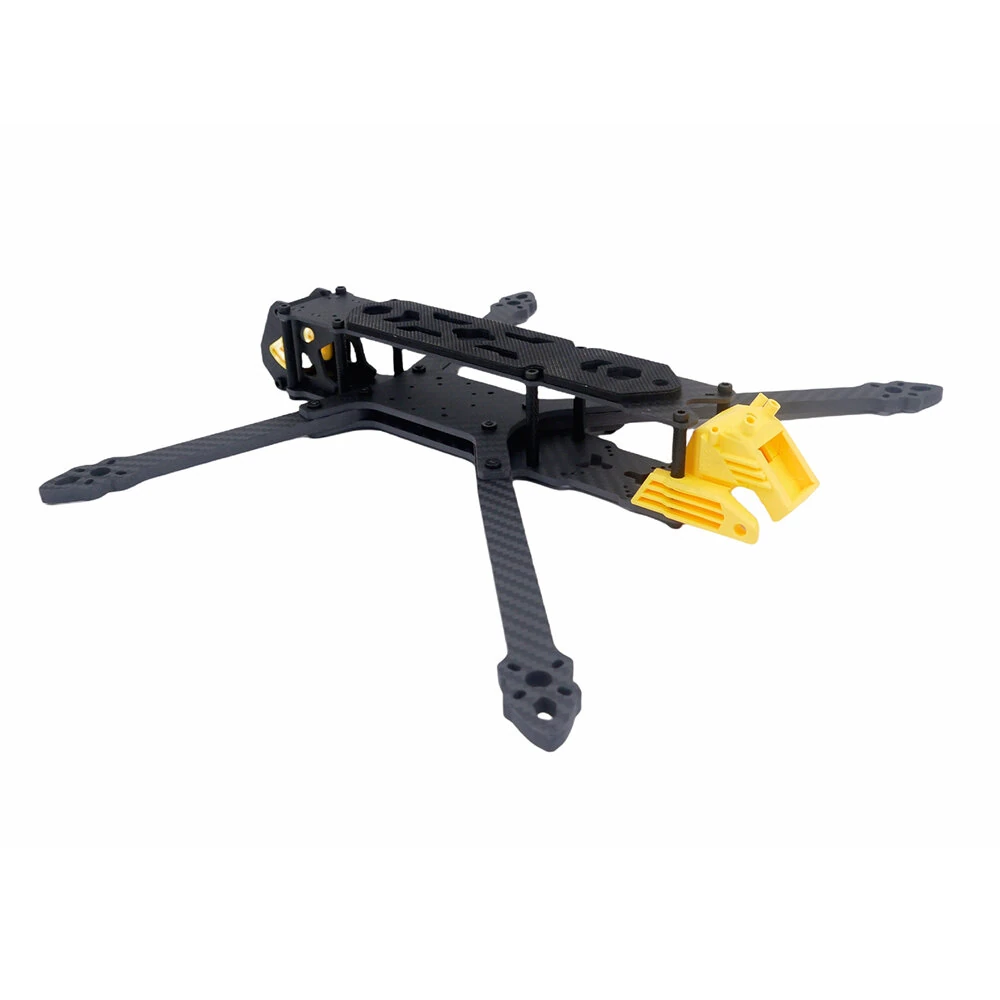

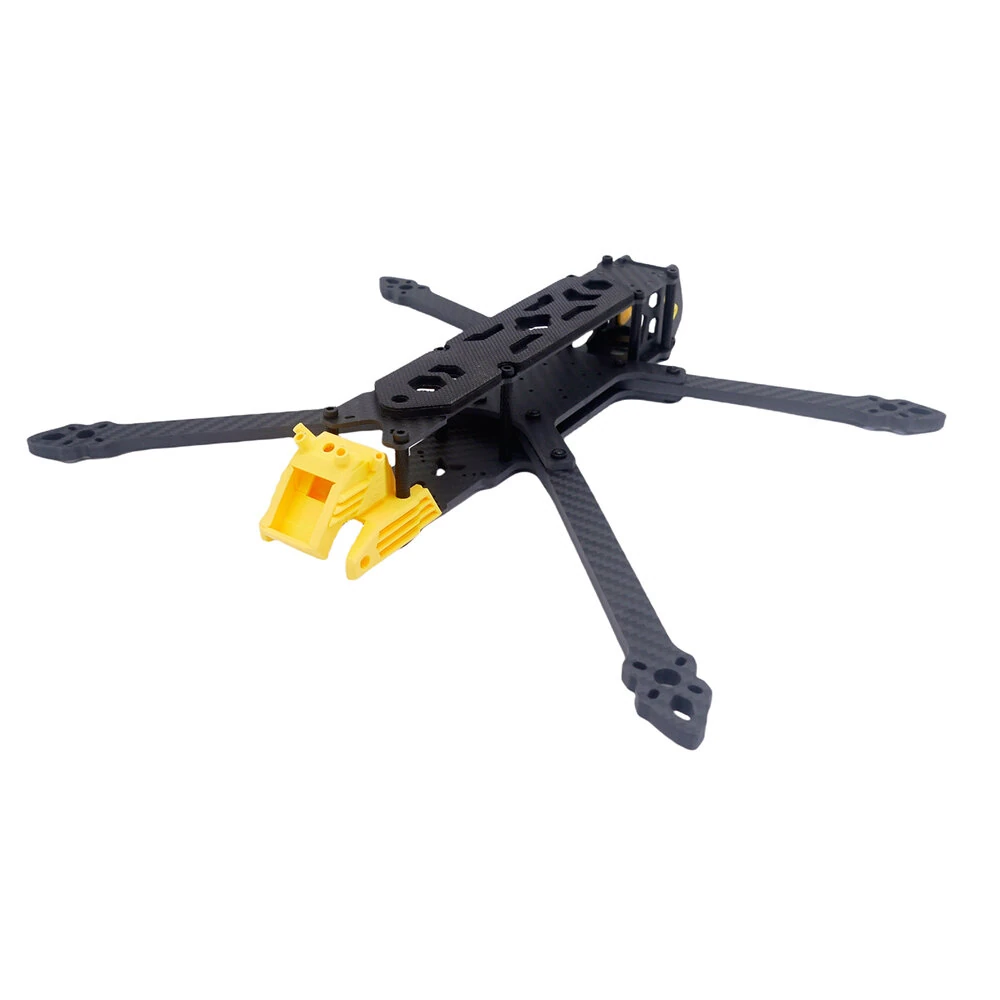

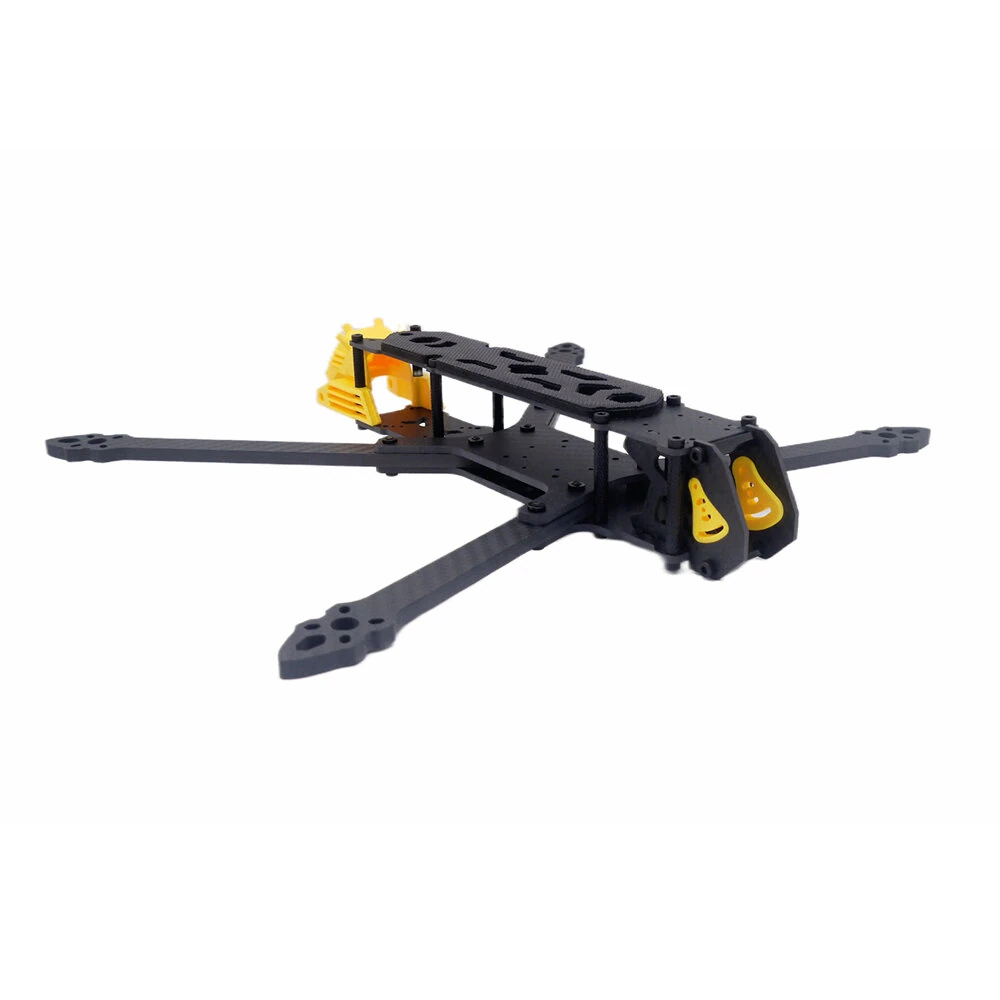

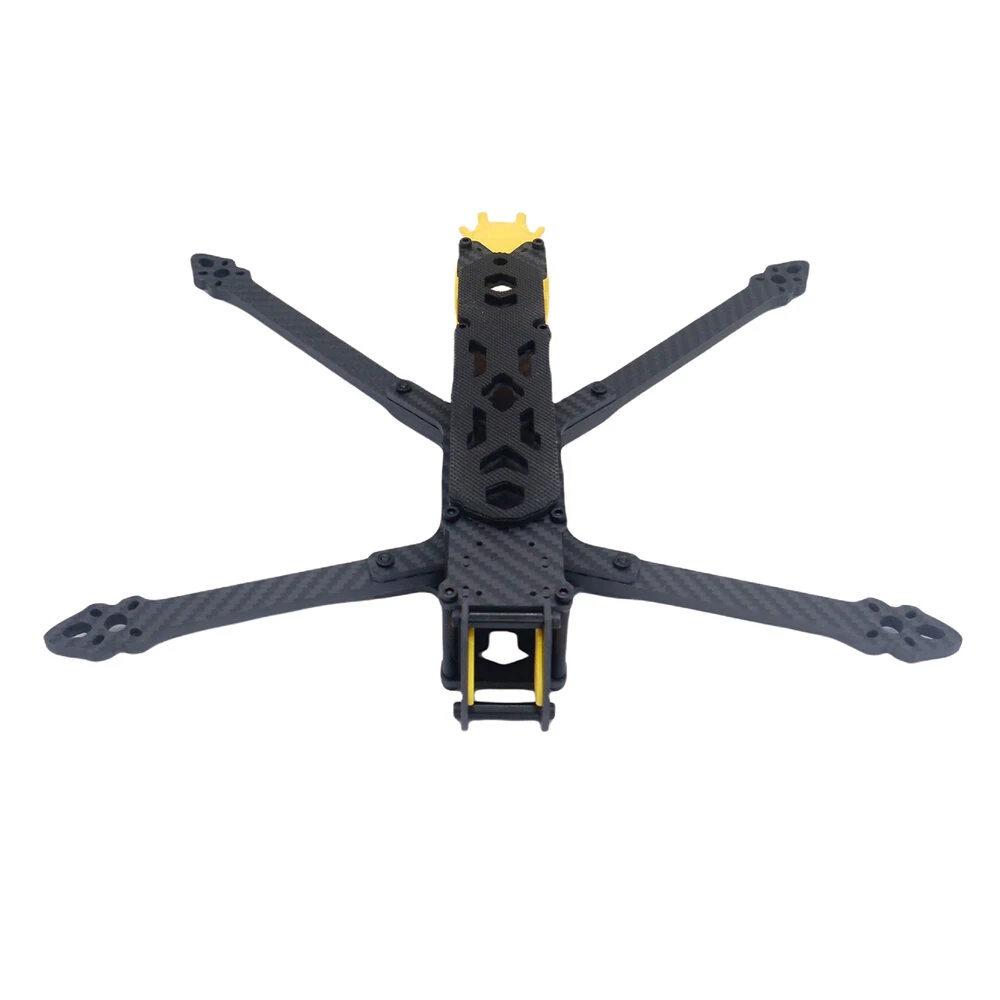

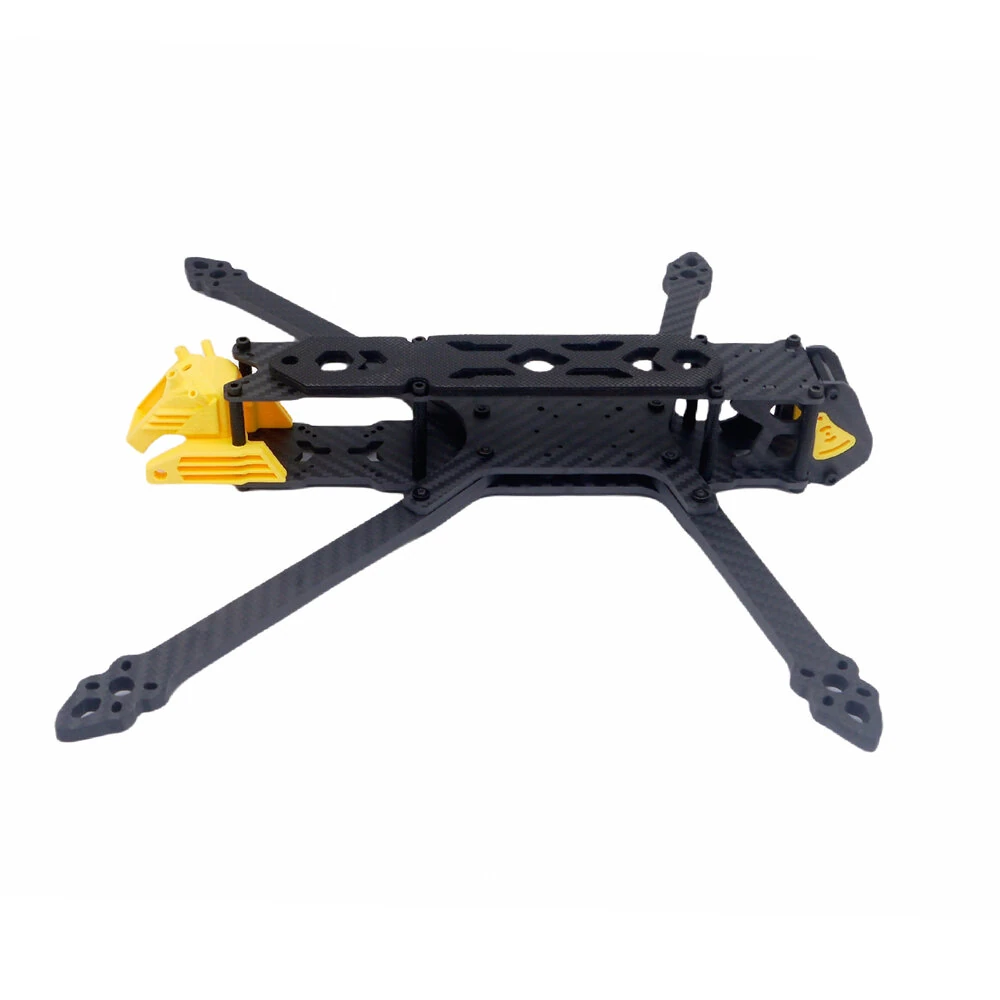

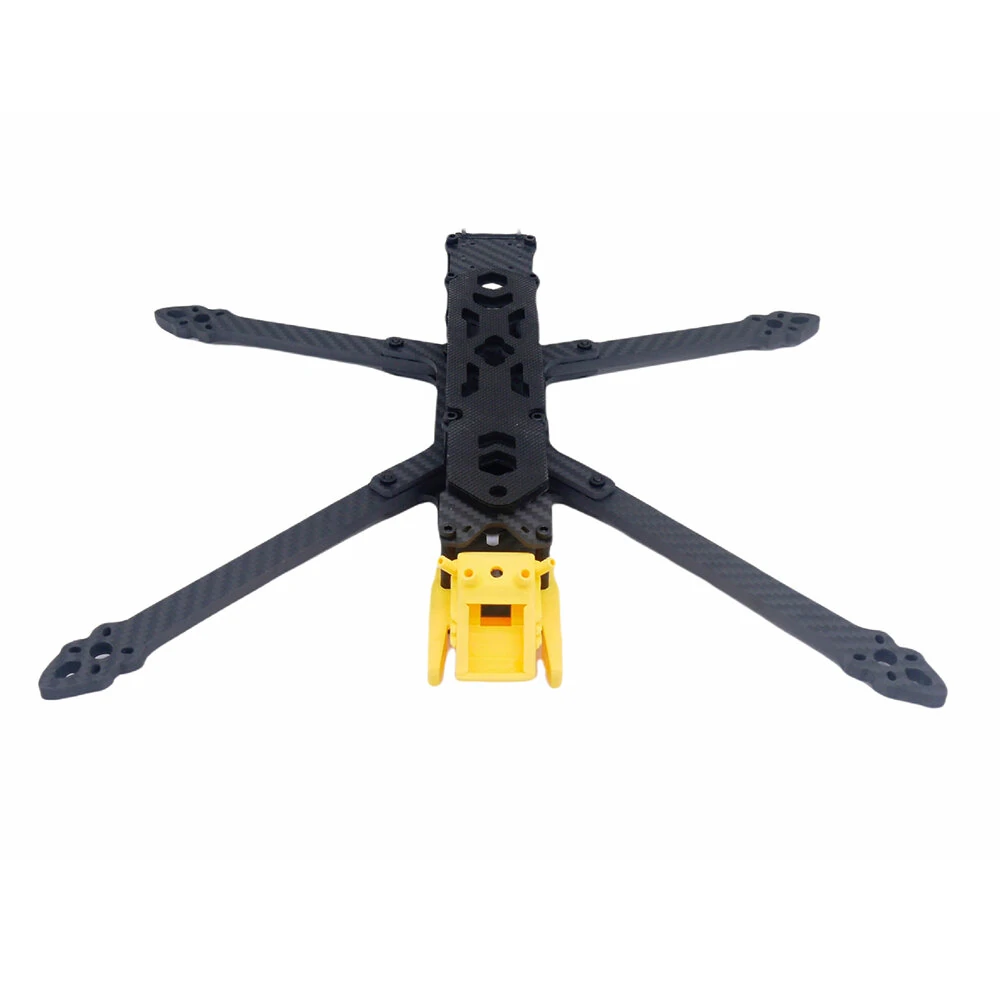

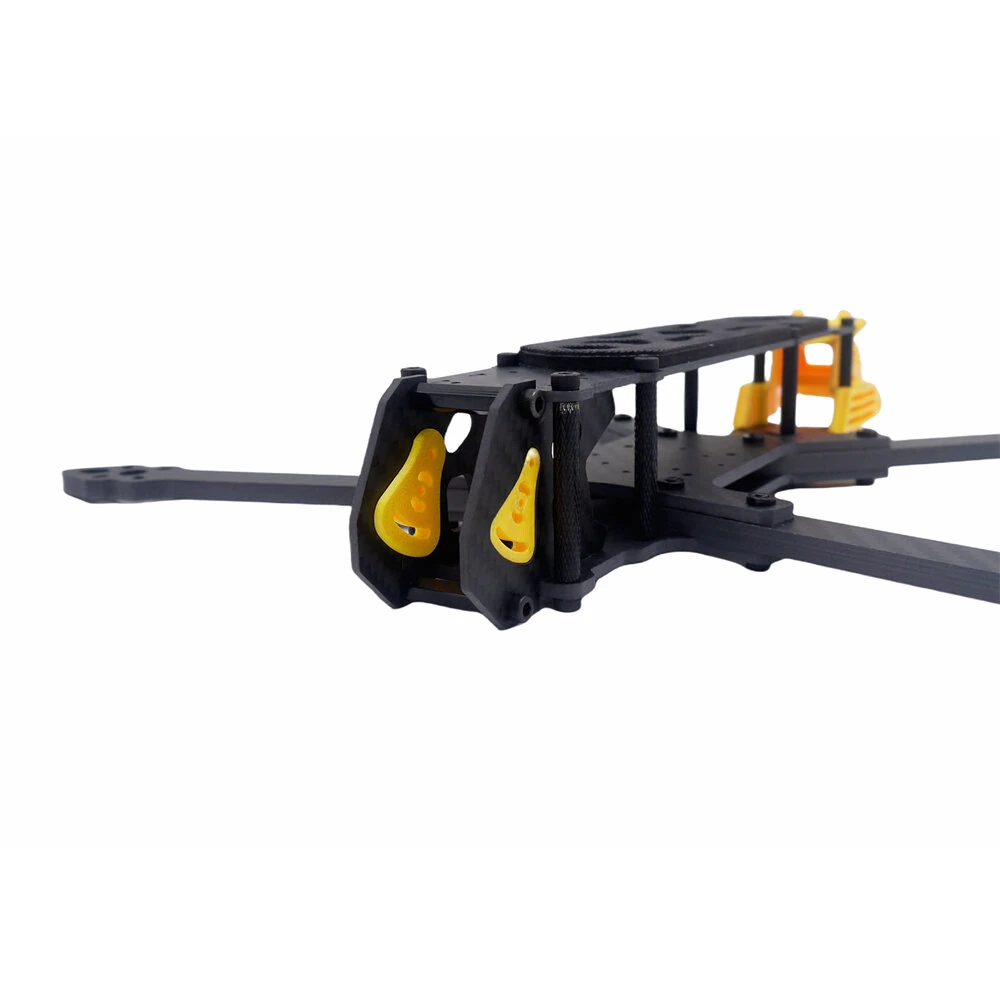

Pumpkin 7 Inch 8 Inch 9 Inch 10 Inch Frame Kit Compatible with DJI O4 PRO / DJI O3 / VISTA / Analog for RC FPV Racing Drones
1 in stock
- SKU : 2038754
- Condition : New
- Brand : Pumpkin
- Processing Time : Ships Within 24-48 Hours
- Return Policy : 30-day refund or replacement
Price range: $50.99 through $59.99
Specification:
Model: Pumpkin Frame Kit
Inch: 7 Inch / 8 Inch / 9 Inch / 10 Inch (Optional)
|
Model |
Pumpkin 7 Frame Kit |
Pumpkin 8 Frame Kit |
Pumpkin 9 Frame Kit |
Pumpkin 10 Frame Kit |
|
Wheelbase: |
300mm |
340mm |
347mm |
411mm |
|

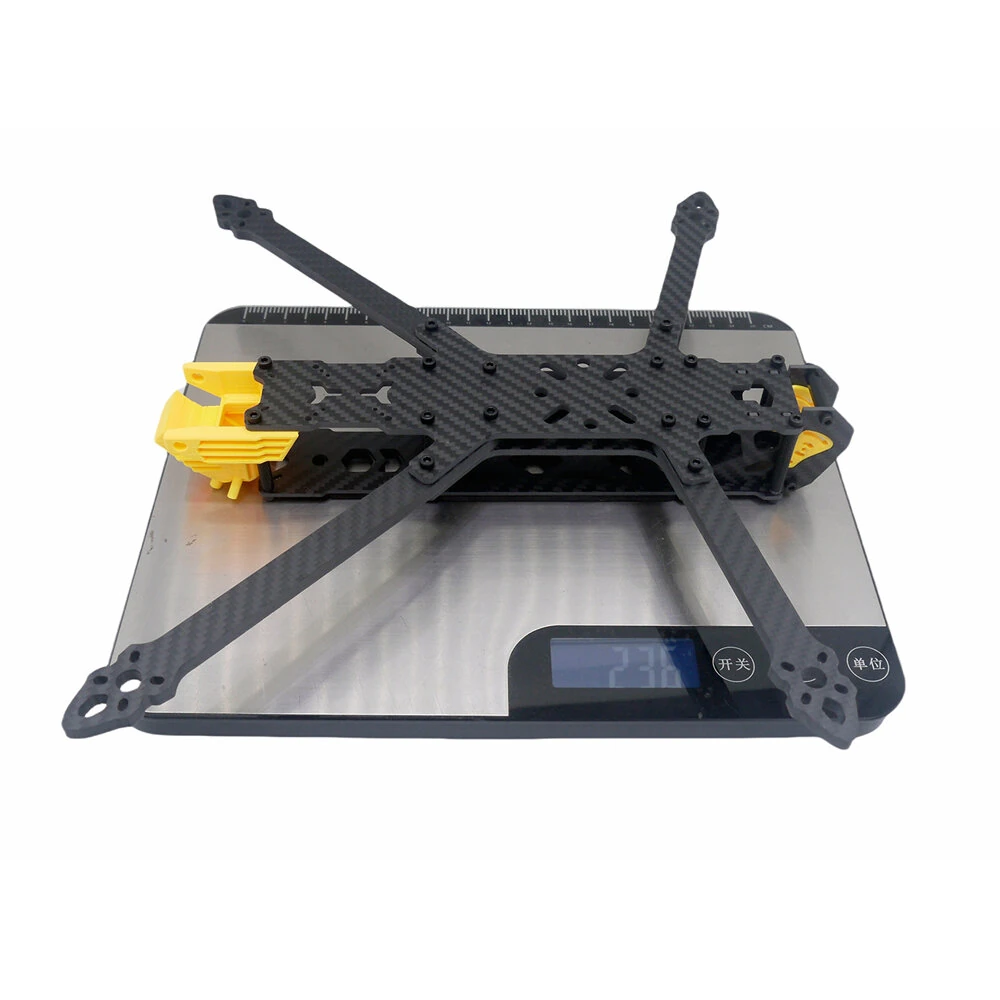

Weight: |
Approx.227g (including printed parts) |
Approx.236g (including printed parts) |
Approx.286g (including printed parts) |
Approx.258g (including printed parts) |
|
Thickness: |
Base plate 3.0mm Upper plate 2.0mm Clamping plate 3.0mm Camera side panel 2.0mm Arm 6.0mm |
Base plate 3.0mm Upper plate 2.0mm Clamping plate 3.0mm Camera side panel 2.0mm Arm 6.0mm |
Base plate 3.0mm Upper plate 2.0mm Clamping plate 2.0mm Camera side panel 2.0mm Arm 6.0mm |
Base plate 3.0mm Upper plate 2.0mm Clamping plate 3.0mm Camera side panel 2.0mm Arm 6.0mm |
|
Propeller: |
7-inch propellers |
8-inch propellers |
9-inch propellers |
10-inch propellers |
|
Flight Controller Hole Spacing: |
20*20mm(M2), 25.5*25.5mm(M2), 30.5*30.5mm (M3) |
20*20mm(M2), 25.5*25.5mm(M2), 30.5*30.5mm (M3) |
20*20mm(M2), 25.5*25.5mm(M2), 30.5*30.5mm (M3) |
20*20mm(M2), 25.5*25.5mm(M2), 30.5*30.5mm (M3) |
|
Tail Video Transmitter Hole Spacing: |
20*20mm(M2), 25.5*25.5mm(M2), 30.5*30.5mm (M3) |
20*20mm(M2), 25.5*25.5mm(M2), 30.5*30.5mm (M3) |
20*20mm(M2), 25.5*25.5mm(M2), 30.5*30.5mm (M3) |
20*20mm(M2), 25.5*25.5mm(M2), 30.5*30.5mm (M3) |
|
Camera Mounting Width: |
20mm/19mm |
20mm/19mm |
20mm/19mm |
20mm/19mm |
|
Motor Mounting Holes: |
16*16mm(M3) 19*19mm (M3) |
16*16mm(M3) 19*19mm (M3) |
16*16mm(M3) 19*19mm (M3) |
19*19mm (M3) |
|
Print Material: |
3D printed TPU material |
|||
|
Print Color: |
Yellow TPU |
|||
|
GPS Mount Compatible: |
BN220 GPS |
|||
|
Video Transmitter Compatible: |
Compatible with DJI O4 PRO / DJI O3 / VISTA / Analog , etc. |
|||
|
Print List: |
1 pair of side panel lens mounts, 1 universal antenna mount (compatible with dual antennas, single antenna, ELRS915/2.4G, BN220 GPS) |
Package Included:
1 x Pumpkin Frame Kit’Times New Roman’;10.5000pt;1.0000pt;
